COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-82

TROUBLESHOOTING HINTS

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

• Malfunction of the fuel pump module or fuel level

sensor (sub)

• Malfunction of the combination meter

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector.

DIAGNOSIS

Required Special Tool:

• MB991223: Harness Set

STEP 1. Check the fuel pump module.
Check to see if the fuel pump module is normal. Refer to

P.54A-95

.

Q:  Is the fuel pump module normal?

YES : Go to Step 2.
NO :  Replace the fuel pump module (Refer to GROUP

13B, Fuel Tank

P.13B-6

). The fuel gauge should now

operate normally.

STEP 2. Check the fuel level sensor (sub).
Check to see if the fuel level sensor (sub) is normal. Refer to

P.54A-95

.

Q:  Is the fuel level sensor (sub) normal?

YES : Go to Step 3.
NO :  Replace the fuel level sensor (Refer to GROUP 13A,

Fuel Tank

P.13B-6

).

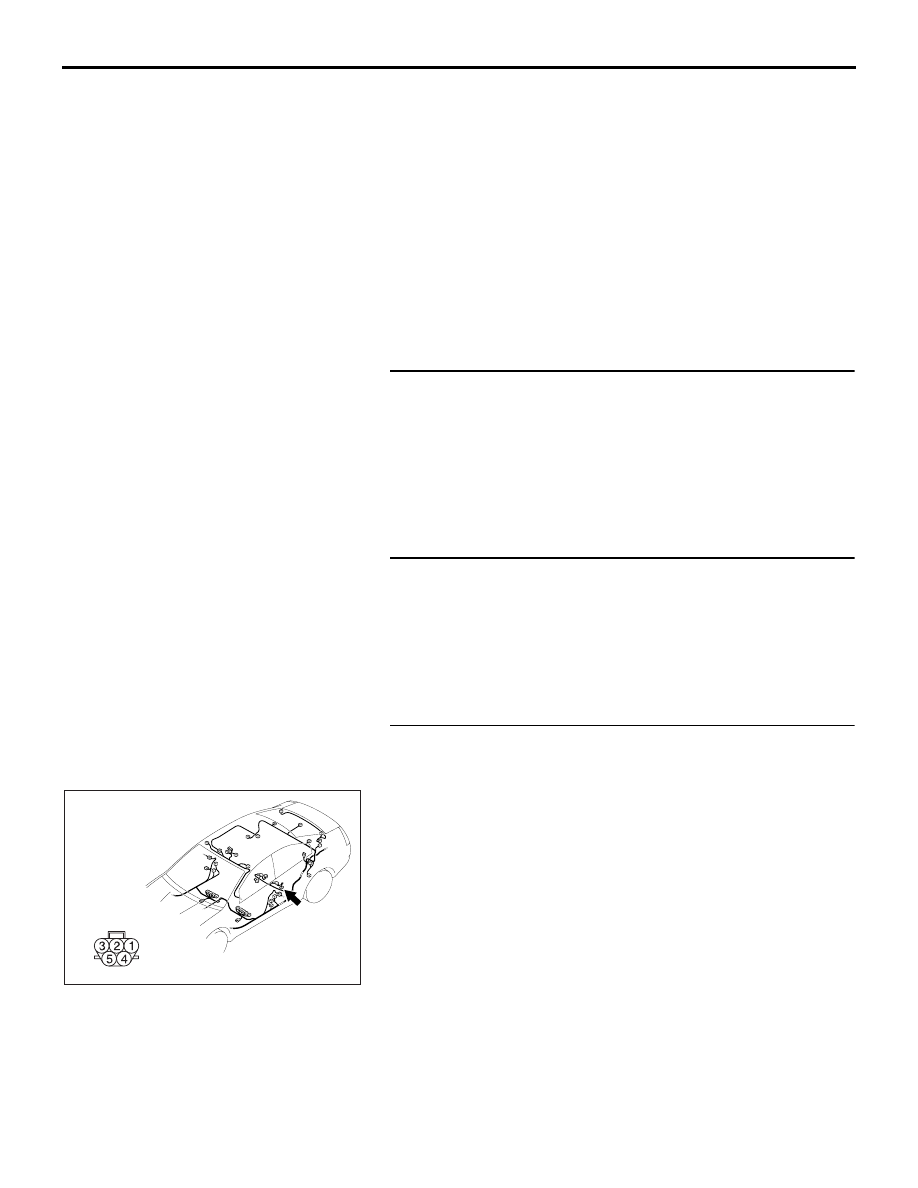

STEP 3. Check fuel pump module connector D-18 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is fuel pump module connector D-18 in good condition?

YES : Go to Step 4.
NO :  Repair or replace the component(s). Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

.

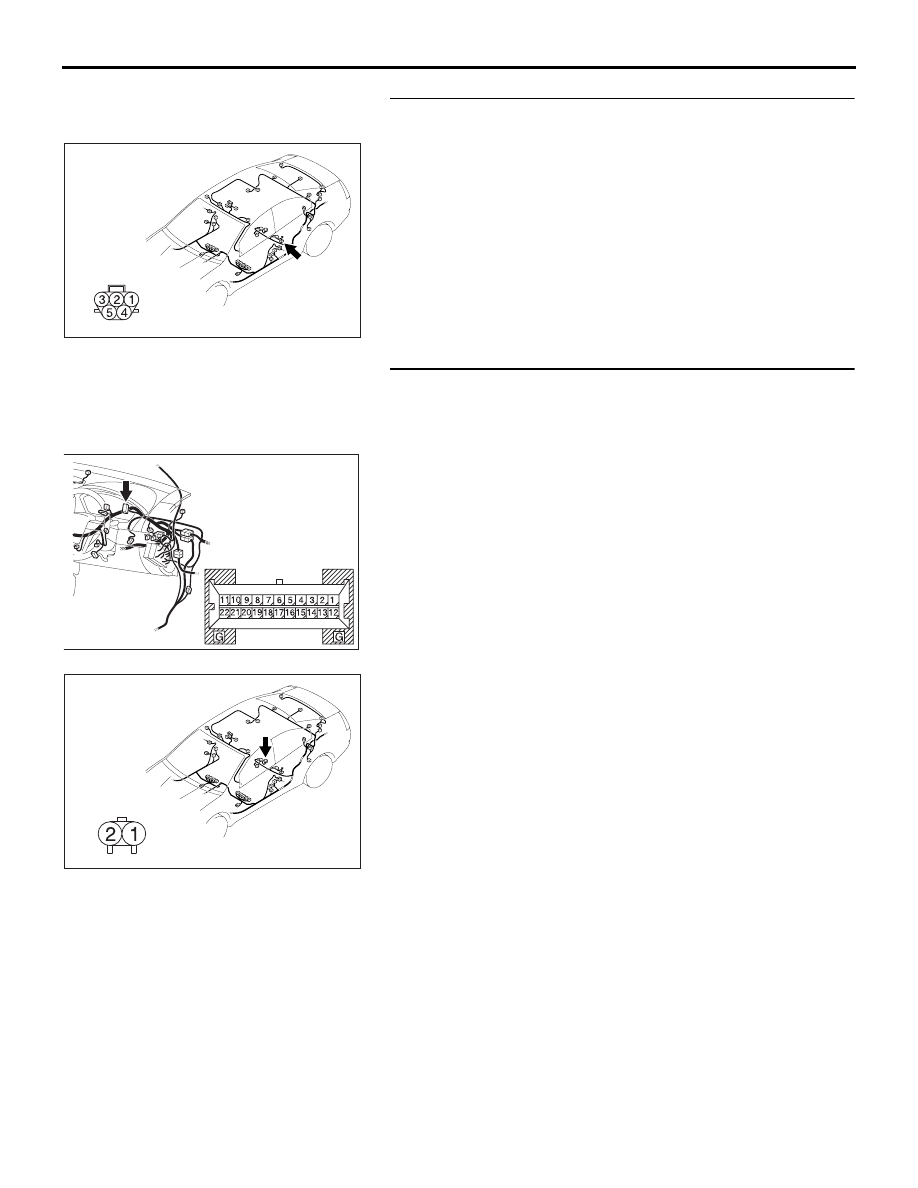

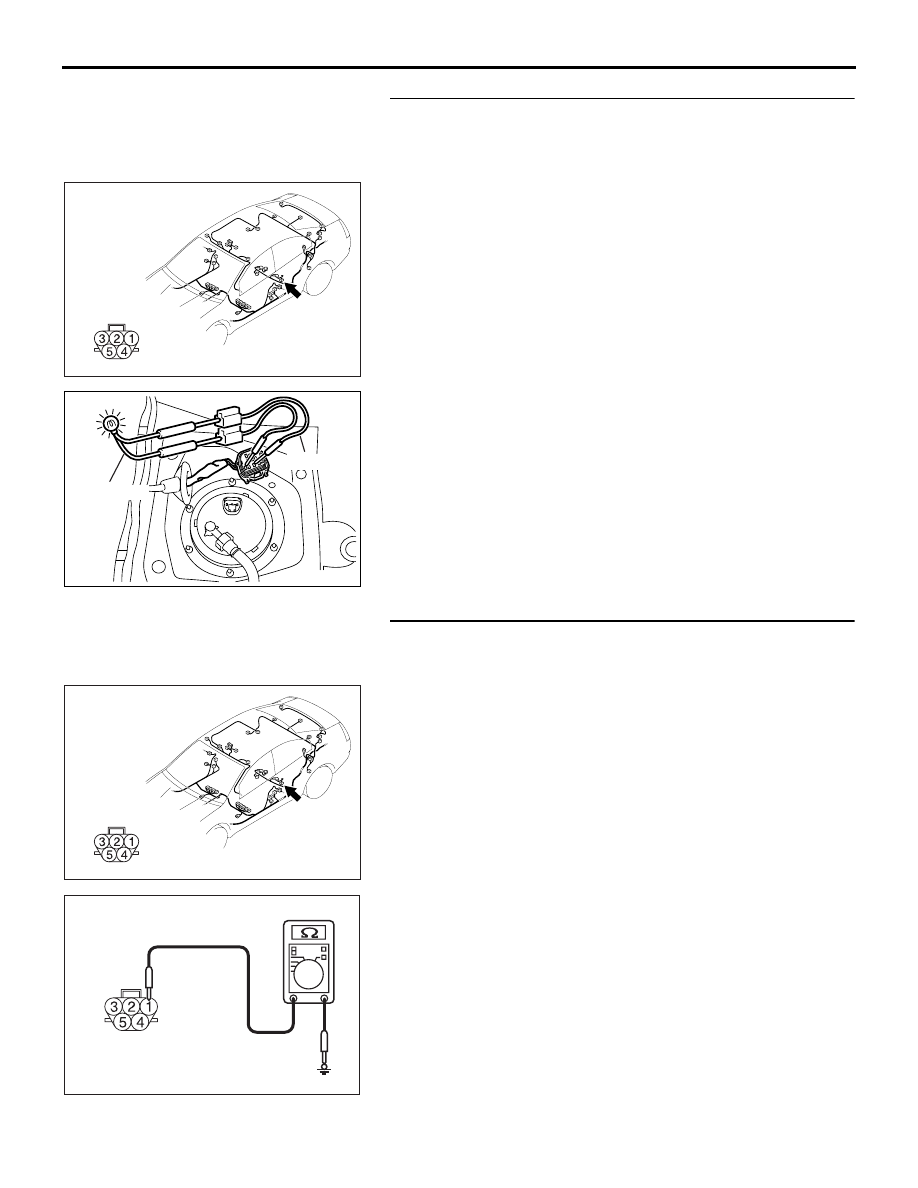

AC305268

D-18 (GR)

AP

CONNECTOR: D-18

HARNESS SIDE

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-83

STEP 4. Test at fuel pump module connector D-18 to check
the power circuit to the fuel pump module.
(1) Remove the rear seat (Refer to GROUP 52A, Rear Seat

Assembly

P.52A-55

).

(2) Use special tool MB991219 to connect a test lamp (12 V -

3.4 W) between the wiring harness connector terminals 1
and 2.

(3) Turn the Ignition switch to "ON" position.
(4) Check if the test lamp illuminates.

OK: Illuminates

Q: Is the check result satisfactory?

YES : Go to Step 11.
NO :  Go to Step 5.

STEP 5. Measure the resistance at fuel pump module
connector D-18 to check the ground circuit to the fuel
pump module.
(1) Disconnect fuel pump module connector D-18, and

measure at the wiring harness side.

(2) Measure the resistance value between terminal 1 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 7.
NO :  Go to Step 6.

AC305268

D-18 (GR)

AP

CONNECTOR: D-18

HARNESS SIDE

AC306950

AB

TEST LAMP

MB991219

AC305268

D-18 (GR)

AP

CONNECTOR: D-18

HARNESS SIDE

AC209364

CONNECTOR D-18
(HARNESS SIDE)

JS

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-84

STEP 6. Check the wiring harness between fuel pump
module connector D-18 (terminal 1) and ground.
Q: Is the wiring harness between fuel pump module

connector D-18 (terminal 1) and ground in good
condition?
YES : Go to Step 7.
NO :  Repair the wiring harness. The fuel gauge should now

operate normally.

STEP 7. Check combination meter connector C-101 and
fuel level sensor (sub) connector D-17 for loose, corroded
or damaged terminals, or terminals pushed back in the
connector.
Q: Is combination meter connector C-101 and fuel level

sensor (sub) connector D-17 in good condition?
YES : Go to Step 8.
NO :  Repair or replace the component(s). Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Then go

to Step 4.

AC305268

D-18 (GR)

AP

CONNECTOR: D-18

HARNESS SIDE

54DB019A

CONNECTOR: C-101

HARNESS SIDE

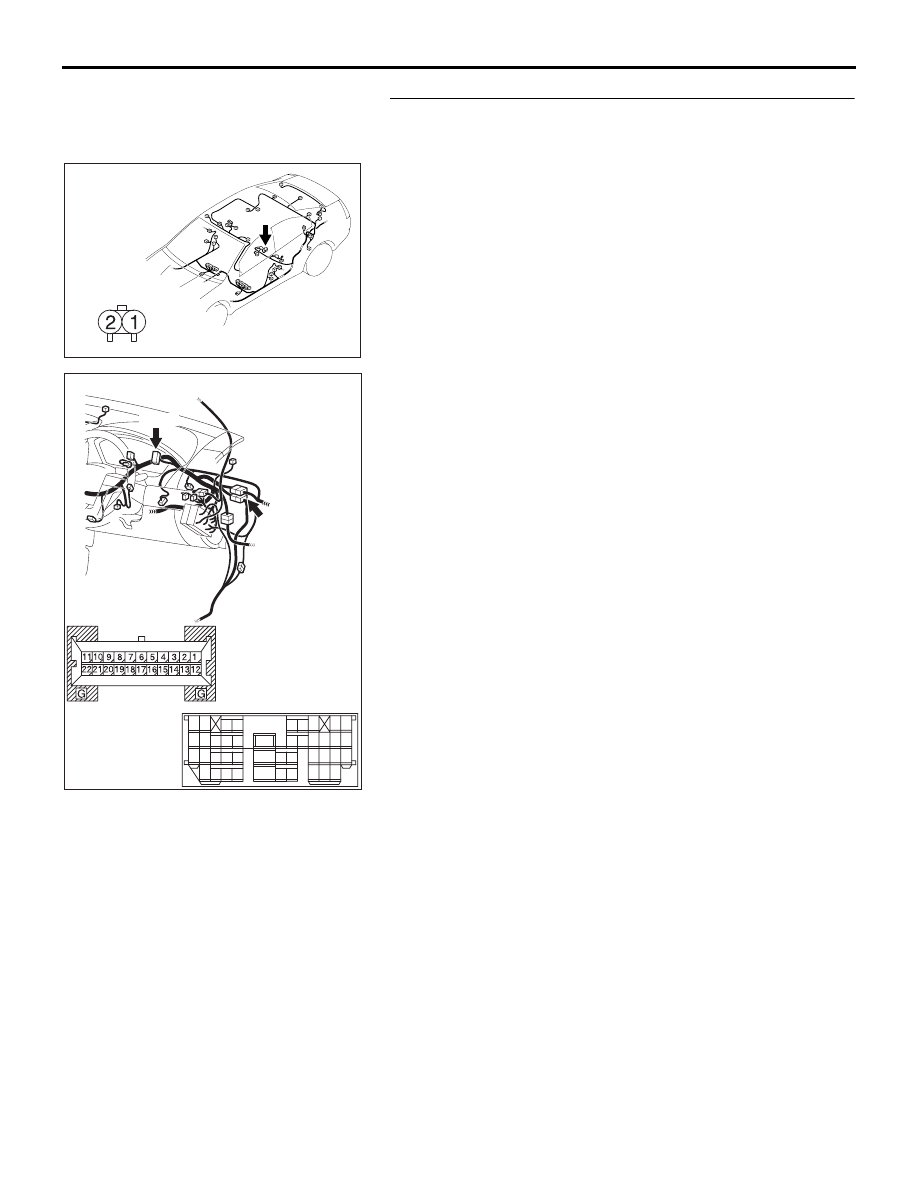

AC305268

AQ

CONNECTOR: D-17

HARNESS SIDE

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-85

STEP 8. Check the wiring harness between combination
meter connector C-101 (terminal 13) and fuel level sensor
(sub) connector D-17 (terminal 2).

NOTE: Also check intermediate connectors C-28 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-28 is damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between combination meter

connector C-101 (terminal 13) and fuel level sensor
(sub) connector D-17 (terminal 2) in good condition?
YES : Go to Step 9.
NO :  Repair the wiring harness. The fuel gauge should now

operate normally.

AC305268

AQ

CONNECTOR: D-17

HARNESS SIDE

54DB031A

CONNECTORS: C-28, C-101

C-28

C-101

C-28

HARNESS SIDE

C-101

9

21

33

35

24

12

3 4

7

8

5 6

39

28

41

30

18

4243

31

1920

32

40

29

1617

38

27

15

37

36

26

14

13

25

2

1

34

23

11

10

22
