IGNITION SWITCH

CHASSIS ELECTRICAL

54A-10

DOOR LOCK PREVENTION FUNCTION
DIAGNOSIS

M1543000701046

The door lock prevention function is controlled by the
Simplified Wiring System (SWS). For troubleshoot-
ing, refer to GROUP 54B, SWS Diagnosis

P.54B-57

.

IMMOBILIZER SYSTEM DIAGNOSIS

INTRODUCTION TO IMMOBILIZER SYSTEM
DIAGNOSIS

M1543009901326

CAUTION

The encrypted code should always be re-regis-
tered when replacing the ETACS-ECU.
The IMMOBILIZER system consists of the
ETACS-ECU, Engine-ECU, ignition key and ignition
key ring antenna. If the engine cannot be started by
using a registered ignition key, one of these compo-
nents may be defective. If the IMMOBILIZER system
has immobilised the engine, MPI system DTC P0513
will be output. In this case, observe the
IMMOBILIZER system troubleshooting.

IMMOBILIZER SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY

M1543006900841

Use the following steps to plan your diagnostic strat-
egy.
1. Gather information about the problem from the

customer.

2. Verify that the condition as described by the

customer exists.

3. Check the vehicle for any IMMOBILIZER system

DTCs.

4. If you cannot verify the condition and there are no

IMMOBILIZER system DTCs, the malfunction is
intermittent. Refer to GROUP 00, How to Use
Troubleshooting/inspection Service Points

− How

to Cope with Intermittent Malfunctions

P.00-14

.

5. If you can verify the condition but there are no

IMMOBILIZER system DTCs, or the system
cannot communicate with diagnostic tool
MB991958, refer to Symptom Chart and find the
fault

P.54A-18

.

6. If there is an IMMOBILIZER system DTC, record

the DTC, then erase it from the memory using
diagnostic tool MB991958.

7. Recreate the IMMOBILIZER system DTC set

conditions to see if the same IMMOBILIZER
system DTC will resets.
(1) If the same IMMOBILIZER system DTC

resets, perform the appropriate diagnostic
procedure. Refer to Diagnostic Trouble Code
Chart

P.54A-13

.

(2) If the same IMMOBILIZER system DTC does

not reset, the malfunction is intermittent. Refer
to GROUP 00, How to Use
Troubleshooting/inspection Service Points

−

How to Cope with Intermittent Malfunctions

P.00-14

.

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-11

DIAGNOSIS FUNCTION

M1543007000443

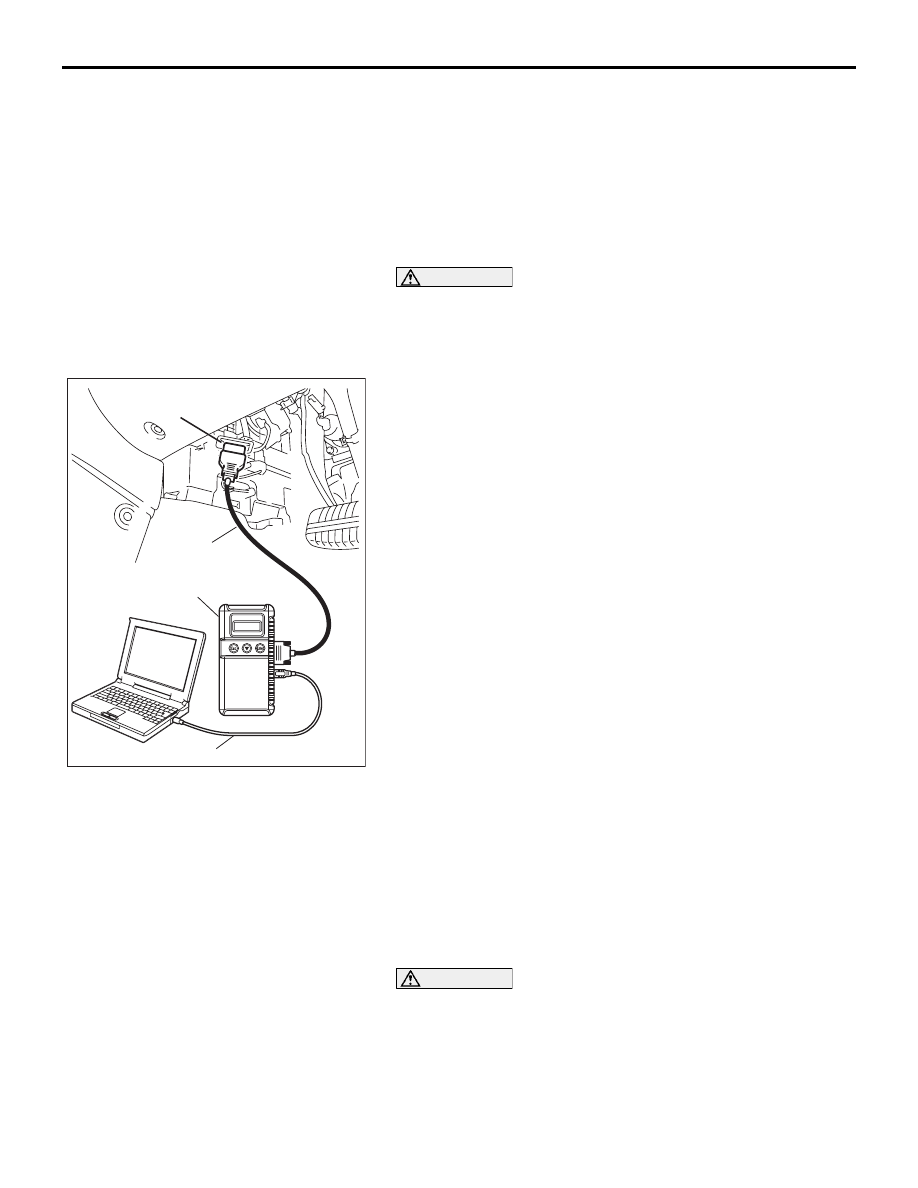

HOW TO CONNECT DIAGNOSTIC TOOL (MUT-III)

Required Special Tools:

• MB991958: Diagnostic Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehicles with CAN

communication system)

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958.
1. Ensure that the ignition switch is at the "LOCK" (OFF)

position.

2. Start up the personal computer.

3. Connect special tool MB991827 to special tool MB991824

and the personal computer.

4. Connect special tool MB991910 to special tool MB991824.

5. Connect special tool MB991910 to the data link connector.

6. Turn the power switch of special tool MB991824 to the "ON"

position.

NOTE: When special tool MB991824 is energized, special
tool MB991824 indicator lamp will be illuminated in a green
color.

7. Start the MUT-III system on the personal computer.

NOTE: Disconnecting the diagnostic tool MB991958 is the
reverse of the connecting sequence, making sure that the
ignition switch is at the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC
TROUBLE CODES

Required Special Tools:

• MB991958: Diagnostic Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehicles with CAN

communication system)

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958.

NOTE: If the battery voltage is low, diagnostic trouble codes will
not be set. Check the battery if diagnostic tool MB991958 does
not display.

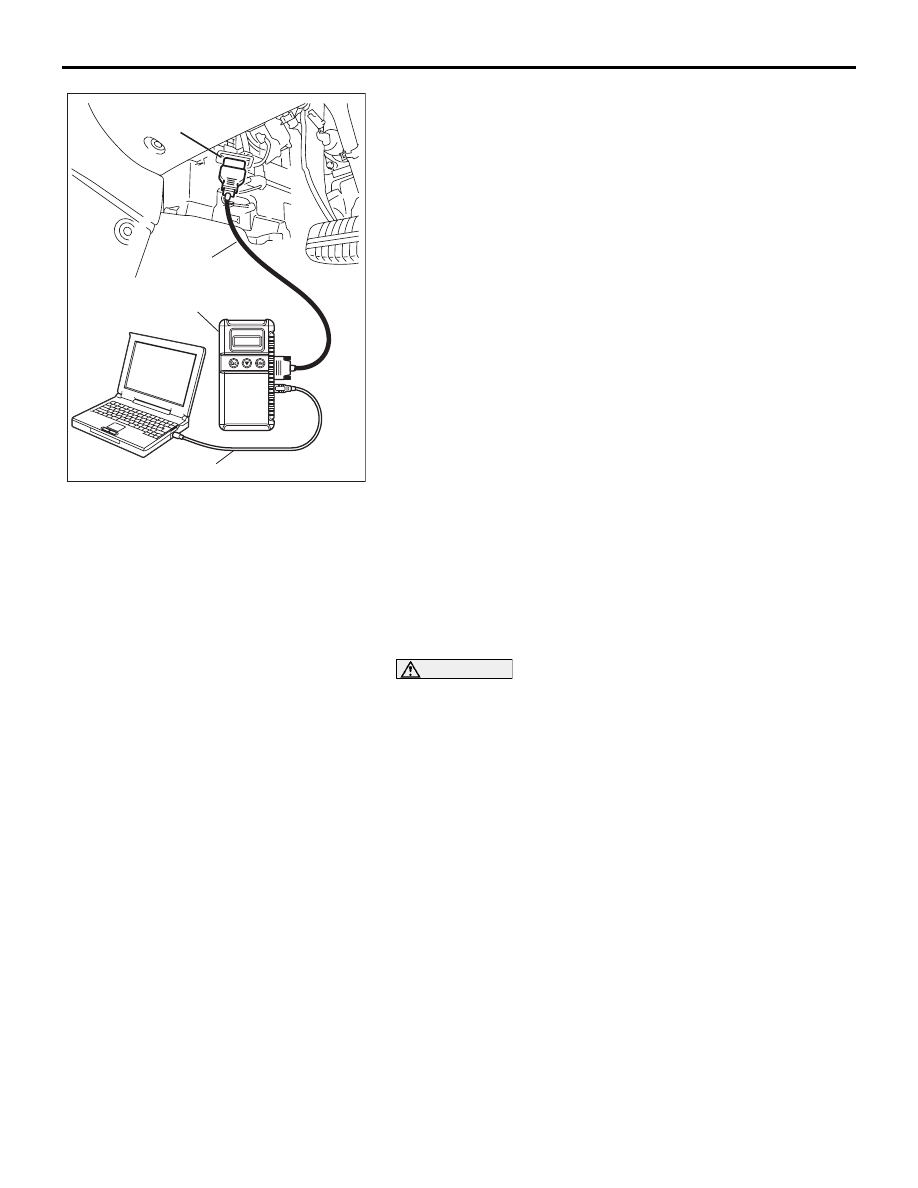

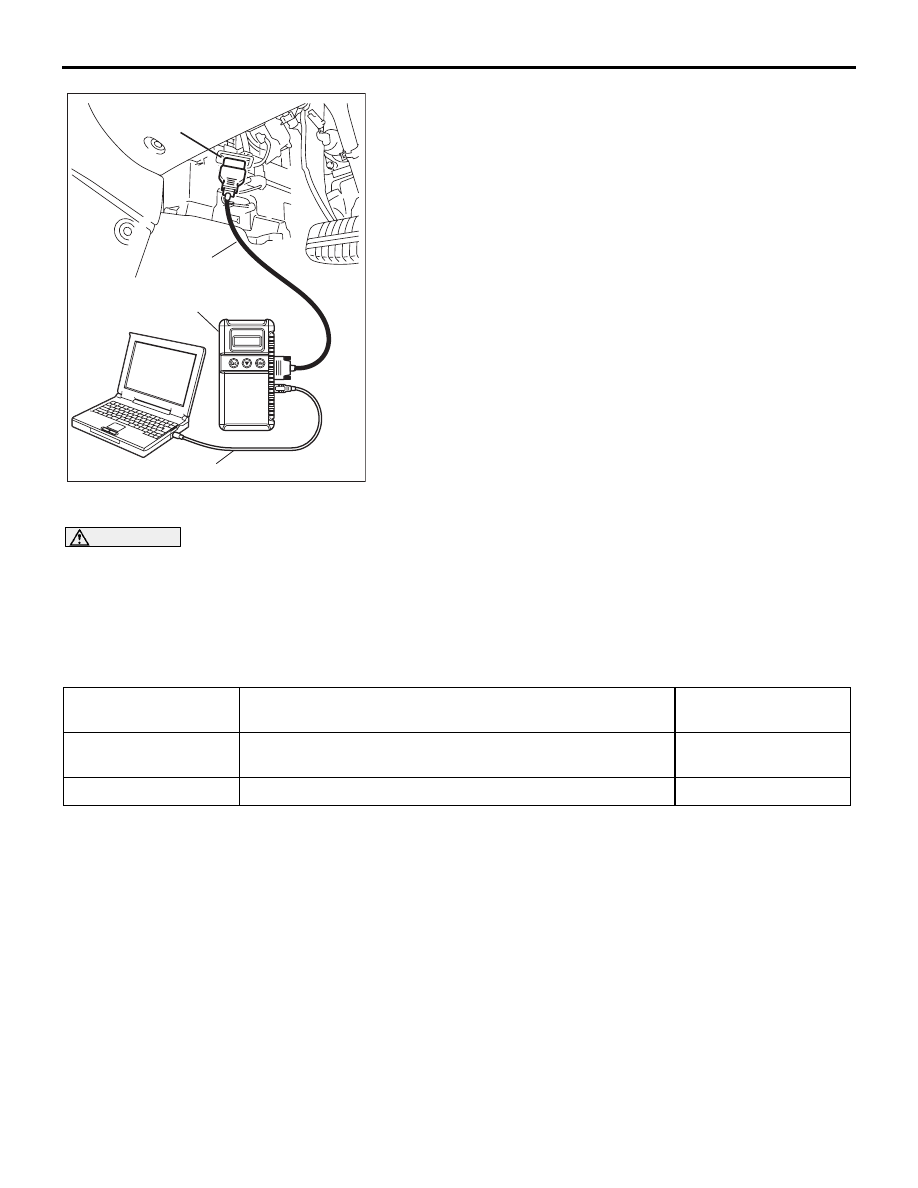

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-12

1. Connect diagnostic tool MB991958 to the data link

connector.

2. Turn the ignition switch to "ON" position.

3. Select "Interactive Diagnosis" from the start-up screen.

4. Select "System select."

5. Choose "IMMOBILIZER" .

6. Select "Self-diagnosis."

7. If a DTC is set, it is shown.

8. Choose "Erase DTCs" to erase the DTC.

HOW TO READ DATA LIST

Required Special Tools:

• MB991958: Diagnostic Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehicles with CAN

communication system)

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

IGNITION SWITCH

CHASSIS ELECTRICAL

54A-13

1. Connect diagnostic tool MB991958 to the data link

connector.

2. Turn the ignition switch to "ON" position.

3. Select "Interactive Diagnosis" from the start-up screen.

4. Select "System select."

5. Choose "IMMOBILIZER".

6. Select "Data List."

7. Choose an appropriate item and select the "OK" button.

DIAGNOSTIC TROUBLE CODE CHART

M1543007100439

CAUTION

During diagnosis, a DTC code associated with
other system may be set when the ignition switch
is turned on with connector(s) disconnected. On
completion, confirm all systems for DTC code(s).
If DTC code(s) are set, erase them all.
Use the following chart to develop proper diagnostic
strategy.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

DIAGNOSTIC
TROUBLE CODE NO.

DESCRIPTION

REFERENCE PAGE

11

Transponder communication system or radio interference
of encrypted code.

P.54A-14

12

Encrypted codes are not the same or not registered.

P.54A-18
