CHASSIS ELECTRICAL

54A-2

COMBINATION METER
ASSEMBLY . . . . . . . . . . . . . . . . . . . .

GENERAL DESCRIPTION . . . . . .

COMBINATION METERS
DIAGNOSIS . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING STRATEGY . . .

DIAGNOSIS FUNCTION . . . . . . . . . . . .

DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE
PROCEDURES . . . . . . . . . . . . . . . . . . .

SYMPTOM CHART . . . . . . . . . . . . . . . .

SYMPTOM PROCEDURES . . . . . . . . .

COMBINATION METER TERMINAL
CHECK . . . . . . . . . . . . . . . . . . . . . . . . .

SPECIAL TOOLS. . . . . . . . . . . . . .

ON-VEHICLE SERVICE. . . . . . . . .

SPEEDOMETER CHECK . . . . . . . . . . .

TACHOMETER CHECK . . . . . . . . . . . .

FUEL LEVEL SENSOR CHECK . . . . . .

TRIP COMPUTER . . . . . . . . . . . . .

GENERAL DESCRIPTION . . . . . . . . . .

TROUBLESHOOTING STRATEGY . . .

SERVICE SPECIFICATIONS . . . . . . . .

DIAGNOSIS FUNCTION . . . . . . . . . . . .

TROUBLE SYMPTOM CHECKS . . . . . .

SYMPTOM CHART . . . . . . . . . . . . . . . .

INSPECTION CHART FOR TROUBLE
SYMPTOMS . . . . . . . . . . . . . . . . . . . . .

SYMPTOM PROCEDURES . . . . . . . . .

COMBINATION METER
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . .

REMOVAL AND INSTALLATION . . . . .

DISASSEMBLY AND ASSEMBLY. . . . .

HEADLAMP AND POSITION
LAMP ASSEMBLY . . . . . . . . .

HEADLAMP DIAGNOSIS . . . . . . .

ON-VEHICLE SERVICE. . . . . . . . .

HEADLAMP AIMING . . . . . . . . . . . . . . .

LUMINOUS INTENSITY

MEASUREMENT . . . . . . . . . . . . . . . . . .

BULB REPLACEMENT
<PROJECTOR TYPE>. . . . . . . . . . . . . .

HEADLAMP AND FRONT
COMBINATION LAMP . . . . . . . . . .

REMOVAL AND INSTALLATION. . . . . .

FOG LAMP . . . . . . . . . . . . . . . .

FOG LAMP DIAGNOSIS . . . . . . . .

ON-VEHICLE SERVICE . . . . . . . . .

FOG LAMP AIMING . . . . . . . . . . . . . . . .

BULB REPLACEMENT . . . . . . . . . . . . .

FOG LAMP . . . . . . . . . . . . . . . . . . .

REMOVAL AND INSTALLATION. . . . . .

INSPECTION . . . . . . . . . . . . . . . . . . . . .

REAR COMBINATION
LAMP . . . . . . . . . . . . . . . . . . . .

DIAGNOSIS . . . . . . . . . . . . . . . . . .

REAR COMBINATION LAMP . . . .

REMOVAL AND INSTALLATION. . . . . .

DOME LAMP. . . . . . . . . . . . . . . . . . . .

DIAGNOSIS . . . . . . . . . . . . . . . . . .

SPECIAL TOOLS . . . . . . . . . . . . . .

DOME LAMP . . . . . . . . . . . . . . . . .

REMOVAL AND INSTALLATION. . . . . .

LICENSE PLATE LAMP . . . . .

REMOVAL AND INSTALLATION .

Continued on next page

54A-3

HIGH-MOUNTED
STOPLAMP . . . . . . . . . . . . . . . . . . . .

REMOVAL AND INSTALLATION .

HAZARD WARNING LAMP
SWITCH . . . . . . . . . . . . . . . . . .

HAZARD WARNING LAMP
DIAGNOSIS . . . . . . . . . . . . . . . . . .

HAZARD WARNING LAMP
SWITCH . . . . . . . . . . . . . . . . . . . . .

REMOVAL AND INSTALLATION . . . . .

INSPECTION . . . . . . . . . . . . . . . . . . . . .

COLUMN SWITCH. . . . . . . . . .

REMOVAL AND INSTALLATION .

HORN . . . . . . . . . . . . . . . . . . . .

DIAGNOSIS <VEHICLE WITH
KEYLESS ENTRY SYSTEM> . . . .

HORN . . . . . . . . . . . . . . . . . . . . . . .

REMOVAL AND INSTALLATION . . . . .

INSPECTION . . . . . . . . . . . . . . . . . . . . .

ACCESSORY SOCKET. . . . . .

REMOVAL AND INSTALLATION .

RADIO WITH CD PLAYER* . . .

GENERAL DESCRIPTION . . . . . . .

RADIO WITH CD PLAYER, SPEAKER
AND ANTENNA DIAGNOSIS. . . . .

INTRODUCTION TO AUDIO SYSTEM
DIAGNOSIS . . . . . . . . . . . . . . . . . . . . . .

AUDIO SYSTEM DIAGNOSTIC
TROUBLESHOOTING STRATEGY . . . .

TROUBLE SYMPTOM CHART . . . . . . .

SYMPTOM PROCEDURES . . . . . . . . . .

ON-VEHICLE SERVICE . . . . . . . . .

SPEAKER TEST
(Vehicles with seven speakers) . . . . . . .

SPECIAL TOOL . . . . . . . . . . . . . . .

RADIO WITH CD PLAYER. . . . . . .

REMOVAL AND INSTALLATION. . . . . .

REMOTE CONTROLLED RADIO
SWITCH . . . . . . . . . . . . . . . . . . . . .

REMOVAL AND INSTALLATION. . . . . .

INSPECTION . . . . . . . . . . . . . . . . . . . . .

SPEAKER . . . . . . . . . . . . . . . . . . . .

REMOVAL AND INSTALLATION. . . . . .

ANTENNA. . . . . . . . . . . . . . . . . . . .

REMOVAL AND INSTALLATION. . . . . .

Continued on next page

CHASSIS ELECTRICAL

54A-4

DEFOGGER . . . . . . . . . . . . . . . . . . . .

GENERAL DESCRIPTION . . . . . .

DEFOGGER DIAGNOSIS . . . . . . .

ON-VEHICLE SERVICE. . . . . . . . .

PRINTED-HEATER LINES CHECK . . .

REAR WINDOW DEFOGGER
SWITCH . . . . . . . . . . . . . . . . . . . . .

REMOVAL AND INSTALLATION . . . . .

INSPECTION . . . . . . . . . . . . . . . . . . . . .

CLOCK DISPLAY . . . . . . . . . .

CLOCK DISPLAY DIAGNOSIS . . .

REMOVAL AND INSTALLATION . . . . . . . .

MULTI-CENTER DISPLAY . . . . . . . .

GENERAL DESCRIPTION . . . . . .

DIAGNOSIS FUNCTION . . . . . . . .

DIAGNOSTIC TROUBLE CODE
CHART . . . . . . . . . . . . . . . . . . . . . .

DIAGNOSTIC TROUBLE CODE
PROCEDURES . . . . . . . . . . . . . . .

DIAGNOSIS . . . . . . . . . . . . . . . . . .

SYMPTOM PROCEDURES . . . . . . . . . .

ON-VEHICLE SERVICE . . . . . . . . .

AMBIENT AIR TEMPERATURE UNIT
CUSTOMIZATION (MIDDLE GRADE
TYPE) . . . . . . . . . . . . . . . . . . . . . . . . . . .

CHECK AT MULTI CENTER DISPLAY
UNIT TERMINAL . . . . . . . . . . . . . . . . . .

SPECIAL TOOLS . . . . . . . . . . . . . .

MULTI-CENTER DISPLAY. . . . . . .

REMOVAL AND INSTALLATION. . . . . .

AMBIENT TEMPERATURE
SENSOR. . . . . . . . . . . . . . . . . .

INSPECTION . . . . . . . . . . . . . . . . .

PANIC ALARM. . . . . . . . . . . . .

REMOVAL AND INSTALLATION .

SPECIFICATIONS . . . . . . . . . .

FASTENER TIGHTENING
SPECIFICATIONS . . . . . . . . . . . . .

SERVICE SPECIFICATIONS . . . . .

BATTERY

CHASSIS ELECTRICAL

54A-5

BATTERY

ON-VEHICLE SERVICE

BATTERY CHECK

M1541001000450

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

BATTERY VISUAL INSPECTION (1)

1. Ensure that the battery electrolyte level is between A and B

shown in the figure. Add if the level is lower than the
specified range.

2. Use a hydrometer and temperature gauge to check the

specific gravity of the electrolyte.

Standard value:

1.220

− 1.290 [ at 20°C]

The specific gravity of electrolyte depends on its temperature.
Use the formula below to determine the proper value.

Conversion on centigrade

D

20

=(t

− 20) x 0.0007 + Dt

D

20

: Specific gravity as if electrolyte temperature is 20

°C

D

t

: Measured specific gravity

t : Measured temperature

BATTERY VISUAL INSPECTION (2)

Make sure the ignition switch is in "LOCK" (OFF) position and
all battery feed accessories are OFF.
1. Disconnect the negative cable from the battery before

disconnecting the positive cable.

WARNING

Care should be taken in the event the battery case is
cracked or leaking to protect hands from the electro-
lyte. A suitable pair of rubber gloves (not the house-
hold type) should be worn when removing battery by
hand.

2. Remove the battery from the vehicle.

3. Inspect battery carrier for damage caused by loss of acid

from the battery. If acid damage is present, it is necessary to
clean area with a solution of clean warm water and baking
soda. Scrub area with a stiff bristle brush. Wipe clean with a
cloth moistened with ammonia or baking soda in water.

4. Clean the battery, especially the top with same solutions as

described in step 3.

5. Inspect the battery case and cover for cracks. If cracks are

present, battery must be replaced.

6. Clean the battery post with a suitable battery post cleaning

tool.

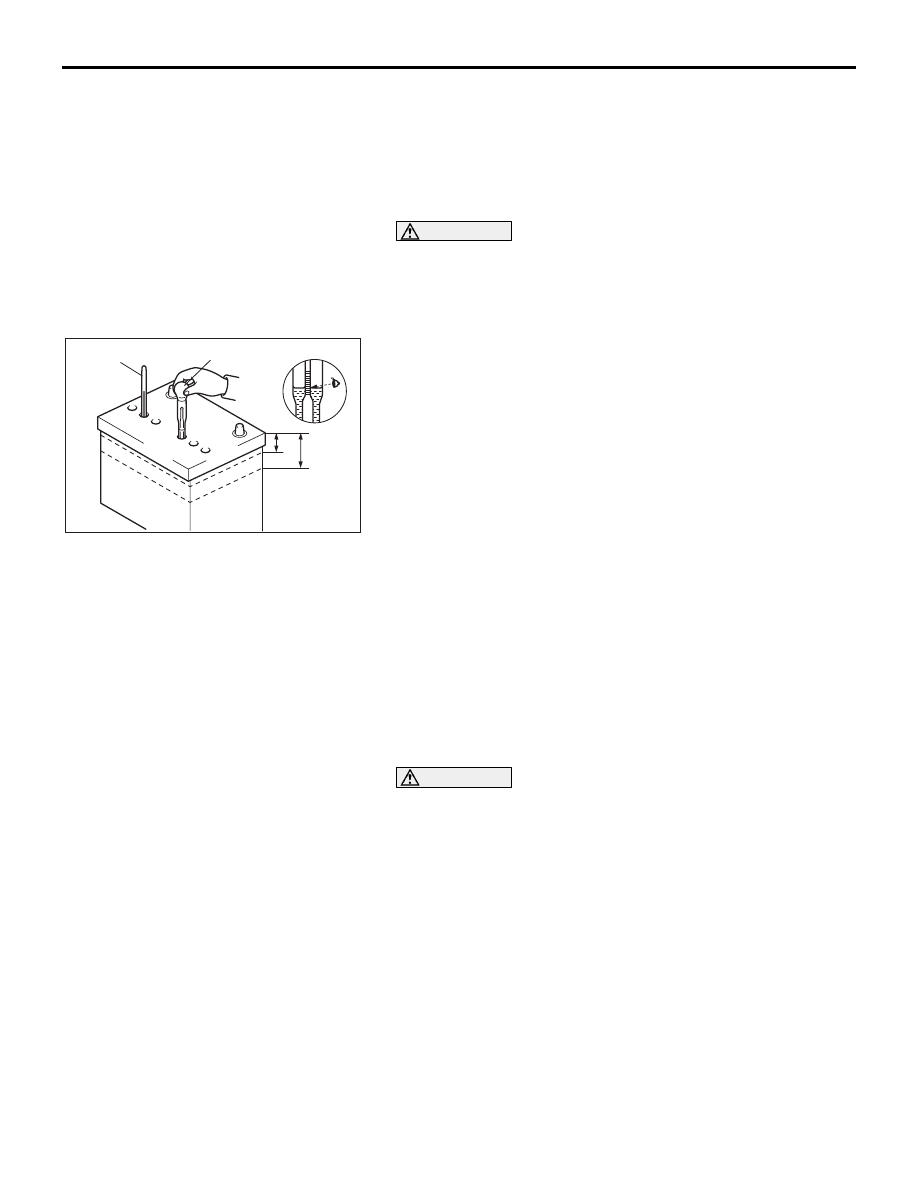

AC208957

A

B

AB

HYDROMETER

TEMPERATURE

GAUGE

A: 27(1.1)
B: 35(1.4)

mm (in)
