GROUP 31

WHEEL AND TYRE

CONTENTS

WHEEL AND TYRE DIAGNOSIS  . . .

31-2

DIAGNOSIS  . . . . . . . . . . . . . . . . . . . . . . . .

31-2

WHEEL BALANCE ACCURACY  . . . . . . . .

31-3

ON-VEHICLE SERVICE. . . . . . . . . . .

31-7

TYRE INFLATION PRESSURE CHECK  . .

31-7

TYRE WEAR CHECK . . . . . . . . . . . . . . . . .

31-7

WHEEL RUNOUT CHECK . . . . . . . . . . . . .

31-7

WHEEL AND TYRE  . . . . . . . . . . . . . .

31-7

INSTALLATION SERVICE POINT  . . . . . . .

31-7

SPECIFICATIONS  . . . . . . . . . . . . . . .

31-8

FASTENER TIGHTENING SPECIFICATION

31-8

GENERAL SPECIFICATIONS  . . . . . . . . . .

31-8

SERVICE SPECIFICATIONS  . . . . . . . . . . .

31-8

HOME

WHEEL AND TYRE DIAGNOSIS

WHEEL AND TYRE

31-2

WHEEL AND TYRE DIAGNOSIS

DIAGNOSIS

M1311000700404

SYMPTOM

PROBABLE CAUSE

REMEDY

REFERENCE
PAGE

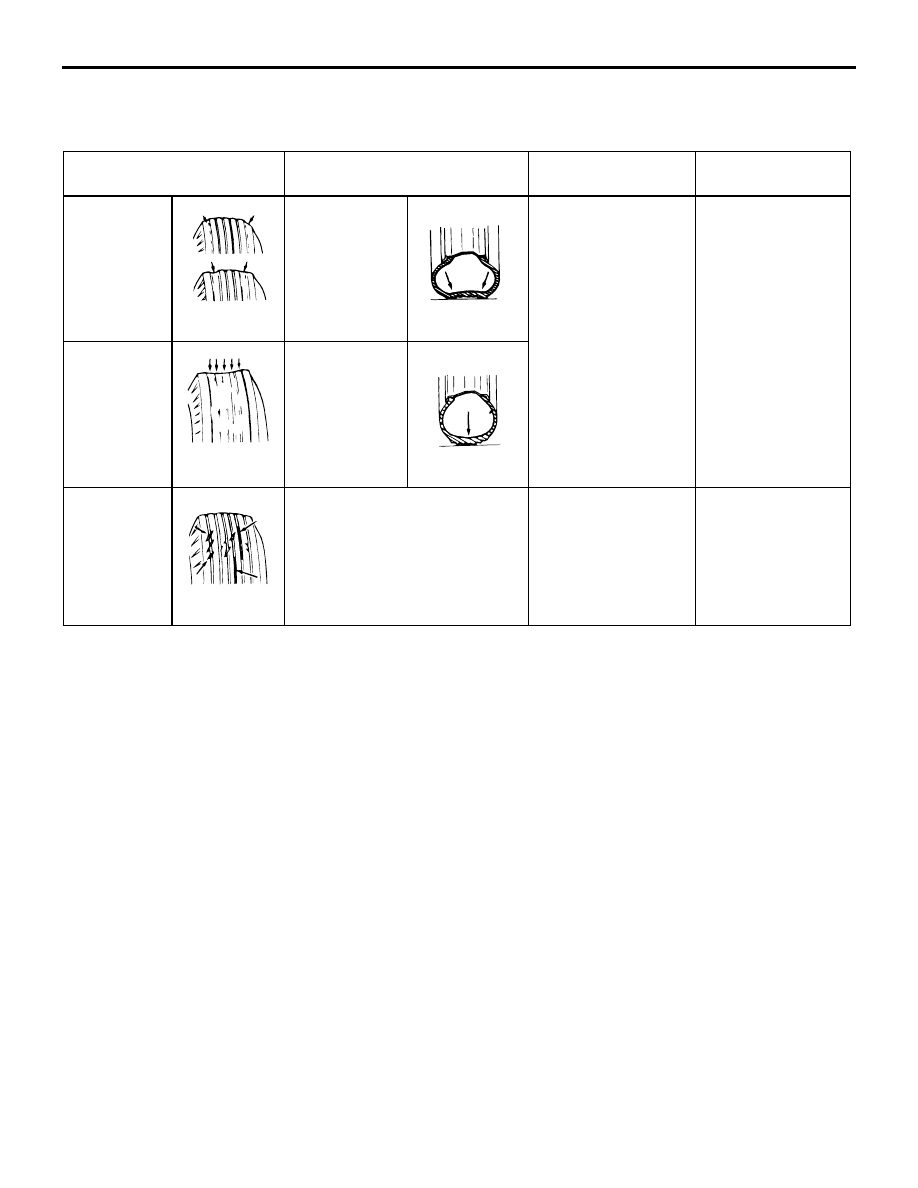

Rapid wear
at shoulders

Under-inflation
or lack of
rotation

Adjust the tyre
pressure.

For tyre inflation
pressure, refer to
the label on the
driver's side center
pillar.

Rapid wear
at center

Over-inflation
or lack of
rotation

Cracked
treads

Under-inflation

Adjust the tyre
pressure.

For tyre inflation
pressure, refer to
the label on the
driver's side center
pillar.

ACX00923AB

ACX00924AB

ACX00925AB

ACX00926AB

ACX00927AB

WHEEL AND TYRE DIAGNOSIS

WHEEL AND TYRE

31-3

WHEEL BALANCE ACCURACY

M1311001700258

PURPOSE

This section contains tips and procedures for achiev-
ing accurate wheel balance. Steering wheel vibration
and/or body shake can result if any of these proce-
dures are not carefully observed.
1. Wheels and tyres must be properly mounted on a

balancer in order to achieve correct balance.
Centering the wheel on the shaft of the balancer is
essential for proper mounting.

2. Off-the-car wheel balancers must be calibrated

periodically to ensure good balancing results. An
inaccurately calibrated balancer could cause
unnecessary replacement of tyres, shocks,
suspension components, or steering components.

Check your balancer's calibration approximately
every 100 balances. Your wheel balancer's instruc-
tion manual should include calibration procedures. If
the calibration procedures specifically for your bal-
ancer are missing, use the generic steps in this sec-
tion for zero calibration, static balance, and dynamic
balance checks. The wheel balancer calibration
checks are also described in the flowchart. (Refer to

P.31-6

.)

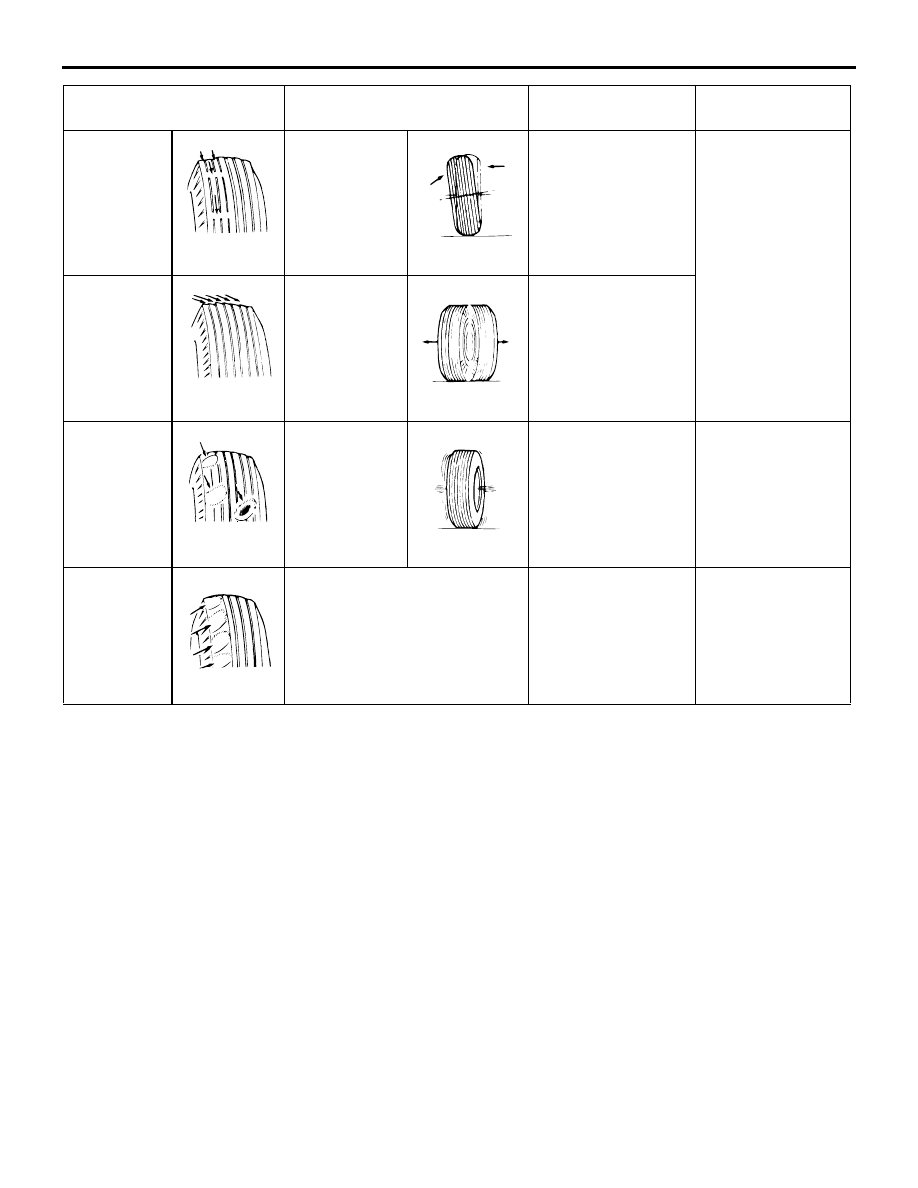

Wear on one
side

Excessive
camber

Check the camber.

Refer to GROUP
33, On-vehicle
Service

− Front

Wheel Alignment
Check and
Adjustment

P.33-6

.

Feathered
edge

Incorrect toe-in

Adjust the toe-in.

Bald spots

Unbalanced
wheel

Balance the wheels.

−

Scalloped
wear

Lack of rotation of tyres or worn
or out-of-alignment suspension

Rotate the tyres, and
check the front
suspension
alignment.

Refer to GROUP
33, On-vehicle
Service

− Front

Wheel Alignment
Check and
Adjustment

P.33-6

.

SYMPTOM

PROBABLE CAUSE

REMEDY

REFERENCE
PAGE

ACX00928AB

ACX00929AB

ACX00930AB

ACX00931AB

ACX00932AB

ACX00933 AB

ACX00934
