POWER STEERING HOSES

POWER STEERING

37-46

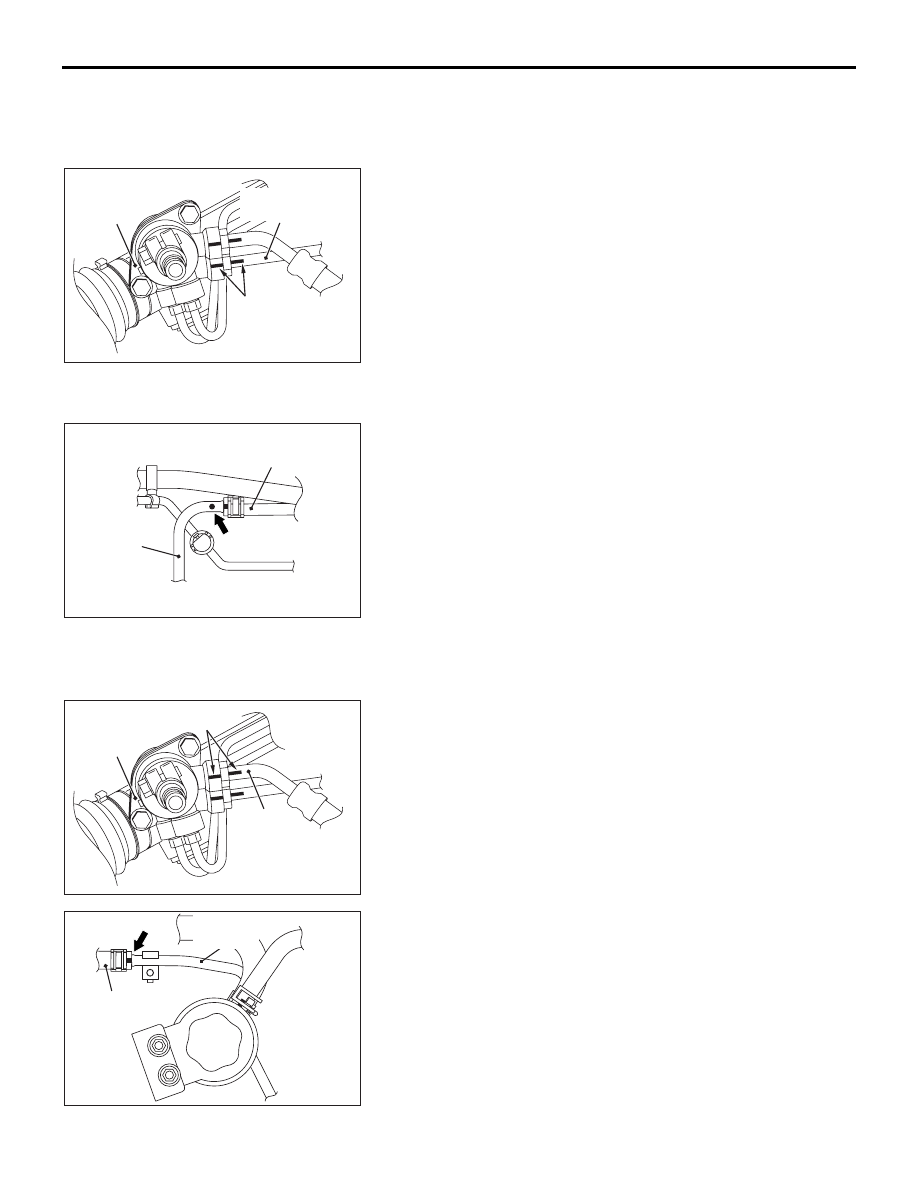

INSTALLATION SERVICE POINTS

.

>>A<< PRESSURE TUBE ASSEMBLY/PRESSURE
HOSE INSTALLATION

Align the markings as shown in the illustration and tighten the
nut.

.

>>B<< RETURN TUBE (R) INSTALLATION

Install the return tube (R) so that the marking is positioned as
shown in the illustration.

.

>>C<< RETURN TUBE ASSEMBLY
INSTALLATION

1. Install the return tube assembly so that the marking is

positioned as shown in the illustration.

2. Align the markings as shown in the illustration and tighten

the nut.

.

AC307218

MARKING

AB

STEERING
GEAR
ASSEMBLY

PRESSURE TUBE
ASSEMBLY

AC205020

AB

RETURN
TUBE (R)

RETURN
HOSE (R)

AC307218

MARKING

RETURN
TUBE
ASSEMBLY

AC

STEERING
GEAR
ASSEMBLY

AC205021

RETURN TUBE
ASSEMBLY

RETURN
TUBE (R)

AB

POWER STEERING HOSES

POWER STEERING

37-47

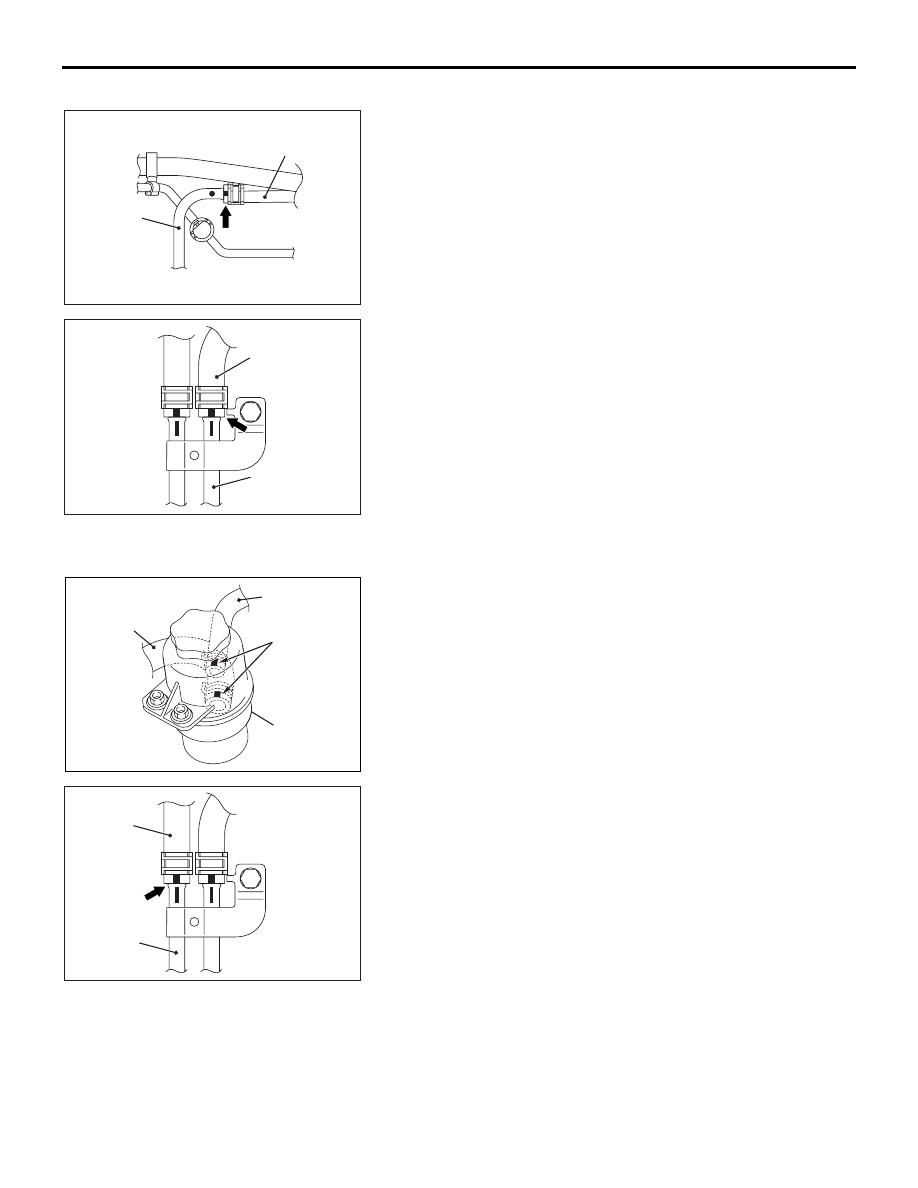

>>D<< RETURN HOSE (R) INSTALLATION

Install the return hose (R) so that the markings are positioned
as shown in the illustration.

.

>>E<< RETURN HOSE (M) INSTALLATION

Install the return hose (M) so that the markings are positioned
as shown in the illustration.

.

AC205020

RETURN
HOSE (R)

RETURN
TUBE (R)

AC

AC205025

RETURN
HOSE (R)

COOLER TUBE
ASSEMBLY

AB

AC307226AB

MARKING

SUCTION
HOSE

RETURN
HOSE (M)

OIL
RESERVOIR

AC205025

AC

RETURN
HOSE (M)

COOLER TUBE
ASSEMBLY

POWER STEERING HOSES

POWER STEERING

37-48

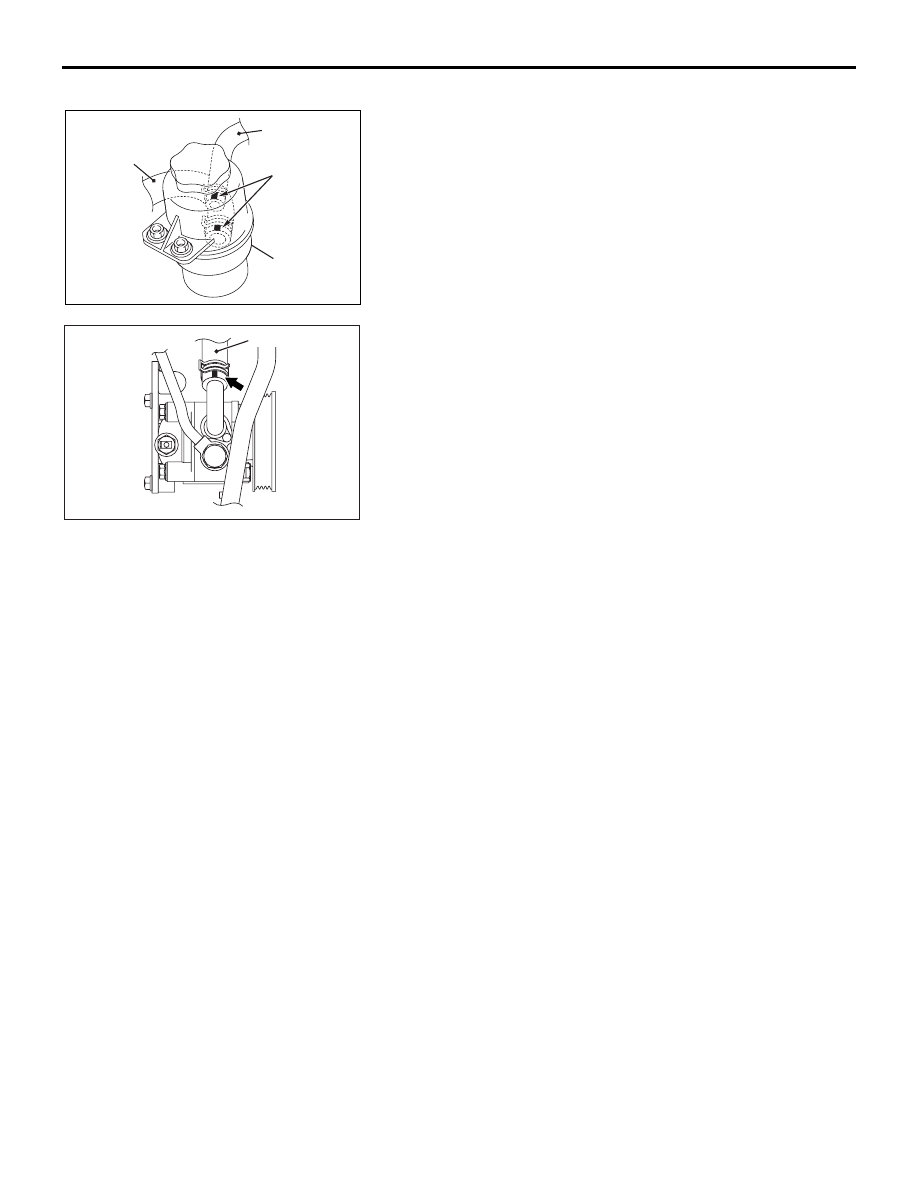

>>F<< SUCTION HOSE INSTALLATION

Install the suction hose so that the marking is positioned as
shown in the illustration.

AC307226AB

MARKING

SUCTION
HOSE

RETURN
HOSE (M)

OIL
RESERVOIR

AC205022

SUCTION HOSE

AD

<3.8L ENGINE>

SPECIFICATIONS

POWER STEERING

37-49

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1372008400310

ITEM

SPECIFICATION

Power steering gear box and linkage (removal and installation)

Crossmember mounting bolt

180

± 20 N⋅m (133 ± 14 ft-lb)

Crossmember mounting nut

180

± 20 N⋅m (133 ± 14 ft-lb)

Front axle crossmember stay mounting bolt and nut

83

± 12 N⋅m (61 ± 9 ft-lb)

Lower arm and crossmember connecting nut

165

± 15 N⋅m (122 ± 11 ft-lb)

Power steering gear bracket mounting bolt

58

± 7 N⋅m (43 ± 5 ft-lb)

Pressure tube flare nut

15

± 3 N⋅m (11 ± 2 ft-lb)

Pressure hose mounting bolt and nut

12

± 2 N⋅m (102 ± 22 in-lb)

Rear roll stopper mounting bolt

58

± 7 N⋅m (43 ± 5 ft-lb)

Rear roll stopper to power steering gear bracket connecting bolt

58

± 7 N⋅m (43 ± 5 ft-lb)

Rear roll stopper to rear roll stopper bracket connecting nut

69

± 10N⋅m

Return tube flare nut

15

± 3 N⋅m (11 ± 2 ft-lb)

Return tube mounting bolt and nut

12

± 2 N⋅m (102 ± 22 in-lb)

Steering column assembly and steering gear connecting bolt

18

± 2 N⋅m (13 ± 2 ft-lb)

Steering gear and linkage mounting bolt

83

± 12 N⋅m (61 ± 9 ft-lb)

Steering gear and linkage protector mounting bolt

12

± 2 N⋅m (102 ± 22 in-lb)

Tie rod

89

± 9 N⋅m (65 ± 7 ft-lb)

Tie rod end jam nut

52

± 2 N⋅m (38 ± 2 ft-lb)

Tie rod end to knuckle self-locking nut

29

± 4 N⋅m (21 ± 3 ft-lb)

Power steering gear box and linkage (disassembly and assembly)

P/S oil feed tube assembly flare nut

13

± 3 N⋅m (116 ± 26 in-lb)

Steering gear inner nut (pinion and valve assembly jam nut)

25

± 4 N⋅m (18 ± 3 ft-lb)

Steering gear inner nut (rack support cover jam nut)

59

± 10 N⋅m (44 ± 7 ft-lb)

Steering gear nut (tie rod end jam nut)

52

± 2 N⋅m (38 ± 2 ft-lb)

Steering gear plug (end plug)

59

± 10 N⋅m (44 ± 7 ft-lb)

Steering gear rack support cover

12

± 2 N⋅m (107 ± 17 in-lb)

Steering tie rod

84

± 14 N⋅m (62 ± 10 ft-lb)

Valve housing bolt

22

± 4 N⋅m (16 ± 3 ft-lb)

Power steering hose

Cooler tube clamp bolt

12

± 2 N⋅m (102 ± 22 in-lb)

Oil pump eye bolt

57

± 7 N⋅m (42 ± 5 ft-lb)

Oil reservoir nut

12

± 2 N⋅m (102 ± 22 in-lb)

Pressure hose, pressure tube, return tube clamp bolt

12

± 2 N⋅m (102 ± 22 in-lb)

Pressure hose clamp nut

12

± 2 N⋅m (102 ± 22 in-lb)

Pressure tube, return tube flare nut

15

± 3 N⋅m (11 ± 2 ft-lb)

Return tube clamp nut

12

± 2 N⋅m (102 ± 22 in-lb)
