POWER STEERING GEAR BOX AND LINKAGE

POWER STEERING

37-34

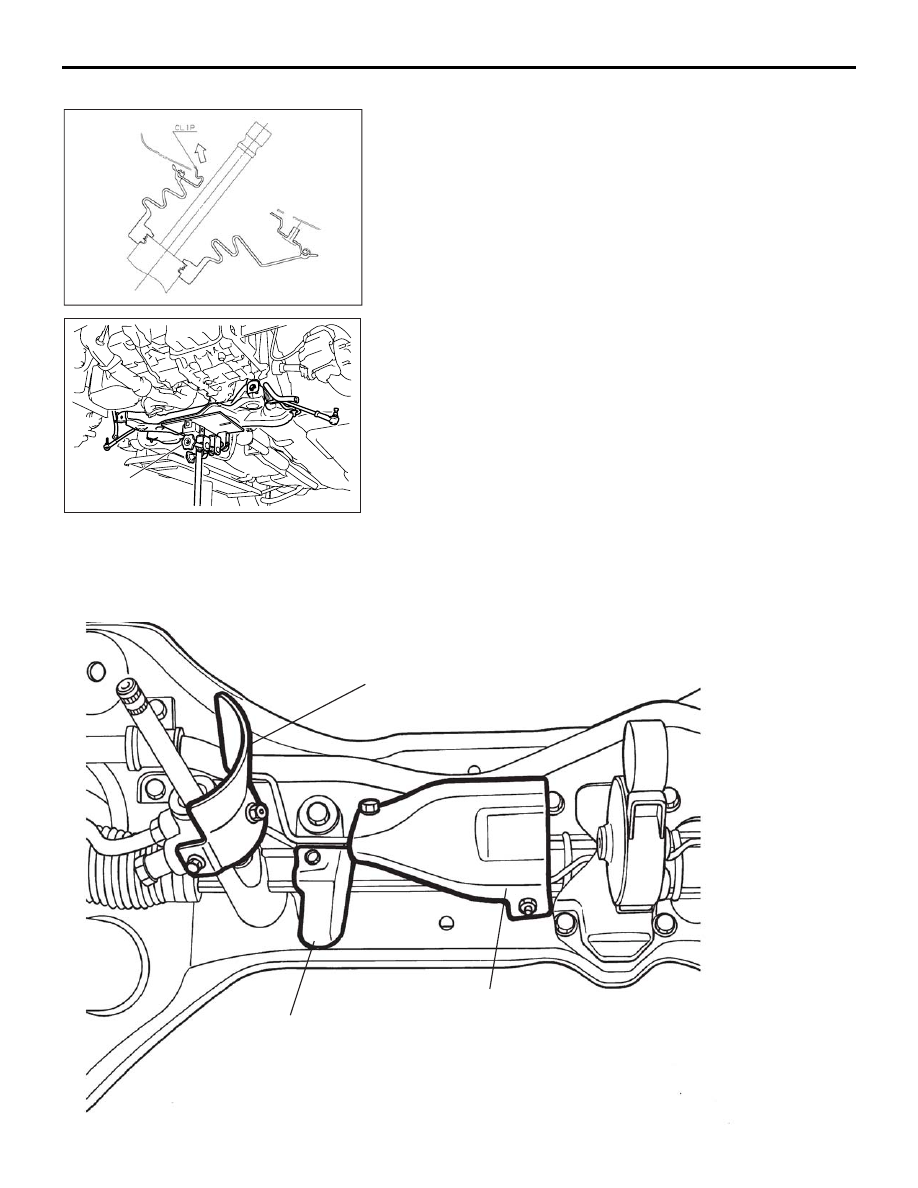

<<D>> CROSSMEMBER ASSEMBLY REMOVAL

1. From inside the vehicle, remove the nut and lower cover to

disengage clip from body.

2. Use a transmission jack to hold the crossmember, and then

remove the crossmember mounting nuts and bolts.

1. Lower the crossmember with the rear roll stopper, the stabilizer

bar and the steering gear.

.

<<E>> HEAT PROTECTOR REMOVAL

1. Remove M8 bolts from Heat Protectors "A, "B", "C".

13DB066A

AC206593

AC306696

TRANSMISSION
JACK

AB

13DB066A

13DB071A

HEAT PROTECTOR ‘C’

HEAT PROTECTOR ‘A’

HEAT PROTECTOR ‘B’

POWER STEERING GEAR BOX AND LINKAGE

POWER STEERING

37-35

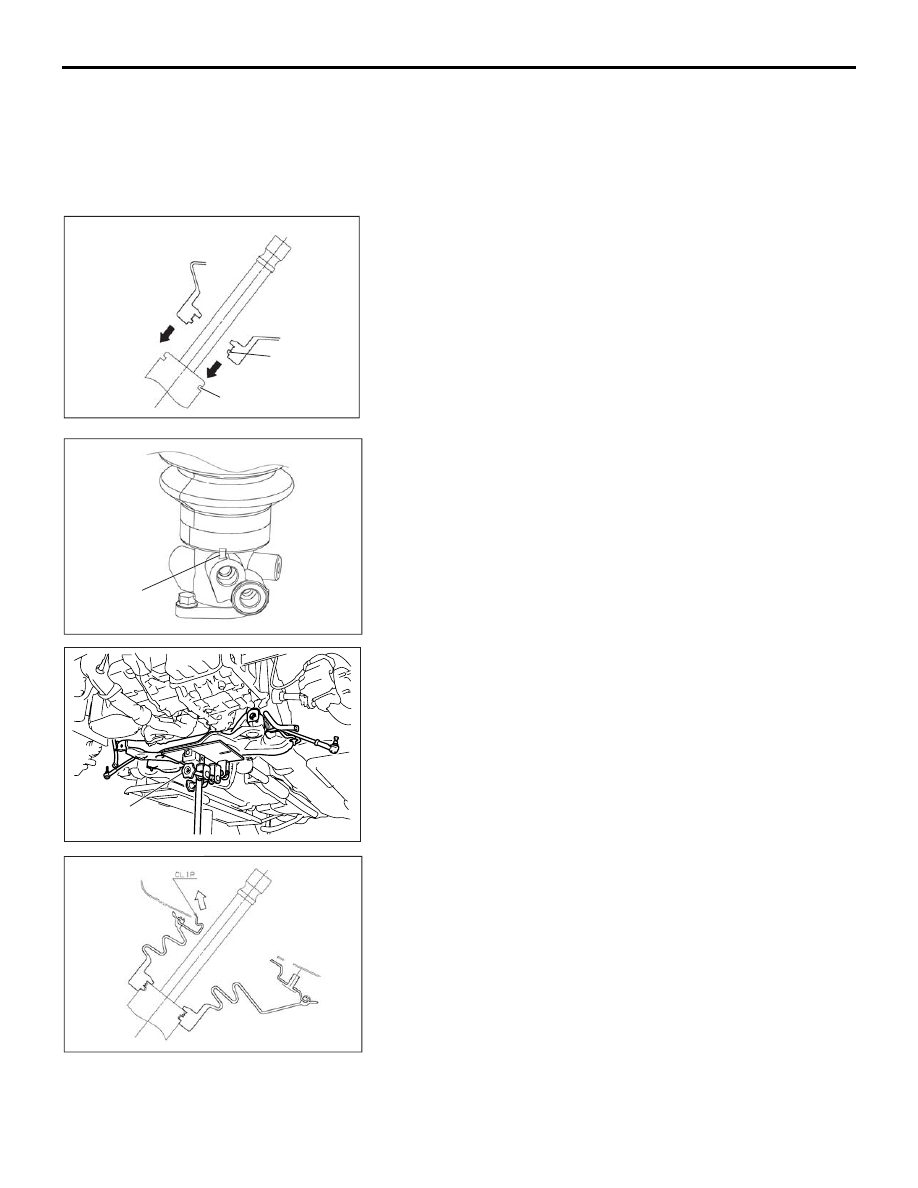

INSTALLATION SERVICE POINTS

.

>>B<< STEERING COLUMN DASH PANEL
COVER/CROSSMEMBER ASSEMBLY
INSTALLATION

1. Install the steering column dash panel cover until the lip is

securely located in the groove of steering gear.

2. Align the cover with steering gear tab, as shown.

3. Use a transmission jack to lift the crossmember assembly.

4. From inside the vehicle, locate the cover to engage the clip

correctly onto vehicle body and align bolt with hole.

13DB056A

GROOVE

LIP

ALIGN TAB

13DB064A

AC206593

AC306696

TRANSMISSION
JACK

AB

13DB066A

POWER STEERING GEAR BOX AND LINKAGE

POWER STEERING

37-36

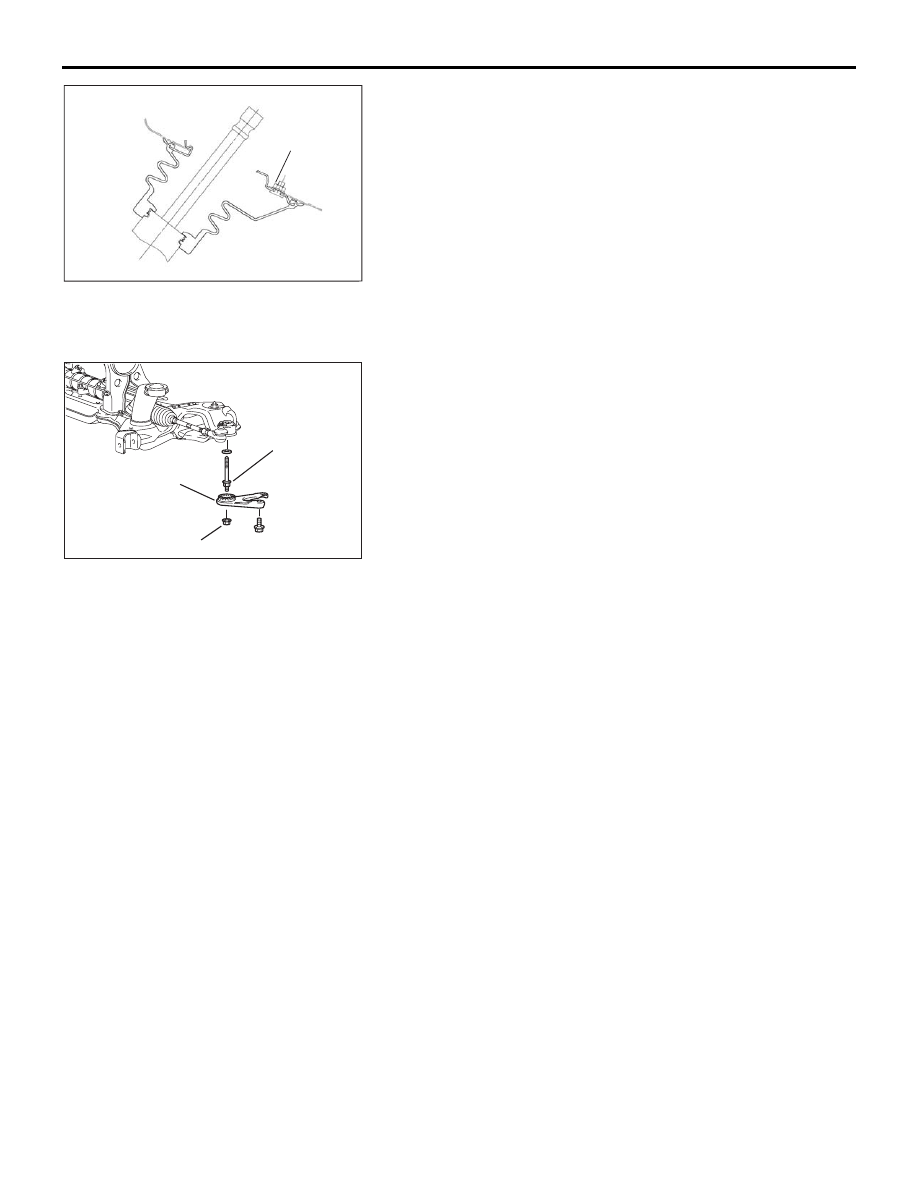

5. After installing the steering column dash panel cover, check

that the steering column dash panel cover rubber is not
disengaged from the retainer. If there is any doubt, release
the cover from the body, engage the rubber again and
reinstall to the body.

6. Tighten the nut 4 - 6 Nm.

.

>>C<< FRONT AXLE CROSSMEMBER
STAY/SELF-LOCKING NUT INSTALLATION

Ensure that the crossmember mounting bolts have been tight-
ened to specification, and then install the front crossmember
stay with a new self-locking nut.

13DB067A

NUT

21DB020A

FRONT AXLE

CROSSMEMBER

STAY

CROSSMEMBER

MOUNTING BOLT

SELF-LOCKING NUT

POWER STEERING GEAR BOX AND LINKAGE

POWER STEERING

37-37

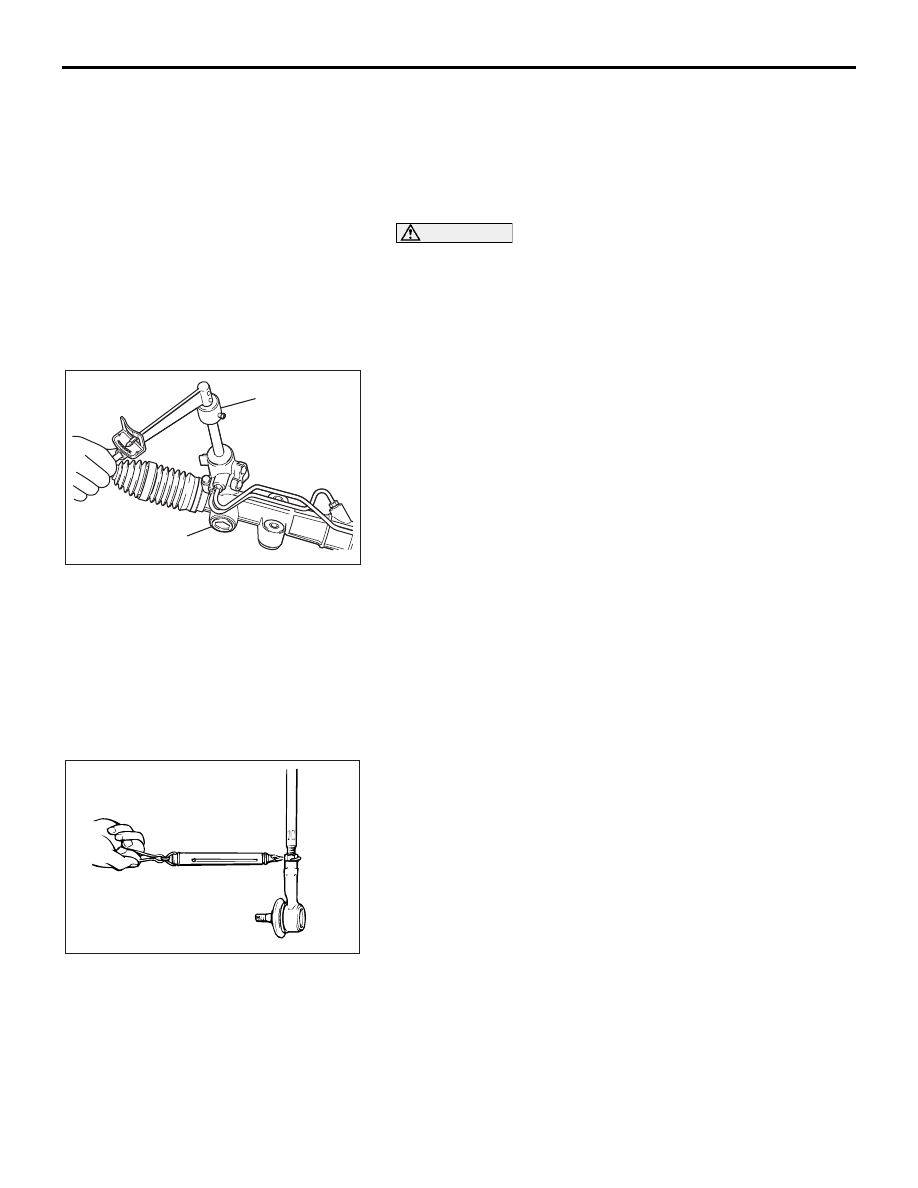

INSPECTION

M1372011000259

.

STEERING GEAR TOTAL PINION TORQUE
CHECK

Required Special Tool:

• MB991006: Preload Socket

CAUTION

• When holding the steering gear in a vice, secure its

mounting positions. If it is secured in any other place,
the gear housing may become deformed or damaged.

• Do not loosen the adjust screw more than 2 rotations.
• If the adjust screw is loosened more than 2 rotations, or

if it is removed, replace the steering gear assembly.

1. Using special tool MB991006, rotate the pinion gear at the

rate of one rotation in approximately 4 to 6 seconds to check
the total pinion torque.

Standard value: 0.8

− 1.9 N⋅m (7.1 − 16.8 in-lb)

[Change in torque: 0.7 N

⋅m (6.2 in-lb) or less]

NOTE: When measuring, remove the bellows from the rack
housing. Measure the pinion torque through the whole
stroke of the rack.

2. If the total pinion torque or the change in torque is outside

the standard value, loosen the rack support cover once and
retighten it to the specified torque 12

± 2 N⋅m (107 ± 17

in-lb). And then loosen the rack support cover 10 degrees,
and check the pinion torque again.
If the total pinion torque cannot be adjusted to within the
standard range by adjusting the rack support cover, replace
the power steering gear.

.

TIE ROD SWING RESISTANCE CHECK

1. Give 10 hard swings to the tie rod.
2. Measure the tie rod swing resistance with a spring scale.

Standard value:

3.7

− 18.1 N (0.83 − 4.07 lb) <vehicles with 16-inch

wheels>

3.6

− 17.8 N (0.81 − 4.00 lb) <vehicles with 17-inch

wheels>

[Swing torque: 1.0

− 4.9 N⋅m (8.9 − 43.3 in-lb)]

3. If the measured value exceeds the standard value, replace

the tie rod.

4. If the measured value is below the standard value, the tie

rod can be re-used if it swings smoothly without excessive
play.

.

TIE ROD END BALL JOINT DUST COVER CHECK

1. Check the dust cover for cracks or damage by pushing it

with your finger.

2. If the dust cover is cracked or damaged, replace the tie rod

end. (Refer to

P.37-38

).

AC306793

MB991006

AB

RACK SUPPORT
COVER
