STEERING SHAFT

POWER STEERING

37-26

REMOVAL SERVICE POINT

.

<<A>> STEERING COLUMN ASSEMBLY
REMOVAL

CAUTION

The tilt lever should be held in the lock position until the
steering column assembly is installed to the vehicle. If the
steering column assembly is removed with the tilt lever
released, or the tilt lever is released after the steering col-
umn assembly was removed from the vehicle, the steering
column assembly cannot be reinstalled correctly. If the
steering column assembly is installed incorrectly, the colli-
sion energy absorbing mechanism may be damaged.
1. Ensure that the tilt lever is in the lock position, and remove

the steering column assembly mounting bolts.

2. Pinch the steering column shaft clip with pliers, and pull up

the shaft in the direction shown to disengage the steering
column assembly.

NOTE: If the steering column shaft is removed accidentally,
remove the steering column assembly and be sure to insert the
steering column shaft into the steering column as shown in the
figure.

21DB016A

CLIP

STEERING

COLUMN

SHAFT

AC306564 AB

X

X

Y

Y

X

X

Y

Y

YOKE Y

VIEW A

7.6˚ ± 3˚

YOKE X

A

STEERING SHAFT

POWER STEERING

37-27

INSTALLATION SERVICE POINT

.

>>A<< STEERING COLUMN ASSEMBLY INSTAL-
LATION

CAUTION

1. If reusing the steering column assembly, do not release

the tilt lever until the steering column assembly has
been installed.

2. If a new steering column assembly is being installed,

do not release the tilt lever until it has been installed.
Do not remove the tilt lever fixing band until the instal-
lation is completed.

3. When installing the steering column assembly, do not

leave it fixed temporarily at only one point and make
sure the steering column assembly is not shaken
strongly. If this happens, the collision absorbing mech-
anism at the steering column assembly mounting loca-
tion may be damaged.

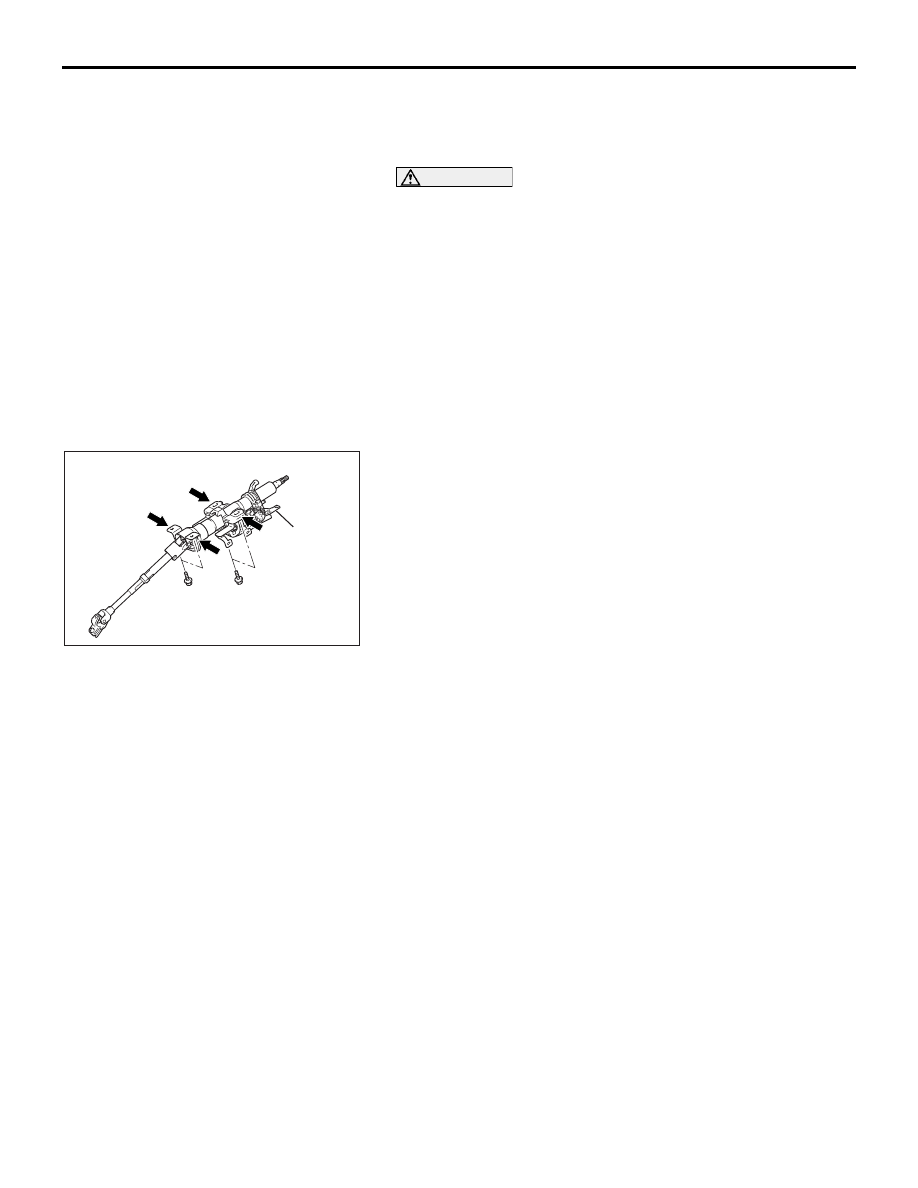

Ensure that the tilt lever is in the lock position, and install the
steering column assembly. Tighten the four bolts finger-tight in
the order shown, and then tighten them to the specified torque
in the order shown.

Tightening torque: 12

± 2 N⋅m (102 ± 22 in-lb)

AC306794AB

1

4

3

2

TILT
LEVER

STEERING SHAFT

POWER STEERING

37-28

DISASSEMBLY AND ASSEMBLY

M1372011700117

WARNING

Do not move the tilt lever from the lock position until the installation is completed. If you
move it accidentally, the steering column cannot be reinstalled correctly.

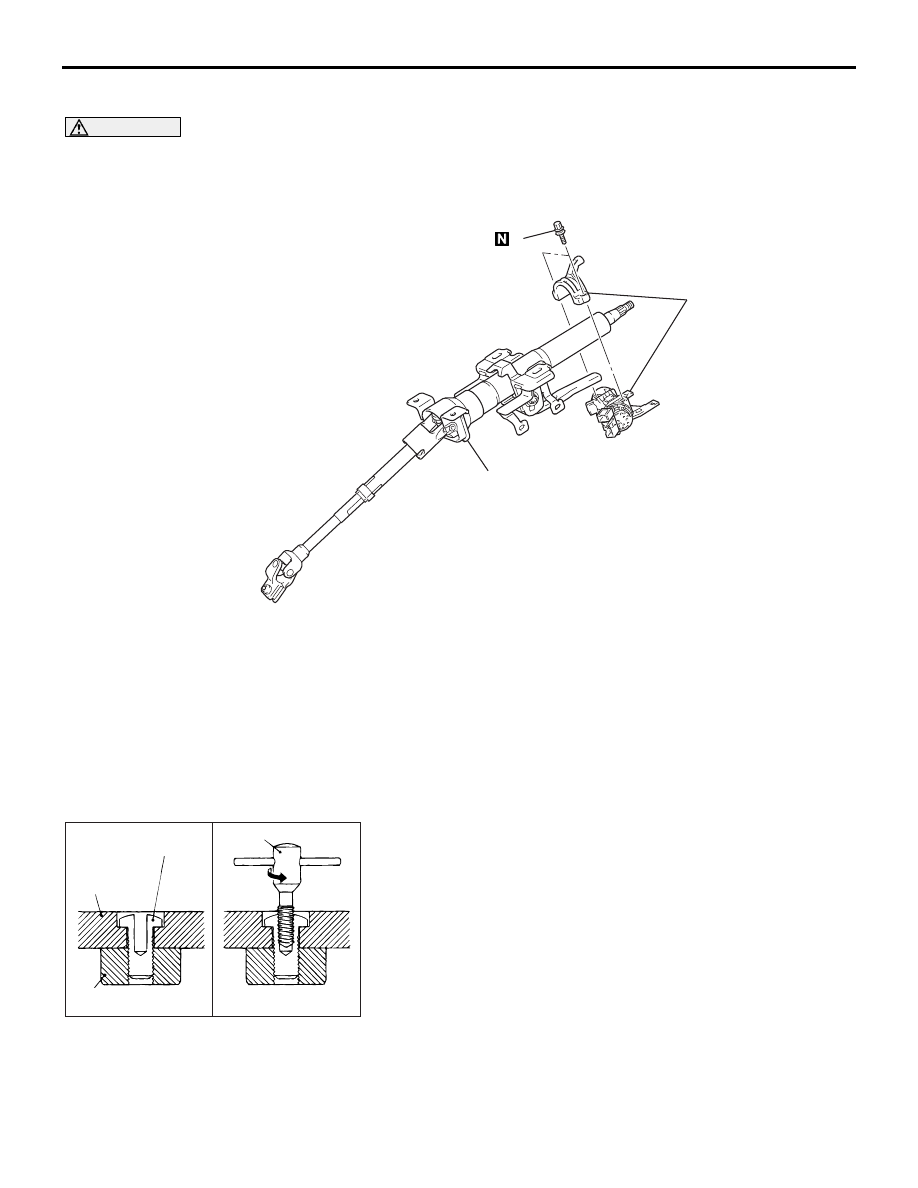

DISASSEMBLY SERVICE POINT

.

<<A>> STEERING LOCK BOLT REMOVAL

1. Drill in the steering lock bolt a hole deep enough for the tap

to stand.

2. Remove the steering lock bolt with a left-hand tap.

AC306566AB

3

2

1

DISASSEMBLY STEPS

<<A>> >>A<<

1.

STEERING LOCK BOLT

>>A<<

2.

ENGINE STARTING SWITCH
ASSEMBLY

3.

STEERING COLUMN ASSEMBLY

DISASSEMBLY STEPS (Continued)

ACX01138 AE

CLAMP

ENGINE STARTING

SWITCH ASSEMBLY

REVERSE SCREW TAP

STEERING

LOCK BOLT

STEERING SHAFT

POWER STEERING

37-29

ASSEMBLY SERVICE POINT

.

>>A<< ENGINE STARTING SWITCH ASSEM-
BLY/STEERING LOCK BOLT INSTALLATION

CAUTION

The bolts must be replaced with new ones when the steer-
ing lock is installed.

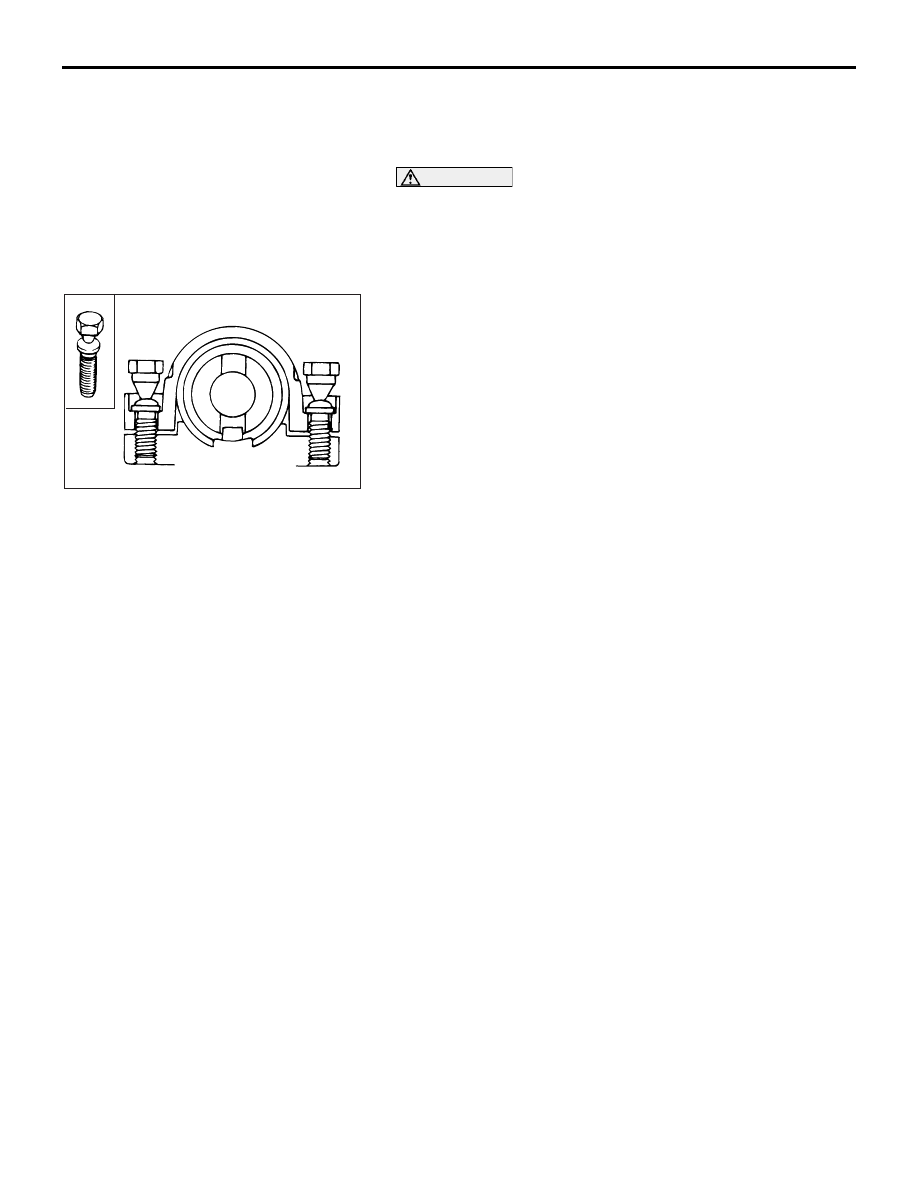

1. When installing the engine starting switch assembly to the

steering column assembly, temporarily install the engine
starting switch assembly in alignment with the column boss.

2. After checking that the lock works properly, tighten the

steering lock bolts until the head is twisted off.

ACX01139AB
