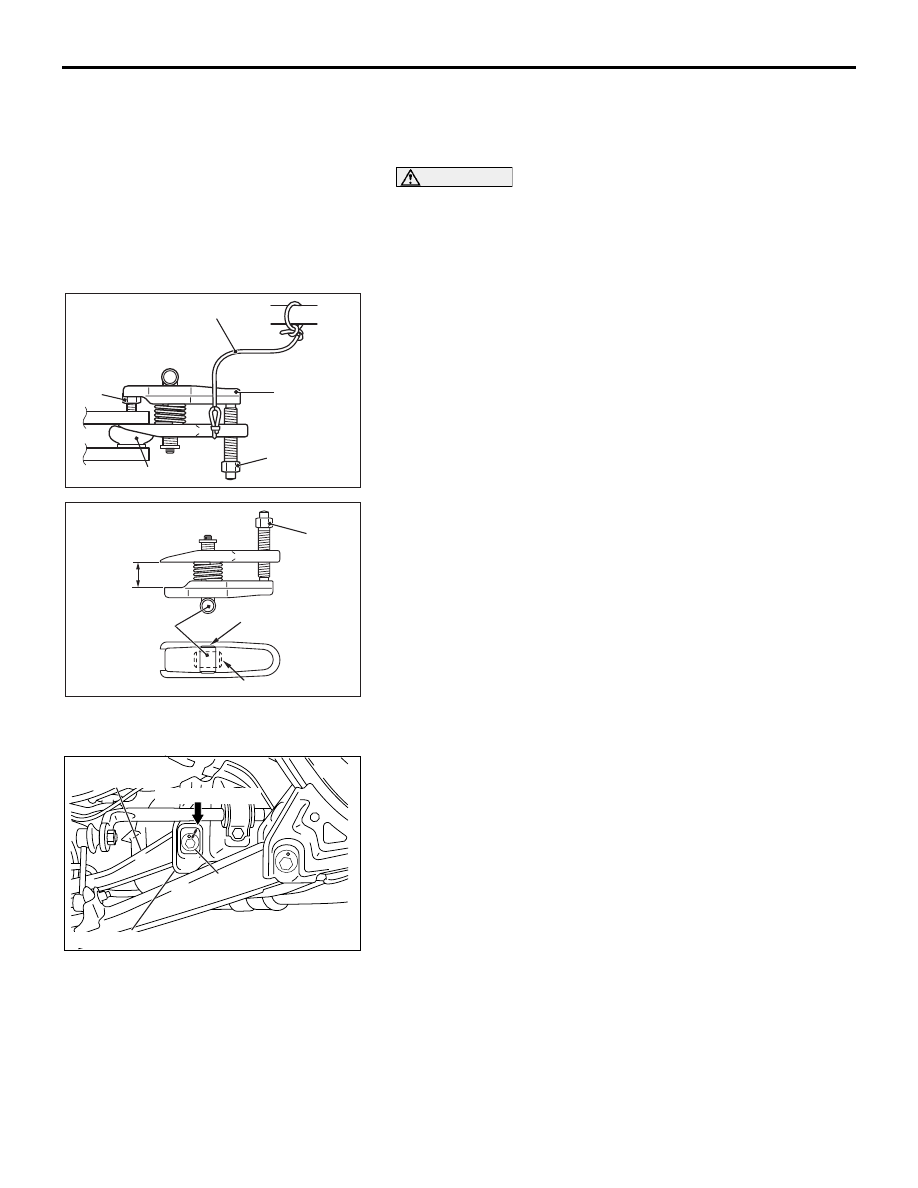

TOE CONTROL ARM REAR SUSPENSION 34-14 REMOVAL SERVICE POINTS . <<A>> TOE CONTROL ARM ASSEMBLY AND CAUTION • Do not remove the nut from ball joint. Loosen it and use special tool MB991897 to avoid possible damage to ball • Hang special tool MB991897 with a cord to prevent it from falling. 1. Install special tool MB991897 as shown in the figure. 2. Turn the bolt and knob as necessary to make the jaws of the special tool MB991897 parallel, tighten the bolt by hand and NOTE: When adjusting the jaws in parallel, make sure the 3. Tighten the bolt with a wrench to disconnect the toe control arm assembly and the knuckle. . <<B>> ASSIST LINK BOLT REMOVAL Place mating marks on the crossmember and the plate before INSPECTION M1341016800049 • Check the bushings for wear and deterioration. • Check the toe control arm for bending or breakage. • Check all bolts for condition and straightness. AC208247AC CORD BOLT MB991897 NUT BALL JOINT AC106821 KNOB PARALLEL BOLT CORRECT WRONG AC AC306251 AC TOE CONTROL CROSSMEMBER PLATE MATING MARKS |
