Mitsubishi 380. Manual - part 796





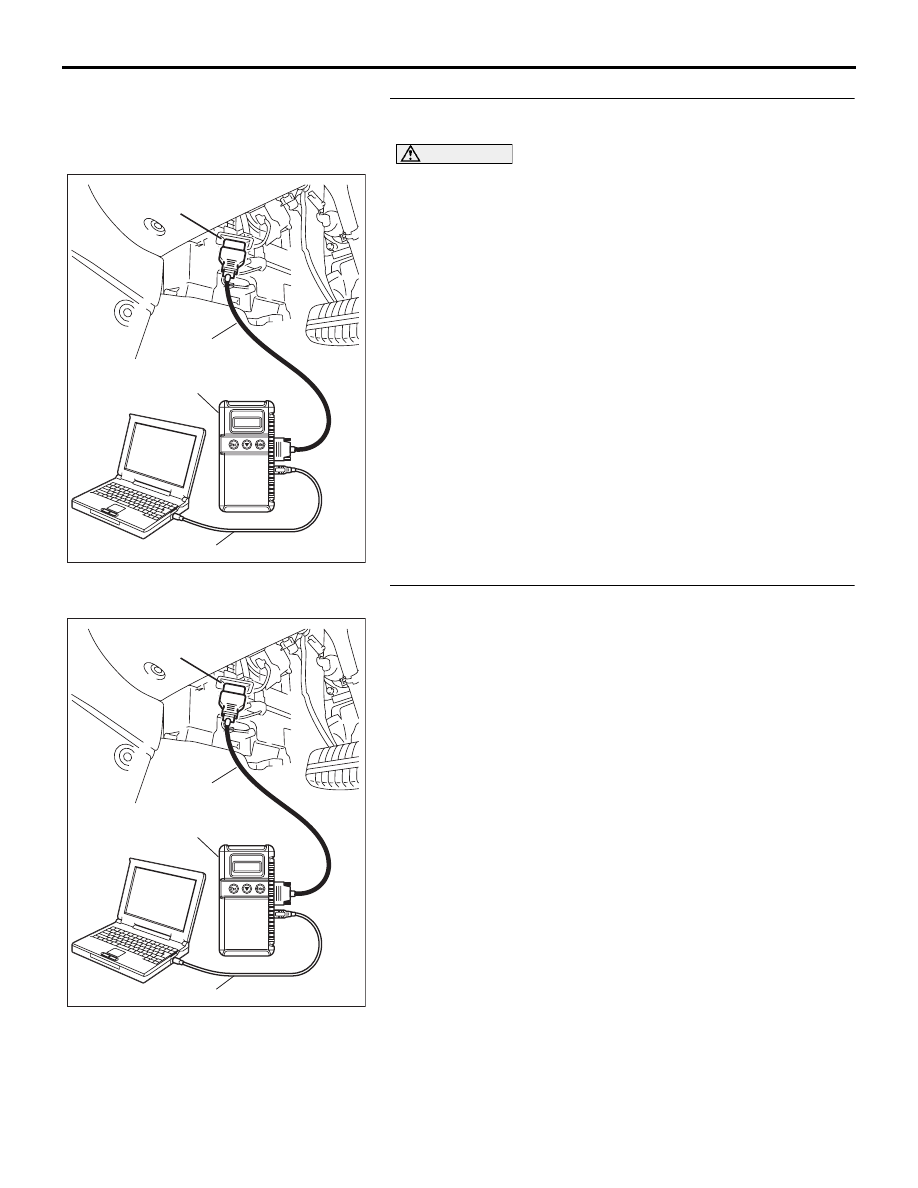

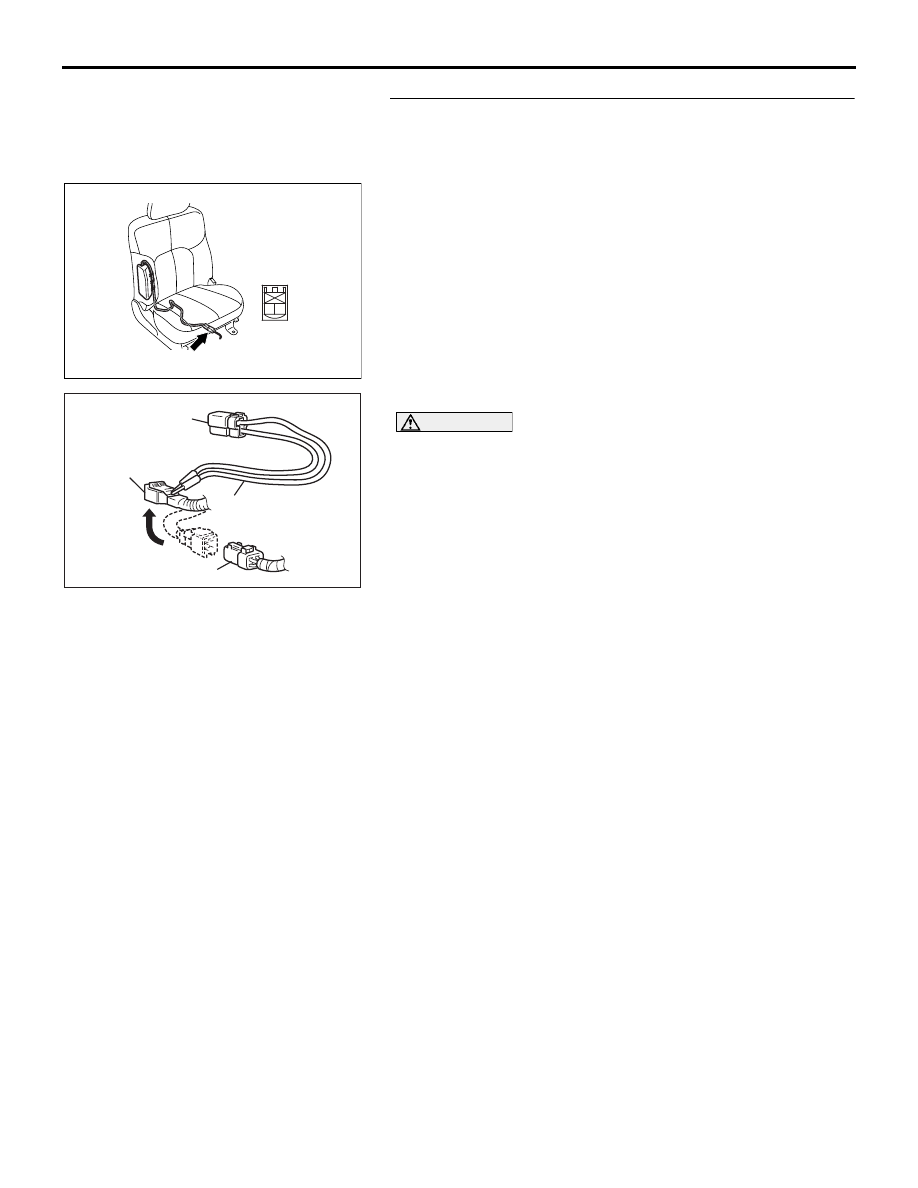

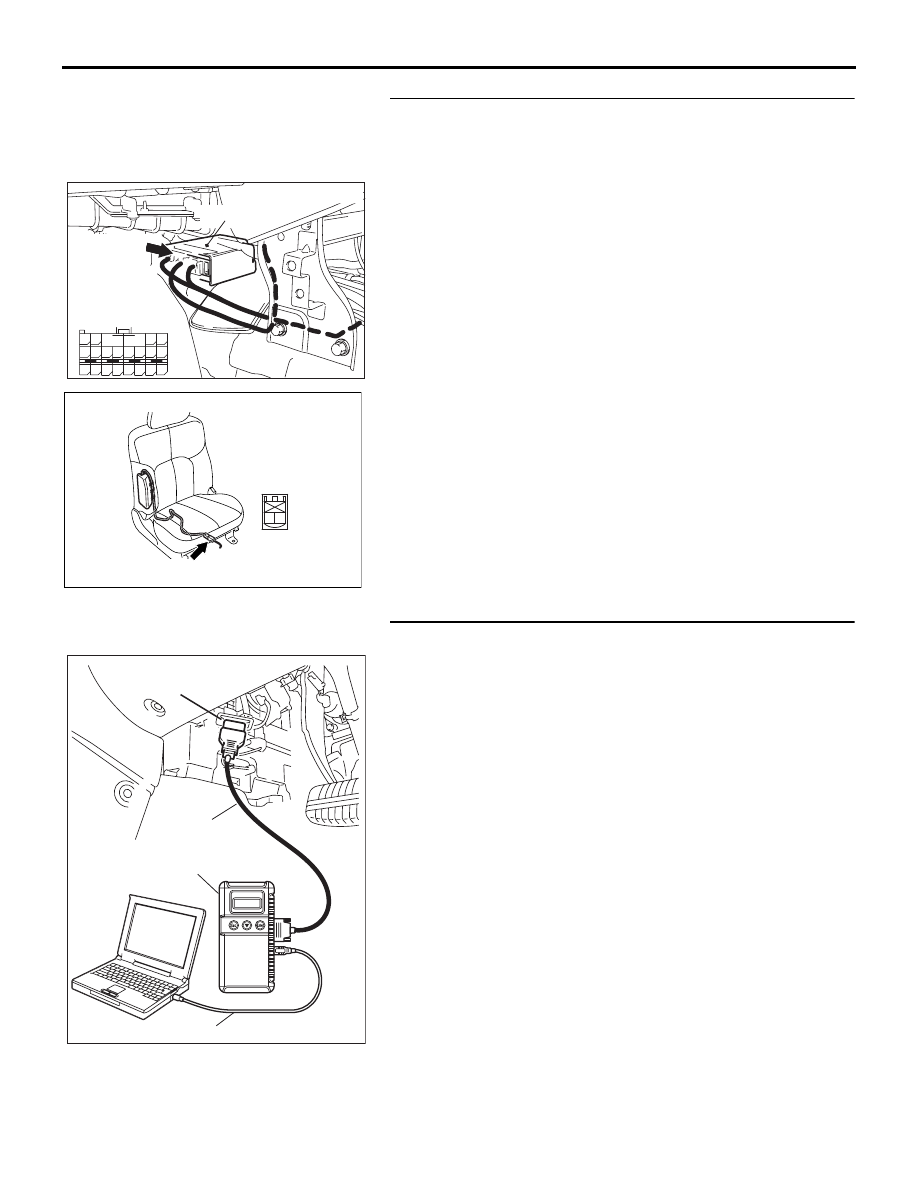

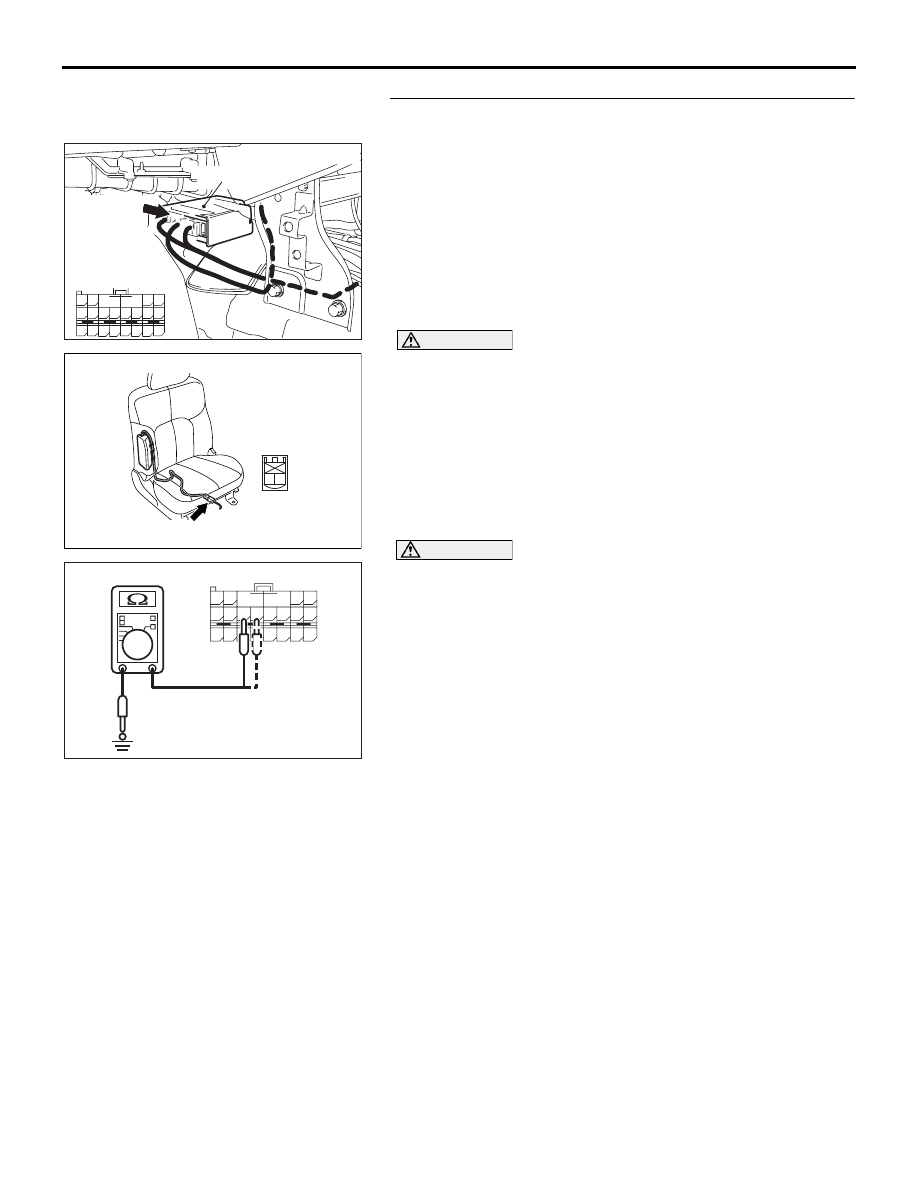

SRS AIR BAG DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-108

STEP 1. Using diagnostic tool MB991958, diagnose the
CAN bus line.

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958.
(1) Connect diagnostic tool MB991958. Refer to "How to

connect the diagnostic tool

P.52B-19

."

(2) Turn the ignition switch to "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the check result satisfactory?

YES : Go to Step 2
NO :  Repair the CAN bus lines (Refer to GROUP 54C,

Diagnosis-Can Bus Diagnostic Chart ).

STEP 2. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Use Troubleshooting/Inspection
Service Points

− How to Cope with Intermittent

Malfunctions ).

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SRS AIR BAG DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-109

STEP 3. Check the side-airbag module (RH). (Using
diagnostic tool MB991958, read the diagnostic trouble
code.)
(1) Disconnect the negative battery terminal.
(2) Disconnect the side-airbag module (RH) connector D-32.

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(4) Insert special tool MB991866 into the D-32 harness side

connector by testprobe.

(5) Connect the negative battery terminal.
(6) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is DTC B1423 set?

YES : Go to Step 4.
NO :  Replace the seatback frame of the front seat (RH)

(Refer to GROUP 52A, Front Seat

P.52A-33

). The

go to Step 6.

AC307779

D-32 (R)

AD

2

1

HARNESS SIDE
CONNECTOR
(REAR VIEW)

CONNECTOR : D-32

AC006042BO

MB991866

(RESISTOR HARNESS)

D-32 HARNESS SIDE

CONNECTOR

D-32 SIDE-AIRBAG

MODULE (RH) CONNECTOR

MB991865 (DUMMY
RESISTOR: 3



Ω)

SRS AIR BAG DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-110

STEP 4. Check the side-airbag module (RH) circuit.
Measure the resistance at the SRS-ECU connector D-26.
(1) Disconnect SRS-ECU connector D-26.

DANGER

To prevent the air bag from deploying unintentionally,
disconnect the side-airbag module (RH) connector
D-32 to short the squib circuit.

(2) Disconnect side-airbag module (RH) connector D-32.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(3) Check for continuity between D-26 harness side connector

terminals 57, 58 and body ground.
It should be open circuit.

Q: Does continuity exist?

YES : Go to Step 5.
NO :  Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC B1423 sets,
replace the SRS-ECU (Refer to

P.52B-234

). Then go

to Step 6.

24DB063A

CONNECTOR: D-26

SRS-ECU

63

55

51

69

61

66

58

65

64

5657

68

60

67

59

70

62

53

52 B A

54

D-26  (Y)

D-26 FLOOR

HARNESS

CONNECTOR

(REAR VIEW)

AC307779

D-32 (R)

AD

2

1

HARNESS SIDE
CONNECTOR
(REAR VIEW)

CONNECTOR : D-32

24DB073A

63

55

51

69

61

66

58

65

64

5657

68

60

67

59

70

62

53

52 B A

54

D-26 FLOOR HARNESS

SIDE CONNECTOR

(REAR VIEW)

SRS AIR BAG DIAGNOSIS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-111

STEP 5. Check the harness wires for short circuit to
ground between SRS-ECU connector D-26 (terminal No.57
and 58) and side-airbag module (RH) connector D-32
(terminal No.1 and 2).
Q: Are the harness wires between SRS-ECU connector

D-26 (terminal No.57 and 58) and side-airbag module
(RH) connector D-32 (terminal No.1 and 2) in good
condition?
YES :
Go to Step 6.
NO :  Replace the harness wires between SRS-ECU

connector D-26 and side-airbag module (RH)
connector D-32. Then go to Step 6.

STEP 6. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is DTC B1423 set?

YES : Return to Step 1.
NO :  The procedure is complete.

AC307779

D-32 (R)

AD

2

1

HARNESS SIDE
CONNECTOR
(REAR VIEW)

CONNECTOR : D-32

24DB063A

CONNECTOR: D-26

SRS-ECU

63

55

51

69

61

66

58

65

64

5657

68

60

67

59

70

62

53

52 B A

54

D-26  (Y)

D-26 FLOOR

HARNESS

CONNECTOR

(REAR VIEW)

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
