GENERAL DESCRIPTION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-12

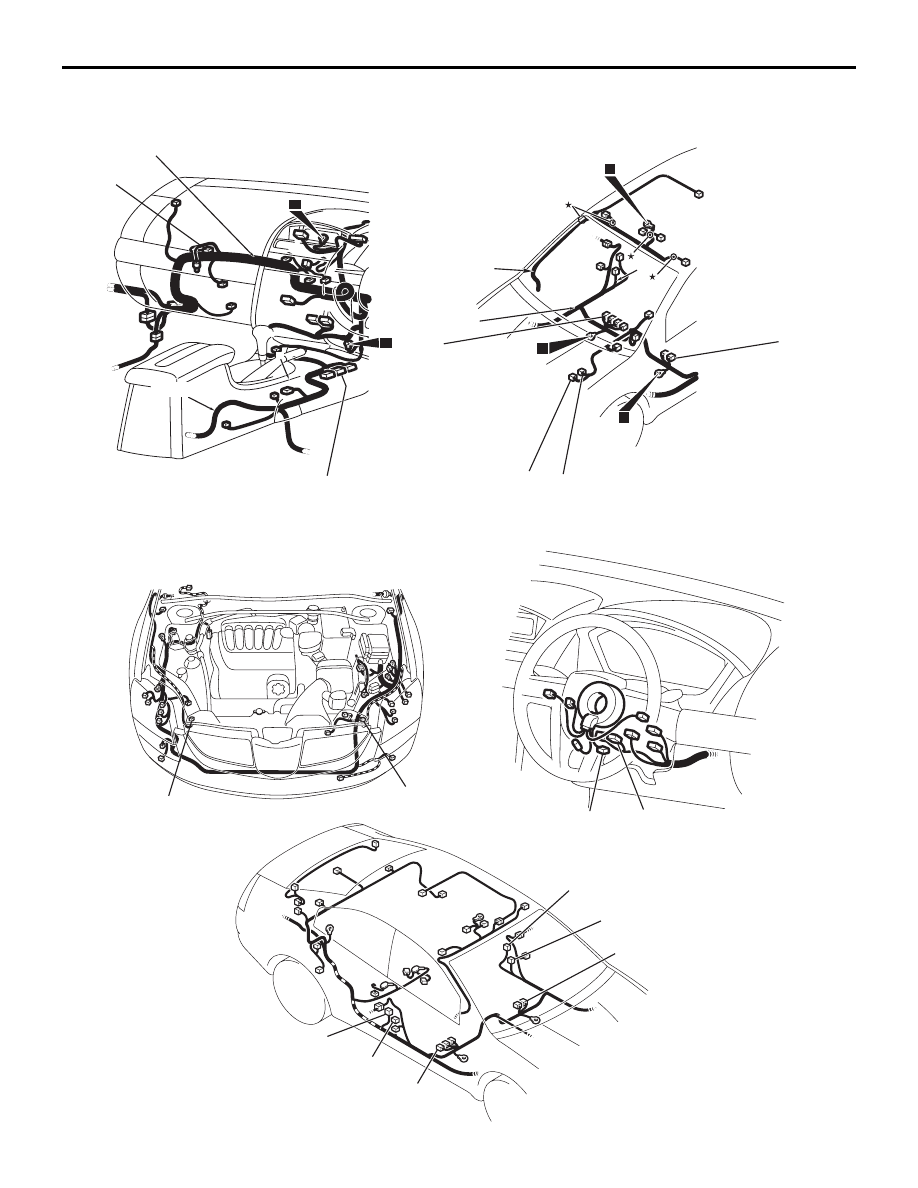

CONFIGURATION DIAGRAMS

52DB002A

AC304366

AC304353

AC304363

DASH PANEL

STEERING COLUMN

FLOOR AND ROOF

ENGINE ROOM

C-307

A-23

C-305

A-27

C-110

D-33

D-32

D-35

D-20

D-21

D-24

37DB228A

C-121

Y

5

3

FLOOR WIRING

HARNESS

INSTRUMENT PANEL

WIRING HARNESS

37DB232A

FLOOR

WIRING

HARNESS

4

Y

2

15

D-24

D-32

ROOF

WIRING

HARNESS

D-26

D-27

FLOOR AND ROOF

GENERAL DESCRIPTION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-13

CIRCUIT DIAGRAM

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

WARNING

•

Do not repair, splice, or modify the SRS wiring (except for specific repairs to the instru-
ment panel wiring harness and the floor wiring harness shown on

P.52B-16

): replace the

wiring if necessary, after reading and following all precautions and procedures in this
manual.

•

Do not use an analog ohmmeter to check the SRS wiring or components; use only the
special tools (refer to

P.52B-223

) and a digital multi-meter (refer to

P.52B-224

).

CAUTION

Improper services cause the system to be inoperative. Do not disassemble or tamper with the SRS
components to prevent the serious injury.

A-23 (Y)

FRONT IMPACT SENSOR (LH)

A-27 (Y)

FRONT IMPACT SENSOR (RH)

C-101

COMBINATION METER (FOR SRS
WARNING LIGHT)

C-110 (Y)

AIR BAG MODULE (FRONT
PASSENGER’S SIDE)

D-26 (Y)

SRS-ECU

C-121 (Y)

SRS-ECU

D-27 (Y)

SRS-ECU

C-125 (B)

DATA LINK CONNECTOR

C-305 (Y)

AIR BAG MODULE (SQUIB)
(DRIVER’S SIDE)

C-307 (Y)

CLOCK SPRING

D-20

SIDE IMPACT SENSOR (LH)

D-21 (B)

SEAT BELT PRE-TENSIONER
(LH)

D-24 (R)

SIDE-AIRBAG MODULE (SQUIB)
(LH)

D-32 (R)

SIDE-AIRBAG MODULE (SQUIB)
(RH)

D-33 (B)

SEAT BELT PRE-TENSIONER
(RH)

D-35

SIDE IMPACT SENSOR (RH)

GENERAL DESCRIPTION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-14

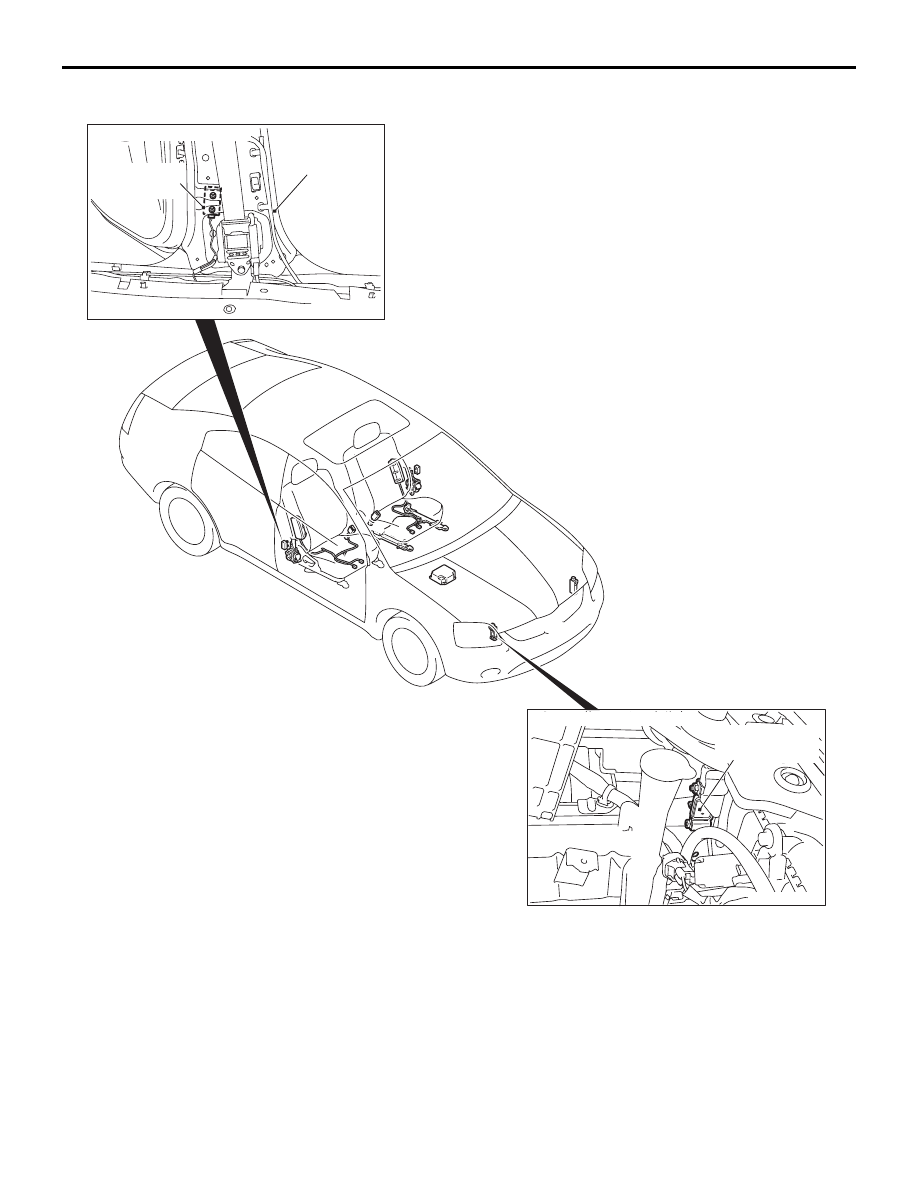

COMPONENT LOCATION

AC306289

52DB003A

AC305250

AC305035

SIDE IMPACT SENSOR

FRONT IMPACT SENSOR

FRONT IMPACT
SENSOR

CENTER
PILLER

SIDE IMPACT
SENSOR

GENERAL DESCRIPTION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-15

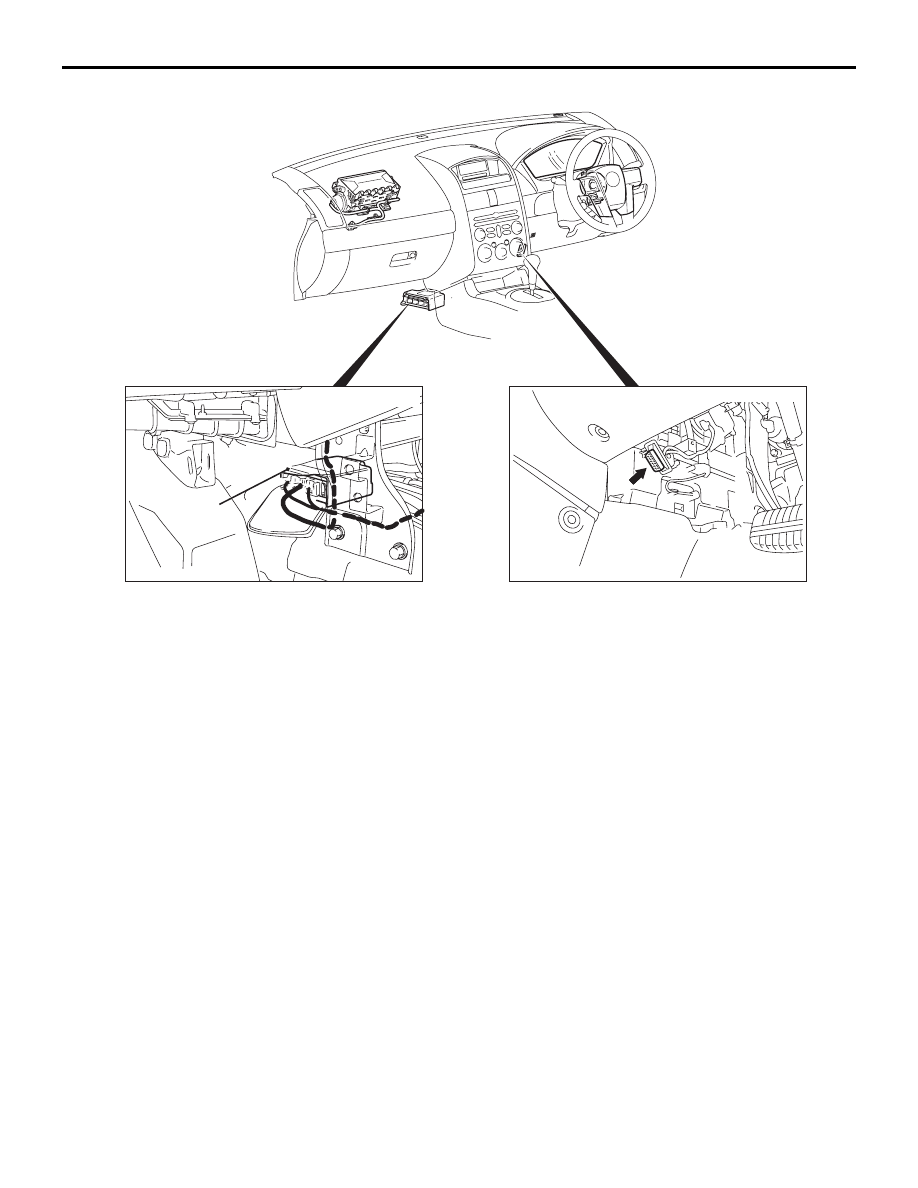

NOTE: The illustration above shows the front impact sensor (RH) and the side impact sensor (RH). The posi-
tion of the front impact sensor (LH) and the side impact sensor (LH) is symmetrical to this.

52DB003A

DATA LINK CONNECTOR

SRS-ECU

SRS-ECU
