GENERAL DESCRIPTION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-4

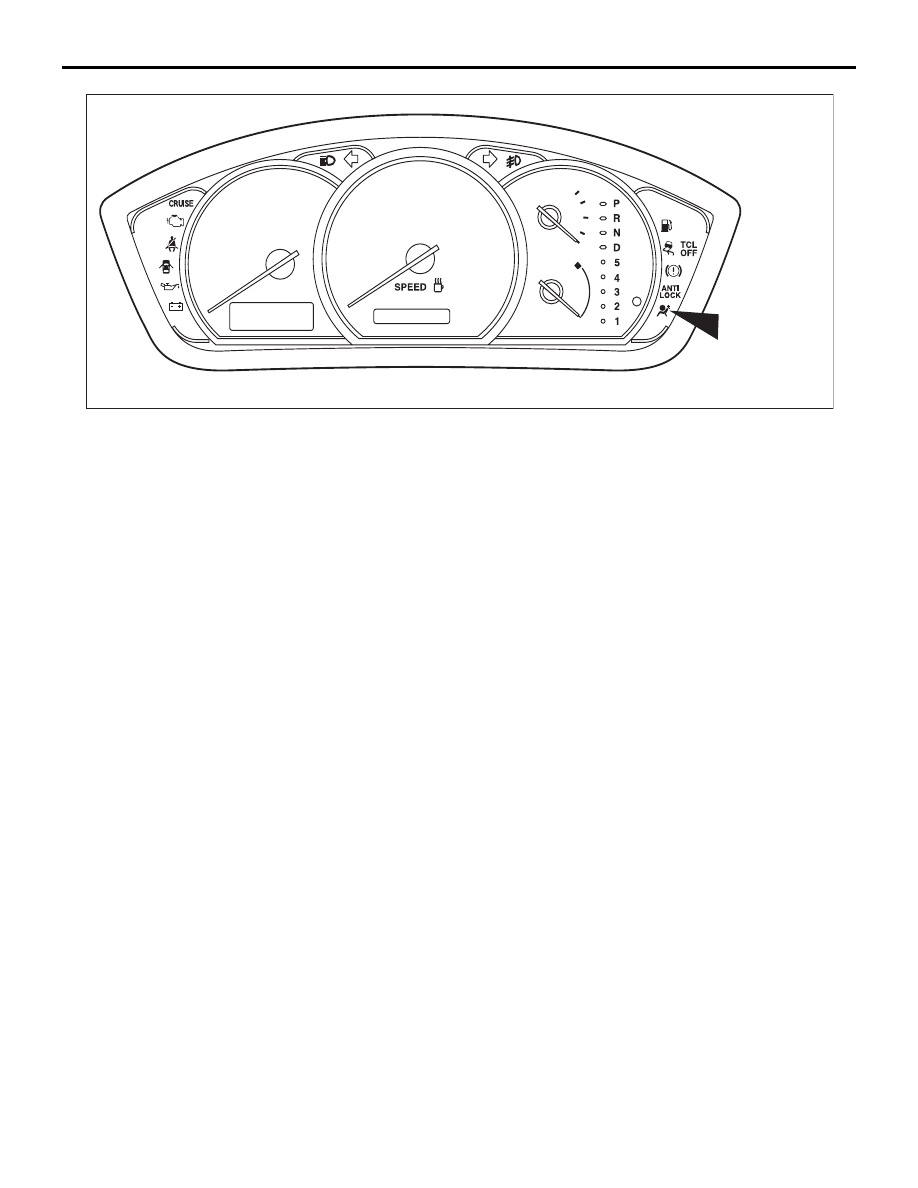

ON-BOARD DIAGNOSTIC/SRS WARNING LIGHT
FUNCTION

The diagnosis unit monitors the SRS system and stores data
concerning any detected faults in the system. When the ignition
switch is in "ON" or "START" position, the SRS warning light
should illuminate for about seven seconds and then turn "OFF."
That indicates that the SRS system is in operational order. If
the SRS warning light does any of the following, immediate
inspection by an authorized dealer is needed:
1. The SRS warning light does not illuminate as described

above.

2. The SRS warning light stays on for more than seven

seconds.

3. The SRS warning light illuminates while driving.
If a vehicle's SRS warning light is in any of these three condi-
tions, the SRS system must be inspected, diagnosed and ser-
viced in accordance with this manual.

35DB113A

SRS
WARNING
LAMP

GENERAL DESCRIPTION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-5

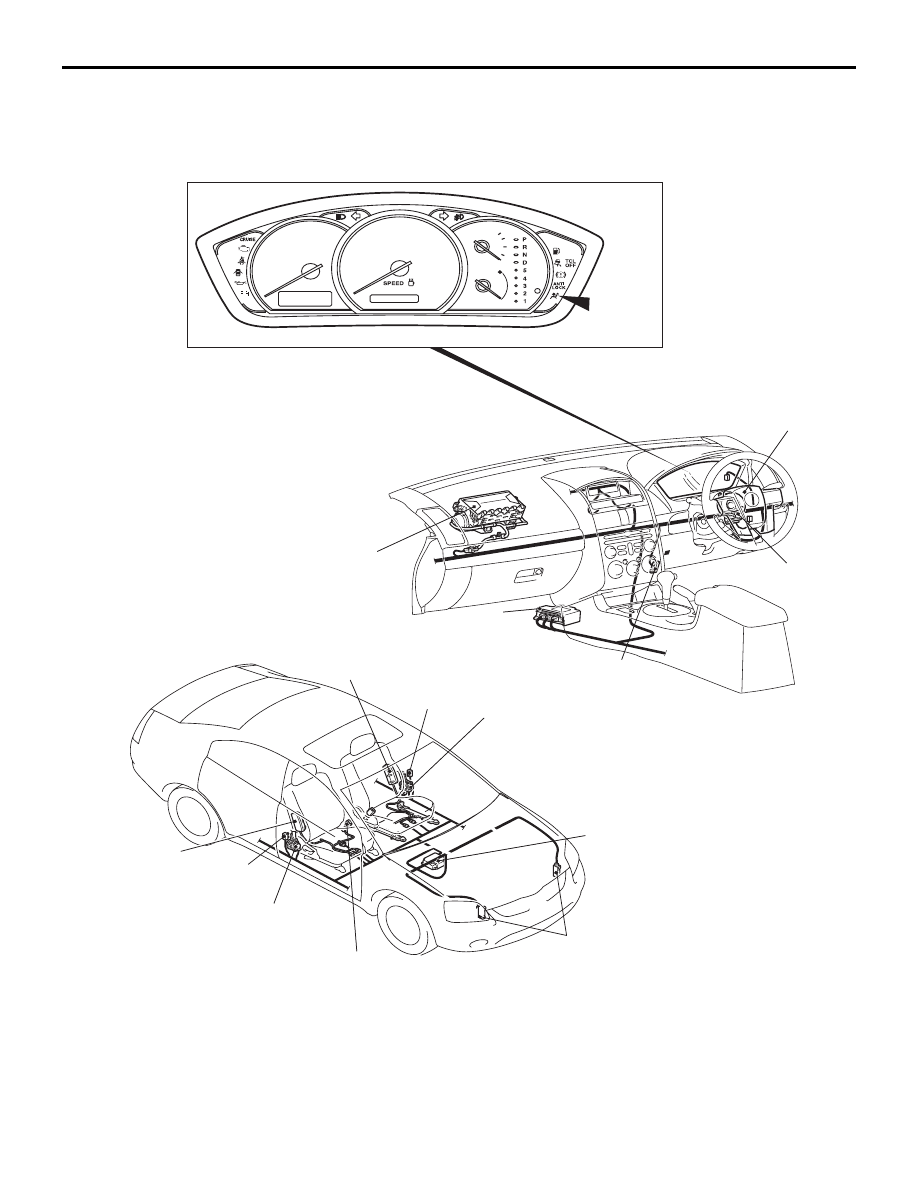

CONSTRUCTION DIAGRAM

NOTE: This construction diagram shows the general view of the SRS components. For details, refer to
"Schematic(

P.52B-9

), "Configuration Diagrams(

P.52B-12

), " and "Circuit Diagram(

P.52B-13

)".

52DB001A

AC306795

AC306796

SIDE IMPACT
SENSOR

SIDE-AIRBAG
MODULE

SIDE-AIRBAG
MODULE

SIDE IMPACT
SENSOR

FRONT IMPACT
SENSOR

PASSENGER'S (FRONT)
AIR BAG MODULE

SRS-ECU

CLOCK
SPRING

DATA LINK CONNECTOR
(FOR SCAN TOOL)

SEAT BELT WITH
PRE-TENSIONER

DRIVER'S AIR
BAG MODULE

SEAT BELT WITH
PRE-TENSIONER

SEAT BELT
SWITCH

SRS-ECU

SRS

WARNING

LAMP

GENERAL DESCRIPTION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-6

WARNING/CAUTION LABELS

A number of caution labels related to the SRS are found in
the vehicle, as shown in the following illustrations. Follow
label instructions when servicing SRS. If the other labels
are dirty or damaged, replace them.

24DB056A

AC306338

AC306339

AC306340

AC306334

AC306337

AC306336

AC308167

STEERING WHEEL

DRIVER'S AIR BAG MODULE

B

CLOCK SPRING

C

SRS-ECU

SUN VISOR

SIDE-AIRBAG MODULE
(DRIVER'S AND
FRONT PASSENGER'S SEAT)

SIDE IMPACT SENSORS
(RH AND LH)

J

CENTER
PILLAR

K

SEAT BELT WITH
PRE-TENSIONER
(DRIVER'S AND FRONT
PASSENGER'S SEATBELT)

HOOD

FRONT IMPACT SENSORS (RH AND LH)

L

M

N

RADIATOR

A

E

F

F

PASSENGER'S AIR BAG MODULE

D

J

24DB060A

G

INSTUMENT PANEL

GENERAL DESCRIPTION

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-7

LABEL CONTENTS

A

WARNING: SRS

• BEFORE REPLACING STEERING WHEEL, READ SERVICE MANUAL, CENTER

FRONT WHEELS AND ALIGN SRS CLOCK SPRING NEUTRAL MARKS. FAILURE
TO DO SO MAY RENDER SRS SYSTEM INOPERATIVE, RISKING SERIOUS
DRIVER INJURY.

• THE AIR BAG MODULE CAN NOT BE REPAIRED. DO NOT DISASSEMBLE OR

TAMPER. DO NOT PERFORM DIAGNOSIS. DO NOT TOUCH WITH ELECTRICAL
TEST EQUIPMENT OR PROBES. REFER TO SERVICE MANUAL FOR FURTHER
INSTRUCTIONS, AND FOR SPECIAL HANDLING, STORAGE AND DISPOSAL
PROCEDURES. TAMPERING OR MISHANDLING CAN RESULT IN INJURY.

B

DANGER: FLAMMABLE MATERIAL
TO PREVENT PERSONAL INJURY, DO NOT DISMANTLE, INCINERATE, OR BRING
INTO CONTACT WITH ELECTRICITY STORE BELOW 200

°F(93°C). READ SERVICE

MANUAL FOR DETAIL.

C

CAUTION: SRS CLOCKSPRING
THIS IS NOT A REPAIRABLE PART. IF DEFECTIVE REPLACE ENTIRE UNIT
ACCORDING TO THE SERVICE MANUAL INSTRUCTIONS. TO RE-CENTER: ROTATE
CLOCKWISE UNTIL TIGHT. THEN ROTATE IN OPPOSITE DIRECTION ROUGHLY 3
3/4 TURNS AND ALIGN ARROWS.

D, J

WARNING FLAMMABLE/EXPLOSIVE
SRS AIR BAG MODULE
TO AVOID SERIOUS INJURY:

• DO NOT REPAIR, DISASSEMBLE OR TAMPER.

• AVOID CONTACT WITH FLAME OR ELECTRICITY.

• DO NOT DIAGNOSIS/USE NO TEST EQPT OR PROBES.

• STORE BELOW (93°C).

• BEFORE DOING ANY WORK INVOLVING MODULE, READ SERVICE MANUAL

FOR IMPORTANT FURTHER DATA.

E, K

CAUTION:
DO NOT DISASSEMBLE OR DROP. IF DEFECTIVE REFER TO SERVICE MANUAL.

F

WARNING
EVEN WITH ADVANCED AIR BAGS

• Children can be killed or seriously injured by the air bag

• The back seat is the safest place for children

• Never put a rear-facing child seat in the front

• Always use seat belts and child restraints

• See owner’s manual for more information about air bags

G

WARNING

• Extreme Hazard! Do not use a rearward facing child restraint on a seat protected by an

airbag in front of it!

• A REARWARD FACING CHILD RESTRAINT must NOT be used in the front

passenger seat as it places the infant too close to the passenger airbag. The force of
an inflating airbag could kill or cause serious injuries to the child. A rearward facing
child restraint must only be used in the rear seat.

• A FORWARD FACING CHILD RESTRAINT should only be used in a rear seat with a

top tether strap anchor point.

AC306673
