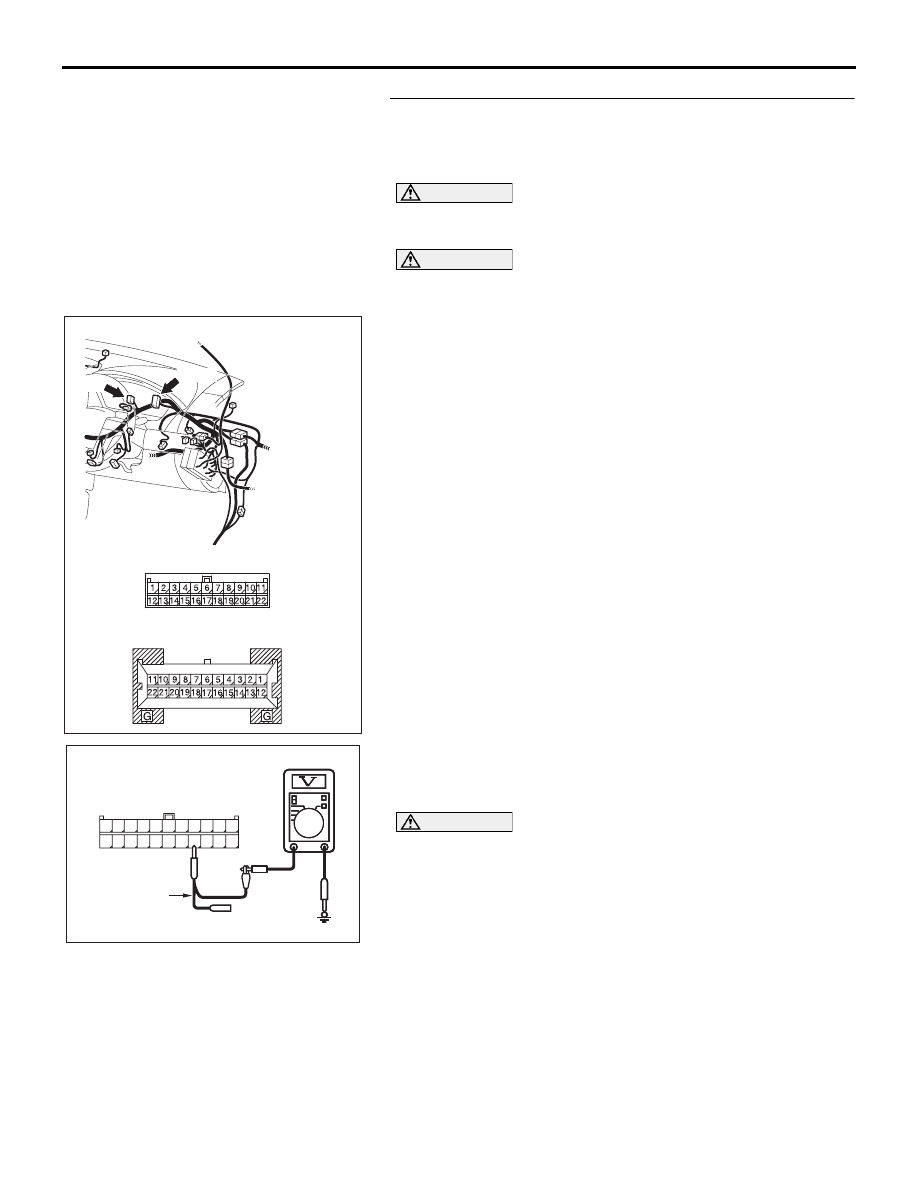

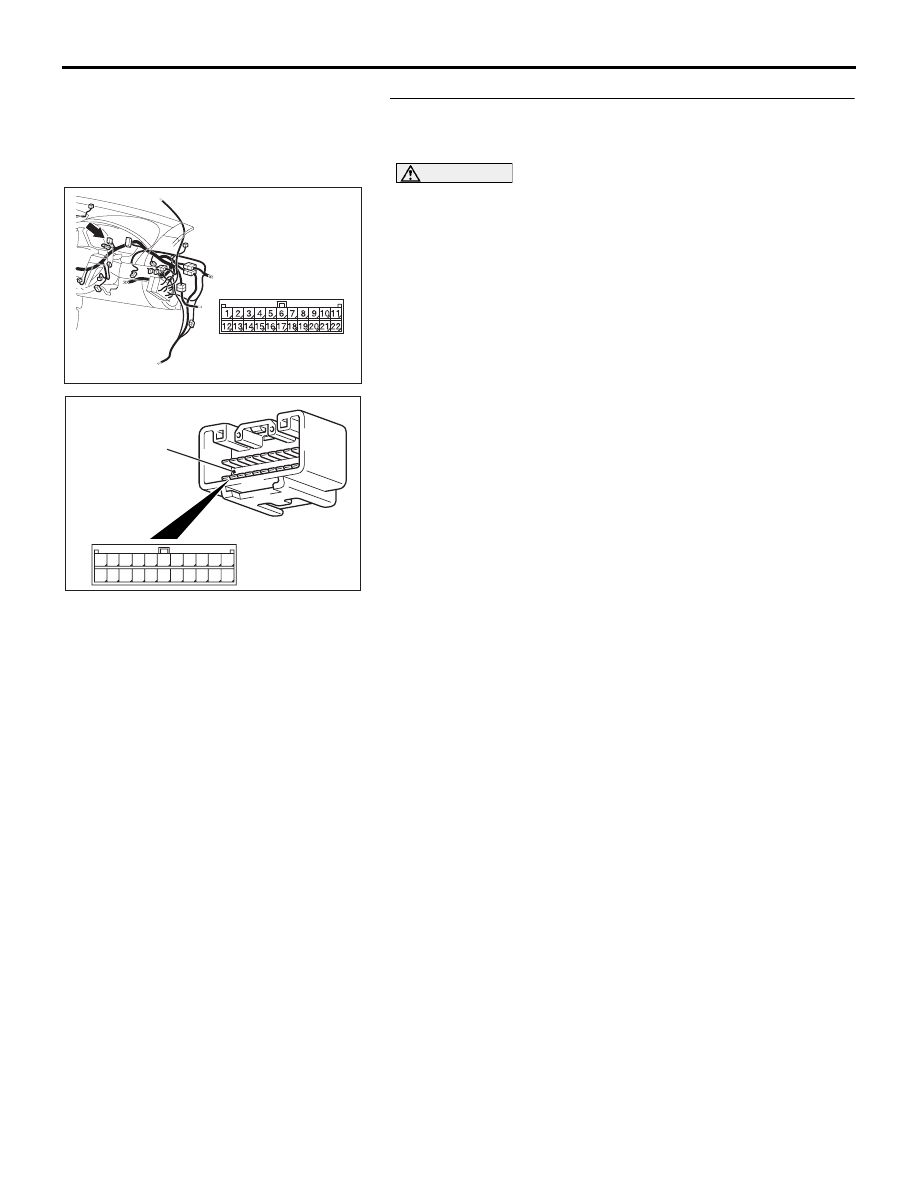

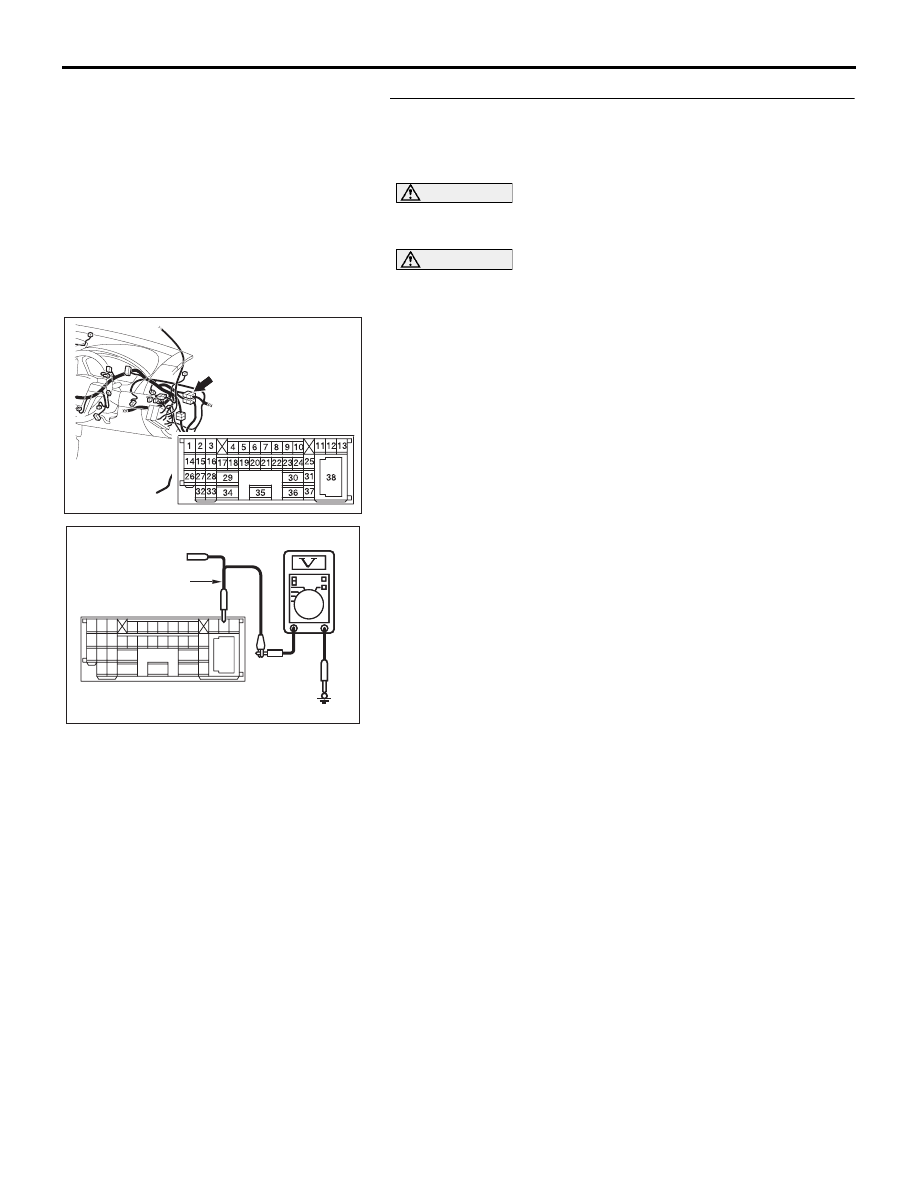

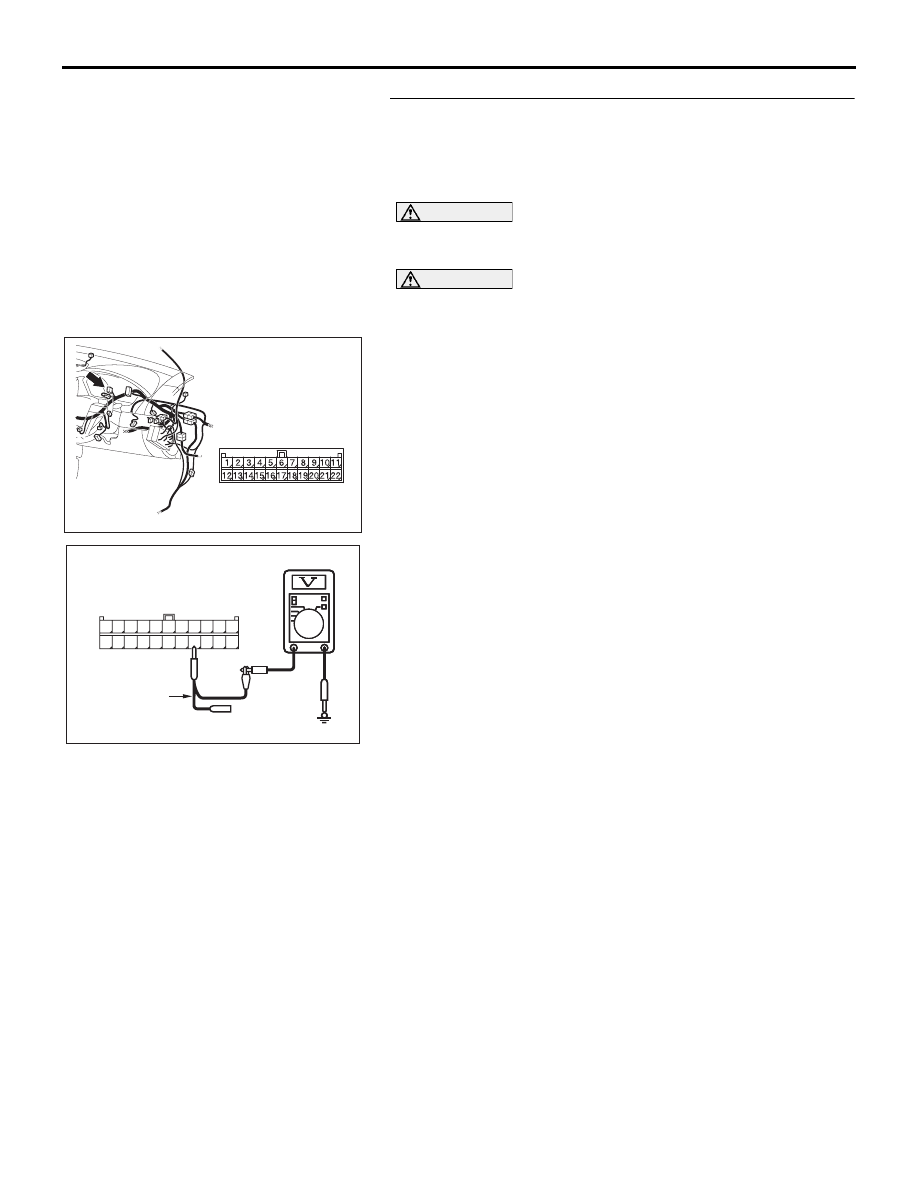

DIAGNOSIS CONTROLLER AREA NETWORK (CAN) 54C-59 STEP 27. Check the CAN_L-side bus line (communication CAUTION A digital multimeter should be used. For details refer to CAUTION The test wiring harness should be used. For details refer to (1) Disconnect intermediate connector C-29, and measure the voltage at the male side (at front wiring harness side). (2) Turn the ignition switch to the "ON" position. (3) Measure the voltage between intermediate connector terminal 12 and body ground. OK: 4.0 V or less Q: Does the voltage measure 4.0 V or less? YES : If the voltage measures 4.0 V or less, go to Step 28. 42. 52DB014A CONNECTOR: C-29 AC209365 2 3 27 32 28 33 16 15 4 5 19 18 29 17 34 7 8 35 22 21 9 10 30 36 31 37 25 24 23 6 20 1 14 26 11 13 12 38 AC209365 MALE SIDE: C-29 TEST HARNESS GA |
