MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-604

INSPECTION PROCEDURE 24: Power supply system and ignition switch - IG system.

.

CIRCUIT OPERATION

• Battery positive voltage is applied to the MPI

relay (terminals No. 1, No. 2).

• When the ignition switch is turned to the "ON"

position, the battery positive voltage is applied to
the ECU (terminal No. 43). When the battery pos-
itive voltage is applied, the ECU turns the power
transistor in the ECU "ON" and grounds the MPI
relay coil. With this, the MPI relay turns "ON" and
the battery positive voltage is supplied to the
ECU (terminals No. 51, No. 64) from the MPI
relay (terminal No. 4).

• A battery positive voltage is constantly supplied

to the ECU (terminal No. 42) as the backup
power.

• The ECU (terminals No. 25, No. 29) is grounded

to the vehicle body.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• Malfunction of the ignition switch.

• Malfunction of the MPI relay.

• Improper connector contact, open circuit or

short-circuit harness wire.

• Disconnected ECU ground wire.

• Malfunction of the ECU.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

DIAGNOSIS

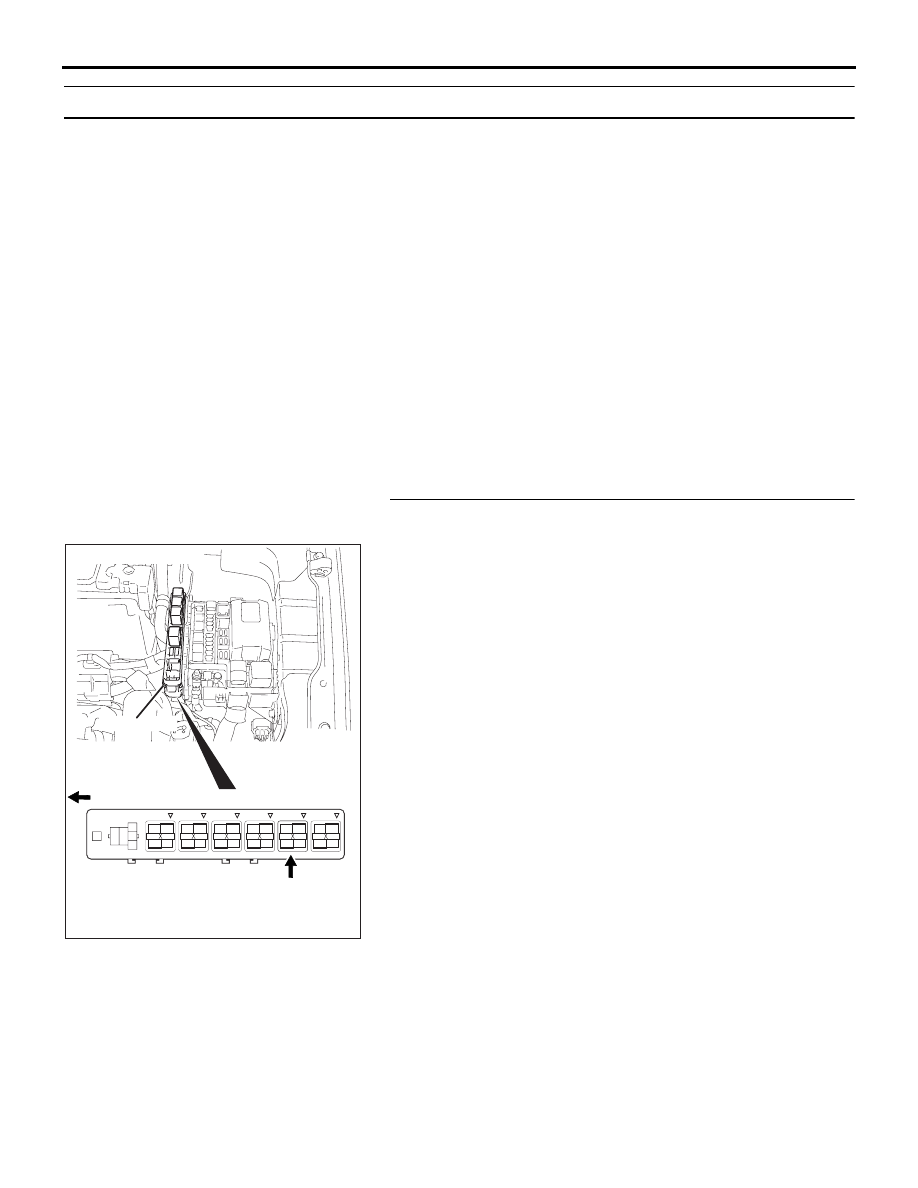

STEP 1. Check harness connector B-17X at MPI relay for
damage.
Q: Is the connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

1

2

3

4

AK303017

CONNECTOR: B-17X

FRONT OF VEHICLE

B-17X

AB

HARNESS

CONNECTOR:

COMPONENT SIDE

RELAY BOX

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-605

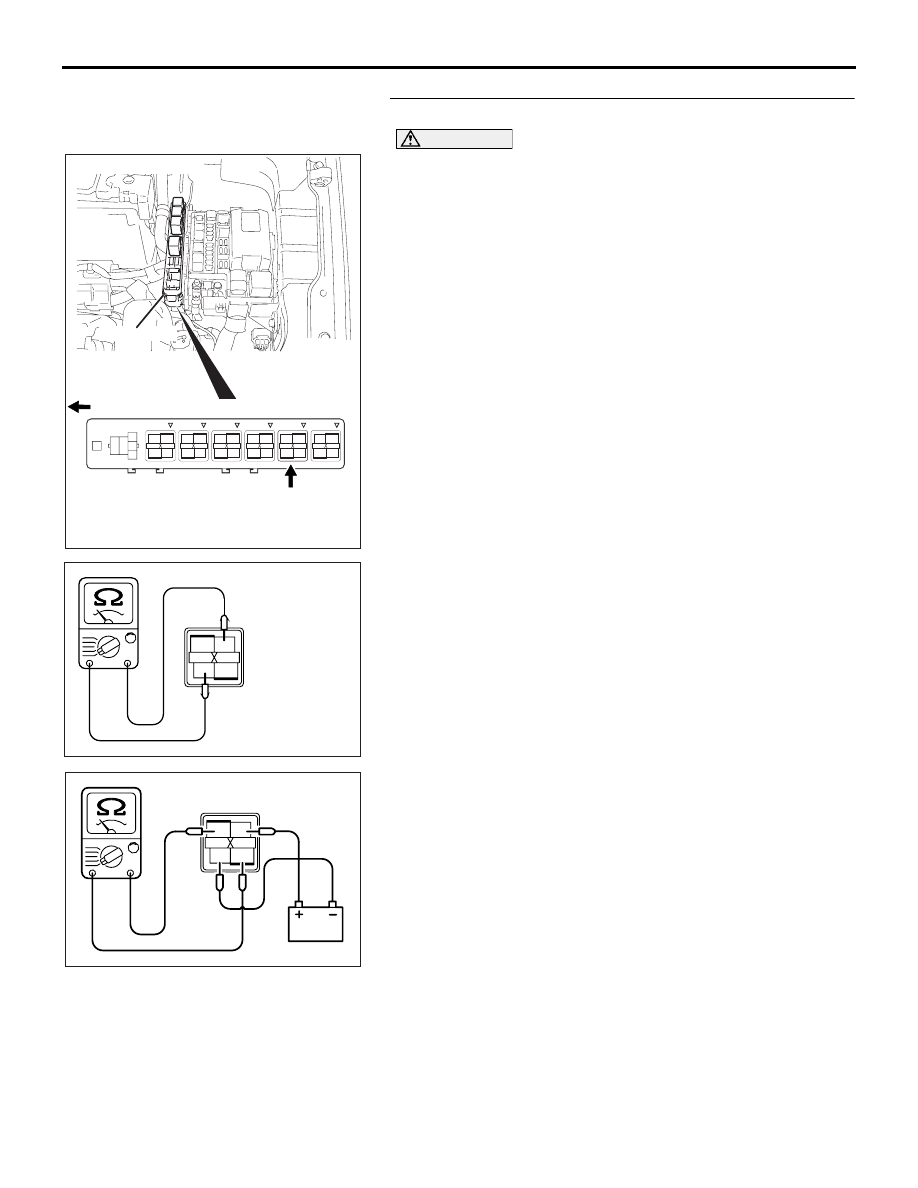

STEP 2. Check the MPI relay.

CAUTION

Because it is not possible to distinguish the top and the
bottom of the MPI relay, inspect it with the triangle mark
printed on the relay facing upward.
(1) Remove the MPI relay.

(2) Check for continuity between the MPI relay terminals No. 2

and No. 3.

• There should be continuity. (approximately 70 ohms)

(3) Use jumper wires to connect MPI relay terminal No. 2 to the

positive battery terminal and terminal No. 3 to the negative
battery terminal.

(4) Check for continuity between the MPI relay terminals No. 1

and No. 4 while connecting and disconnecting the jumper
wire at the negative battery terminal.

• Should be less than 2 ohms. (Negative battery terminal

connected)

• Should be open loop. (Negative battery terminal discon-

nected)

(5)  Install the MPI relay.

Q: Is the measured resistance within the specified range?

YES : Go to Step 3.
NO :  Replace the MPI relay. Then confirm that the

malfunction symptom is eliminated.

1

2

3

4

AK303017

CONNECTOR: B-17X

FRONT OF VEHICLE

B-17X

AB

HARNESS

CONNECTOR:

COMPONENT SIDE

RELAY BOX

AK204164

1 2

3 4

MFI RERAY

SIDE

CONNECTOR

AB

1 2

3 4

AK203257

MFI RELAY SIDE

CONNECTOR

AB

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-606

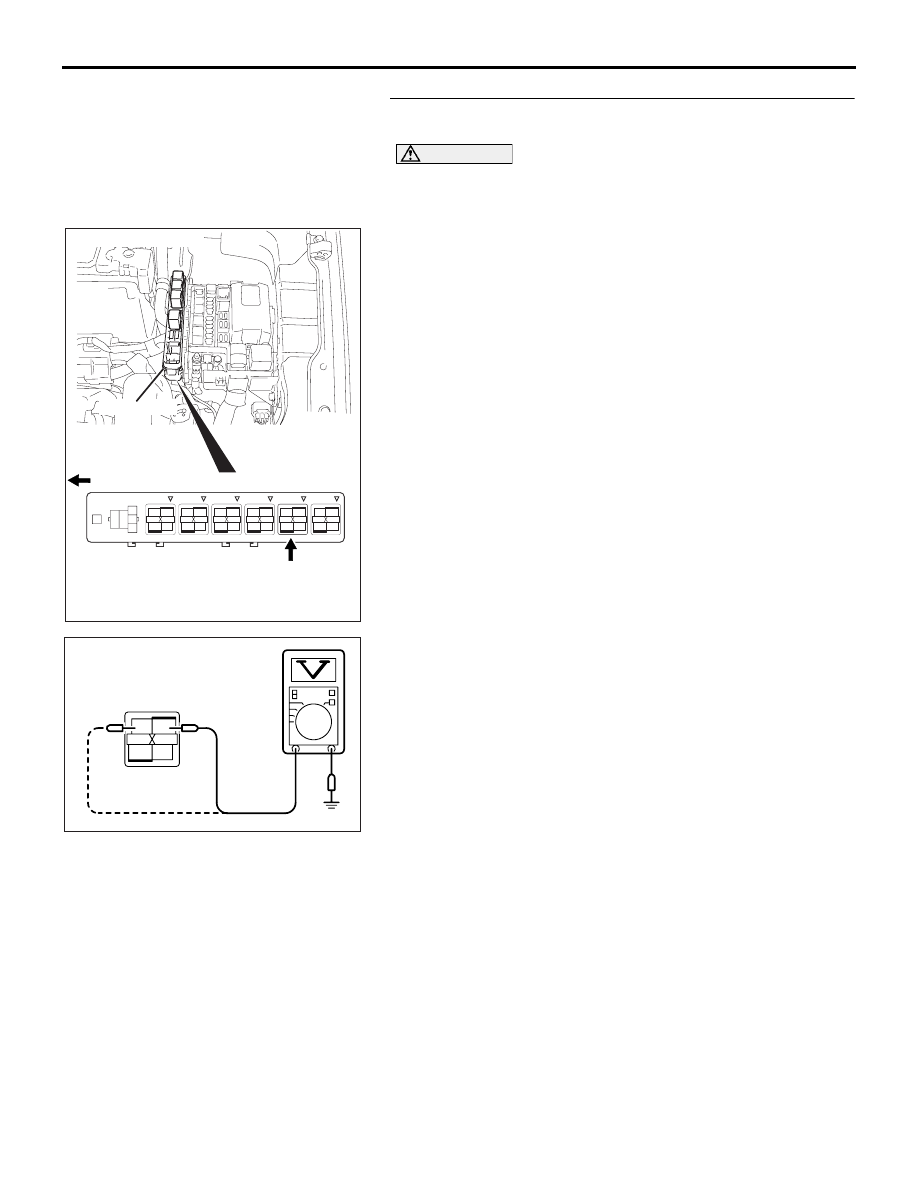

STEP 3. Measure the power supply voltage at MPI relay
harness side connector B-17X.

CAUTION

Because it is difficult to distinguish the top and bottom of
the MPI relay connector at the wiring harness, inspect it by
using triangle mark on the junction block as reference.
(1) Disconnect the connector B-17X and measure at the

harness side.

(2) Measure the voltage between terminals No. 1, No. 2 and

ground.

• Voltage should be battery positive voltage.

Q: Is battery positive voltage (approximately 12 volts)

present?
YES :
Go to Step 4.
NO :  Check harness connector A-13 at intermediate

connector for damage, and repair or replace as
required. Refer to, GROUP 00E, Harness Connector
Inspection

P.00E-2

. If intermediate connector is in

good condition, repair harness wire between relay
box (9) and MPI relay connector B-17X (terminals No.
1, No. 2) because of open circuit. Then confirm that
the malfunction symptom is eliminated.

1

2

3

4

AK303017

CONNECTOR: B-17X

FRONT OF VEHICLE

B-17X

AB

HARNESS

CONNECTOR:

COMPONENT SIDE

RELAY BOX

2 1

3

4

AK303247

B-17X HARNESS

CONNECTOR:

COMPONENT SIDE

AB

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-607

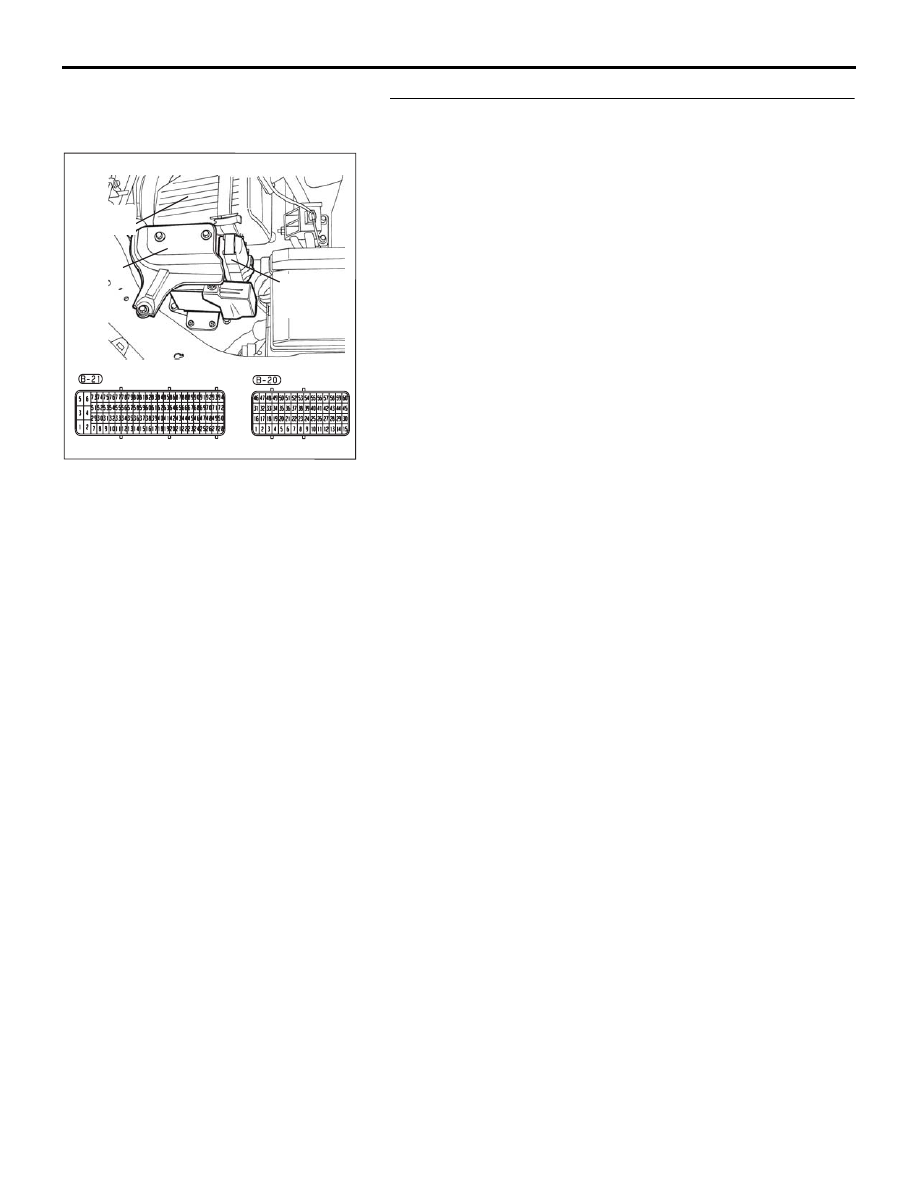

STEP 4. Check harness connector B-20 and B-21 at ECU
for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER
