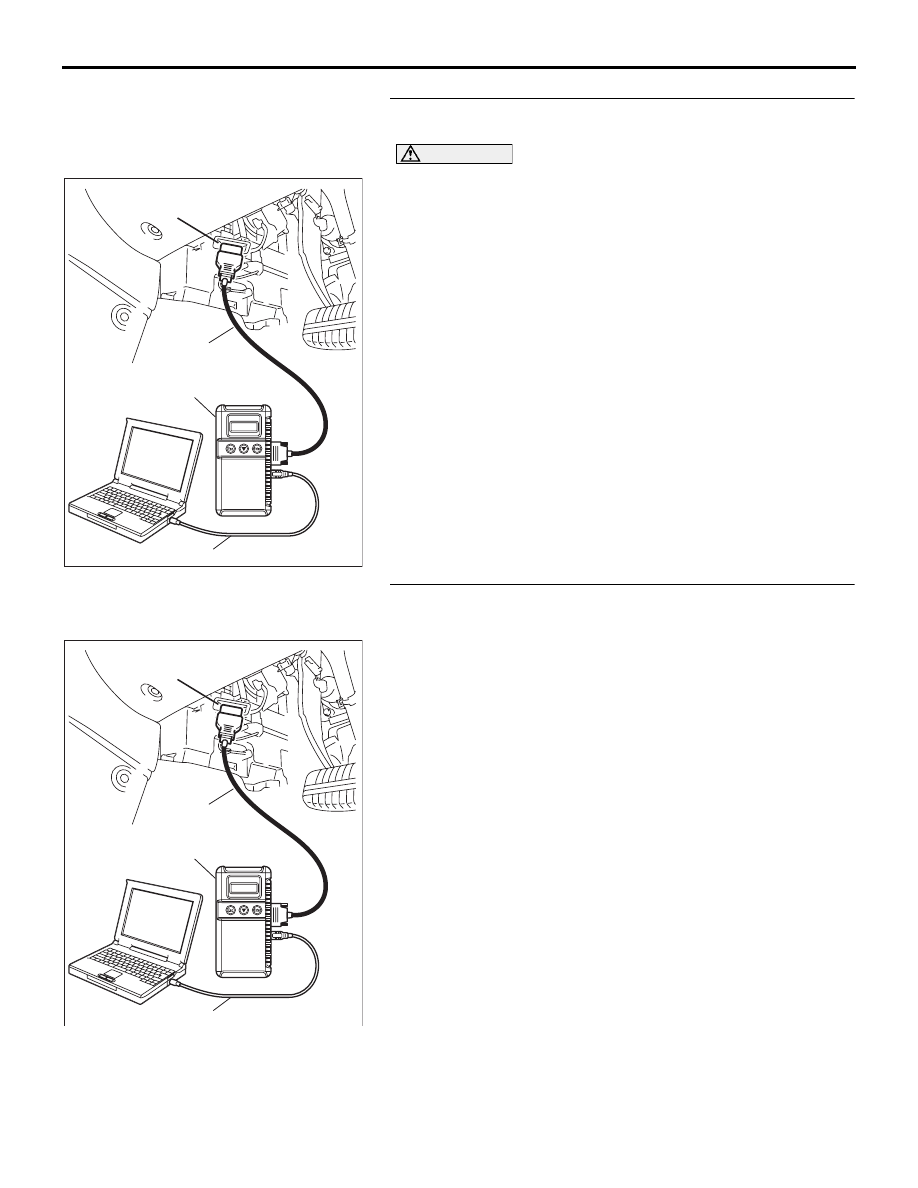

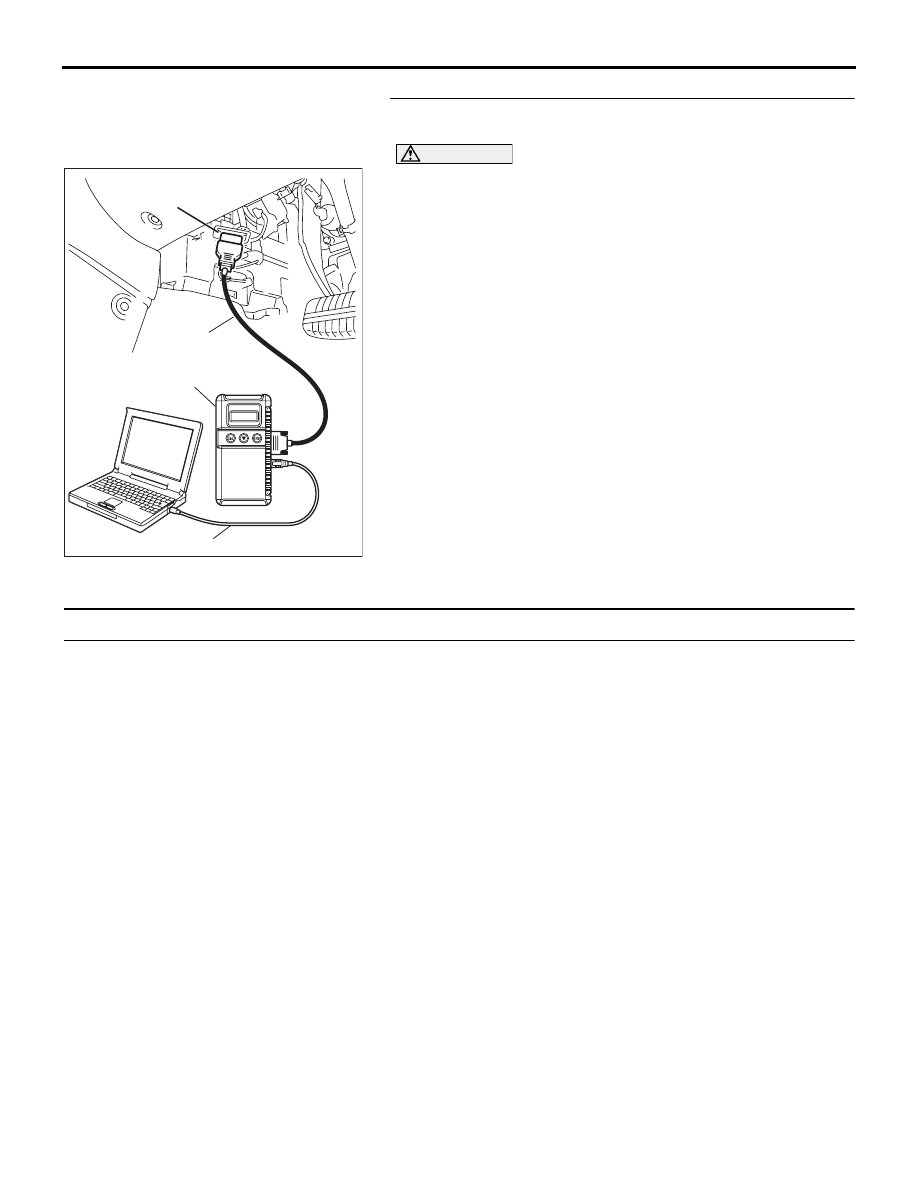

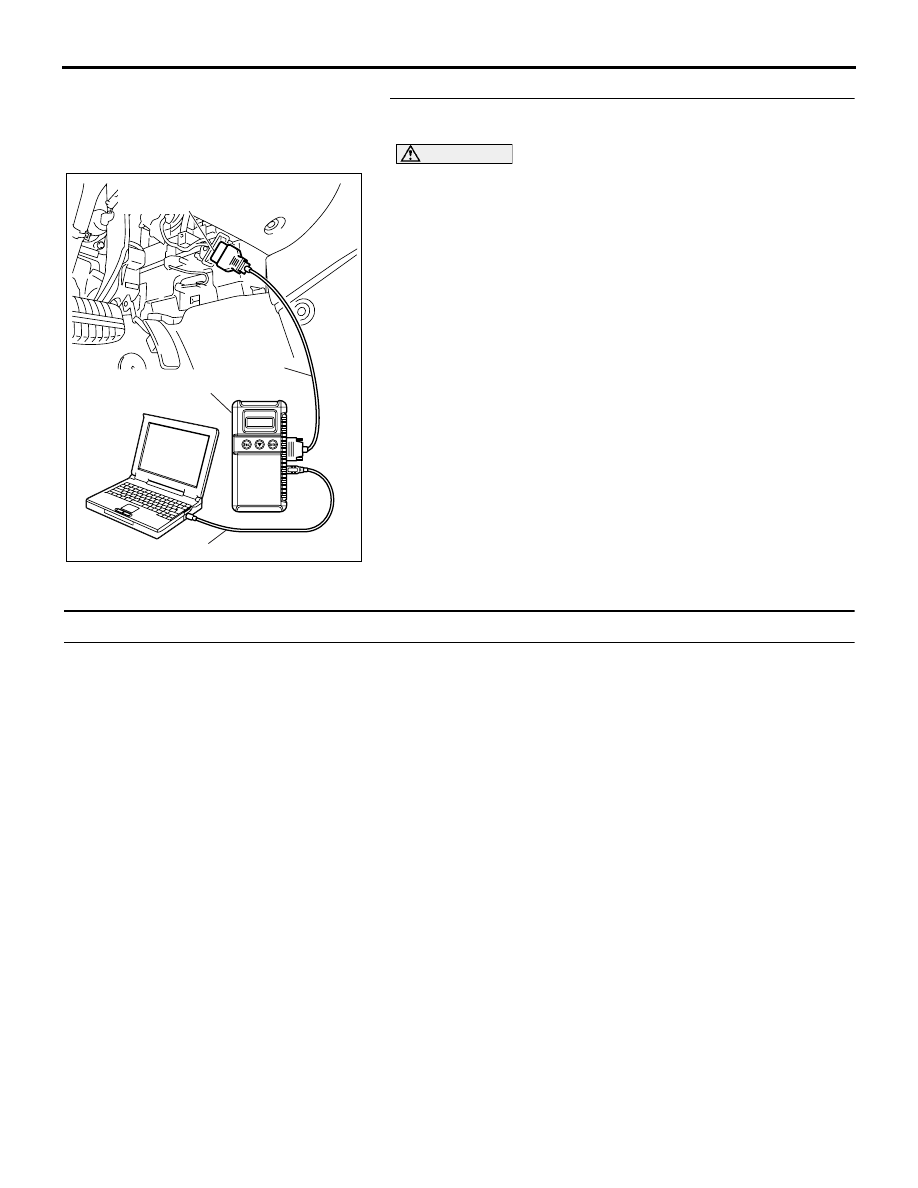

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-588

STEP 6. Check the fuel pressure.
Refer to On-vehicle Service

− Fuel Pressure Test

P.13A-661

.

Q: Is the fuel pressure normal?

YES : Check the following items, and repair or replace the

defective items.

a. Vacuum leak.

• Broken intake manifold gasket.

• Broken air intake hose.

• Broken vacuum hose.

• Positive crankcase ventilation valve does

not operate.

b. Injector clogged.

Then confirm that the malfunction symptom is

eliminated.

NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

STEP 7. Check the fuel pressure.
Refer to On-vehicle Service

− Fuel Pressure Test

P.13A-661

.

Q: Is the fuel pressure normal?

YES : Check the following items, and repair or replace the

defective items.

a. Check the ignition coil and spark plugs.
b. Check compression pressure.

c. Check the fuel filter or fuel line for clogging.

Then confirm that the malfunction symptom is

eliminated.

NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

INSPECTION PROCEDURE 16: Acceleration shock.

.

COMMENT

• There may be an ignition leak accompanying the

increase in the spark plug demand voltage during
acceleration or the electronic control throttle
valve system failed.

.

TROUBLESHOOTING HINTS (The most
likely causes for this case:)

• Malfunction of the ignition system.

• Malfunction of the electronic control throttle valve

system.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

DIAGNOSIS

Required Special Tools:

• Diagnostic tool(MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-589

STEP 1. Using diagnostic tool, read the diagnostic trouble
code (DTC).

CAUTION

To prevent damage to diagnostic tool, always turn the igni-
tion switch to the "LOCK" (OFF) position before connect-
ing or disconnecting diagnostic tool.
(1) Connect diagnostic tool to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is The DTC set?

YES : Refer to Diagnostic Trouble Code Chart

P.13A-17

.

NO :  Check the following items, and repair or replace the

defective items.

a. Check the ignition coil and spark plugs.
b. Check for occurrence of ignition leak.

Then confirm that the malfunction symptom is

eliminated.

INSPECTION PROCEDURE 17: Deceleration Shock

.

COMMENT

• There may be a sudden change in air flow

through the throttle valve, causing the vehicle to
decelerate rapidly for an instant.

.

TROUBLESHOOTING HINTS (The most
likely causes for this case:)

• Malfunction of the electronic control throttle valve

system.

• Dirtiness around throttle valve.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

DIAGNOSIS

Required Special Tools:

• Diagnostic tool(MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-590

STEP 1. Using diagnostic tool, read the diagnostic trouble
code (DTC).

CAUTION

To prevent damage to diagnostic tool, always turn the igni-
tion switch to the "LOCK" (OFF) position before connect-
ing or disconnecting diagnostic tool.
(1) Connect diagnostic tool to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Refer to Diagnostic Trouble Code Chart

P.13A-17

.

NO :  Refer to On-vehicle Service

− Throttle Body (Throttle

Valve Area) Cleaning

P.13A-660

INSPECTION PROCEDURE 18: Poor acceleration.

.

COMMENT

• Defective ignition system, abnormal air/fuel ratio,

the electronic control throttle valve system, poor
compression pressure, etc. are suspected.

.

TROUBLESHOOTING HINTS (The most
likely causes for this case:)

• Malfunction of the ignition system.

• Malfunction of air/fuel ratio control system.

• Malfunction of the electronic control throttle valve

system.

• Malfunction of the fuel supply system.

• Poor compression pressure.

• Clogged exhaust system.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

DIAGNOSIS

Required Special Tools:

• Diagnostic tool(MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-591

STEP 1. Using diagnostic tool, read the diagnostic trouble
code (DTC).

CAUTION

To prevent damage to diagnostic tool, always turn the igni-
tion switch to the "LOCK" (OFF) position before connect-
ing or disconnecting diagnostic tool.
(1) Connect diagnostic tool to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Refer to Diagnostic Trouble Code Chart

P.13A-17

.

NO :  Go to Step 2.

STEP 2. Using diagnostic tool, check actuator test items
01, 02, 03, 04, 05, 06: Injector.
(1) Turn the ignition switch to the "ON" position.
(2) Check following items in the actuator test. Refer to Actuator

Test Table

P.13A-644

.

a. Item 01, 02, 03, 04, 05, 06: Injector.

(3) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Are thy operating properly?

YES : Go to Step 3.
NO :  Refer to DTC P0201

P.13A-272

, P0202

P.13A-280

P0203

P.13A-287

, DTC P0204

P.13A-295

P0205

P.13A-302

, P0206

P.13A-310



− Injector Circuit.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
