MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-584

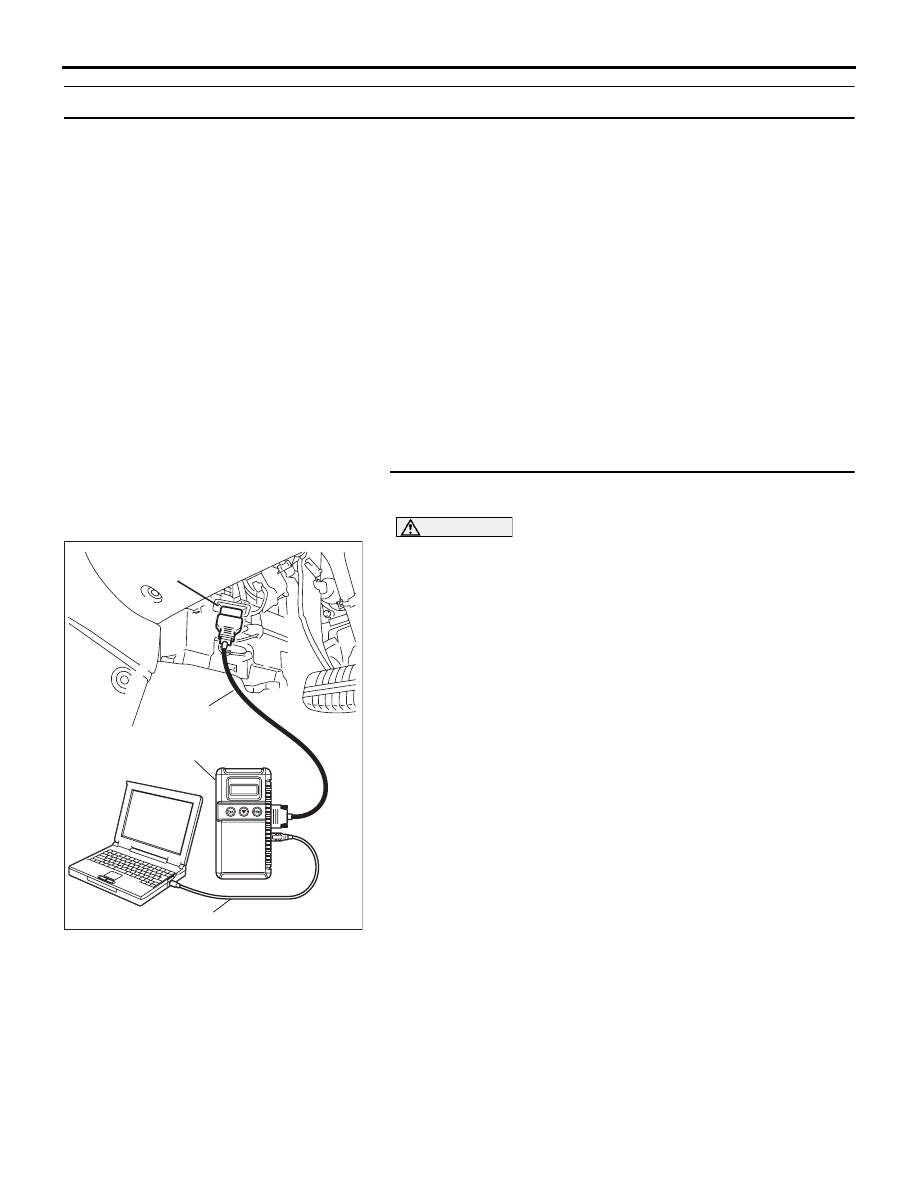

STEP 3. Using diagnostic tool, check data list.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following items in the data list. Refer to Data List

Reference Table

P.13A-637

.

a. Item 13: Throttle Position Sensor (main).
b. Item 15: Throttle Position Sensor (sub).

c. Item 11: Accelerator Pedal Position Sensor (main).

d. Item 12: Accelerator Pedal Position Sensor (sub).

(3) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Are they operating properly?

YES : Go to Step 4.
NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

STEP 4. Inspection of throttle body (throttle valve area) for
dirtiness.

Q: Is the throttle valve area dirty?

YES : Refer to On-vehicle Service

− Clean the throttle valve

area

P.13A-660

.

NO :  Check the following items, and repair, replace or

clean the defective sections.

a. Check the ignition coil and spark plugs.

Then confirm that the malfunction symptom is

eliminated.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-585

INSPECTION PROCEDURE 15: Hesitation, sag or stumble.

.

COMMENT

• In cases such as the above, the ignition system,

air/fuel mixture compression pressure may be
defective.

.

TROUBLESHOOTING HINTS (The most
likely causes for this case:)

• Malfunction of the ignition system.

• Malfunction of air/fuel ratio control system.

• Malfunction of the fuel supply system.

• Poor compression pressure.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

DIAGNOSIS

Required Special Tools:

• Diagnostic tool(MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

STEP 1. Using diagnostic tool, read the diagnostic trouble
code (DTC).

CAUTION

To prevent damage to diagnostic tool, always turn the igni-
tion switch to the "LOCK" (OFF) position before connect-
ing or disconnecting diagnostic tool.

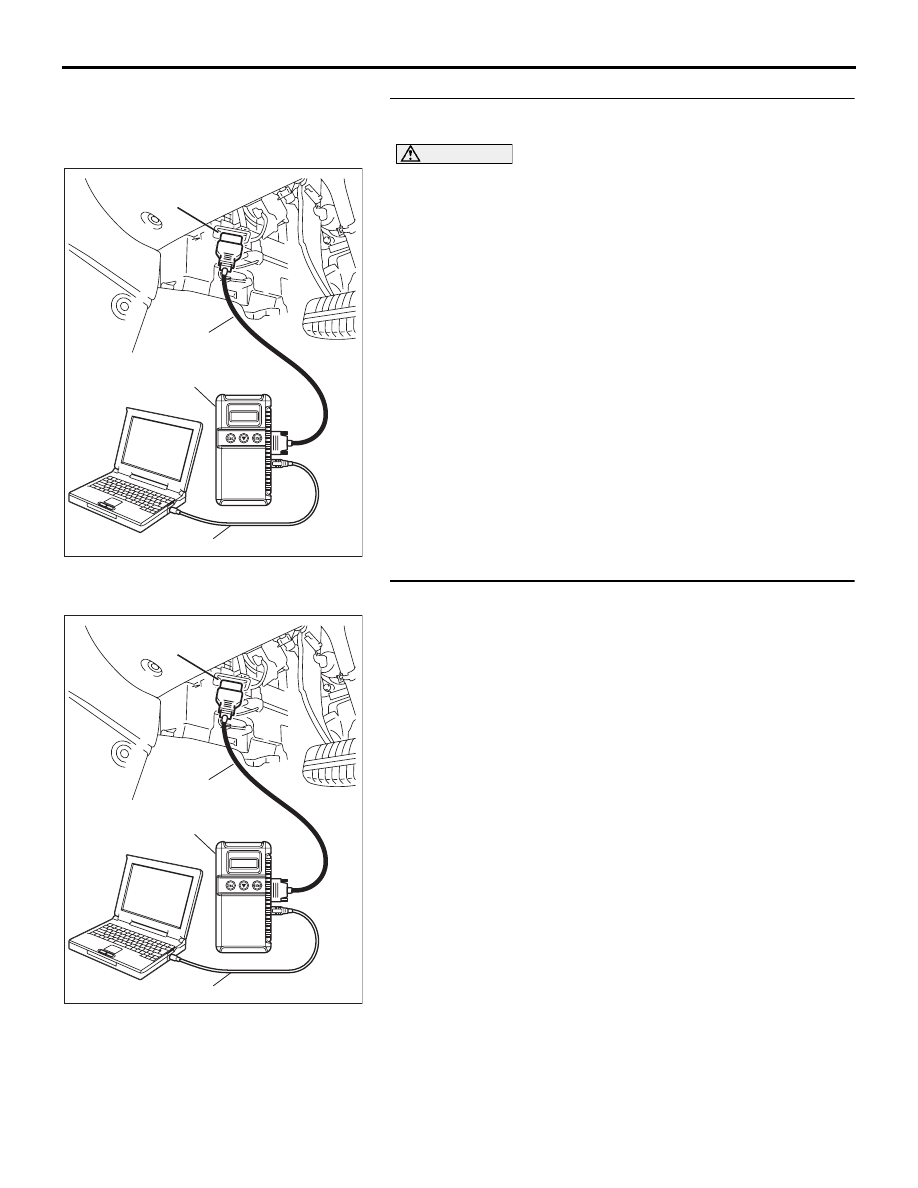

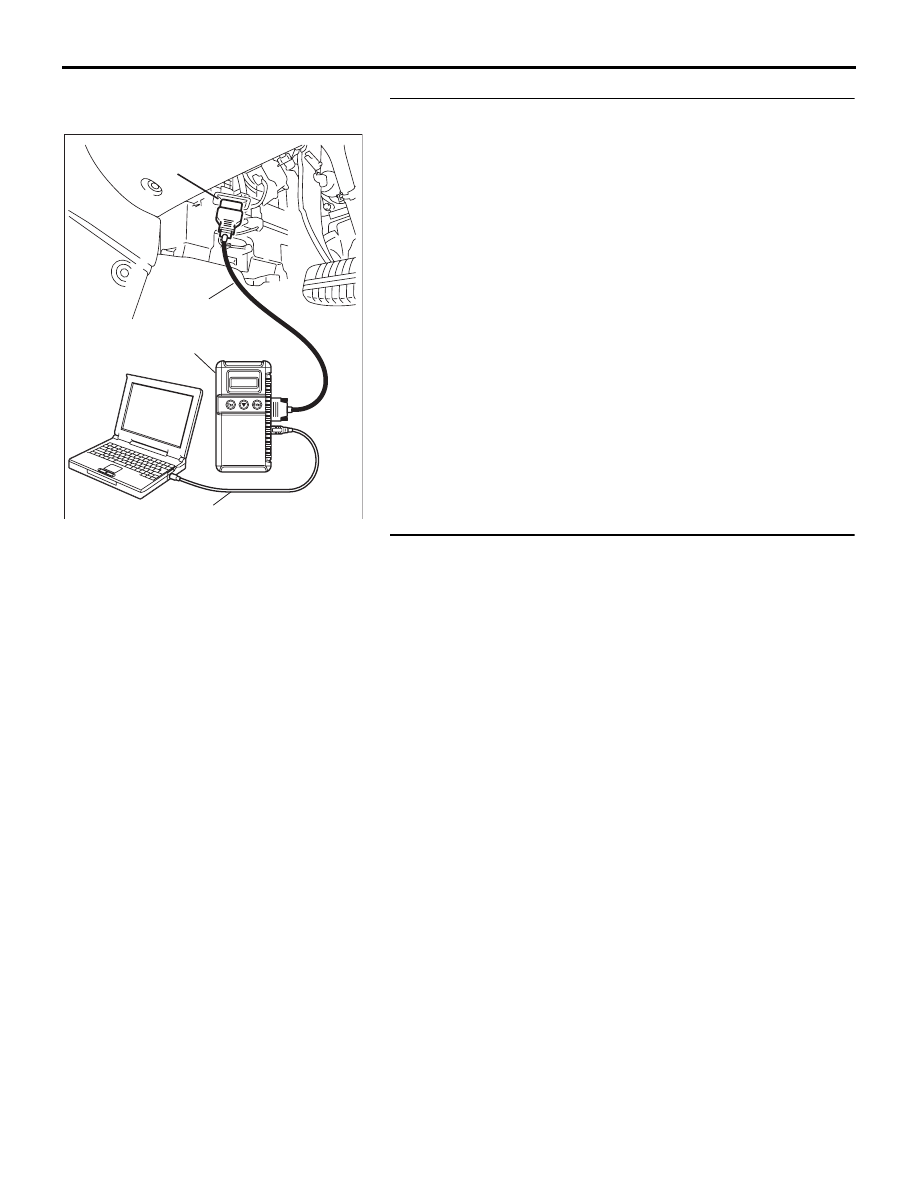

(1) Connect diagnostic tool to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Refer to Diagnostic Trouble Code Chart

P.13A-17

.

NO :  Go to Step 2.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-586

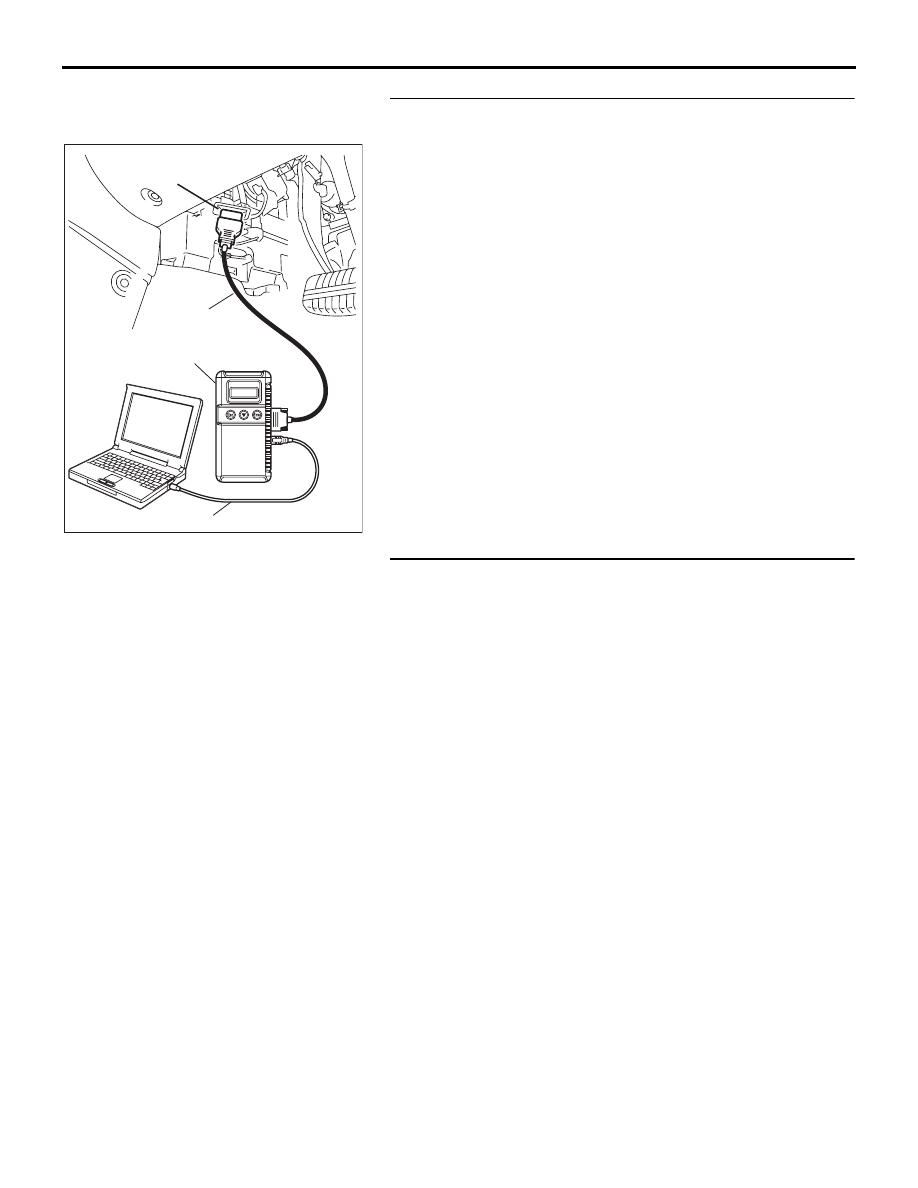

STEP 2. Using diagnostic tool, check actuator test items
01, 02, 03, 04, 05, 06: Injector.
(1) Check following items in the actuator test. Refer to Actuator

Test Reference Table

P.13A-644

.

a. Item 01, 02, 03, 04, 05, 06: Injector.

(2) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Are thy operating properly?

YES : Go to Step 3.
NO :  Refer to DTC P0201

P.13A-272

, P0202

P.13A-280

P0203

P.13A-287

, DTC P0204

P.13A-295

P0205

P.13A-302

, P0206

P.13A-310



− Injector Circuit.

STEP 3. Check the advance ignition timing.
Ignition timing is controlled by the ENGIN-ECUand will vary
depending on engine requirement..

Q: Is the advance ignition timing normal?

YES : Got to Step 4.
NO :  Check that the crankshaft position sensor and timing

belt cover are in the correct position. Then confirm
that the malfunction symptom is eliminated.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI) <3.8L ENGINE>

13A-587

STEP 4. Using diagnostic tool, check data list and actuator
test.

CAUTION

To prevent damage to diagnostic tool, always turn the igni-
tion switch to the "LOCK" (OFF) position before connect-
ing or disconnecting diagnostic tool.
(1) Connect diagnostic tool to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Check the following items in the data list. Refer to Data List

Reference Table

P.13A-637

.

a. Item 05: Intake Air Temperature Sensor.
b. Item 06: Engine Coolant Temperature Sensor.

c. Item AD: Right Bank Heated Oxygen Sensor (rear).

d. Item AC: Right Bank Heated Oxygen Sensor (front).
e. Item AF: Left Bank Heated Oxygen Sensor (rear).

f. Item AE: Left Bank Heated Oxygen Sensor (front).

(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Are they operating properly?

YES : Go to Step 5.
NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

STEP 5. Using diagnostic tool, check data list.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following items of data list. Refer to Data List

Reference Table

P.13A-637

.

a. Item AC: Right Bank Heated Oxygen Sensor (front).
b. Item AE: Left Bank Heated Oxygen Sensor (front).

• Voltage should fluctuate between 0 − 0.4 volt and 0.6 −

1.0 volt while idling after the engine has warmed-up.

(3) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the sensor operating properly?

YES : Go to Step 7.
NO :  Go to Step 6.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
