MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-504

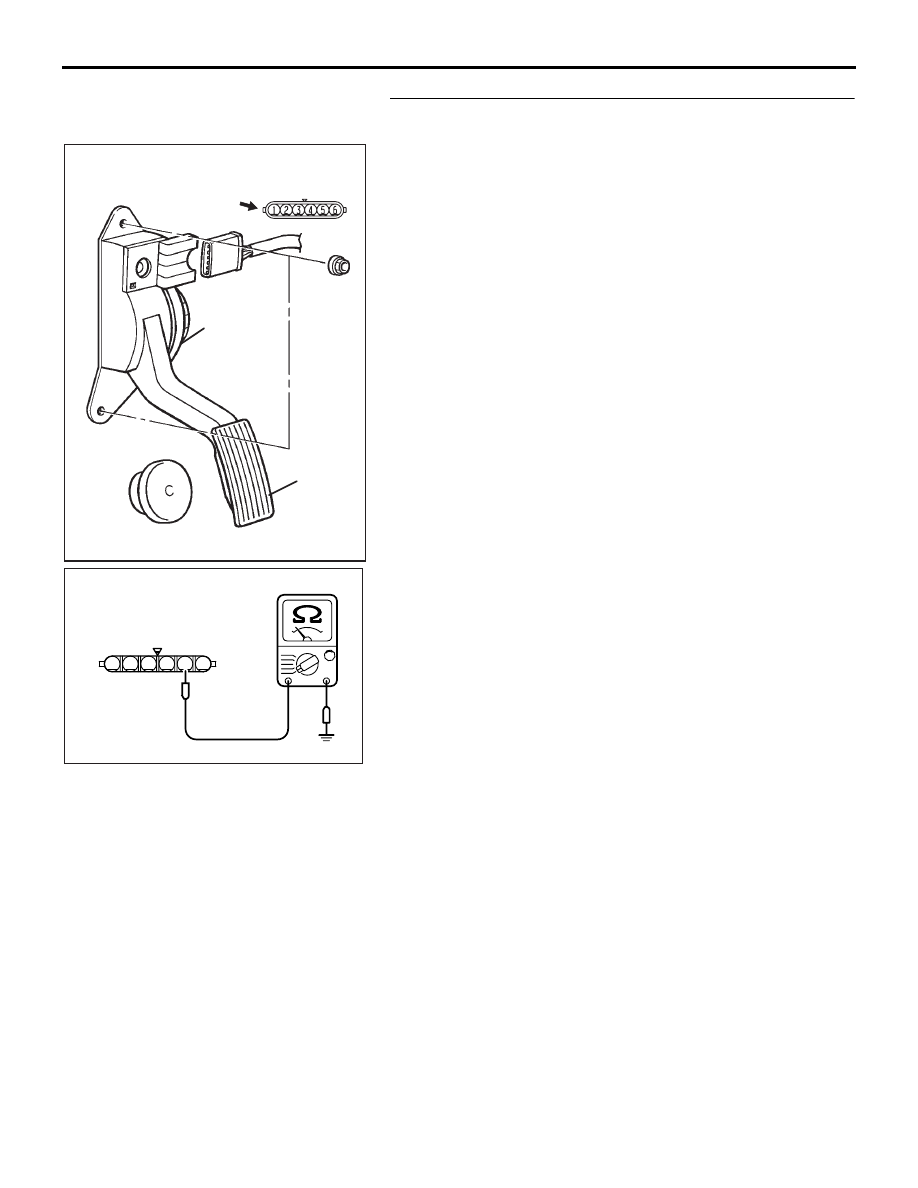

STEP 3. Check the continuity at accelerator pedal position
sensor harness side connector C-24.
(1) Disconnect the connector C-24 and measure at the harness

side.

(2) Measure the continuity between terminal No. 2 and ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 6.
NO :  Go to Step 4.

ACCELERATOR
PEDAL

CONNECTOR: C-24

C-24 (B)

ACCELERATOR
PEDAL POSITION
SENSOR

HARNESS
CONNECTOR:
COMPONENT SIDE

16DB562A

1

6 5 4 3 2

AK303204

C-24 HARNESS

CONNECTOR:

COMPONENT SIDE

AB

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-505

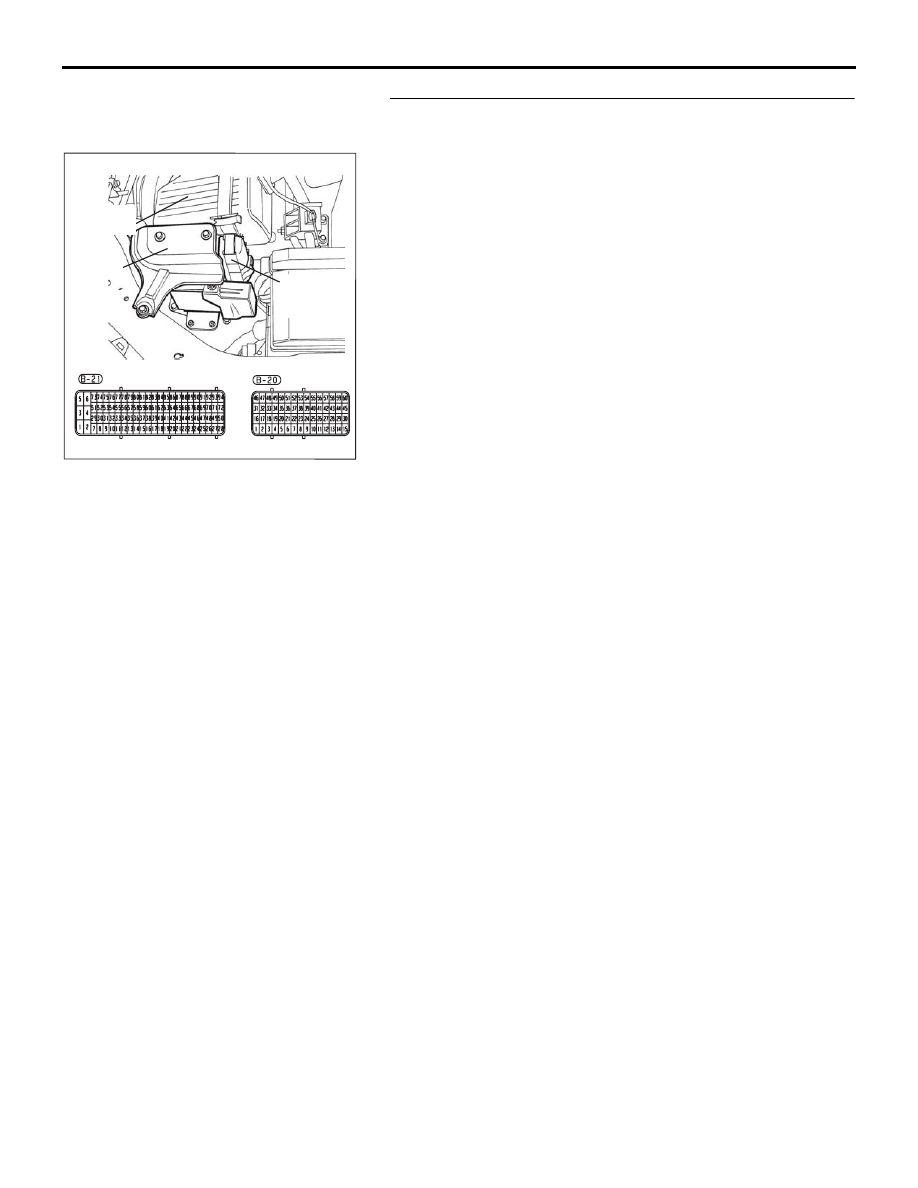

STEP 4. Check harness connector B-21 at ENGINE-ECU for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 9.

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-506

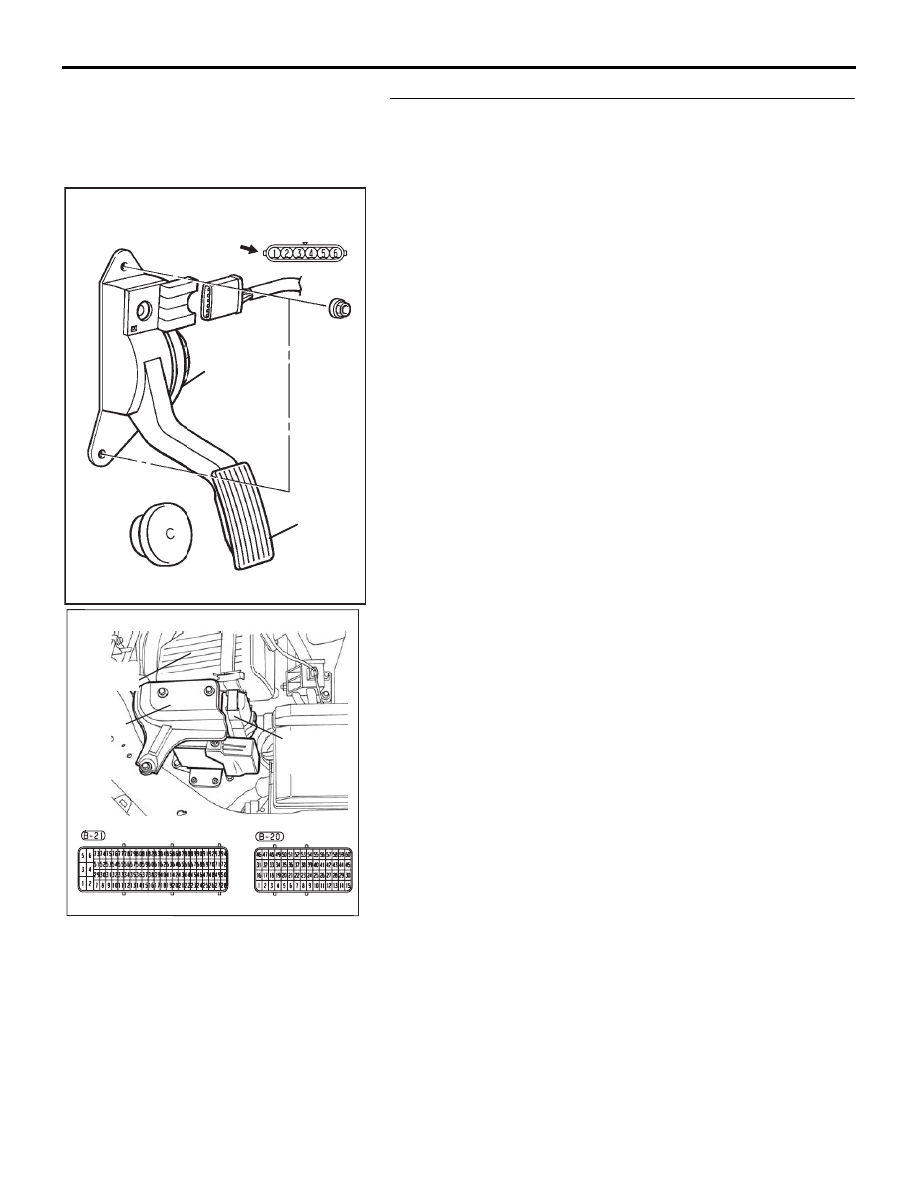

STEP 5. Check for open circuit and harness damage
between accelerator pedal position sensor connector C-24
(terminal No. 2) and ENGINE-ECU connector B-21 (terminal
No. 35).
Q: Is the harness wire in good condition?

YES : Go to Step 7.
NO :  Repair or replace it. Then go to Step 9.

ACCELERATOR
PEDAL

CONNECTOR: C-24

C-24 (B)

ACCELERATOR
PEDAL POSITION
SENSOR

HARNESS
CONNECTOR:
COMPONENT SIDE

16DB562A

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-507

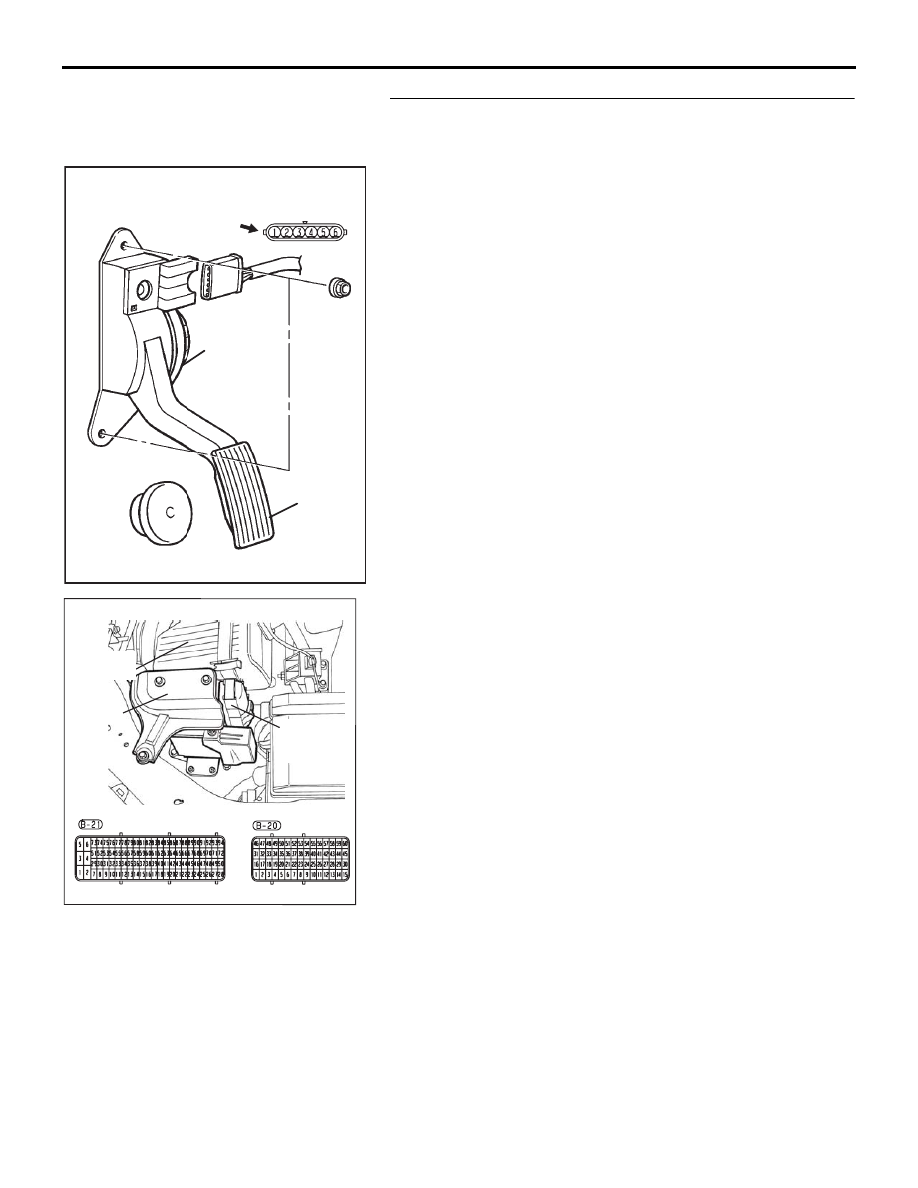

STEP 6. Check for short circuit to 5-Volts and harness
damage between throttle position sensor connector C-24
(terminal No. 2) and ECU connector B-21 (terminal No. 35).
Q: Is the harness wire in good condition?

YES : Go to Step 7.
NO :  Repair or replace it. Then go to Step 9.

ACCELERATOR
PEDAL

CONNECTOR: C-24

C-24 (B)

ACCELERATOR
PEDAL POSITION
SENSOR

HARNESS
CONNECTOR:
COMPONENT SIDE

16DB562A

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER
