STEP 9. Replace the accelerator pedal assembly.
(1) Replace the accelerator pedal assembly.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC P2122 set?
YES : Then go to Step 10.
NO : The inspection is complete.

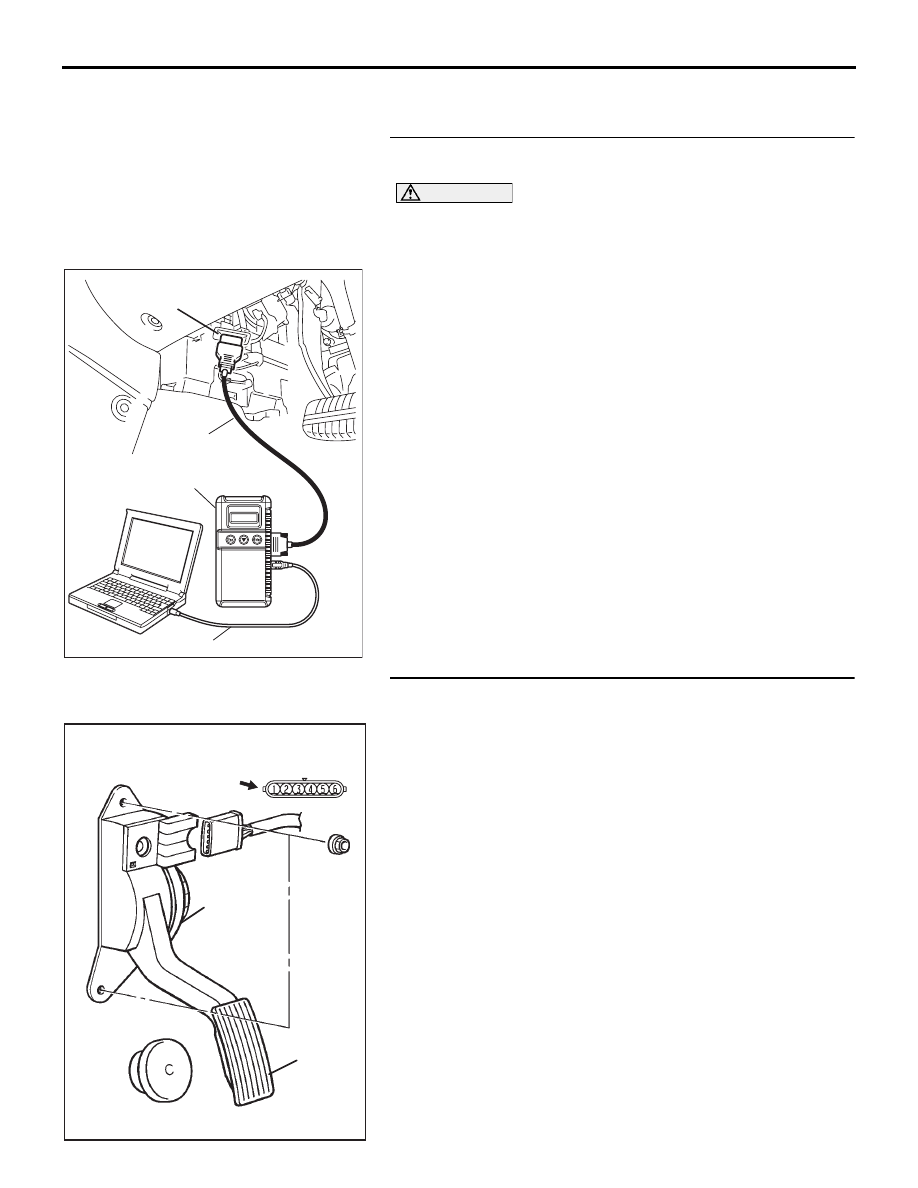

STEP 10. Using diagnostic tool , read the diagnostic
trouble code (DTC).
CAUTION
To prevent damage to diagnostic tool , always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting diagnostic tool .
(1) Connect diagnostic tool to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is DTC P2122 set?
YES : Retry the troubleshooting.
NO : The inspection is complete.

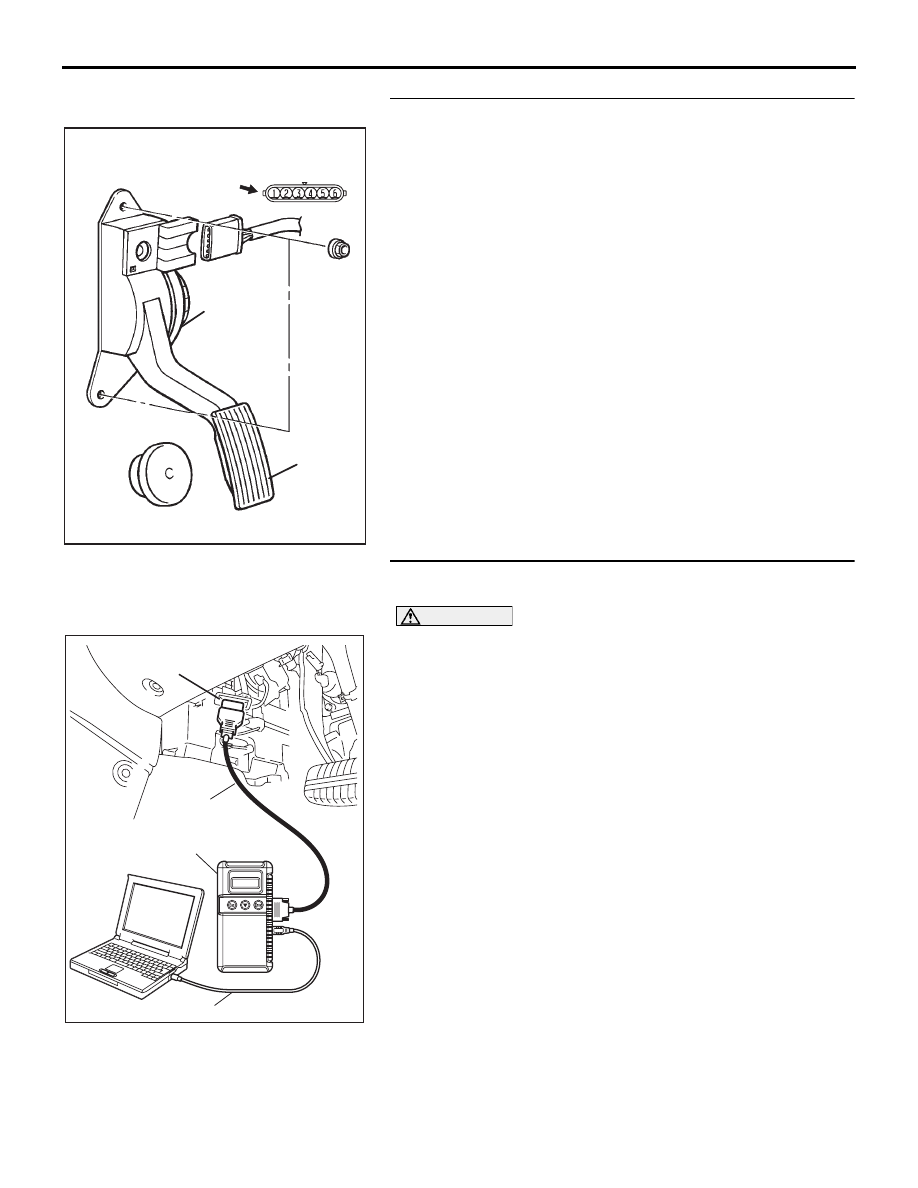

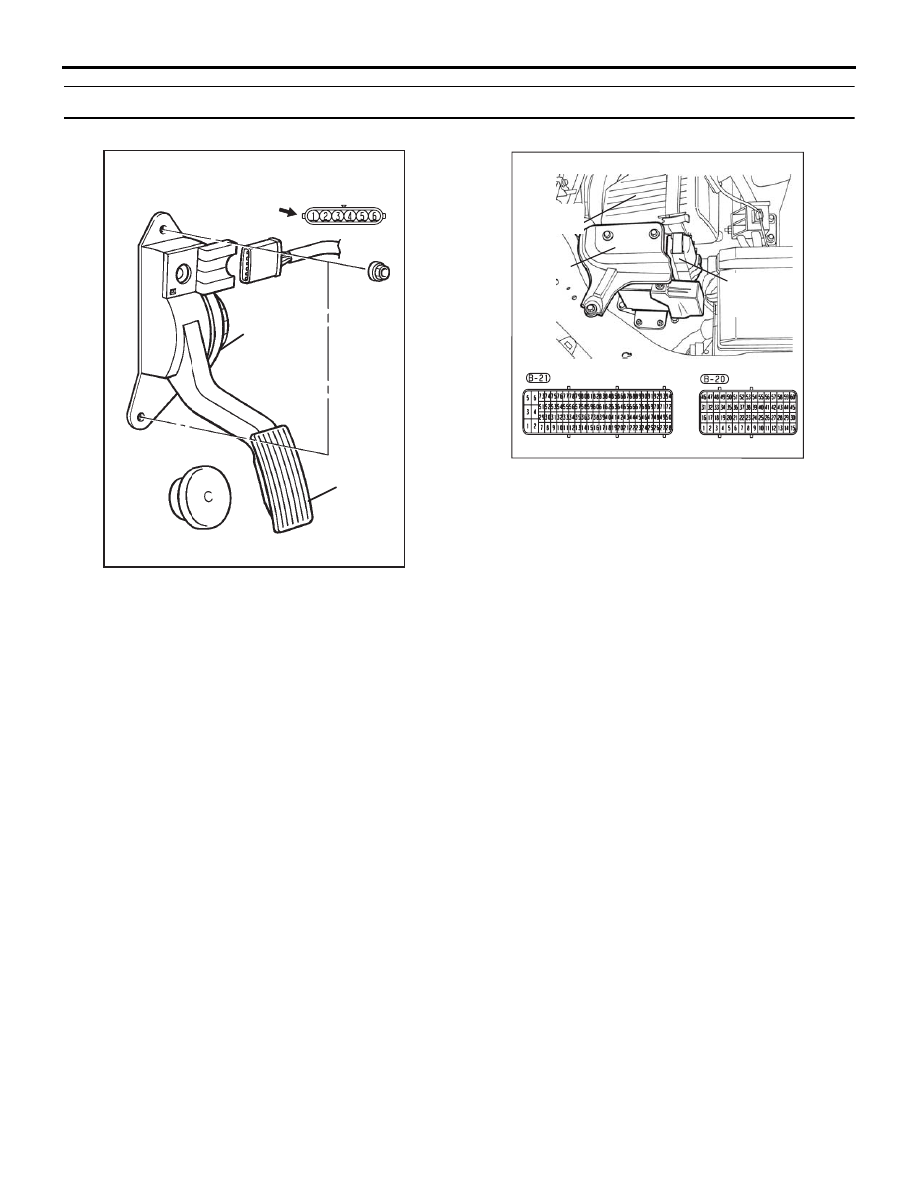

ACCELERATOR
PEDAL
CONNECTOR: C-24
C-24 (B)
ACCELERATOR
PEDAL POSITION
SENSOR
HARNESS

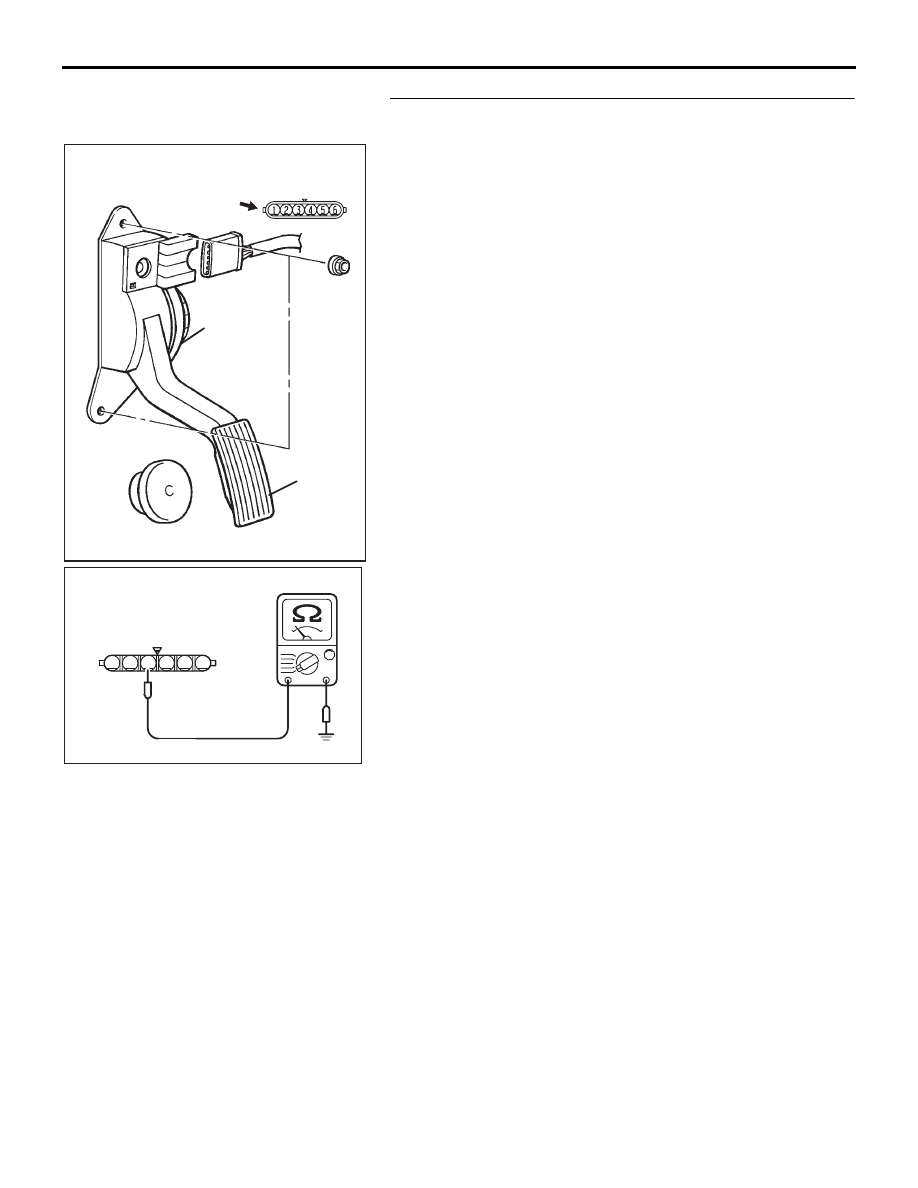

CONNECTOR:
COMPONENT SIDE
16DB562A
00DB076A
MB991910
DATA LINK
CONNECTOR
MB991824
MB991827
