Mitsubishi 380. Manual - part 583





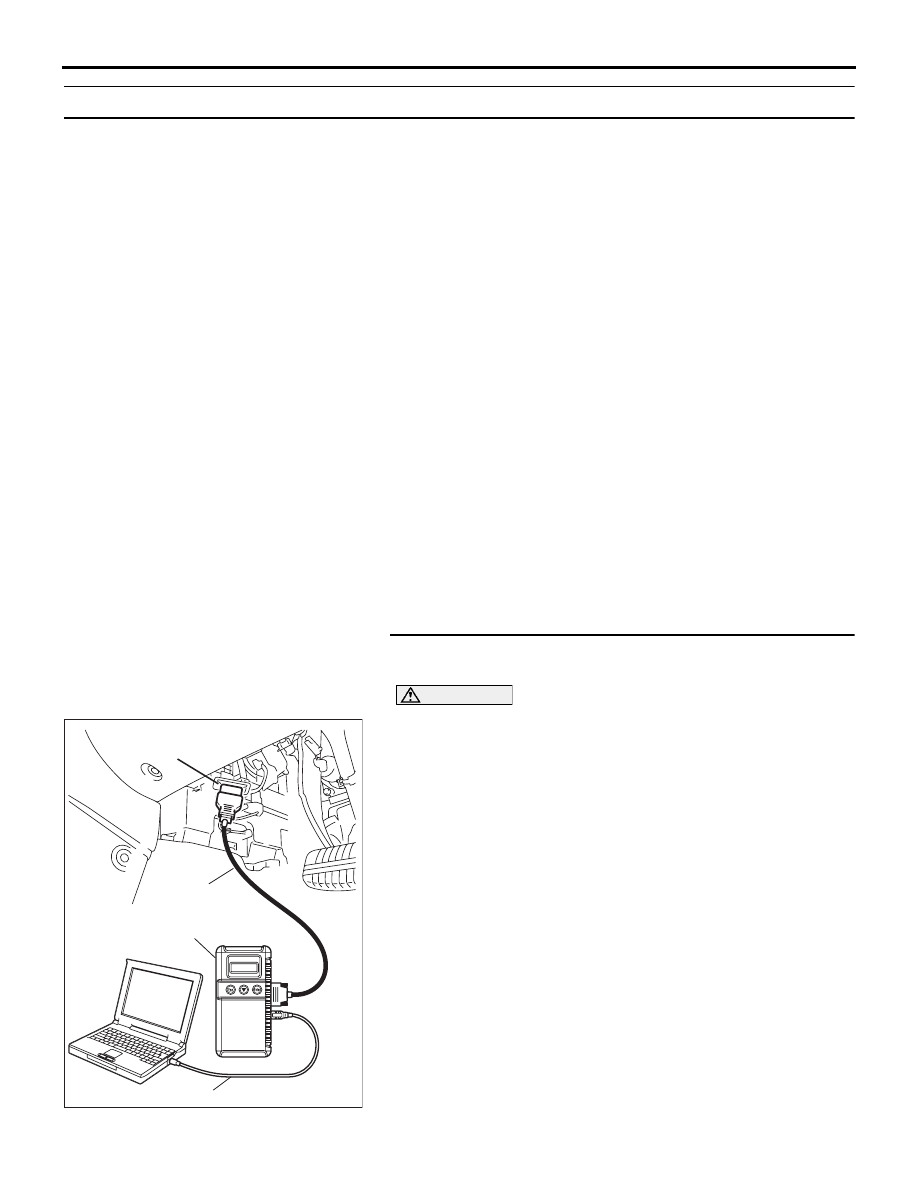

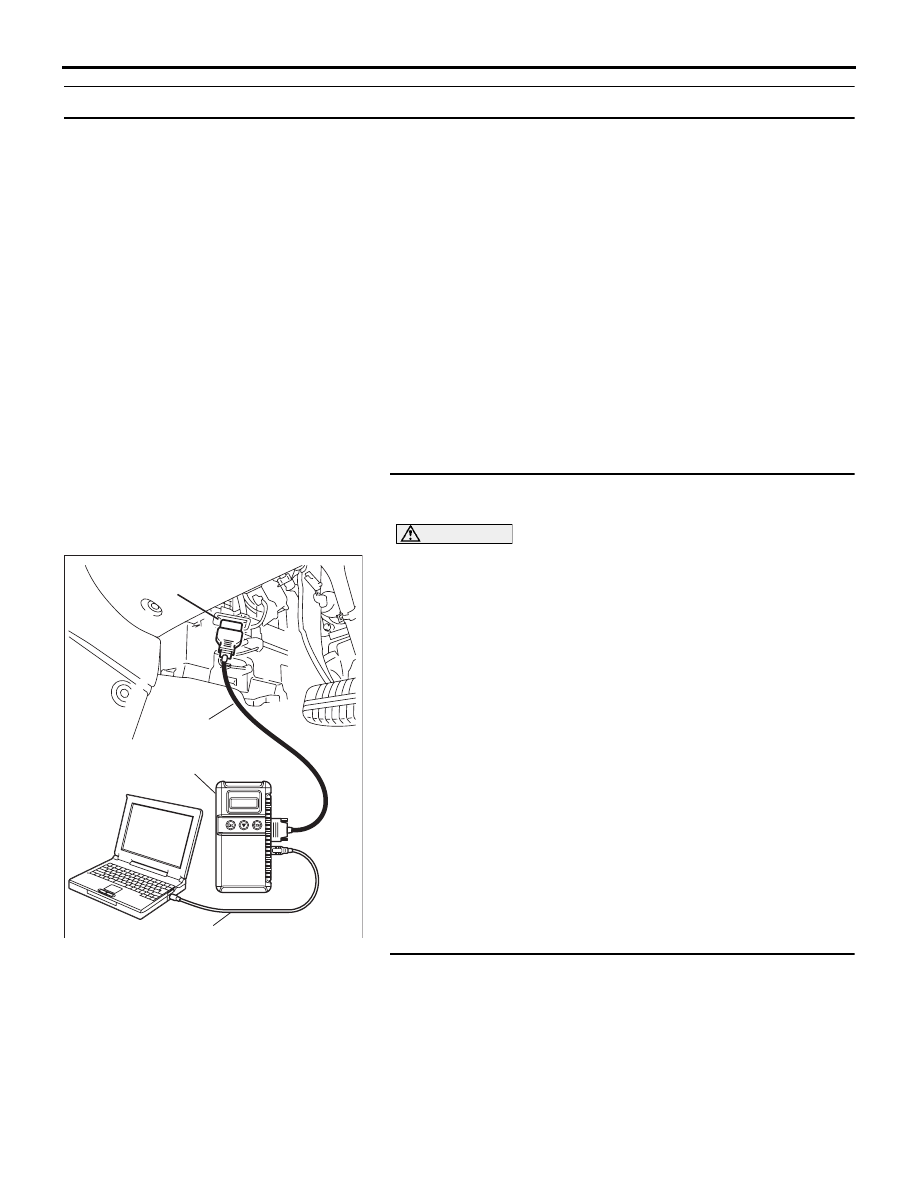

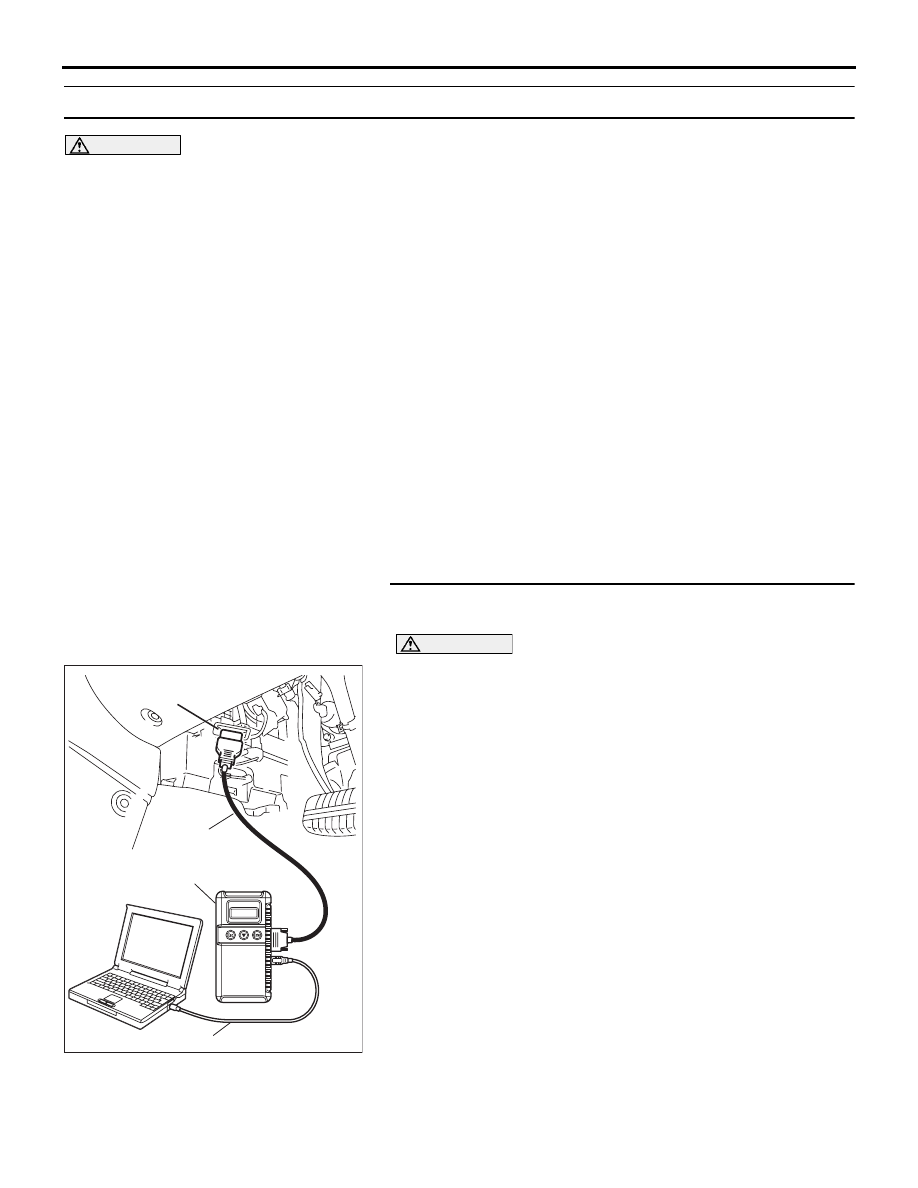

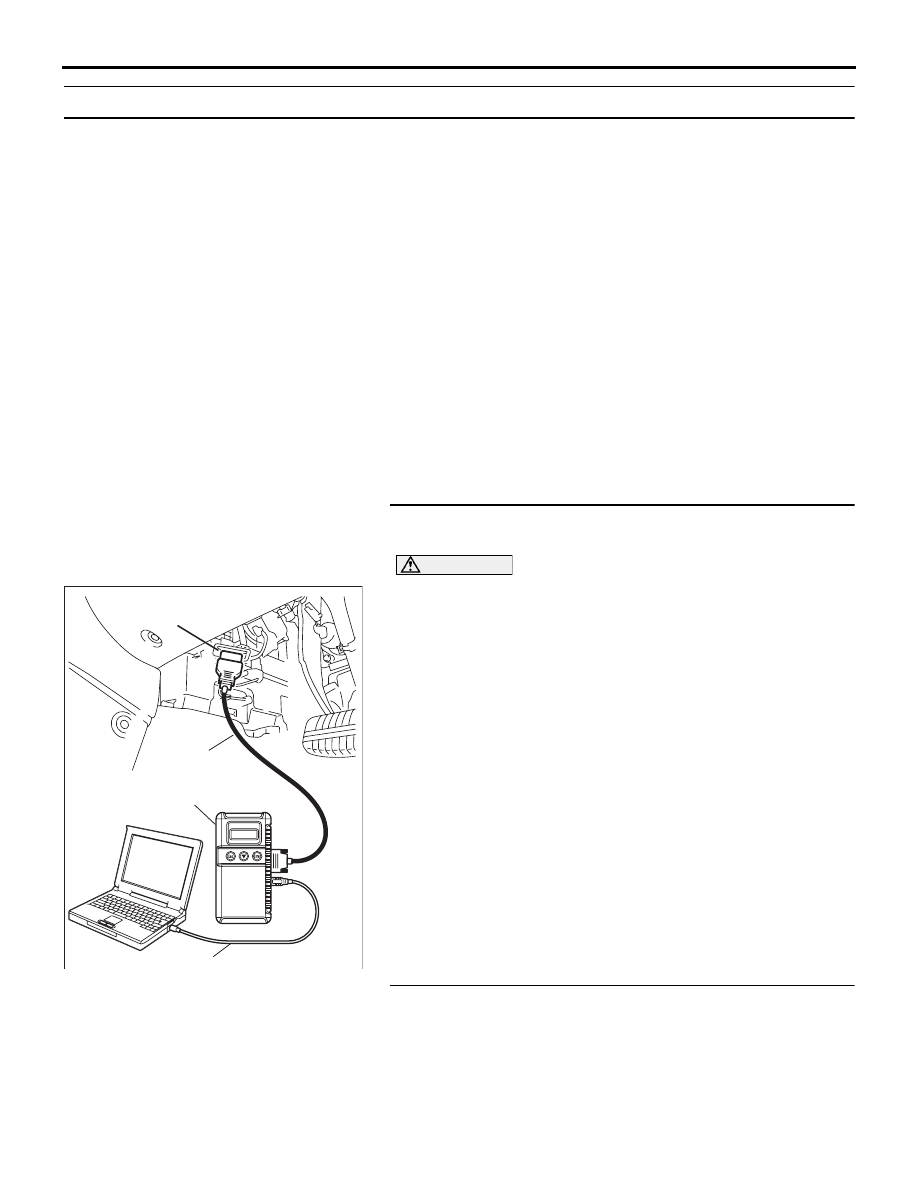

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-424

DTC P0562: Battery Voltage too Low

.

TECHNICAL DESCRIPTION

• ENGINE-ECU monitors the supply voltage.

.

DTC SET CONDITIONS

Check Conditions

• Vehicle speed is 5 km/h.

• Time after start is 3 minutes.

Judgment Criteria

• Supply voltage is below 9.99 volts.

.

TROUBLESHOOTING HINTS (The most likely

causes for this code to be set are: )

• Malfunction of Alternator.

• Battery failed.

• Battery terminals dirty.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

DIAGNOSIS

Required Special Tools:

• : Diagnostic tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

STEP 1. Using diagnostic tool , check data list item 1:
Power supply voltage.

CAUTION

To prevent damage to diagnostic tool , always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting diagnostic tool .
(1) Connect diagnostic tool to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set diagnostic tool to the data reading mode for item 1,

Power supply voltage.

• Check that it is between 9.99 and 17.05 volts.

(4) Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is the measured voltage within specification?

YES : Go to Step 2.
NO :  Refer to GROUP 16 , Engine Electrical - Charging

System

P.16-3

. Then go to Step 2.

STEP 2. Using diagnostic tool , read the diagnostic trouble
code (DTC)
(1) Turn the ignition switch to the "ON" position.
(2) Check the diagnostic trouble code (DTC).

Q: Is DTC P0562 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-425

DTC P0563: Battery Voltage too High

.

TECHNICAL DESCRIPTION

• ENGINE-ECU monitors the supply voltage.

.

DTC SET CONDITIONS

Check Conditions

• Vehicle speed is 5 km/h.

• Time after start is 3 minutes.

Judgment Criteria

• Supply voltage is above 17.05 volts.

.

TROUBLESHOOTING HINTS (The most likely

causes for this code to be set are: )

• Malfunction of Alternator.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

DIAGNOSIS

Required Special Tools:

• : Diagnostic tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

STEP 1. Using diagnostic tool , check data list item 1:
Power supply voltage.

CAUTION

To prevent damage to diagnostic tool , always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting diagnostic tool .
(1) Connect diagnostic tool to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set diagnostic tool to the data reading mode for item 1,

Power supply voltage.

• Check that it is between 9.99 and 17.05 volts.

(4) Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is the measured voltage within specification?

YES : Go to Step 2.
NO :  Refer to GROUP 16 , Engine Electrical - Charging

System

P.16-3

. Then go to Step 2.

STEP 2. Using diagnostic tool , read the diagnostic trouble
code (DTC)
(1) Turn the ignition switch to the "ON" position.
(2) Check the diagnostic trouble code (DTC).

Q: Is DTC P0563 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-426

DTC P0603: EEPROM Malfunction

CAUTION

The MIL may or may not illuminate when DTC
P0603 is detected. Refer below:

.

TECHNICAL DESCRIPTION

• ENGINE-ECU performs a check on the match

between hardware and software for different
transmission configurations (M/T, A/T).

.

Check Conditions

• Ignition switch is in "ON" position.

Judgement Criteria

• Mismatch between software variant and trans-

misssion.

• EPPROM defect - No MIL.

• Incorrect ECU fitted - MIL activated immediately

and engine only idling.

.

EOBD DRIVE CYCLE PATTERN

None.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• EPPROM defect in ENGINE-ECU.

• Incorrect ENGINE-ECU fitted.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

DIAGNOSIS

Required Special Tools:

• : Diagnostic tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

STEP 1. Using diagnostic tool , read the diagnostic trouble
code (DTC)

CAUTION

To prevent damage to diagnostic tool , always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting diagnostic tool .
(1) Connect diagnostic tool to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is DTC P0603 set?

YES : Replace the ENGINE-ECU.
NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-427

DTC P0606: Powertrain Control Module Main Processor Malfunction

.

TECHNICAL DESCRIPTION

• Throttle actuator control module processor

checks the ENGINE-ECU for abnormal condi-
tions.

.

DTC SET CONDITIONS

Check Conditions

• Ignition "ON".

Judgement Criteria

• MIL activated imediately.

• Fuel cut and engine speed limited.

.

EOBD DRIVE CYCLE PATTERN

None.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• ENGINE-ECU failed.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

DIAGNOSIS

Required Special Tools:

• : Diagnostic tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

STEP 1. Using diagnostic tool , read the diagnostic trouble
code (DTC)

CAUTION

To prevent damage to diagnostic tool , always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting diagnostic tool .
(1) Connect diagnostic tool to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is DTC P0606 set?

YES : Replace the ENGINE-ECU.
NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
