MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MFI)

13A-368

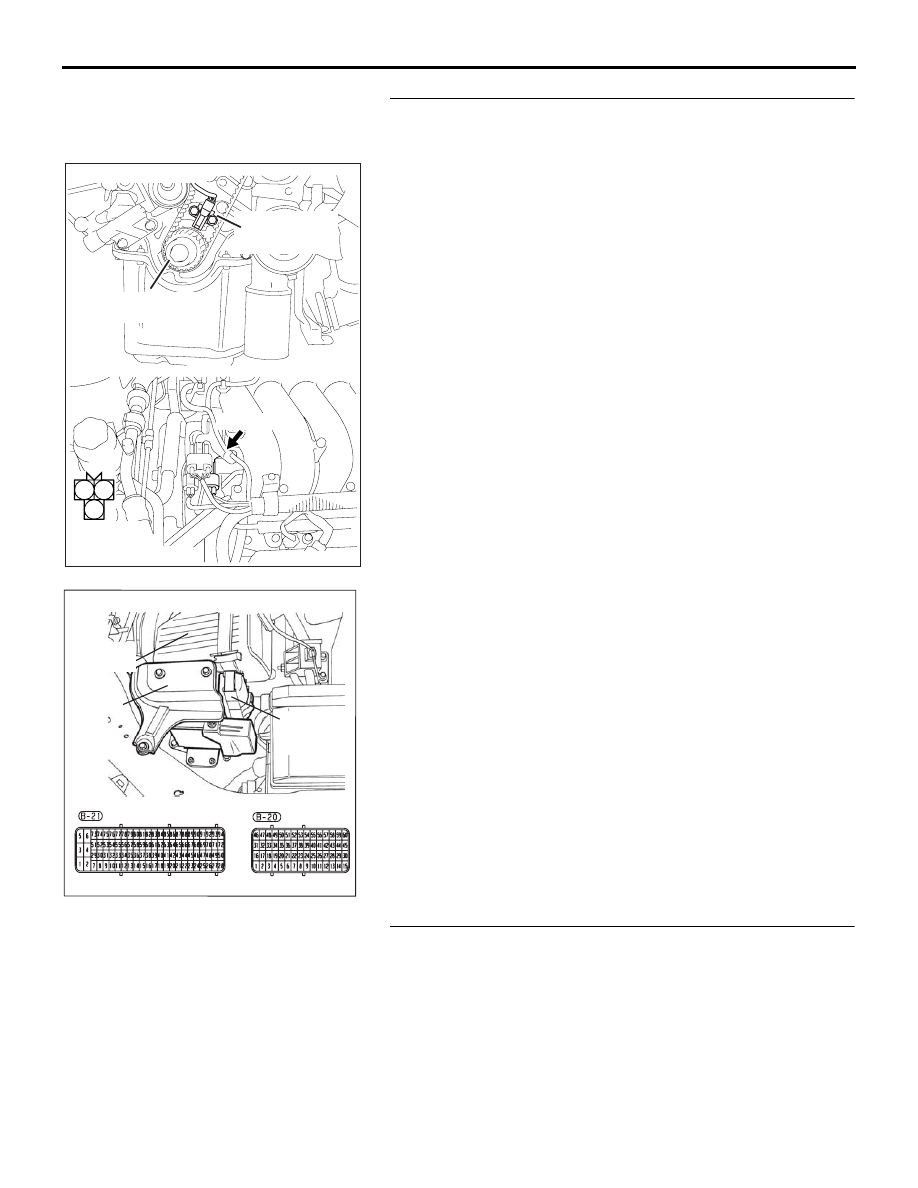

STEP 15. Check for open circuit and harness damage
between crankshaft position sensor connector B-119
(terminal No. 1) and ECU connector B-20 (terminal No. 8).
Q: Is the harness wire in good condition?

YES : Then go to Step 16.
NO :  Repair it. Then go to Step 18.

AK303123

1

2

3

CRANKSHAFT

POSITION

SENSOR

AB

CRANKSHAFT

SPROCKET

CONNECTOR: B-119

B-119 (B)

HARNESS

CONNECTOR:

COMPONENT SIDE

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MFI)

13A-369

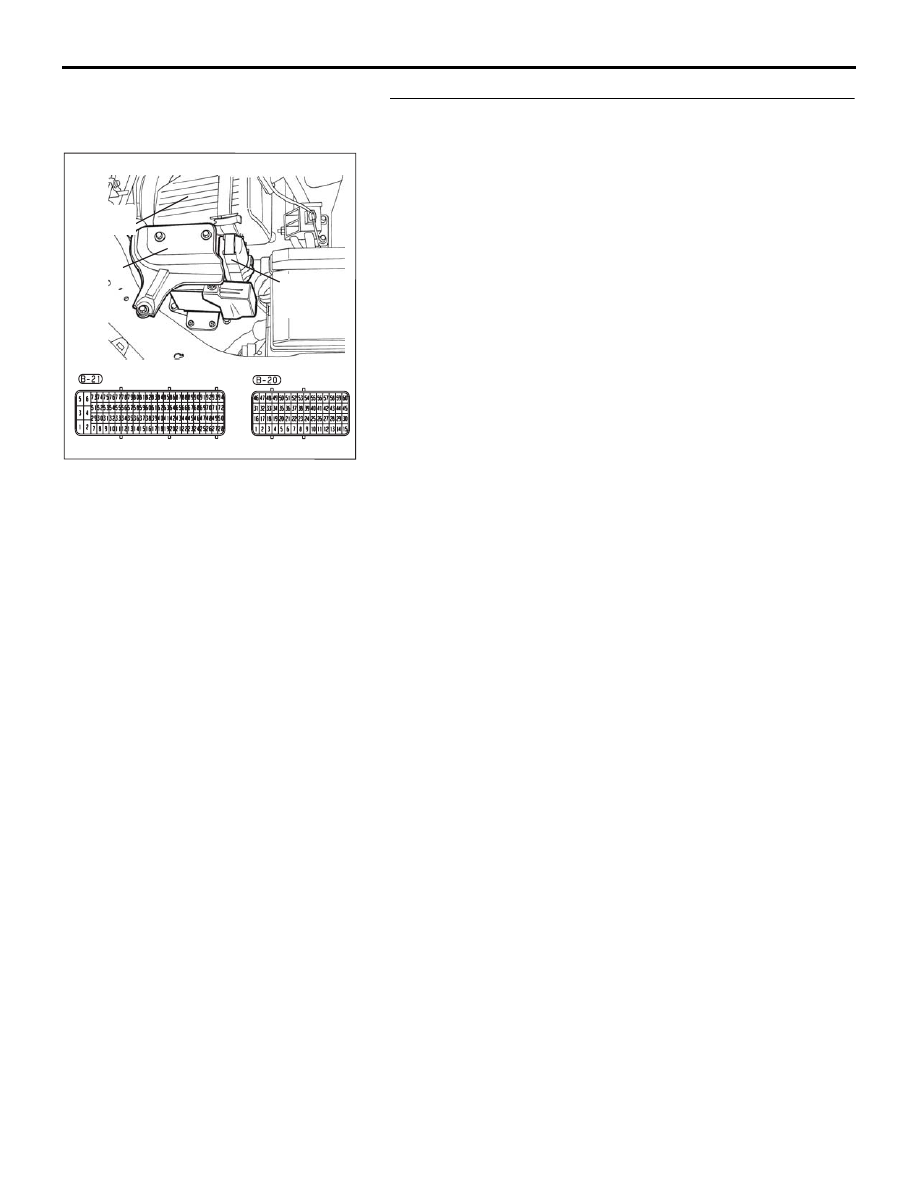

STEP 16. Check harness connector B-20 at ECU for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 17.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 18.

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MFI)

13A-370

STEP 17. Check for harness damage between crankshaft
position sensor connector B-119 (terminal No. 2) and ECU
connector B-20 (terminal No. 23).
Q: Is the harness wire in good condition?

YES : Go to Step 20.
NO :  Repair it. Then go to Step 18.

STEP 18. Test the EOBD drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− EOBD Drive Cycle −

P.13A-11

.

(2) Check the diagnostic trouble code (DTC).

Q: Is DTC P0335 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK303123

1

2

3

CRANKSHAFT

POSITION

SENSOR

AB

CRANKSHAFT

SPROCKET

CONNECTOR: B-119

B-119 (B)

HARNESS

CONNECTOR:

COMPONENT SIDE

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MFI)

13A-371
