MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI)

13A-248

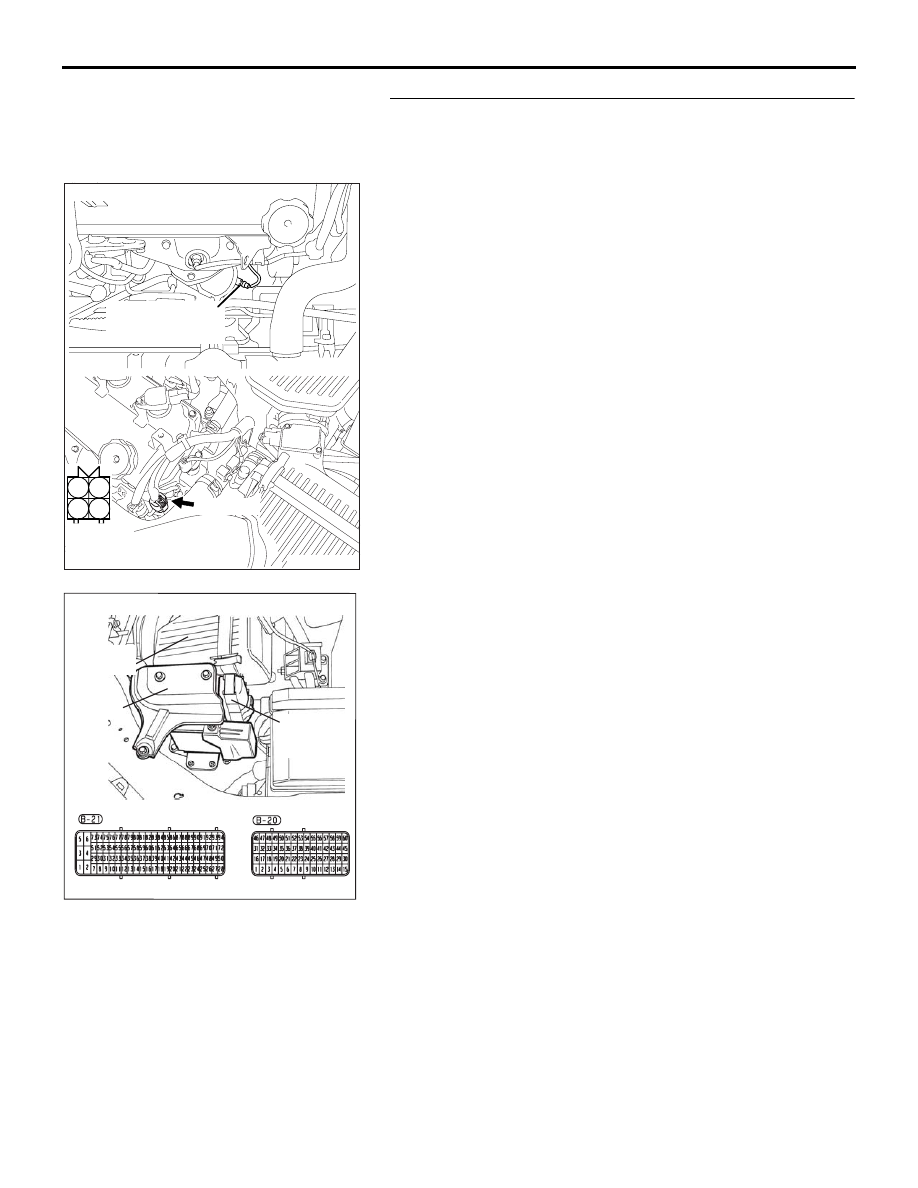

STEP 4. Check for short circuit to ground between left
bank heated oxygen sensor (rear) connector B-24
(terminal No. 1) and ENGINE-ECU connector B-20 (terminal
No. 30).
Q: Is the harness wire in good condition?

YES : Then go to Step 5.
NO :  Repair or replace it. Then go to Step 6.

1

2

3

4

AK303079

HARNESS

CONNECTOR:

COMPONENT SIDE

CONNECTOR: B-24

AB

LEFT BANK

HEATED OXYGEN

SENSOR (REAR)

B-24 (GR)

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI)

13A-249

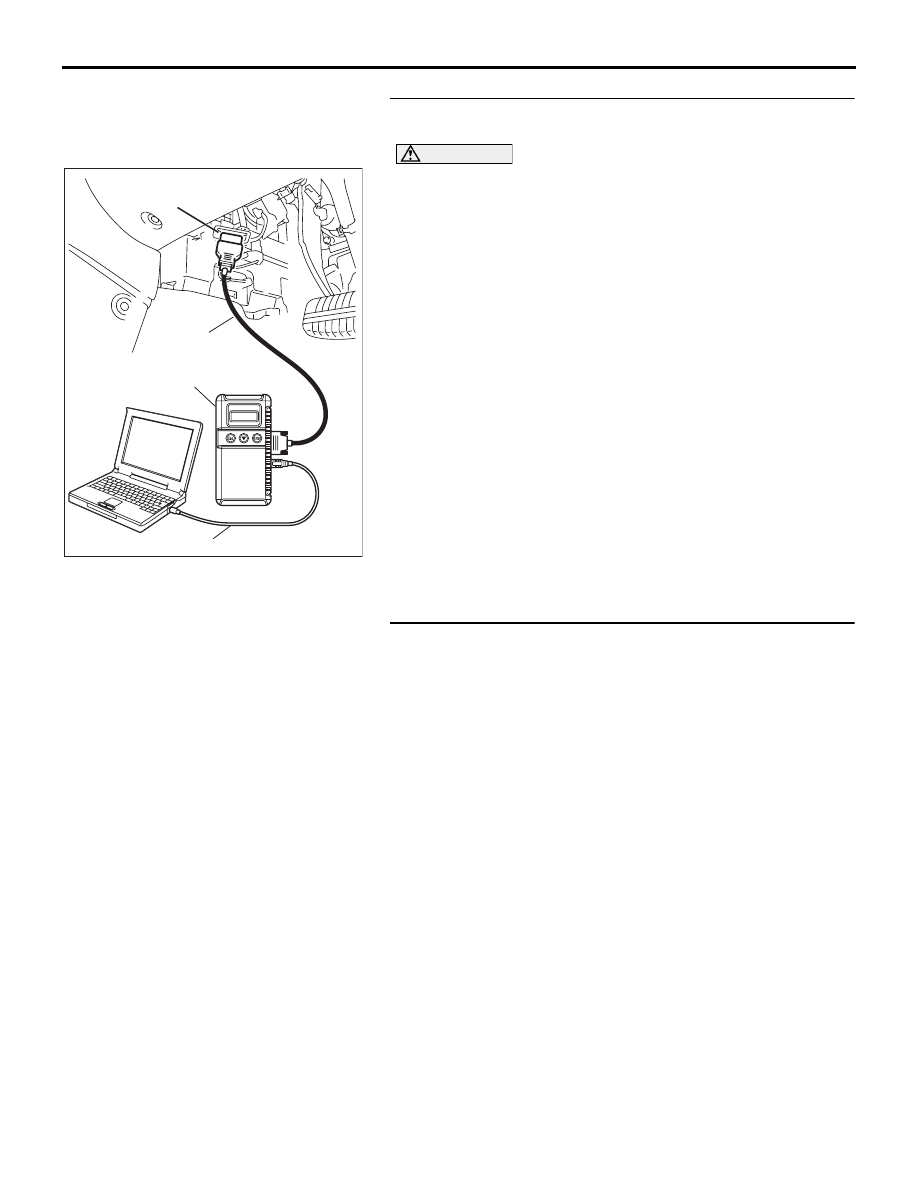

STEP 5. Using diagnostic tool, check data list item AF:
Heated Oxygen Sensor Bank 2, Sensor 2 (left rear).

CAUTION

To prevent damage to diagnostic tool, always turn the igni-
tion switch to the "LOCK" (OFF) position before connect-
ing or disconnecting diagnostic tool .
(1) Connect diagnostic tool  to the data link connector.
(2) Start the engine and run at idle.
(3) Ensure engine is at running temperature (80

° C or higher).

(4) Set diagnostic tool  to the data reading mode for itemAF,

Heated Oxygen Sensor Bank 2, Sensor 2 (left rear).

• Warming up the engine. When the engine is revved, the

output voltage should alternate between 0 and 0.6 to 1.0
volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.

NOTE: If data list readings are consistantly low or appear
slow to cycle( should cycle every 0.5-1.0 sec.) during check
the sensor is likely to be malfuctioning. Ensure wiring and
connector checks are performed prior to replacing sensor.

Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Replace the sensor. Then go to Step 6.

STEP 6. Test the EOBD drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− EOBD Drive Cycle −

P.13A-11

.

(2) Check the diagnostic trouble code (DTC).

Q: Is DTC P0157 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI)

13A-250

DTC P0158: Heated Oxygen Sensor Circuit High Voltage (bank 2, sensor 2).

.

CIRCUIT OPERATION

• A voltage corresponding to the oxygen concen-

tration in the exhaust gas is sent to the
ENGINE-ECU (terminal No. 30) from the output
terminal (terminal No. 1) of the left bank heated
oxygen sensor (rear).

• Terminal No. 2 of the left bank heated oxygen

sensor (rear) is grounded with ENGINE-ECU (ter-
minal No. 29).

.

TECHNICAL DESCRIPTION

• The output signal of the left bank heated oxygen

sensor (front) is compensated by the output sig-
nal of the left bank heated oxygen sensor (rear).

• The ENGINE-ECU checks for an open circuit in

the left bank heated oxygen sensor (rear) output
line.

.

DTC SET CONDITIONS

Check Conditions

• Battery voltage is between 10.7 and 16.1volts.

• Engine speed is above 20 r/min.

• Engine start achieved.

Judgment Criteria

• Signal check.

• MIL is activated after 2 Drive cycles.

• No limp home.

.

EOBD DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− EOBD Drive Cycle −

Procedure 6

− Other Monitor

P.13A-11

.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are: )

• Short circuit t battery voltage in left bank heated

oxygen sensor (rear) output line.

• Wiring harness or connector damage.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

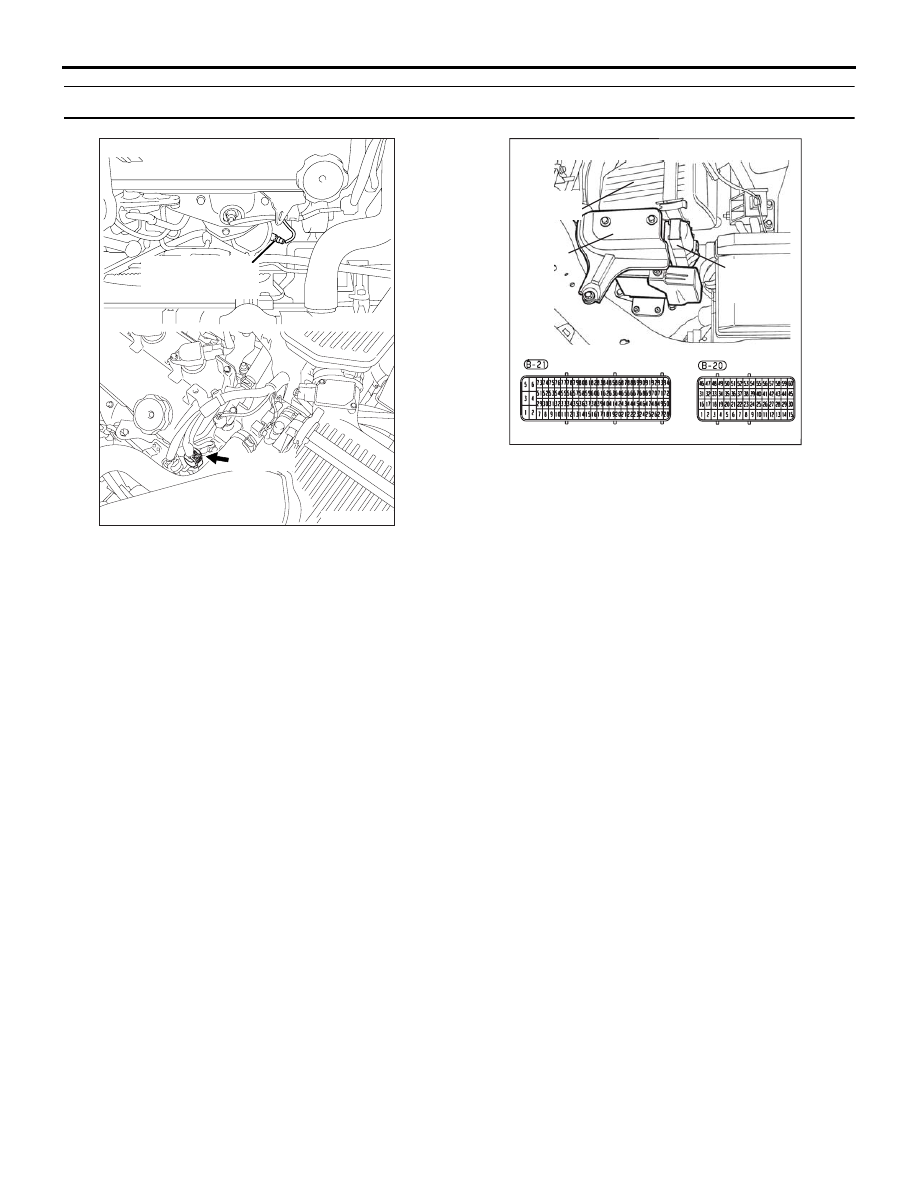

AK303079

CONNECTOR: B-24

AB

LEFT BANK

HEATED OXYGEN

SENSOR (REAR)

B-24 (GR)

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MPI) DIAGNOSIS

MULTIPORT FUEL INJECTION (MPI)

13A-251

DIAGNOSIS

Required Special Tools:

• : Diagnostic Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

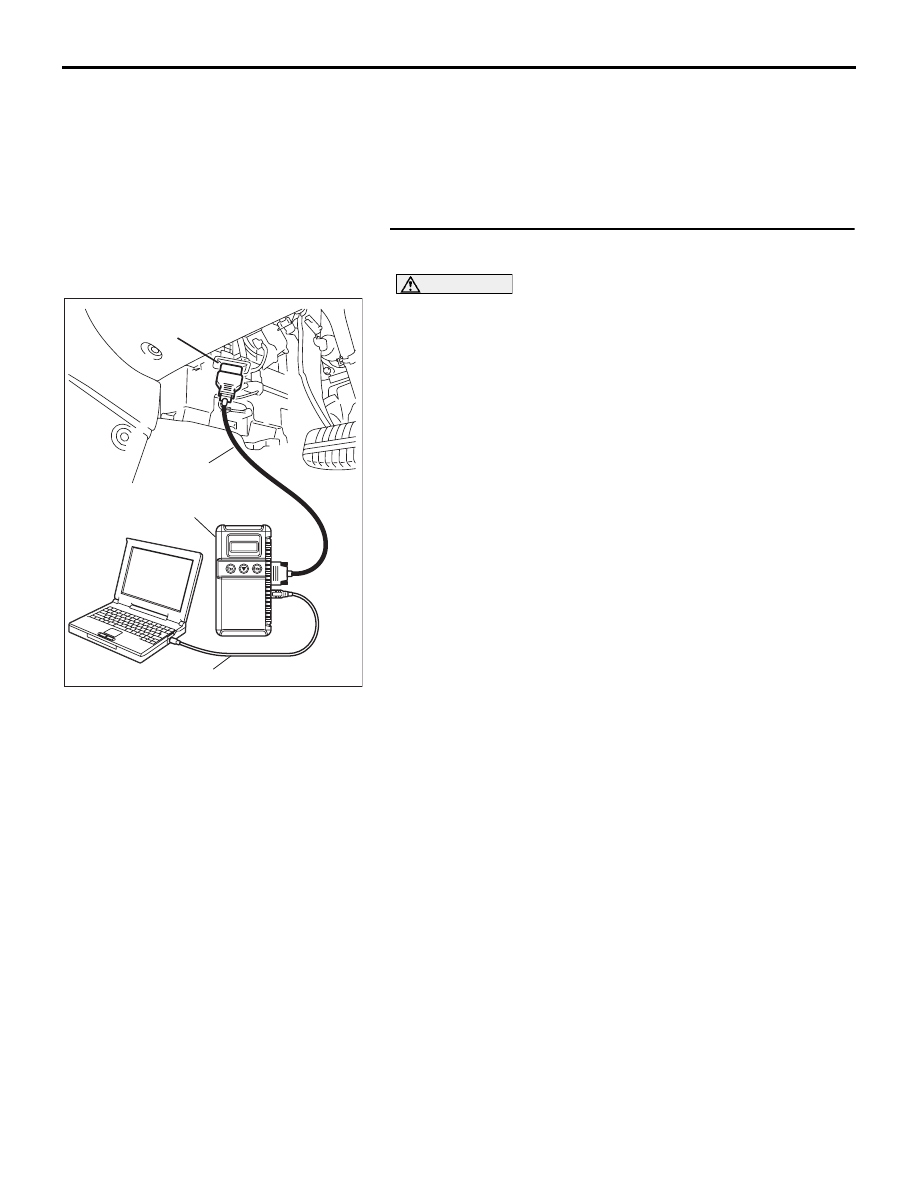

STEP 1. Using diagnostic tool, check data list item AF:
Heated Oxygen Sensor Bank 2, Sensor 2 (rear).

CAUTION

To prevent damage to diagnostic tool, always turn the igni-
tion switch to the "LOCK" (OFF) position before connect-
ing or disconnecting diagnostic tool .
(1) Connect diagnostic tool  to the data link connector.
(2) Start the engine and run at idle.
(3) Ensure engine is at running temperature (80

° C or higher).

(4) Set diagnostic tool  to the data reading mode for itemAF,

Heated Oxygen Sensor Bank 2, Sensor 2 (left rear).

• Warming up the engine. When the engine is revved, the

output voltage should alternate between 0 and 0.6 to 1.0
volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.

NOTE: If data list readings are consistantly low or appear
slow to cycle( should cycle every 0.5-1.0 sec.) during check
the sensor is likely to be malfuctioning. Ensure wiring and
connector checks are performed prior to replacing sensor.

Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Go to Step 2.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
