TRANSMISSION CONTROL

AUTOMATIC TRANSMISSION

23A-300

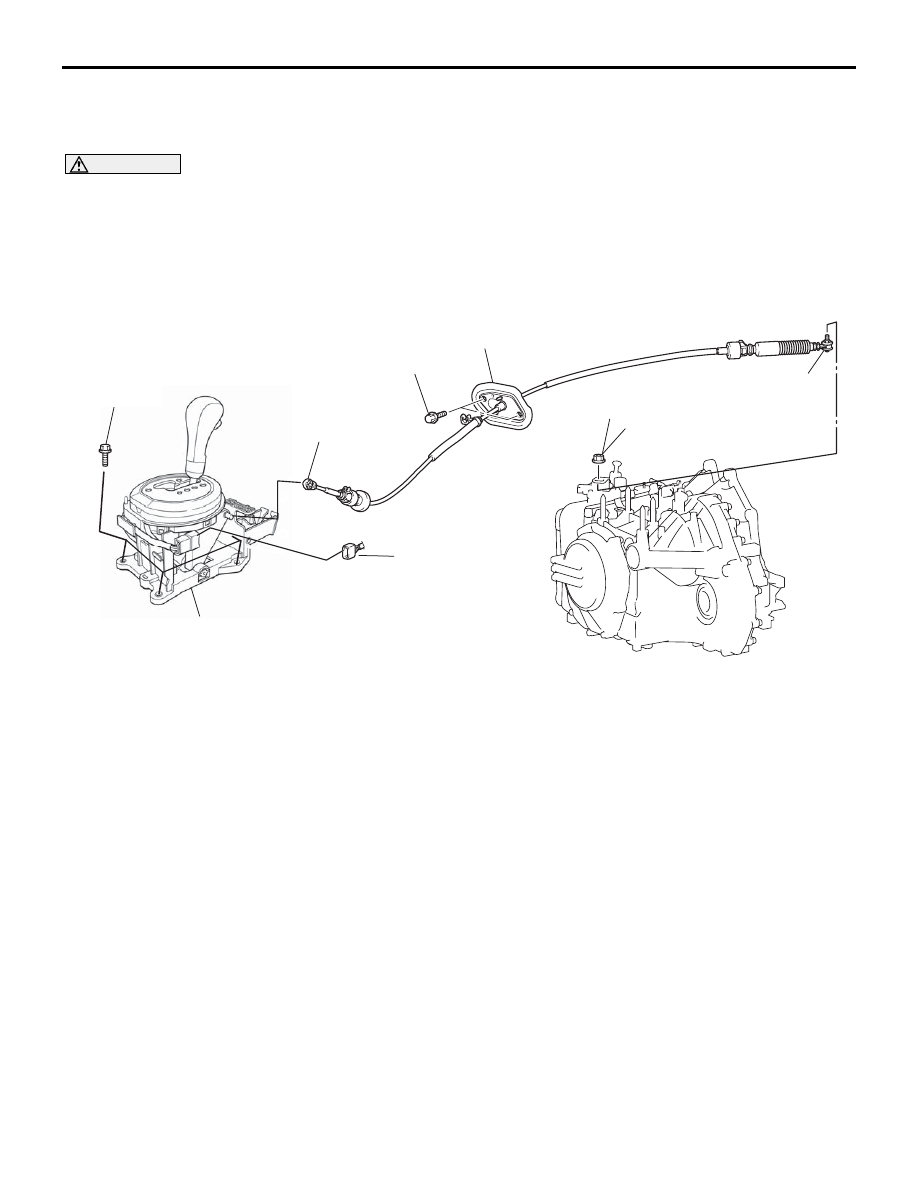

TRANSMISSION CONTROL

REMOVAL AND INSTALLATION

M1231006600585

WARNING

•

When removing and installing the transmission control cable unit, be careful not to hit the
SRS-ECU.

10DB164A

1

12 ± 2 N·m
107 ± 17 in-lb

2

5

6

8

12 ± 2 N·m
102 ± 22 in-lb

12 ± 2 N·m
102 ± 22 in-lb

4

TRANSMISSION CONTROL CABLE
ASSEMBLY REMOVAL STEPS

•

AIR DUCT AND AIR CLEANER
ASSEMBLY (REFER TO GROUP 15

P.15-4

.)

•

BATTERY AND BATTERY TRAY

•

ENGINE-ECU AND  A/T-ECU
(REFER TO GROUP 13A

13A-675

.)

•

HEATER UNIT AND DECK
CROSSMEMBER ASSEMBLY
(REFER TO GROUP 55, HEATER
UNIT, HEATER CORE, BLOWER
ASSEMBLY AND EVAPORATOR
UNIT

55-151

.)

>>B<<

1.

ADJUSTING NUT

>>B<<

2.

TRANSMISSION CONTROL CABLE
ASSEMBLY CONNECTION
(TRANSMISSION SIDE)

4.

TRANSMISSION CONTROL CABLE
ASSEMBLY CONNECTION
(SELECTOR LEVER ASSEMBLY
SIDE)

5.

TRANSMISSION CONTROL CABLE
ASSEMBLY
SELECTOR LEVER ASSEMBLY
ASSEMBLY REMOVAL STEPS

•

FLOOR CONSOLE (REFER TO
GROUP 52A, FLOOR CONSOL
ASSEMBLY

52A-10

)

4.

TRANSMISSION CONTROL CABLE
ASSEMBLY CONNECTION
(SELECTOR LEVER ASSEMBLY
SIDE)

6.

A/T SELECTOR LEVER POSITION
ILLUMINATION LIGHT HARNESS
CONNECTOR AND
SHIFT SWITCH ASSEMBLY
HARNESS CONNECTOR

8.

SELECTOR LEVER ASSEMBLY

TRANSMISSION CONTROL CABLE
ASSEMBLY REMOVAL STEPS



TRANSMISSION CONTROL

AUTOMATIC TRANSMISSION

23A-301

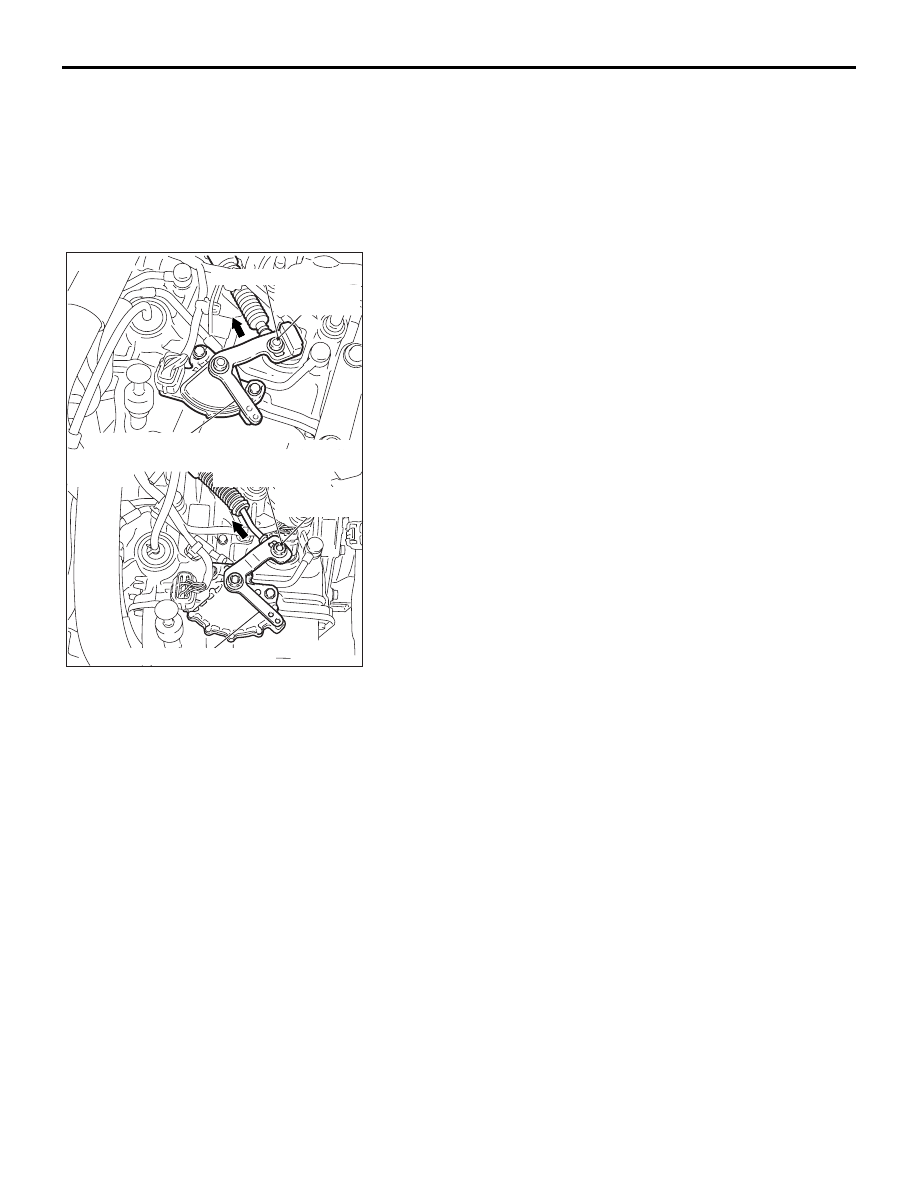

INSTALLATION SERVICE POINTS

.

>>B<< TRANSMISSION CONTROL CABLE
ASSEMBLY (TRANSMISSION SIDE)/ADJUSTING
NUT INSTALLATION

1. Place the selector lever and manual control lever in the "N"

position.

2. Place the cable stud into the manual control lever slot and

install the nut loosely. Gently push the transmission control
cable into the manual control lever slot until the cable is taut.
Tighten the nut to the specified torque.

Tightening torque: 12

± 2 N⋅m (107 ± 17 in-lb)

INSPECTION

M1231030000094

Check the cable assembly for function and for damage.

AC305881

AC305532

AC305679

<F4A4B>

MANUAL CONTROL LEVER

MANUAL CONTROL LEVER

<F4A5A>

ADJUSTING NUT

12 ± 2 N·m
107 ± 17 in-lb

ADJUSTING NUT

12 ± 2 N·m
107 ± 17 in-lb

AE

TRANSMISSION CONTROL

AUTOMATIC TRANSMISSION

23A-302

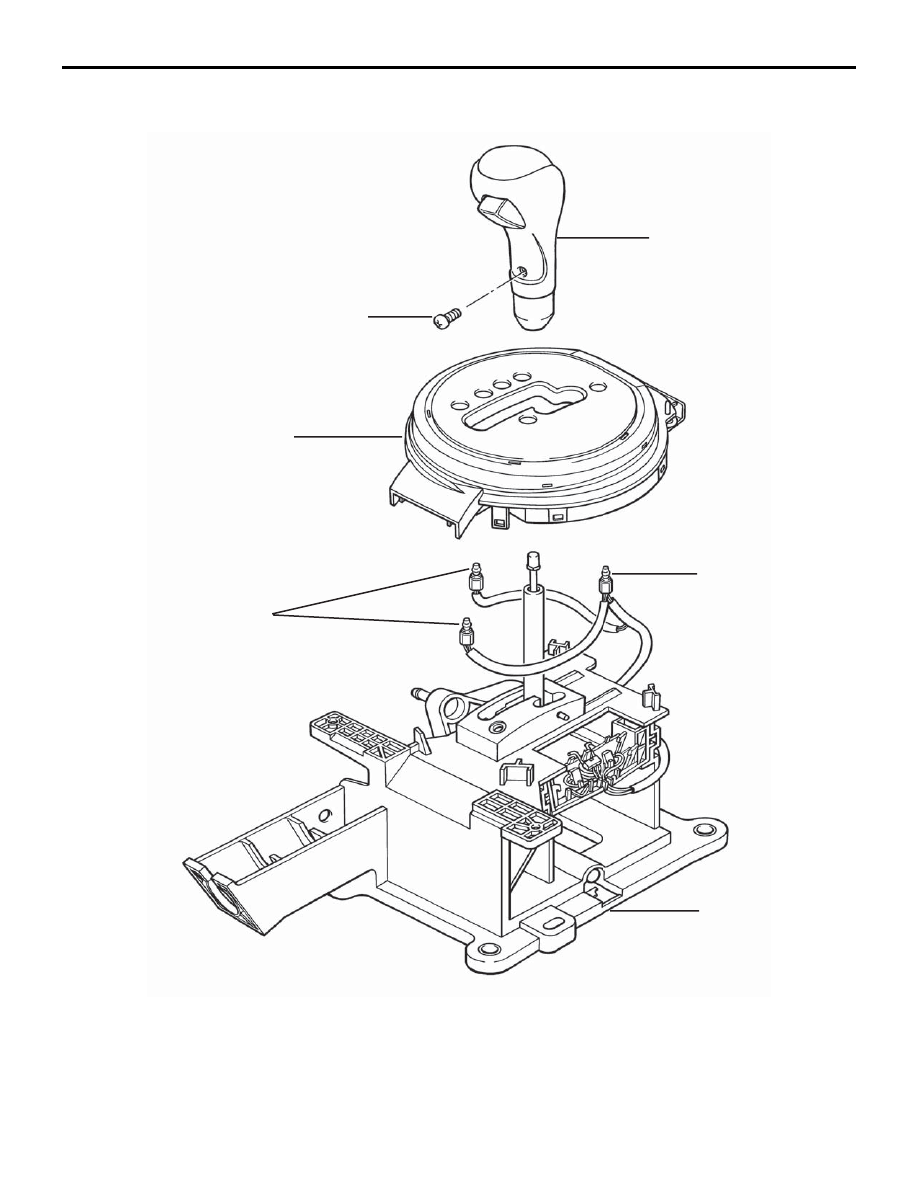

 DISASSEMBLY AND ASSEMBLY

M1231006800363

2

3

4

1

2.0 ± 0.3 N·m
18 ± 2 in-lb

3

10DB165A

DISASSEMBLY STEPS

1.

SHIFT KNOB

2.

INDICATOR PANEL

3.

LED ILLUMINATION BULBS

4.

SHIFT LEVER ASSEMBLY

DISASSEMBLY STEPS

TRANSMISSION CONTROL

AUTOMATIC TRANSMISSION

23A-303

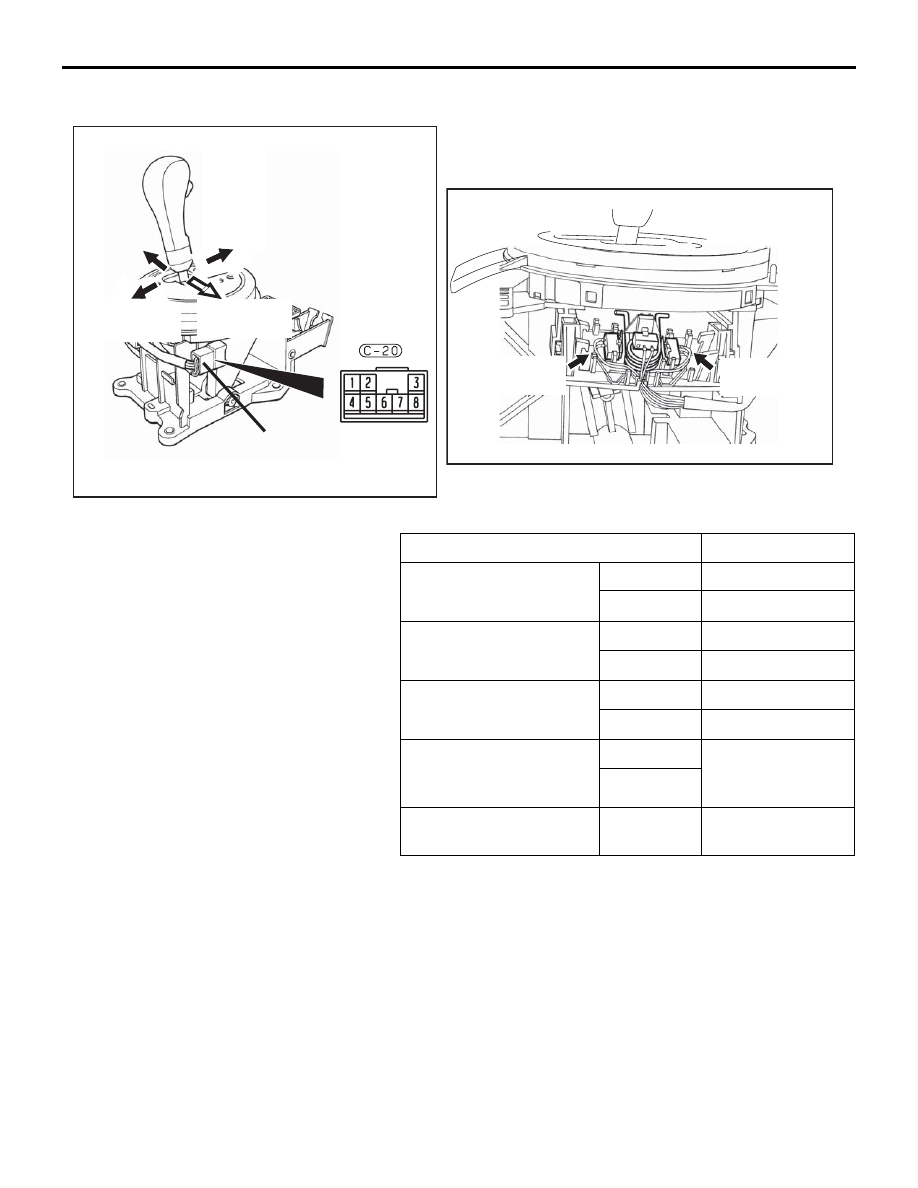

INSPECTION

M1231006900188

SHIFT SWITCH ASSEMBLY CONTINUITY CHECK

(SELECT SHIFT)
          ON

SHIFT SWITCH AND
ILLUMINATION CONNECTOR

(SELECT SHIFT)
          OFF

(DOWN SHIFT)
          ON

(UP SHIFT)
       ON

10DB166A

SHIFT SWITCH
(UP SIDE)

SHIFT SWITCH
(DOWN SIDE)

10DB169A

SPORTS MODE
SHIFT SWITCH

SWITCH POSITION

TERMINAL NO.

Select switch (select shift) ON

6

− 1

OFF

−

Shift switch (up shift)

ON

2

− 7

OFF

−

Shift switch (down shift)

ON

2

− 3

OFF

−

illumination (tail lamp
relay supply)

ON  (12V)

5

OFF  (0V)

illumination (rheostat/
dimmer switch)

< than 2
ohms

4
