TOWING AND HOISTING

GENERAL

00-30

CAUTION

• When service procedures require removing rear sus-

pension, fuel tank and spare tyre, place additional
weight on the rear end of vehicle, or anchor vehicle to
hoist to prevent tipping when the location of the center
of gravity changes.

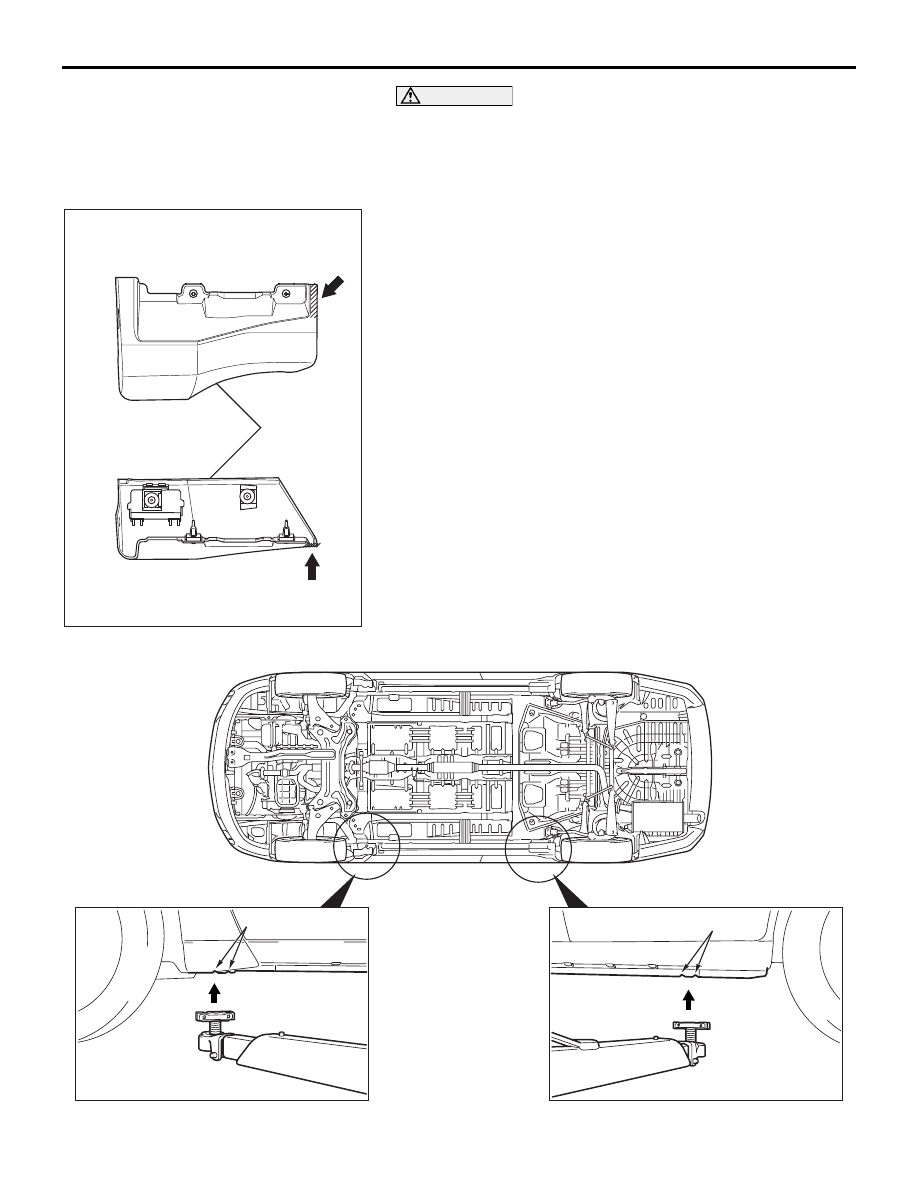

• If the lifting support area contacts with the sill cover

(arrow area as shown in the illustration), the sill cover
will be damaged. Ensure that the lifting support does
not contact the sill cover.

00DB096A

Side view

Under view

SILL

COVER

AC307269

NOTCH

AB

NOTCH

GENERAL DATA AND SPECIFICATIONS

GENERAL

00-31

GENERAL DATA AND SPECIFICATIONS

M1001000900473

.

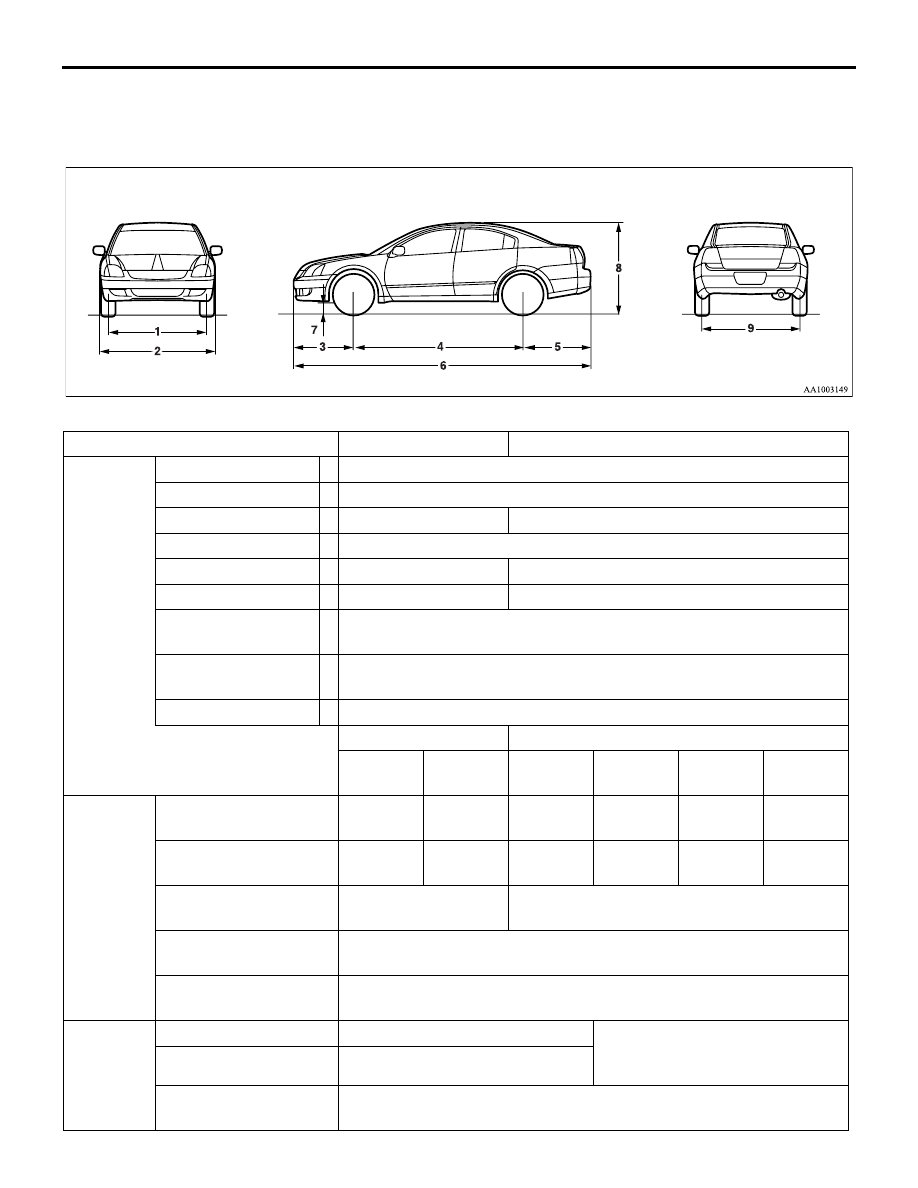

GENERAL SPECIFICATIONS

<3.8L ENGINE>

ITEM

  380, 380LS, 380LX

                        380VRX, 380GT

Vehicle
dimension
mm

Front track

1                                           1,570mm

Overall width

2                                           1,840mm

Front overhang

3              984mm

                               989mm

Wheelbase

4                                           2,750mm

Rear overhang

5            1103mm

                              1116mm

Overall length

6            4837mm

                              4855mm

Ground clearance
(unladen

7                                             162mm

Overall height
(unladen)

8                                            1480mm

Rear track

9                                            1,570mm

ITEM

  MANUAL TRANS.

                  AUTOMATIC TRANS.

     380

 380 VRX     380

 380 VRX    380

LS/LX

  380 GT

Vehicle
weight kg

Kerb mass (without
optional parts)

   1,625

   1,630

   1,665

   1,670

   1,660

   1,700

Kerb mass (with full
optional parts)

   1,642

   1,652

   1,682

   1,692

   1,698

   1,700

Maximum gross vehicle
mass

             2,080

                                2,125

Maximum axle mass
rating-front

                                                  1,180

Maximum axle mass
rating-rear

                                                  1,010

Ride
height
(mm)

Front ride height

                        410

Measured from lowest point of
fender (wheel arch) to the centre
of the wheel.

Rear ride height

                        393

Seating
capacity

                                                     5

TIGHTENING TORQUE

GENERAL

00-32

TIGHTENING TORQUE

M1001001100555

Each torque value in the table is a standard value for
tightening under the following conditions.

1. Bolts, nuts and washers are all made of steel and

plated with zinc.

2. The threads and bearing surface of bolts and

nuts are all in dry condition.

The values in the table are not applicable:

1. If toothed washers are inserted.
2. If plastic parts are fastened.
3. If bolts are tightened to plastic or die-cast

inserted nuts.

4. If self-tapping screws or self-locking nuts are

used.

STANDARD BOLT AND NUT TIGHTENING TORQUE

Engine

Model No.

                                                  6G75

Total displacement

                                                 3,828cc

Automatic
Transaxle

Model No.

                                           F5A5A-4-C2Z

Type

                                         5-speed automatic

Manual
Trans.

Model No.

                                                 F 5M51

Type

                                         5-speed manual

Fuel
system

Fuel supply system

               Electronic controlled multipoint fuel injection (MPI)

ITEM

  380, 380LS, 380LX

                        380VRX, 380GT

THREAD SIZE

STANDARD TIGHTENING TORQUE

NOMINAL BOLT
DIAMETER (mm)

PITCH
(mm)

HEAD MARK "4"

HEAD MARK "7"

HEAD MARK "8"

M5

0.8

2.5

± 0.5 N⋅m (23 ± 4

in-lb)

5.0

± 1.0 N⋅m (44 ± 9

in-lb)

6.0

± 1.0 N⋅m (53 ± 9

in-lb)

M6

1.0

5.0

± 1.0 N⋅m (44 ± 9

in-lb)

8.5

± 1.5 N⋅m (76 ± 13

in-lb)

10

± 2 N⋅m (89 ± 17

in-lb)

M8

1.25

11

± 2 N⋅m (98 ± 17

in-lb)

20

± 4 N⋅m (15 ± 3 ft-lb) 24 ± 4 N⋅m (18 ± 3 ft-lb)

M10

1.25

23

± 4 N⋅m (17 ± 3 ft-lb) 42 ± 8 N⋅m (31 ± 6 ft-lb) 53 ± 7 N⋅m (39 ± 5 ft-lb)

M12

1.25

42

± 8 N⋅m (31 ± 6 ft-lb) 80 ± 10 N⋅m (59 ± 7

ft-lb)

93

± 12 N⋅m (68 ± 9

ft-lb)

M14

1.5

70

± 10 N⋅m (52 ± 7

ft-lb)

130

± 20 N⋅m (96 ± 15

ft-lb)

150

± 20 N⋅m (111 ± 14

ft-lb)

M16

1.5

105

± 15 N⋅m (78 ± 11

ft-lb)

195

± 25 N⋅m (144 ± 18

ft-lb)

230

± 30 N⋅m (170 ± 22

ft-lb)

M18

1.5

150

± 20 N⋅m (111 ± 14

ft-lb)

290

± 40 N⋅m (214 ± 29

ft-lb)

335

± 45 N⋅m (247 ± 33

ft-lb)

TIGHTENING TORQUE

GENERAL

00-33

FLANGE BOLT AND NUT TIGHTENING TORQUE

M20

1.5

210

± 30 N⋅m (155 ± 22

ft-lb)

400

± 60 N⋅m (295 ± 44

ft-lb)

465

± 65 N⋅m (343 ± 48

ft-lb)

M22

1.5

290

± 40 N⋅m (214 ± 29

ft-lb)

540

± 80 N⋅m (398 ± 59

ft-lb)

630

± 90 N⋅m (465 ± 66

ft-lb)

M24

1.5

375

± 55 N⋅m (277 ± 40

ft-lb)

705

± 105 N⋅m (520 ±

77 ft-lb)

820

± 120 N⋅m (605 ±

88 ft-lb)

THREAD SIZE

STANDARD TIGHTENING TORQUE

NOMINAL BOLT
DIAMETER (mm)

PITCH
(mm)

HEAD MARK "4"

HEAD MARK "7"

HEAD MARK "8"

M6

1.0

5.0

± 1.0 N⋅m (44 ± 9

in-lb)

10

± 2 N⋅m (89 ± 17

in-lb)

12

± 2 N⋅m (107 ± 17

in-lb)

M8

1.25

13

± 2 N⋅m (111 ± 22

in-lb)

24

± 4 N⋅m (18 ± 3 ft-lb) 28 ± 5 N⋅m (20 ± 4 ft-lb)

M10

1.25

26

± 5 N⋅m (19 ± 4 ft-lb) 50 ± 5 N⋅m (37 ± 4 ft-lb) 58 ± 7 N⋅m (43 ± 5 ft-lb)

M10

1.5

25

± 4 N⋅m (18 ± 3 ft-lb) 46 ± 8 N⋅m (34 ± 6 ft-lb) 55 ± 5 N⋅m (41 ± 3 ft-lb)

M12

1.25

47

± 9 N⋅m (35 ± 6 ft-lb) 93 ± 12 N⋅m (68 ± 9

ft-lb)

105

± 15 N⋅m (78 ± 11

ft-lb)

M12

1.75

43

± 8 N⋅m (32 ± 6 ft-lb) 83 ± 12 N⋅m (61 ± 9

ft-lb)

98

± 12 N⋅m (72 ± 9

ft-lb)

THREAD SIZE

STANDARD TIGHTENING TORQUE

NOMINAL BOLT
DIAMETER (mm)

PITCH
(mm)

HEAD MARK "4"

HEAD MARK "7"

HEAD MARK "8"
