LOOSE PANEL

BODY

42-84

DISASSEMBLY SERVICE POINT

.

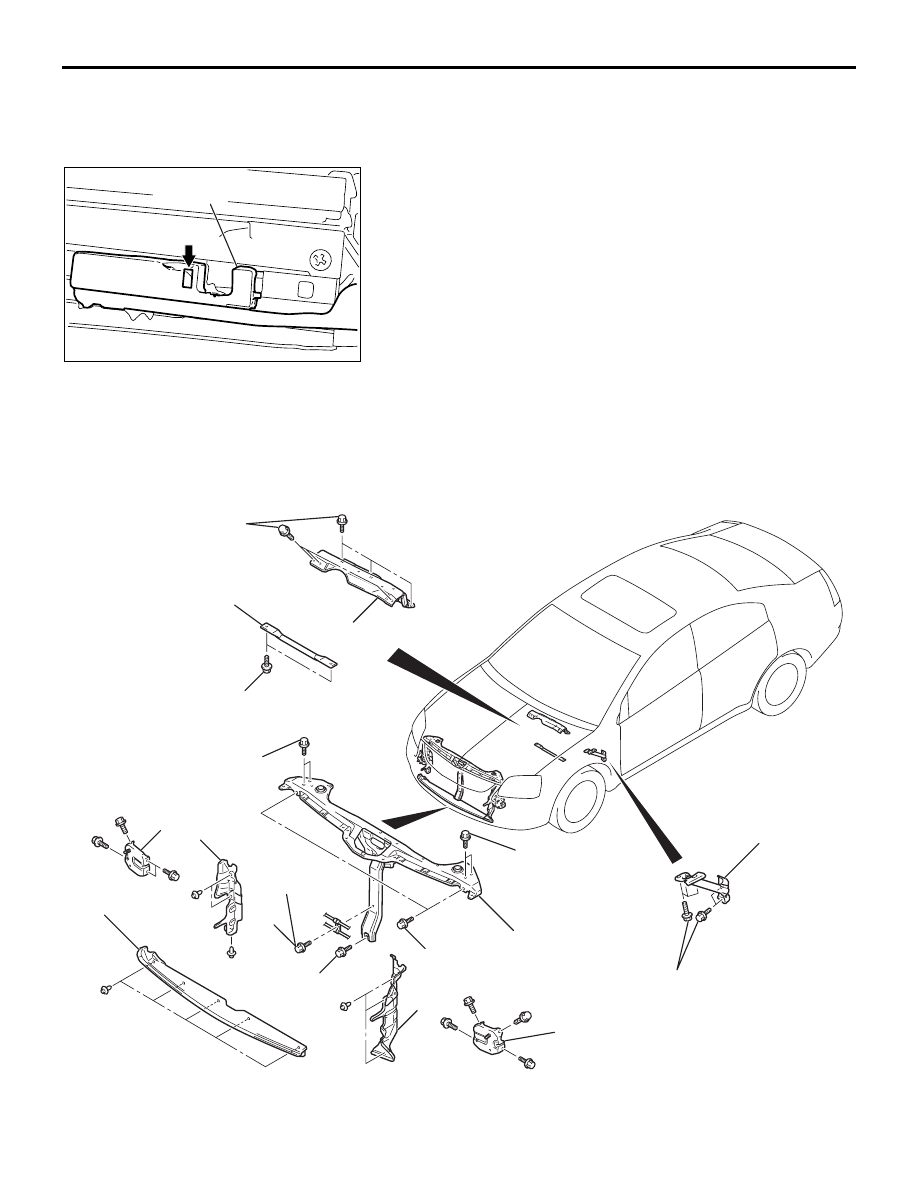

<<A>> SUNROOF DEFLECTOR ASSEMBLY
REMOVAL

Slide the sunroof deflector assembly to the front of the vehicle
by holding the arrow area shown in the illustration with a
flat-tipped screwdriver, and remove it.

LOOSE PANEL

REMOVAL AND INSTALLATION

M1421003100056

AC307035

AB

SUNROOF DEFLECTOR

ASSEMBLY

18DB163A

1

2

3

6

6

4

5

5

7

8

22 ± 4 N·m

16 ± 2 ft-lb

22 ± 4 N·m

16 ± 2 ft-lb

22 ± 4 N·m

16 ± 2 ft-lb

22 ± 4 N·m

16 ± 2 ft-lb

22 ± 4 N·m

16 ± 2 ft-lb

11 ± 2 N·m

98 ± 17 in-lb

12 ± 2 N·m

102 ± 22 in-lb

11 ± 2 N·m

98 ± 17 in-lb

REMOVAL

1. FRONT FLOOR BACKBONE BRACE

LOOSE PANEL

BODY

42-85

COWL TOP COVER OUTER
REMOVAL STEPS

•

FRONT DECK GARNISH (REFER
TO GROUP 51, WINDSHIELD
WIPER

P.51-17

.)

2. COWL TOP COVER OUTER

UPPER FRAME TO FRONT PILLAR
BRACE REMOVAL STEPS

•

SPLASH SHIELD (REFER TO

P.42-10

.)

3. UPPER FRAME TO FRONT PILLAR

BRACE
AIR GUIDE PANEL REMOVAL
STEPS

•

FRONT BUMPER ASSEMBLY
(REFER TO GROUP 51, FRONT
BUMPER

P.51-2

.)

4. AIR GUIDE PANEL CENTER
•

FRONT BUMPER
REINFORCEMENT ASSEMBLY
(REFER TO GROUP 51, FRONT
BUMPER

P.51-2

.)

5. AIR GUIDE PANEL SIDE

FRONT BUMPER
REINFORCEMENT BRACKET
REMOVAL STEPS

•

FRONT BUMPER
REINFORCEMENT ASSEMBLY
(REFER TO GROUP 51, FRONT
BUMPER

P.51-2

.)

5. AIR GUIDE PANEL SIDE
6. FRONT BUMPER

REINFORCEMENT BRACKET
FRONT END STRUCTURE BAR
REMOVAL STEPS

•

RADIATOR GRILLE (REFER TO
GROUP 51, RADIATOR GRILLE

P.51-6

.)

•

FRONT BUMPER MOUNTING
CLIPS UPPER (REFER TO GROUP
51, FRONT BUMPER

P.51-2

.)

•

HOOD DAMPER AND HOOD LATCH
(REFER TO

P.42-8

.)

7. COOLER TUBE ASSEMBLY

MOUNTING BOLT

8. FRONT END STRUCTURE BAR

SPECIFICATIONS

BODY

42-86

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1421005300216

ITEM

SPECIFICATION

Hood

Hood hinge bolt (body side)

12

± 2 N⋅m (102 ± 22 in-lb)

Hood hinge bolt (hood side)

12

± 2 N⋅m (102 ± 22 in-lb)

Hood hinge nut (body side)

12

± 2 N⋅m (102 ± 22 in-lb)

Hood latch bolt

9.0

± 2.0 N⋅m (80 ± 17 in-lb)

Strut tower bar

Strut tower bar nut

12

± 2 N⋅m (102 ± 22 in-lb)

Strut tower bar bracket nut

48

± 7 N⋅m (36 ± 5 ft-lb)

Door

Door check bolt (body side)

9.0

± 2.0 N⋅m (80 ± 17 in-lb)

Door check bolt (door side)

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Door hinge bolt (body side)

27

± 5 N⋅m (20 ± 4 ft-lb)

Door hinge bolt (door side)

21

± 4 N⋅m (16 ± 2 ft-lb)

Door outside handle bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Door latch assembly screw

5.9

± 1.0 N⋅m (52 ± 9 in-lb)

Door switch screw

3.9

± 1.0 N⋅m (35 ± 8 in-lb)

Striker screw

24

± 3 N⋅m (18 ± 2 ft-lb)

Trunk lid

Trunk lid hinge bolt (body side)

13

± 2 N⋅m (111 ± 22 in-lb)

Trunk lid hinge bolt (trunk lid side)

13

± 2 N⋅m (111 ± 22 in-lb)

Trunk lid hinge nut (trunk lid side)

13

± 2 N⋅m (111 ± 22 in-lb)

Trunk lid latch bolt

9.0

± 2.0 N⋅m (80 ± 17 in-lb)

Trunk lid striker bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Sunroof

Roof lid glass screw

4.0

± 0.5 N⋅m (36 ± 4 in-lb)

Sunroof drip plate screw

2.0 N

⋅m (18 in-lb)

Sunroof housing screw

2.0 N

⋅m (18 in-lb)

Sunroof motor bolt

5.4 N

⋅m (48 in-lb)

Loose panel

Cowl top cover outer bolt

11

± 2 N⋅m (98 ± 17 in-lb)

Front end structure bar bolt

22

± 4 N⋅m (16 ± 2 ft-lb)

12

± 2 N⋅m (102 ± 22 in-lb)

11

± 2 N⋅m (98 ± 17 in-lb)

Front floor backbone brace bolt

22

± 4 N⋅m (16 ± 2 ft-lb)

Upper frame to front pillar brace bolt

22

± 4 N⋅m (16 ± 2 ft-lb)

SPECIFICATIONS

BODY

42-87

SERVICE SPECIFICATIONS

M1421000300299

<DOOR>

<SUNROOF>

SEALANT AND ADHESIVES

M1421000500204

<WINDOW GLASS>

<DOOR>

<TRUNK LID>

ITEM

STANDARD VALUE

Door inside handle knob play mm
(in)

Front

26.1 - 58.1 (1.028 - 2.287) [Target
value 41 (1.61)]

Rear

30.3 - 58.1 (1.193 - 2.287) [Target
value 41 (1.61)]

Door inside handle lock knob stroke mm (in)

21.6 (0.850)

Door outside handle play mm (in) Front

10

± 3.5 (0.39 ± 0.138)

Rear

11.2

± 4 (0.441 ± 0.16)

Power window operation current A

5

± 1 [Power supply voltage 14.5 ±

0.5V 25

°C (77°F)]

ITEM

STANDARD VALUE

Roof lid glass operation current A

7 or less [at 20

°C(68°F)]

ITEM

SPECIFIED ADHESIVE

Rear window glass

3 M

™ AAD part No. 8609 super fast urethane and 3 M™ AAD part No.

8608 super fast urethane primer or equivalent

Windshield

ITEM

SPECIFIED SEALANT

REMARK

Waterproof film

3 M

™AAD Part No. 8633 or equivalent

Ribbon sealer

ITEM

SPECIFIED ADHESIVE TAPE

Front door opening outer
weatherstrip

Adhesive tape: Double-sided tape [7 mm (0.28 in) width, 85 mm (3.35
in) length and 0.8 mm (0.03 in) thickness]

Rear door opening outer
weatherstrip

Adhesive tape: Double-sided tape [7 mm (0.28 in) width, 50 mm (1.97
in) length and 0.8 mm (0.031 in) thickness]

ITEM

SPECIFIED SEALANT

REMARK

Trunk lid hinge

3 M

™AAD part No. 8531 Heavy drip check sealer,

3 M

™AAD part No. 8646 Automotive joint and

seam sealer or equivalent

Body sealer
