WINDSHIELD WIPER AND WASHER

EXTERIOR

51-22

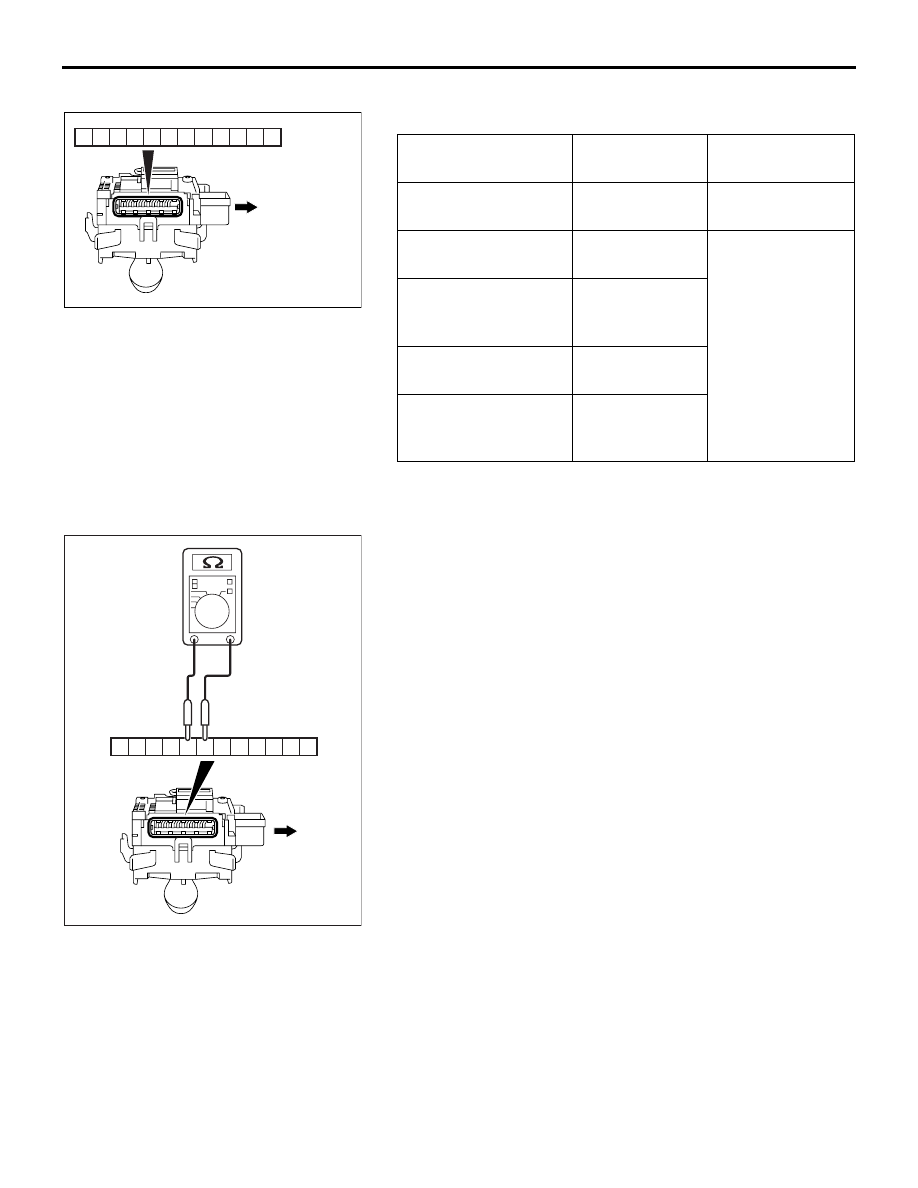

WINDSHIELD WIPER SWITCH CHECK

Check continuity between the switch terminals.

WINDSHIELD INTERMITTENT WIPER INTERVAL
CHECK

Check that the resistance varies between 0 and 1 kiloohm
when the windshield intermittent interval is turned from FAST to
SLOW by after measuring resistance between connector termi-
nals 27 and 28 at the column switch.

SWITCH POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

OFF

23

− 32, 23 − 31,

23

− 30, 23 − 21

Open circuit

Windshield mist wiper
switch

23

− 32

Less than 2 ohms

Windshield
intermittent wiper
switch

23

− 31

Windshield low-speed
wiper switch

23

− 30

Windshield
high-speed wiper
switch

21

− 23

AC307642

21

22

23

24

25

26

27

28

29

30

31

32

UPPER SIDE

AB

AC307648

21

22

23

24

25

26

27

28

29

30

31

32

UPPER

SIDE

AB

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-23

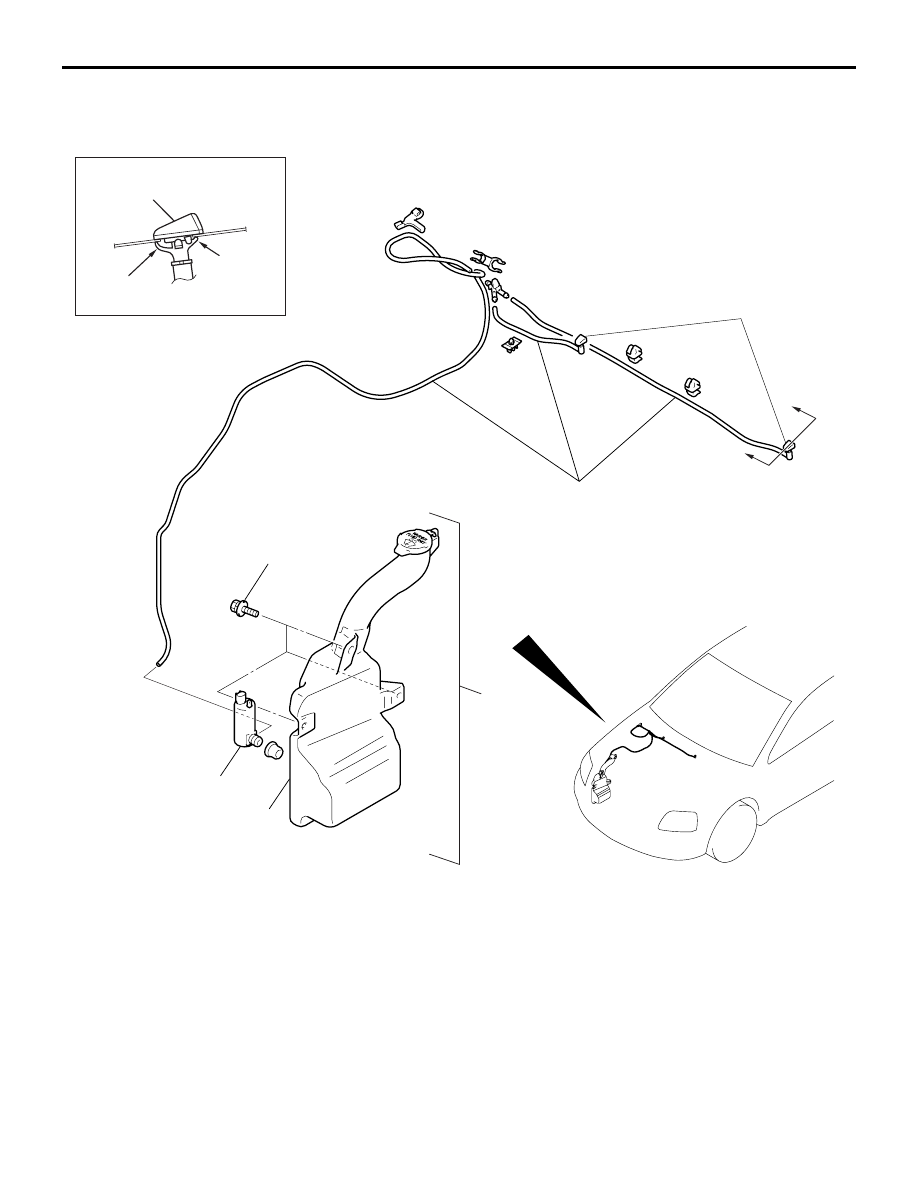

WINDSHIELD WASHER

REMOVAL AND INSTALLATION

M1511008200270

AC306718

1

2

4

3

5

SECTION A – A

1

CLAW

CLAW

12 ± 1.0 N·m

102 ± 15 in-lb

AB

A

A

WINDSHIELD WASHER NOZZLE
REMOVAL STEPS
•

WINDSHIELD WASHER HOSE
CONNECTION

1. WINDSHIELD WASHER NOZZLE
WASHER HOSE REMOVAL STEPS
•

WINDSHIELD WASHER NOZZLE
CONNECTION

2. WINDSHIELD WASHER HOSE

WASHER TANK REMOVAL STEPS
•

FRONT UNDER COVER RH (REFER
TO

P.51-2

).

•

FRONT SPLASH SHIELD RH
MOUNTING CLIPS (REFER TO
GROUP 42, FENDER

P.42-10

).

•

FRONT BUMPER (REFER TO

P.51-2

).

•

HEAD LIGHT (REFER TO GROUP
54A, HEADLIGHT

P.54A-153

).

•

FRONT WASHER HOSE
CONNECTIONS

3. WASHER TANK ASSEMBLY

WINDSHIELD WIPER AND WASHER

EXTERIOR

51-24

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch

P.54A-170

.

INSPECTION

M1511008300147

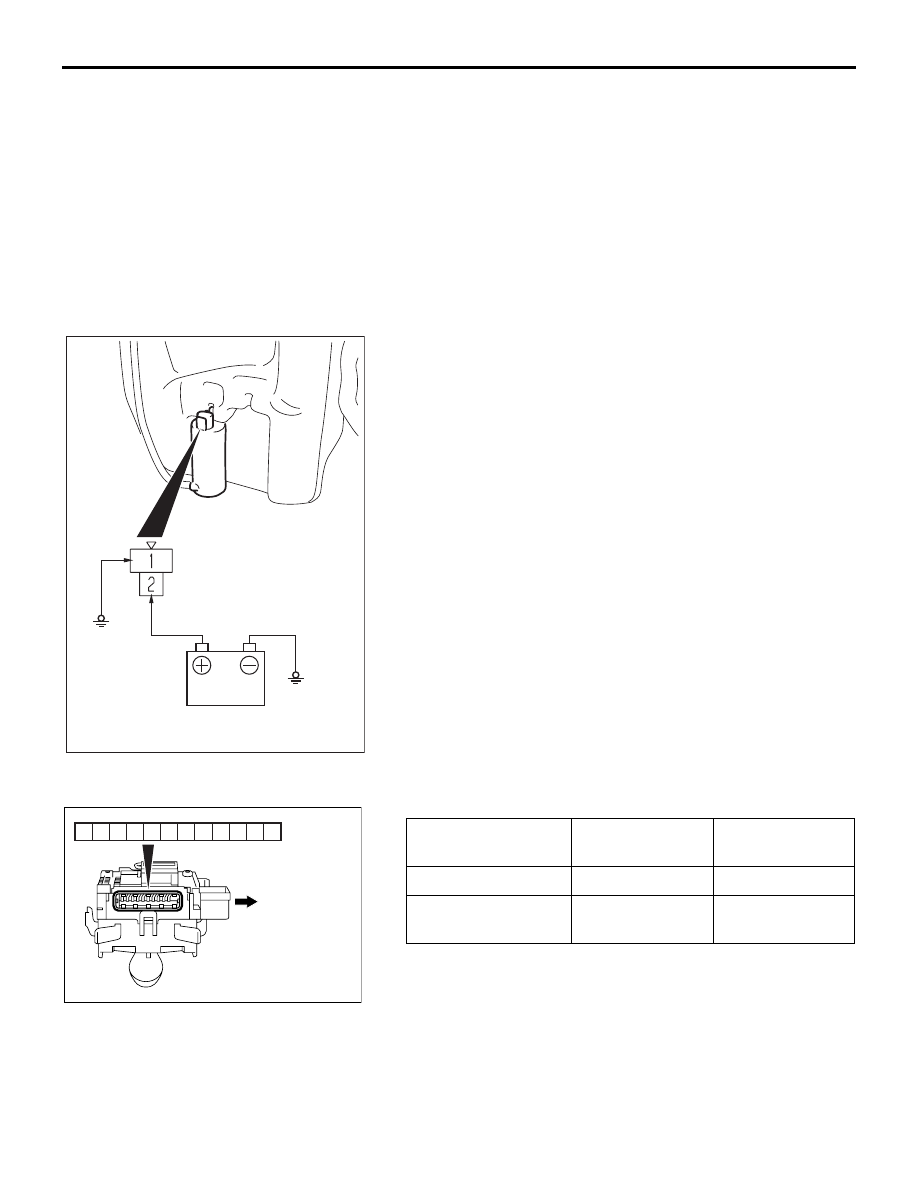

WINDSHIELD WASHER MOTOR CHECK

1. Remove the washer tank assembly with the washer hose

attached. Then fill the washer tank with water.

2. Check to see that the water is vigorously sprayed when

connecting the positive battery terminal to terminal number
2 and terminal number 1 to ground.

WINDSHIELD WASHER SWITCH CHECK

4. WINDSHIELD WASHER MOTOR
5. WASHER TANK
WASHER MOTOR REMOVAL STEPS
•

FRONT UNDER COVER RH (REFER
TO

P.51-2

).

•

FRONT WASHER HOSE
CONNECTIONS

4. WINDSHIELD WASHER MOTOR

WASHER TANK REMOVAL STEPS

20DB113A

SWITCH POSITION

TESTER
CONNECTION

SPECIFIED
CONDITION

OFF

22

− 23

Open circuit

Windshield washer
switch ON

22

− 23

Less than 2 ohms

AC307642

21

22

23

24

25

26

27

28

29

30

31

32

UPPER SIDE

AB

MARK

EXTERIOR

51-25

MARK

REMOVAL AND INSTALLATION

M1511011800454

20DB114A

1

2

3

1. FRONT THREE-DIAMOND MARK

2. REAR THREE-DIAMOND MARK

>>A<<

3. GRADE MARK
