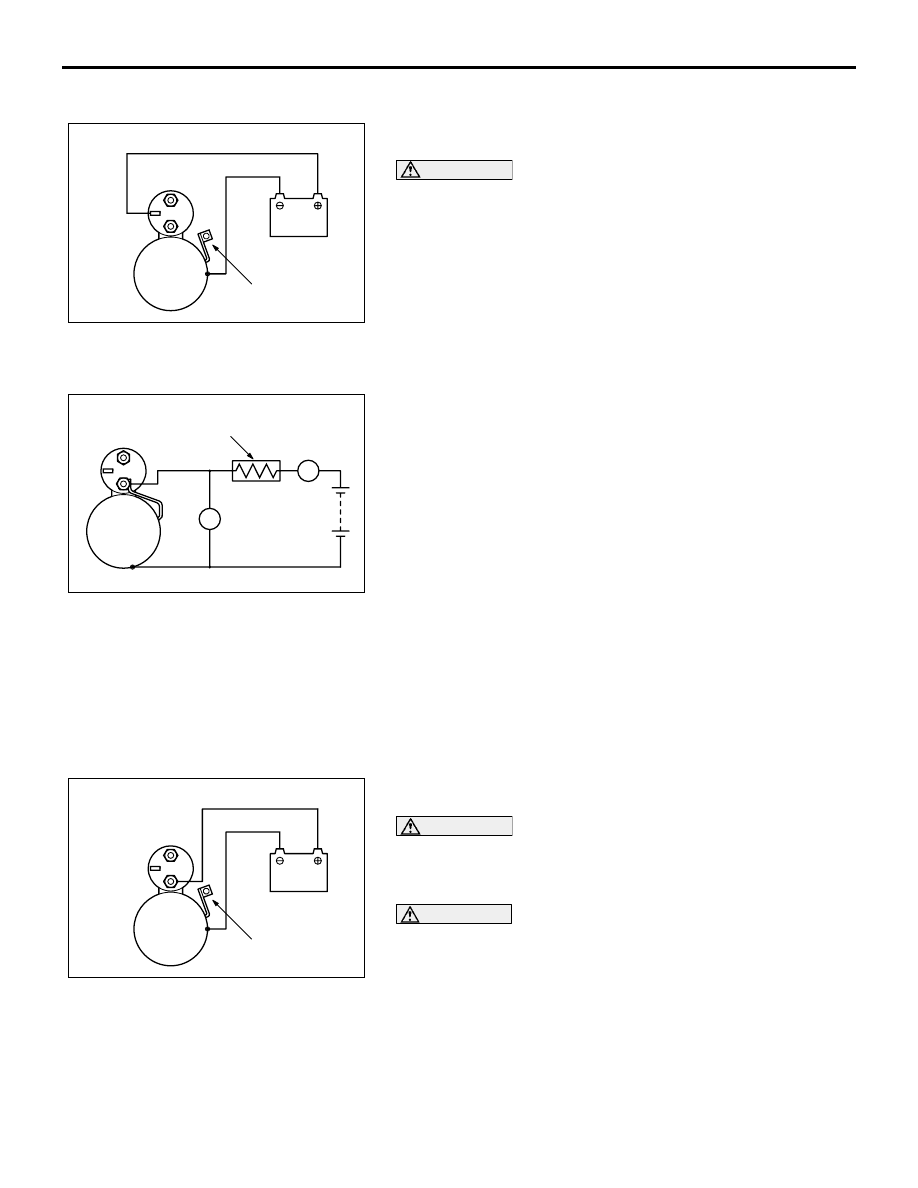

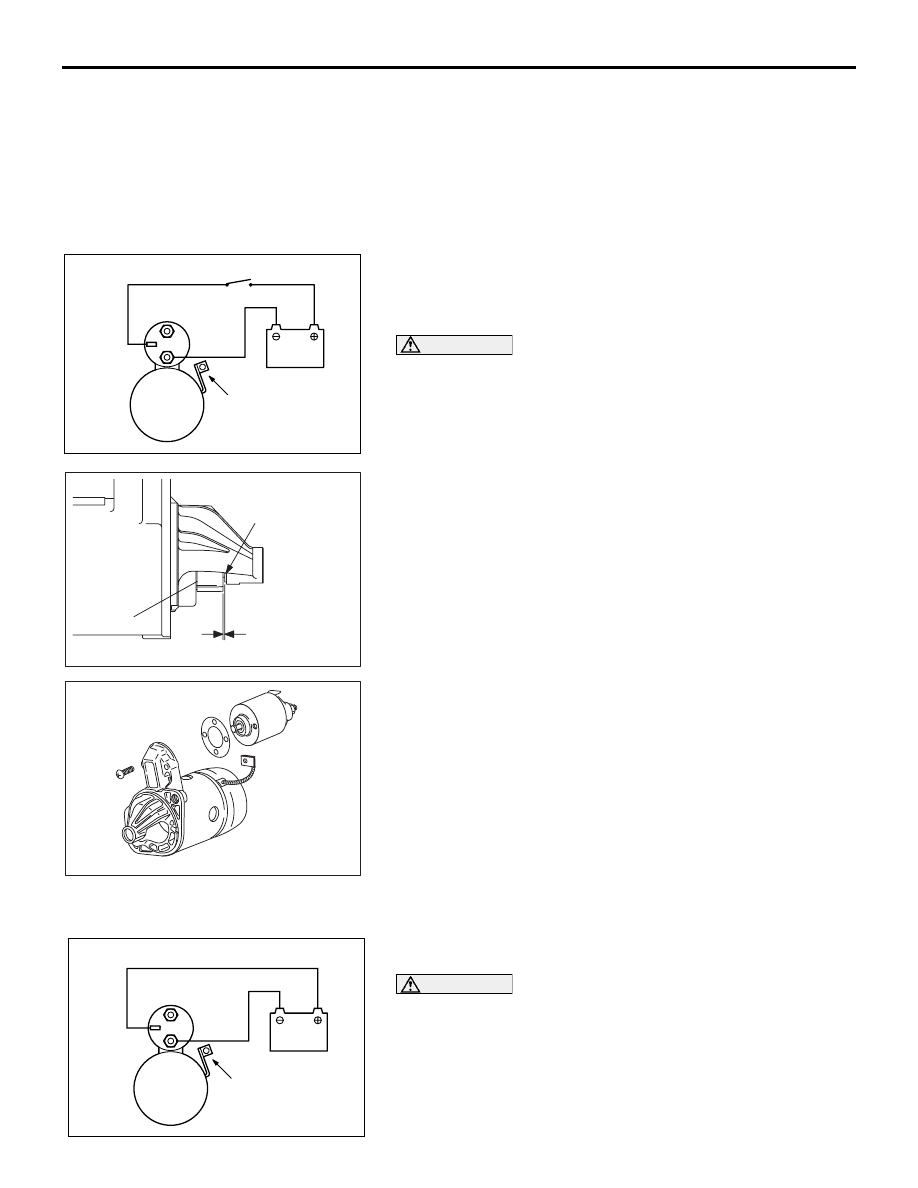

STARTING SYSTEM

ENGINE ELECTRICAL

16-22

STEP 3.

• Check the cable between starter B (battery) terminal and

battery positive terminal for connection and continuity.

Q: Is the starter cable in good condition?

YES : Go to Step 4.
NO :  Repair or replace the cable.

STEP 4.

• Check the connection and the continuity of the cable

between the starter motor body and the negative battery
terminal.

Q: Is the ground wire in good condition?

YES : Go to Step 5.
NO :  Repair or replace the cable.

STEP 5.

Q: Is the starter motor in good condition? (Refer to Starting

System

− Starter Motor Assembly − Inspection

P.16-17

.)

YES : Excessive rotational resistance of the engine.
NO :  Replace the starter motor.

STARTING SYSTEM

ENGINE ELECTRICAL

16-23

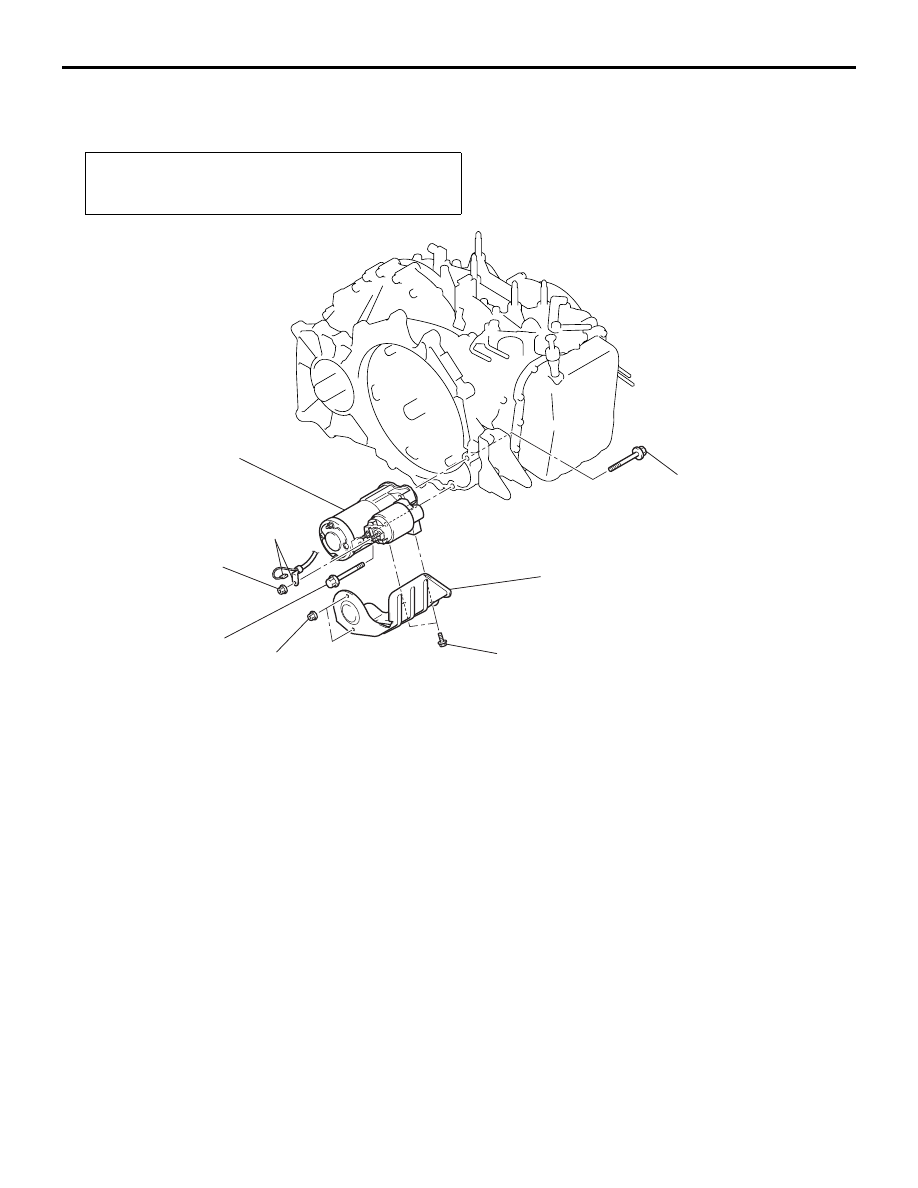

STARTER MOTOR ASSEMBLY

REMOVAL AND INSTALLATION

M1162001000651

Pre-removal and Post-installation Operation
Under Cover Removal and Installation (Refer to GROUP 51,
Under Cover

P.51-13

).

AC205798

4.9 ± 1.0 N·m
44 ± 8 in-lb

4.9 ± 1.0 N·m
44 ± 8 in-lb

30 ± 3 N·m
23 ± 2 ft-lb

30 ± 3 N·m
23 ± 2 ft-lb

1

2

3

AB

12 ± 2 N·m
102 ± 22 in-lb

REMOVAL STEPS

1.

STARTER CONNECTOR AND
TERMINAL

2.

STARTER COVER

<<A>>

3.

STARTER ASSEMBLY

REMOVAL STEPS (Continued)

STARTING SYSTEM

ENGINE ELECTRICAL

16-24

REMOVAL SERVICE POINT

.

<<A>> STARTER ASSEMBLY REMOVAL

Remove the starter assembly from under the vehicle.

INSPECTION

M1162001100197

.

PINION GAP ADJUSTMENT

1. Disconnect the field coil wire from the M-terminal of the

magnetic switch.

2. Connect a 12-volt battery between the S-terminal and

M-terminal.

CAUTION

This test must be performed quickly (in less than 10 sec-
onds) to prevent the coil from burning.
3. Set the switch to "ON", and the pinion will move out.

4. Check the pinion-to-stopper clearance (pinion gap) with a

feeler gauge.

Standard value: 0.5

− 2.0 mm (0.02 − 0.07 inch)

5. If the pinion gap is out of specification, adjust by adding or

removing gasket(s) between the magnetic switch and front
bracket.

.

MAGNETIC SWITCH PULL-IN TEST

1. Disconnect the field coil wire from the M-terminal of the

magnetic switch.

CAUTION

This test must be performed quickly (in less than 10 sec-
onds) to prevent the coil from burning.
2. Connect a 12-volt battery between the S-terminal and

M-terminal.

3. If the pinion moves out, the pull-in coil is good. If it doesn't,

replace the magnetic switch.

AKX01239

<3.8L ENGINE>

B

M

S

BATTERY

SWITCH

STARTER

MOTOR

WIRE

AE

AKX00198

STOPPER

PINION GAP

PINION

AB

AKX00199

AKX01243

<3.8L ENGINE>

B

M

S

BATTERY

STARTER

MOTOR

WIRE

AE

STARTING SYSTEM

ENGINE ELECTRICAL

16-25

.

MAGNETIC SWITCH HOLD-IN TEST

1. Disconnect the field coil wire from the M-terminal of the

magnetic switch.

CAUTION

This test must be performed quickly (in less than 10 sec-
onds) to prevent the coil from burning.
2. Connect a 12-volt battery between the S-terminal and body.

3. Manually pull out the pinion as far as the pinion stopper

position.

4. If the pinion remains out, everything is operating properly. If

the pinion moves in, the hold-in circuit is open. Replace the
magnetic switch.

.

FREE RUNNING TEST

1. Place the starter motor in a vise equipped with soft jaws and

connect a fully-charged 12-volt battery to the starter motor
as follows:

2. Connect a test ammeter (100-ampere scale) and carbon pile

rheostat in series between the positive battery terminal and
starter motor terminal.

3. Connect a voltmeter (15-volt scale) across the starter motor.

4. Rotate the rheostat to full-resistance position.

5. Connect the battery cable from the negative battery terminal

to the starter motor body.

6. Adjust the rheostat until the battery positive voltage shown

on the voltmeter is 11 V.

7. Confirm that the maximum amperage is within the

specifications and that the starter motor turns smoothly and
freely.

Current: maximum 95 Amps

.

MAGNETIC SWITCH RETURN TEST

1. Disconnect the field coil wire from the M-terminal of the

magnetic switch.

CAUTION

This test must be performed quickly (in less than 10 sec-
onds) to prevent the coil from burning.
2. Connect a 12-volt battery between the M-terminal and body.

WARNING

Be careful not to get your fingers caught when pulling
out the pinion.

3. Pull the pinion out and release. If the pinion quickly returns

to its original position, everything is operating properly. If it
doesn't, replace the magnetic switch.

AKX01245

<3.8L ENGINE>

B

M

S

BATTERY

STARTER

MOTOR

WIRE

AE

AKX01247

<3.8L ENGINE>

B

M

S

CARBON-PILE

RHEOSTAT

AMMETER

BATTERY

STARTER

MOTOR

VOLTMETER

AE

A

V

AKX01249

<3.8L ENGINE>

B

M

S

BATTERY

STARTER

MOTOR

WIRE

AE
