CHARGING SYSTEM

ENGINE ELECTRICAL

16-14

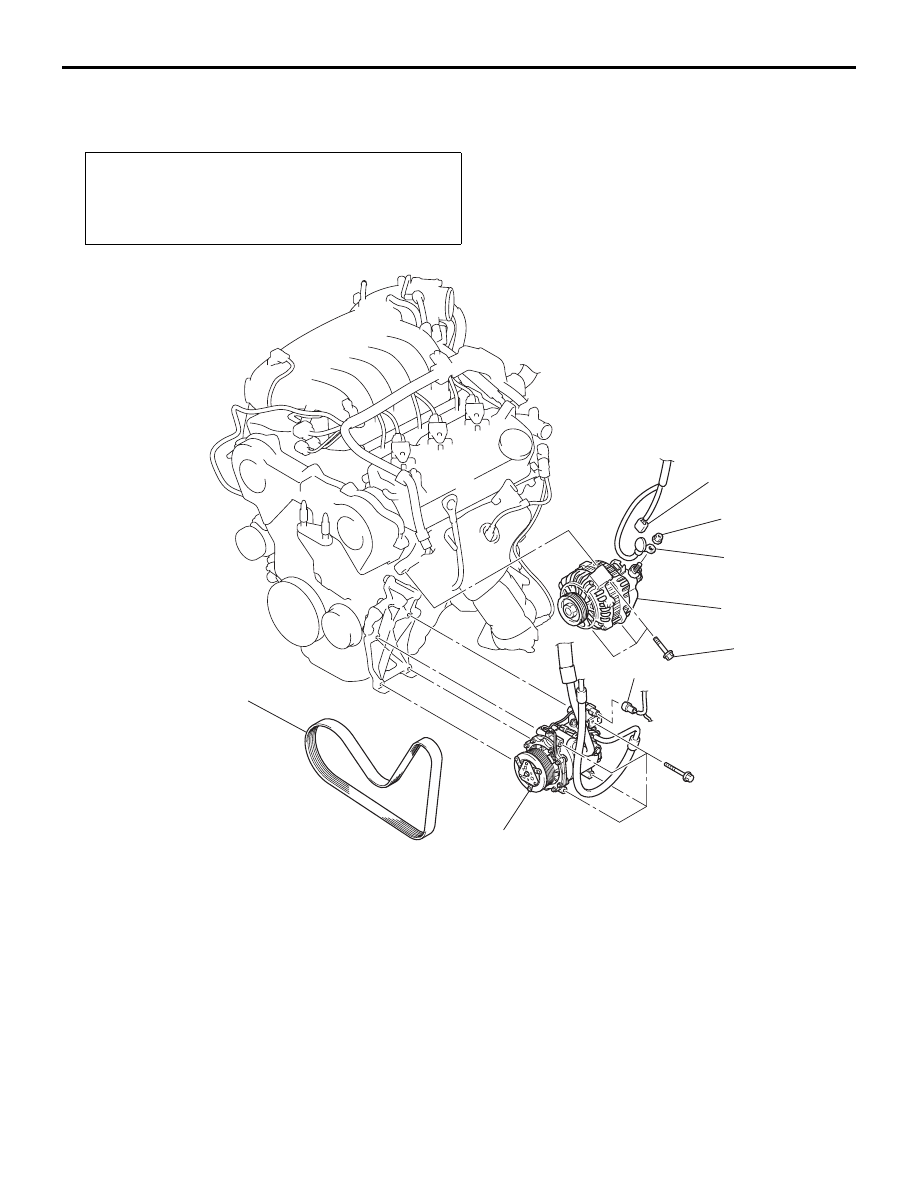

ALTERNATOR ASSEMBLY

REMOVAL AND INSTALLATION

M1161001400601

REMOVAL SERVICE POINT

.

<<A>> A/C COMPRESSOR ASSEMBLY REMOVAL

Remove the compressor from the compressor bracket with the
hose still attached.

Pre-removal and Post-installation Operation
• Under Cover Removal and Installation (Refer to GROUP

51, Under Cover

P.51-13

).

• Side Under Cover Removal and Installation  (Refer to

GROUP 51, Under Cover

P.51-13

).

06DB030A

49 ± 9 N·m

36 ± 7 ft-lb

1

2

3

4

5

2

12 ± 2 N·m

102 ± 22 in-lb

REMOVAL STEPS

1.

ALTERNATOR DRIVE BELT

2.

ALTERNATOR CONNECTOR

3.

A/C COMPRESSOR ASSEMBLY
CONNECTOR

<<A>>

4.

A/C COMPRESSOR ASSEMBLY

<<B>>

5.

ALTERNATOR ASSEMBLY

REMOVAL STEPS (Continued)

CHARGING SYSTEM

ENGINE ELECTRICAL

16-15

NOTE: Place the removed A/C compressor where it will not be
a hindrance when removing and installing the alternator, and
secure it with a cord or wire.

.

<<B>> ALTERNATOR ASSEMBLY REMOVAL

Move the A/C compressor assembly to one side, and then
remove the alternator assembly from under the vehicle.

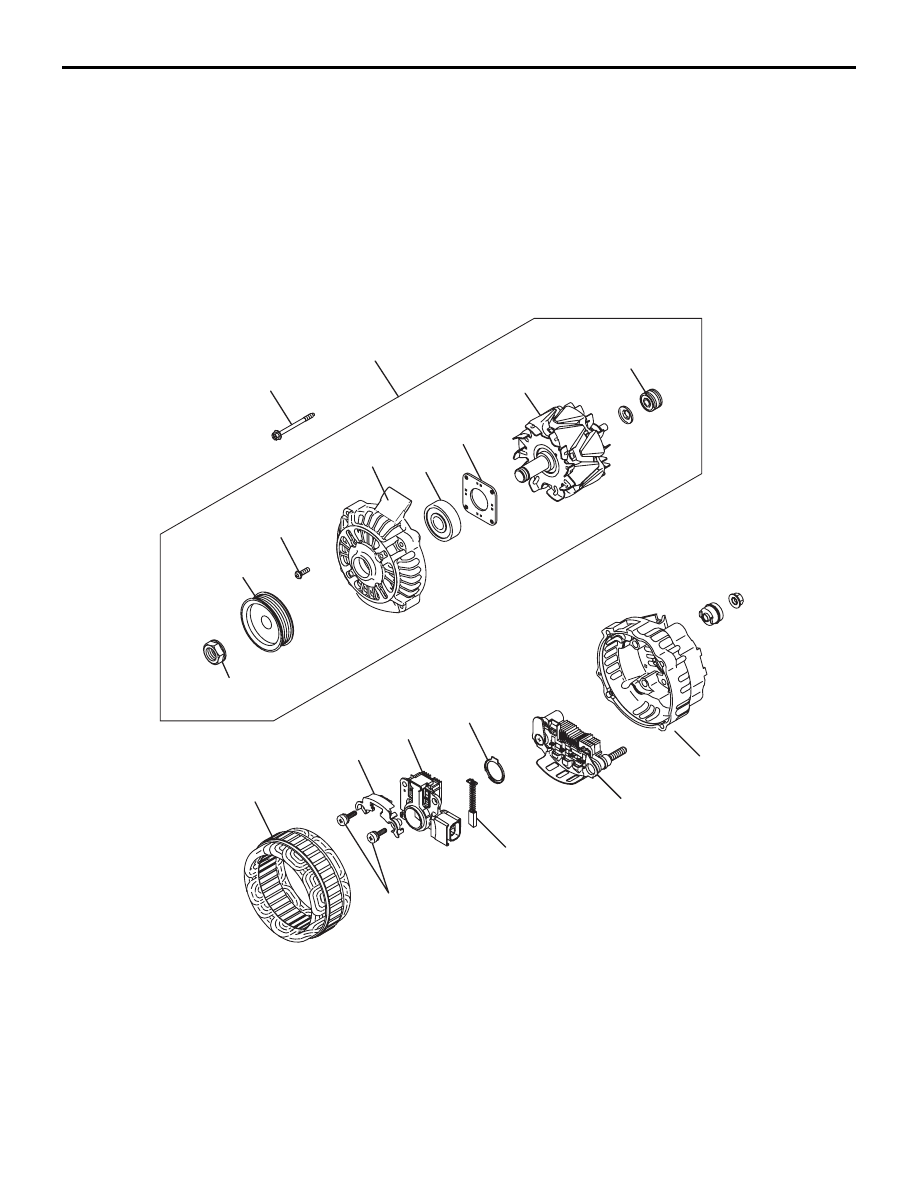

DISASSEMBLY AND ASSEMBLY

M1161001600188

06DB031A

1

2

7

6

5

3

4

8

9

10

12

13

14

11

4.4 ± 1.0  N·m

39 ± 9 in-lb

3.7 ± 0.7 N·m

33 ± 6 in-lb

3.7 ± 0.7 N·m

33 ± 6 in-lb

118 ± 19 N·m

87 ± 14 ft-lb

DISASSEMBLY STEPS

<<A>>

1.

FRONT BRACKET ASSEMBLY

<<B>>

2.

ALTERNATOR PULLEY

>>B<<

3.

ROTOR ASSEMBLY

4.

REAR BEARING

5.

BEARING RETAINER

6.

FRONT BEARING

7.

FRONT BRACKET

<<C>>

8.

STATOR

9.

PLATE

>>A<<

10. REGULATOR ASSEMBLY
11. BRUSH
12. SLINGER
13. RECTIFIER
14. REAR BRACKET

DISASSEMBLY STEPS (Continued)

CHARGING SYSTEM

ENGINE ELECTRICAL

16-16

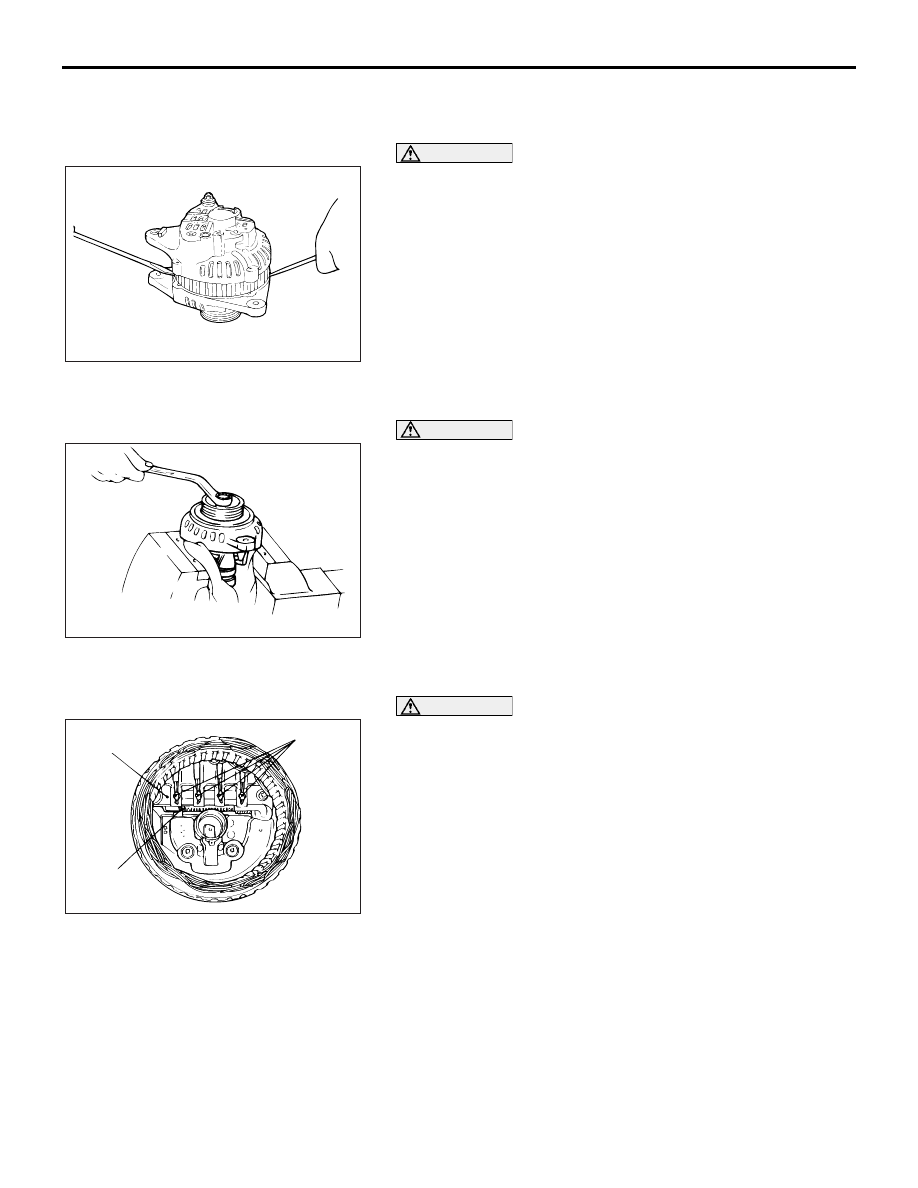

DISASSEMBLY SERVICE POINTS

.

<<A>> FRONT BRACKET ASSEMBLY REMOVAL

CAUTION

Do not insert a screwdriver too deep. The stator coil will be
damaged.
Insert a flat-tipped screwdriver between the front bracket
assembly and the stator core, and pry it downward to separate
the stator and front bracket assembly.

.

<<B>> ALTERNATOR PULLEY REMOVAL

CAUTION

Make sure not to damage the rotor.
Set the pulley upward, clamp the rotor in a vise, and remove
the pulley.

.

<<C>> STATOR REMOVAL

CAUTION

• Check that the heat from the soldering iron is not trans-

mitted to the diode for a long time.

• Use care that no undue force is exerted to leads of

diodes.

1. Use a soldering iron (180 to 250 W) to unsolder the stator.

This work should complete within approximately four
seconds to prevent heat from transferring to the diode.

2. When removing the rectifier from the regulator assembly,

unsolder the points soldered on the rectifier.

AKX00355

AKX00356

AKX00357AB

RECTIFIER

SOLDERED

SOLDERED

CHARGING SYSTEM

ENGINE ELECTRICAL

16-17

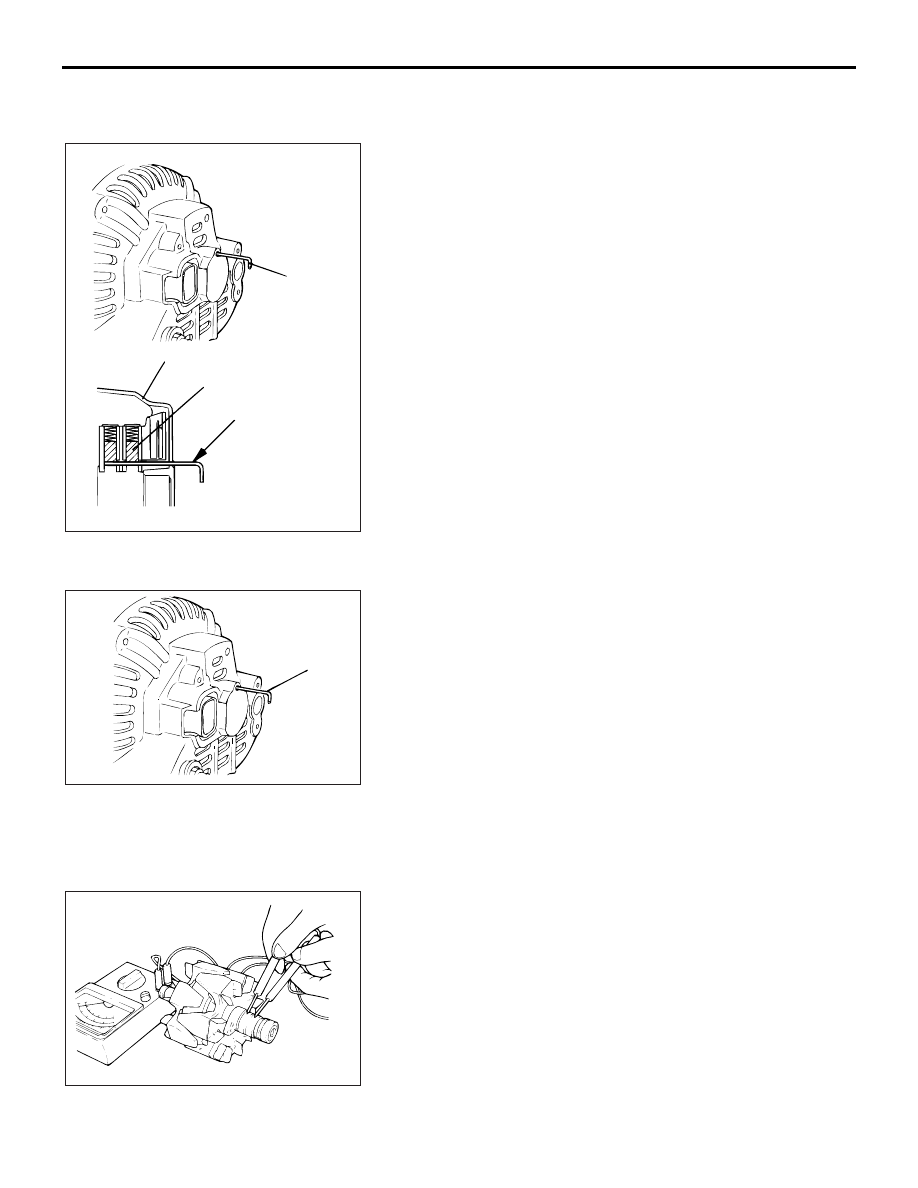

ASSEMBLY SERVICE POINTS

.

>>A<< REGULATOR ASSEMBLY INSTALLATION

After installing the regulator assembly, insert a wire through the
hole provided on the rear bracket while pressing down on the
brush, and secure the brush.

NOTE: By inserting a wire, the brush will be secured in place,
and the installation of the rotor will be easier.

.

>>B<< ROTOR ASSEMBLY INSTALLATION

After installing the rotor, remove the wire used to secure the
brush.

INSPECTION

M1161001700099

.

ROTOR CHECK

1. Check the continuity between the slip rings of the field coil. If

the resistance value is not within the standard value, replace
the rotor.

Standard value: approximately 2

− 5 Ω

AKX00358

WIRE

REAR BRACKET

BRUSH

WIRE

AB

AKX00359

WIRE

AB

AKX00360
