CONTROL UNIT

COMPONENT LOCATIONS

70-14

CONTROL UNIT

M1701000700360

AC305743

Y

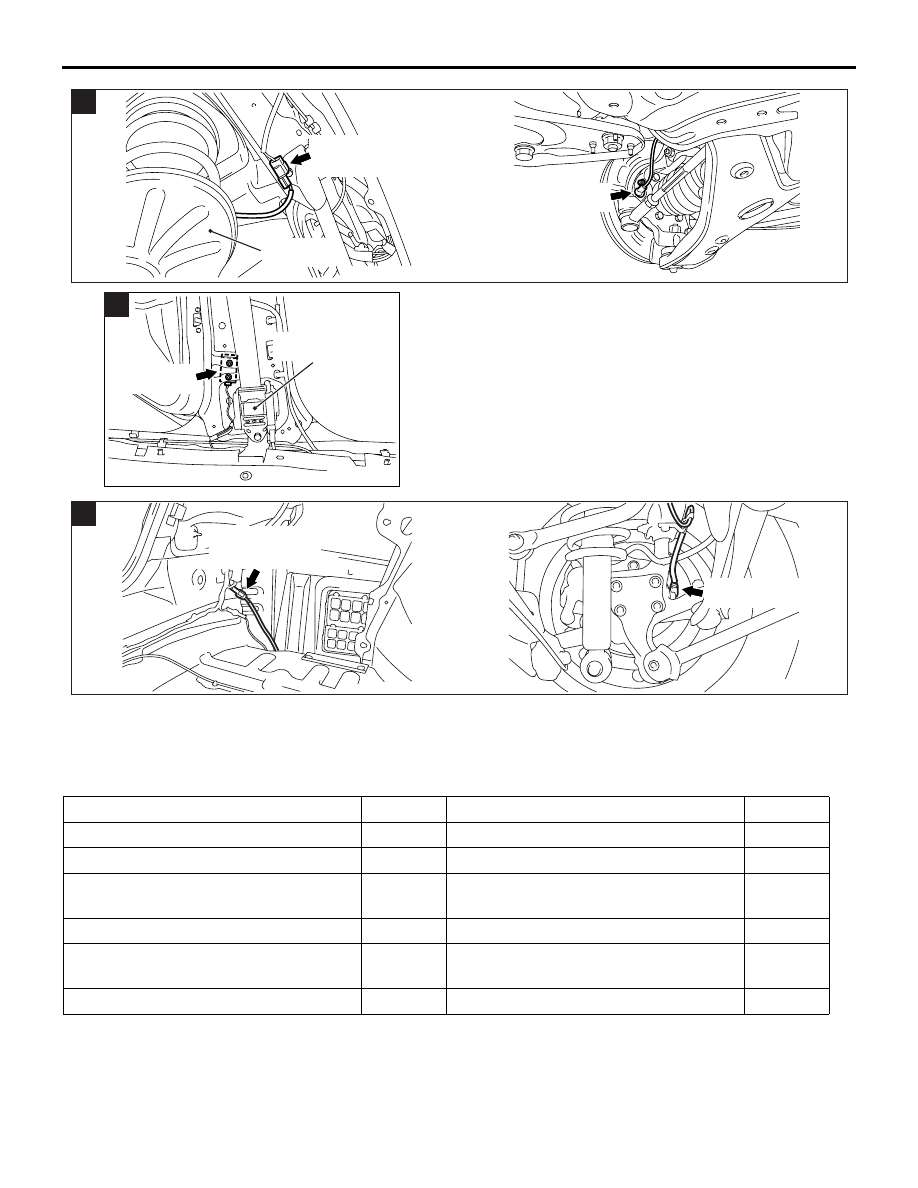

STRUT

ASSEMBLY

WHEEL SPEED

SENSOR (FRONT)

CONNECTOR

WHEEL SPEED

SENSOR (FRONT)

AB

AC305250

SIDE IMPACT

SENSOR

FRONT SEAT BELT

RETRACTOR

a

AB

AC305745

WHEEL SPEED

SENSOR (REAR)

CONNECTOR

WHEEL SPEED

SENSOR (REAR)

AB

b

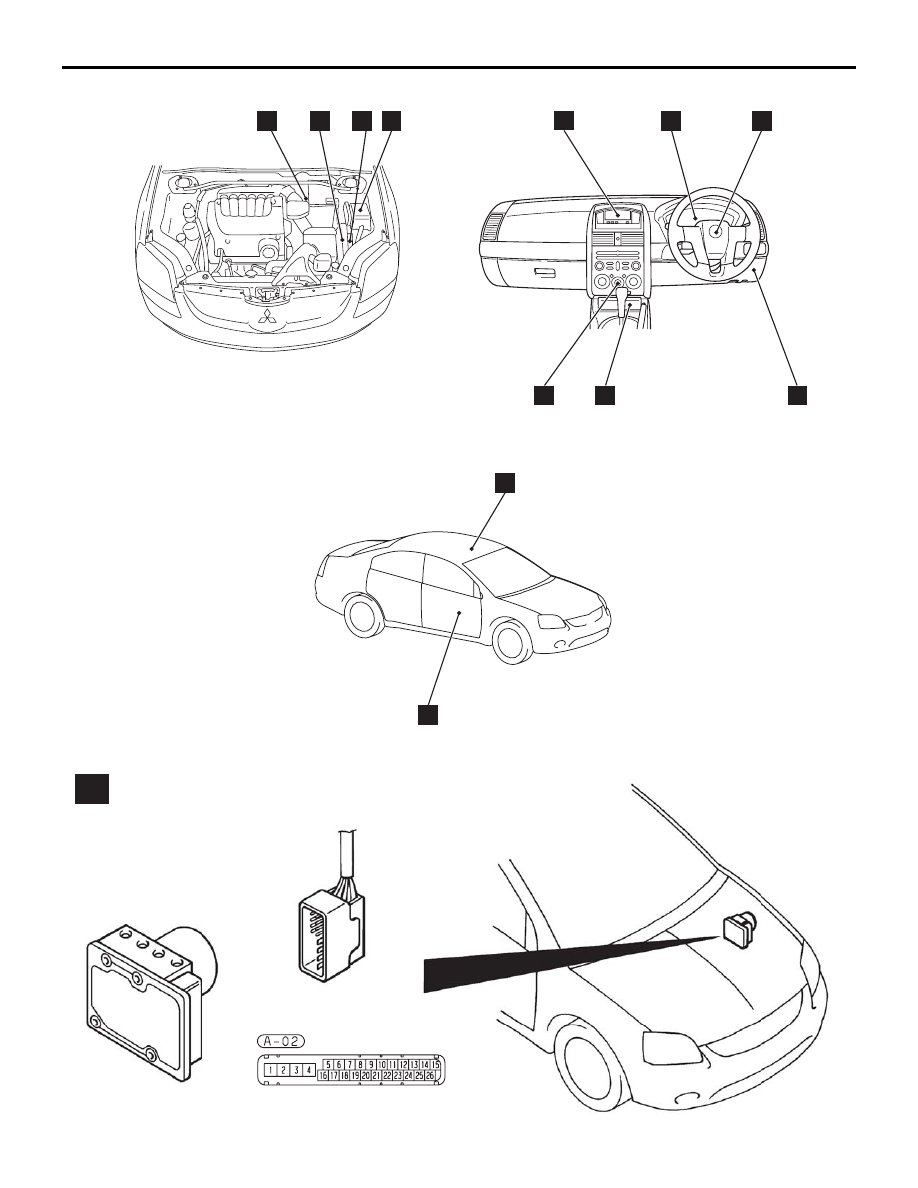

NAME

SYMBOL NAME

SYMBOL

ABS-ECU or ABS/TCL-ECU

A

Multi center display unit

F

A/C-ECU

J

Engine-ECU

B

Column switch (incorporating
column-ECU)

D

Power window main switch
(incorporating CPU)

M

Combination meter (incorporating CPU) E

SRS-ECU

I

ETACS-ECU

G

Sunroof assembly (incorporating
sunroof-ECU)

K

Front-ECU

C

A/T-ECU

L

CONTROL UNIT

COMPONENT LOCATIONS

70-15

35DB078A

A

B

C

D

E

F

G

I

J

K

M

L

35DB090A

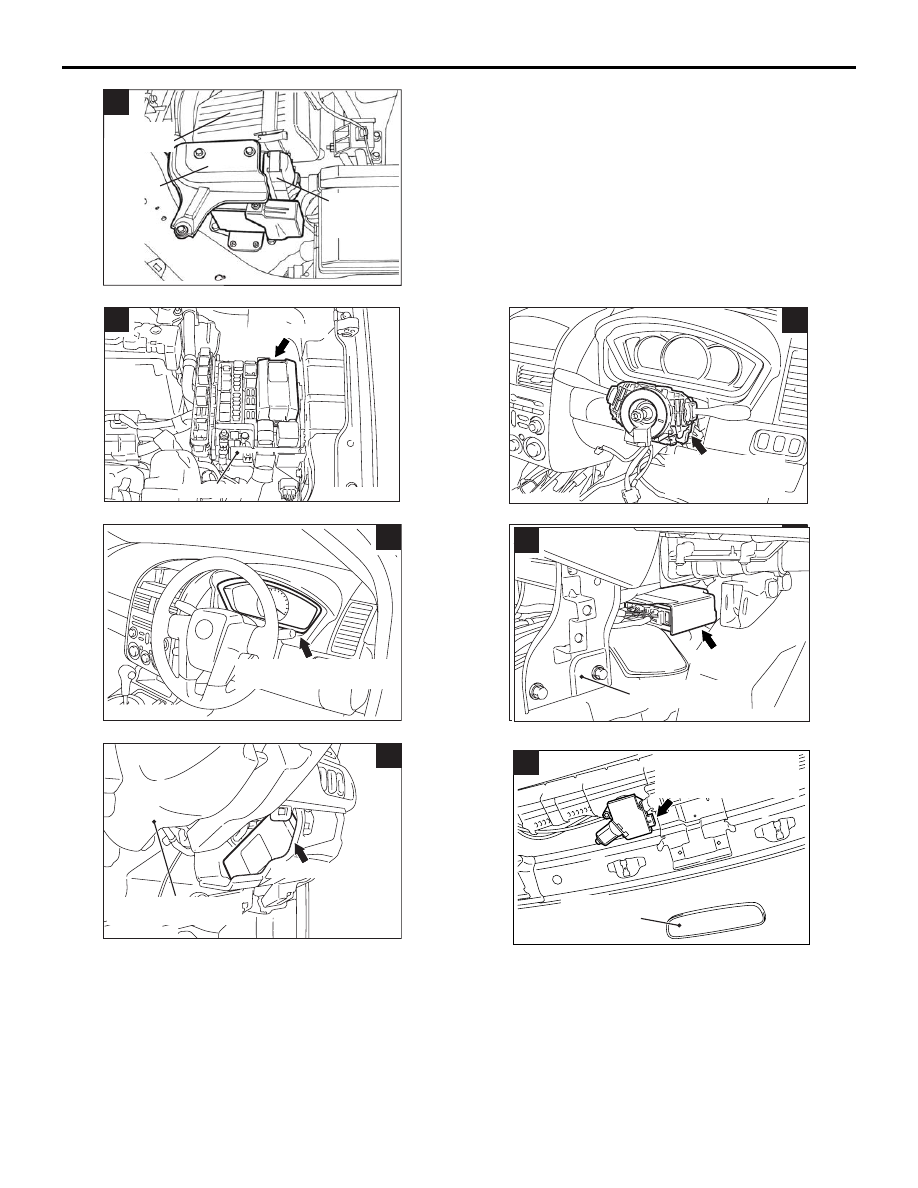

A

CONTROL UNIT

COMPONENT LOCATIONS

70-16

16DB395A

B

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

AC305018AB

FRONT-ECU

RELAY BOX

C

35DB079A

D

COLUMN SWITCH

(INCORPORATING

COLUMN-ECU)

35DB080A

E

COMBINATION METER

(INCORPORATING CPU)

35DB081A

F

MULTI CENTER

DISPLAY UNIT

35DB082A

STEERING COLUMN

LOWER COVER

ETACS-ECU

G

AC305362

CENTER

REINFORCEMENT

I

AB

SRS-ECU

AC305249

AC

SUNROOF ASSEMBLY

(INCORPORATING

SUNROOF-ECU)

INSIDE

REAR VIEW

MIRROR

K

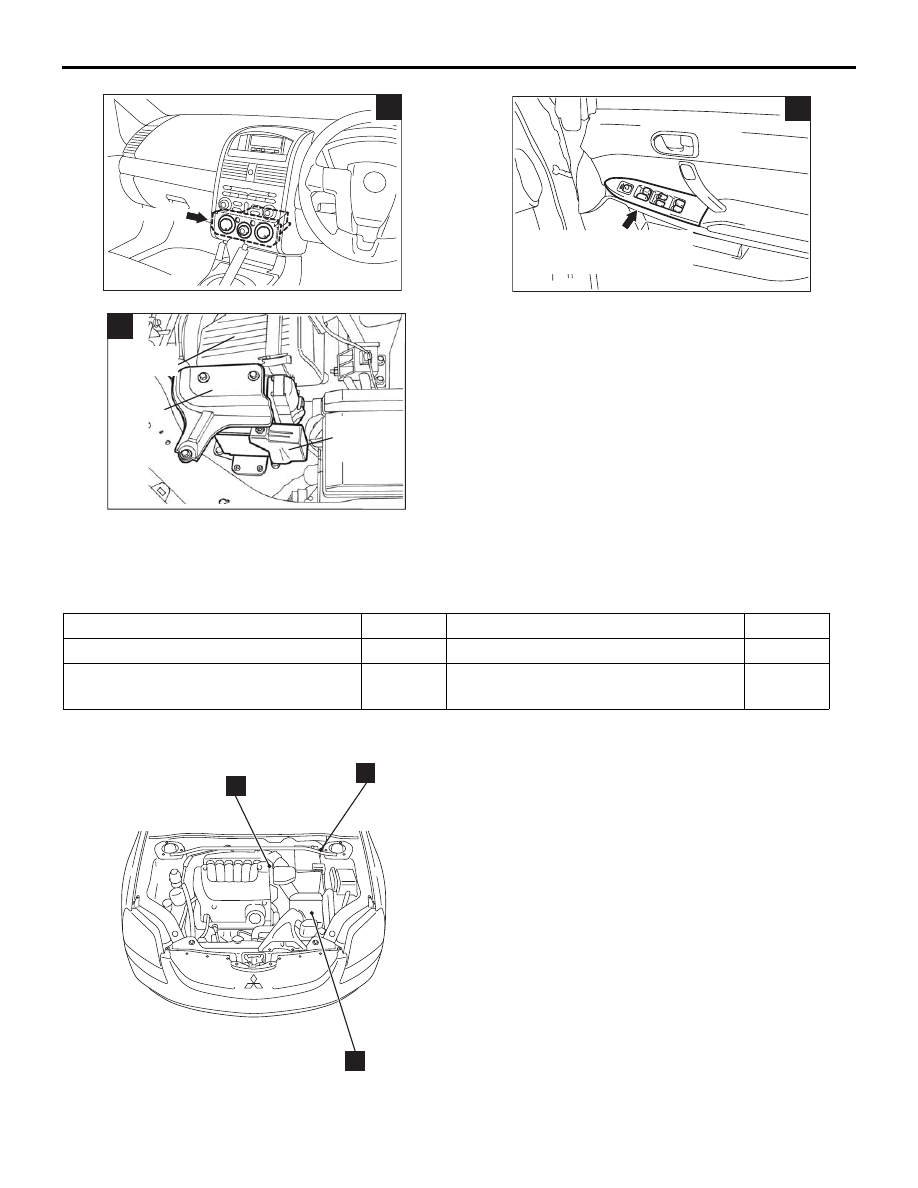

SOLENOID AND SOLENOID VALVE

COMPONENT LOCATIONS

70-17

SOLENOID AND SOLENOID VALVE

M1701000800378

35DB083A

J

A/C-ECU

16DB397A

H

COVER

A/T

CONTROL

UNIT

AIR

CLEANER

NAME

SYMBOL NAME

SYMBOL

A/T control solenoid valve assembly

E

Evaporative emission purge solenoid

B

Hydraulic unit (incorporating ABS
solenoid valve)

A

35DB086A

A

B

E

35DB084A

M

POWER WINDOW

MAIN SWITCH

(INCORPORATING CPU)
