AUTO A/C DIAGNOSIS

HEATER, AIR CONDITIONING AND VENTILATION

55-116

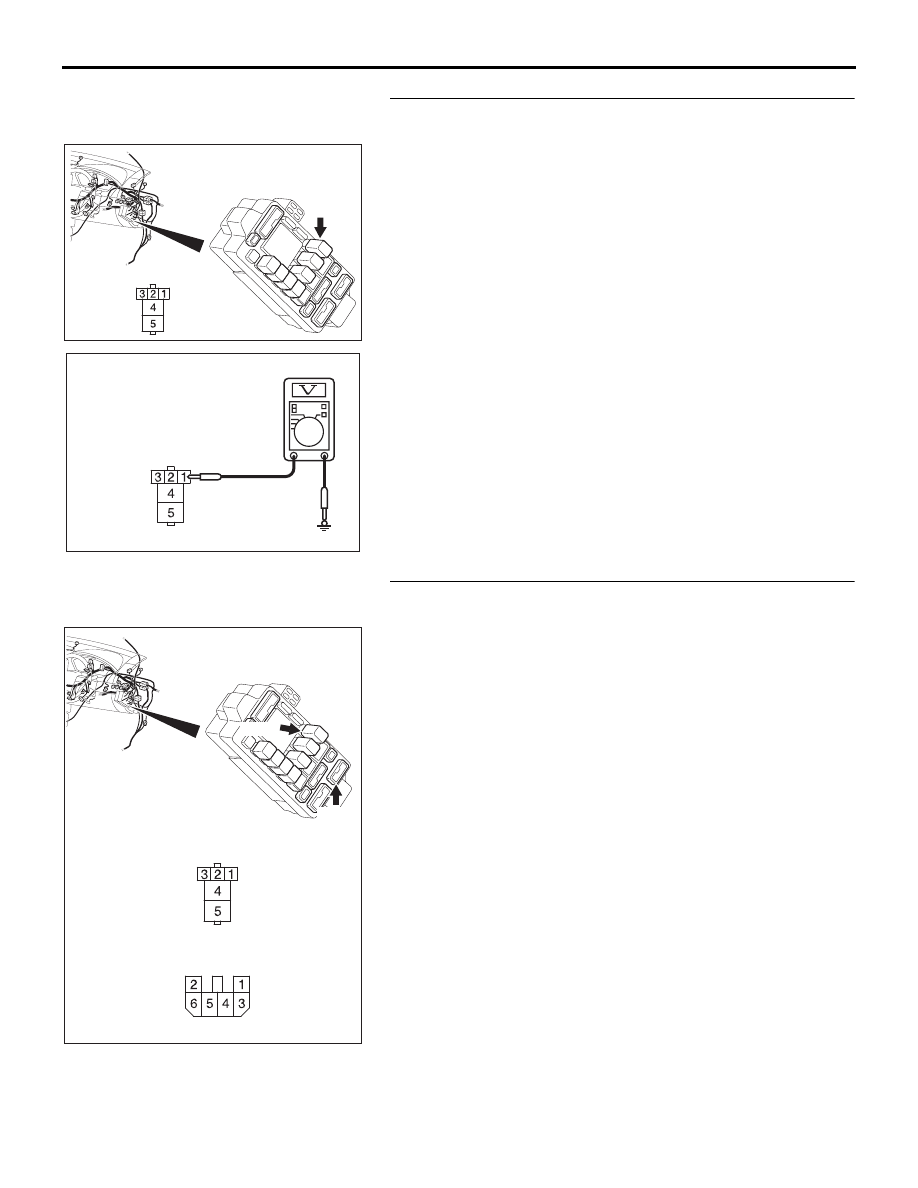

STEP 8. Measure the voltage at defogger relay connector
C-201.
(1) Disconnect defogger relay connector C-201, and measure

the voltage at the junction block side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal 1 and ground.

• The measured value should be approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approx. 12 volts?

YES :  Go to Step 10.
NO :   Go to Step 9.

STEP 9. Check the wiring harness between defogger relay
connector C-201 (terminal 1) and ignition switch (IG2).

25DB125A

CONNECTOR: C-201

JUNCTION BLOCK SIDE

JUNCTION BLOCK

(FRONT VIEW)

AC209365HB

CONNECTOR C-201
(JUNCTION BLOCK SIDE)

25DB128A

CONNECTORS: C-201, C-215

JUNCTION BLOCK

(FRONT VIEW)

HARNESS SIDE

C-201

JUNCTION BLOCK SIDE

C-201

C-215

C-215

AUTO A/C DIAGNOSIS

HEATER, AIR CONDITIONING AND VENTILATION

55-117

NOTE: Also check junction block connector C-215 for loose,
corroded, or damaged terminals, or terminals pushed back in
the connector. If junction block connector C-215 is damaged,
repair or replace the connector as described in GROUP 00E,
Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between defogger relay connector

C-201 (terminal 1) and ignition switch (IG2) in good
condition?
YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Repair the wiring harness. Check that the defogger

system works normally.

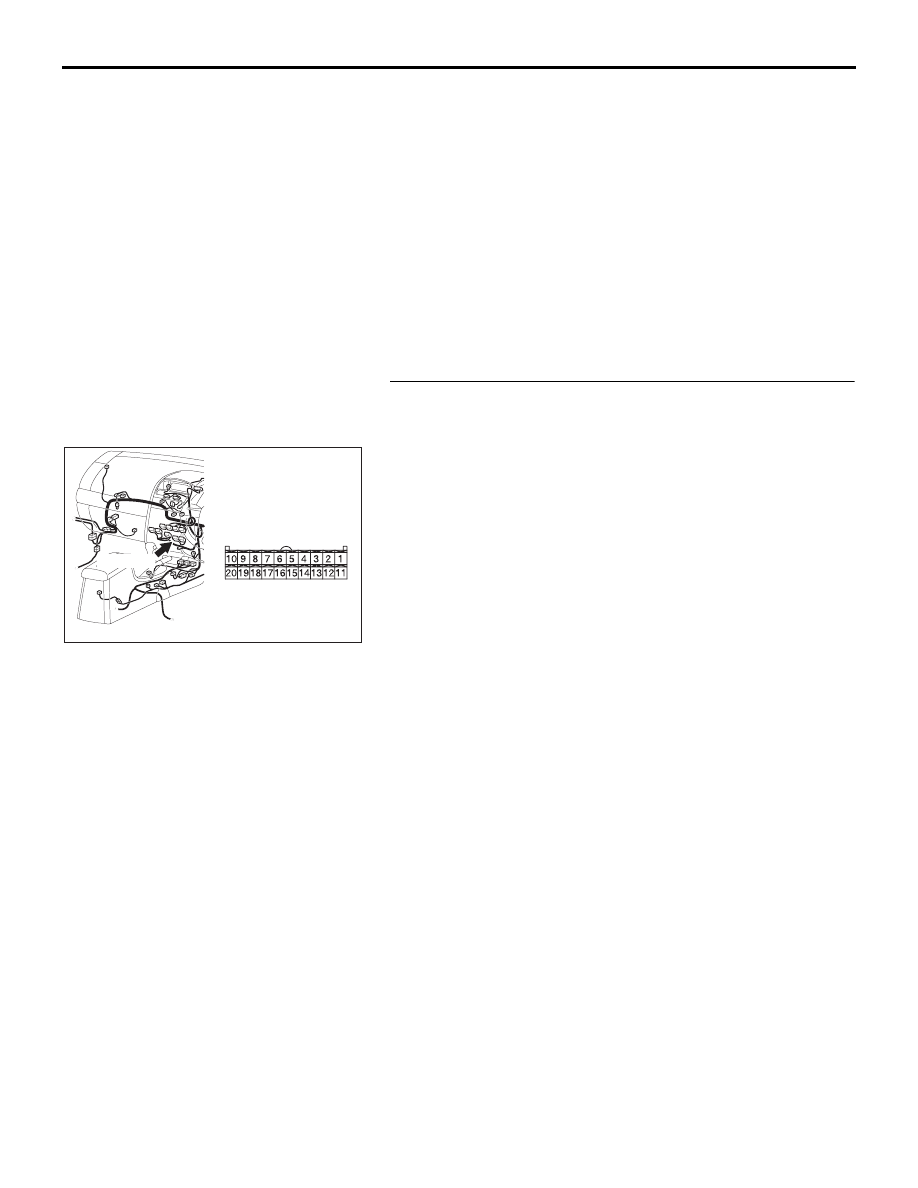

STEP 10. Check A/C-ECU connector C-15 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is A/C-ECU connector C-15 in good condition?

YES : Go to Step 11.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Check

that the defogger system works normally.

25DB120A

CONNECTOR: C-15

C-105 (B)

HARNESS SIDE

AUTO A/C DIAGNOSIS

HEATER, AIR CONDITIONING AND VENTILATION

55-118

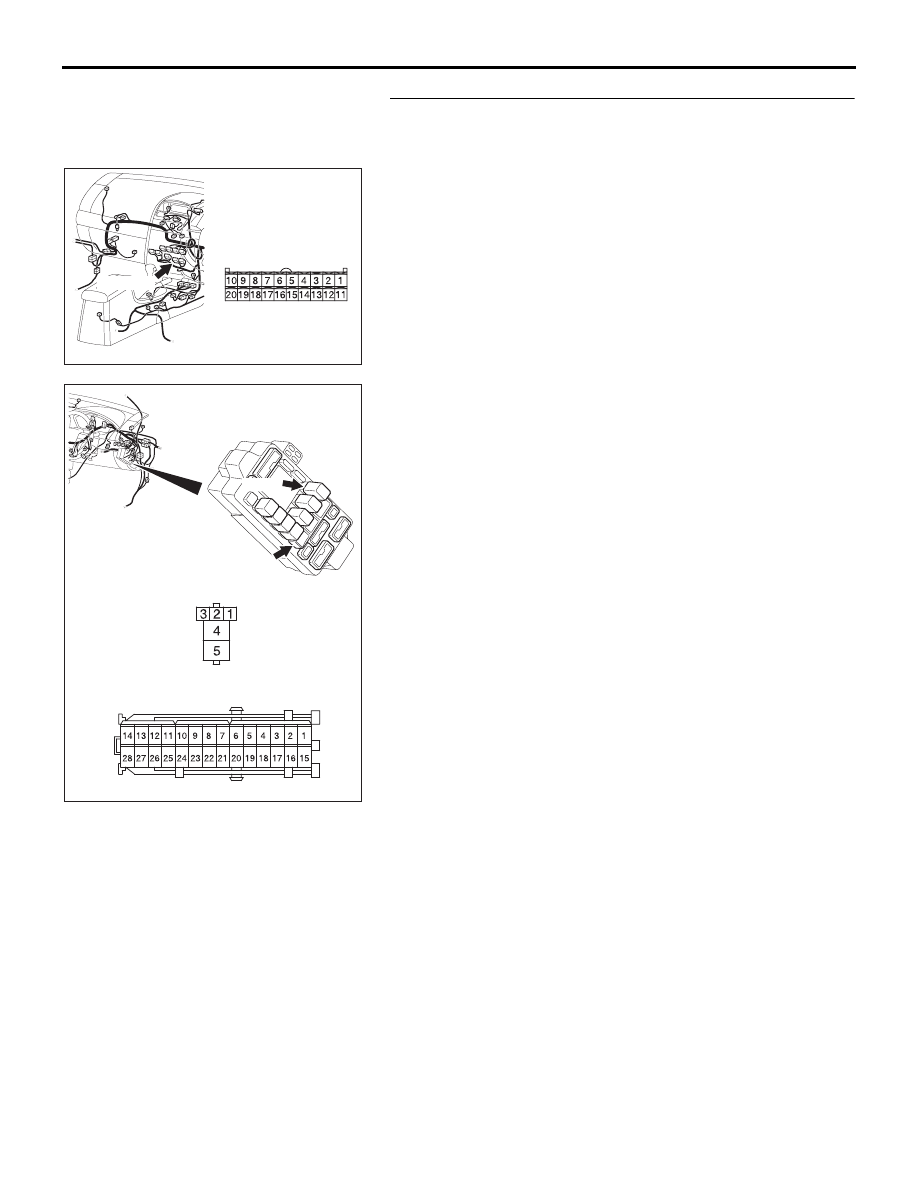

STEP 11. Check the wiring harness between defogger relay
connector C-201 (terminal 3) and A/C-ECU connector C-15
(terminal 8).

NOTE: Also check junction block connector C-211 for loose,
corroded, or damaged terminals, or terminals pushed back in
the connector. If junction block connector C-211 is damaged,
repair or replace the connector as described in GROUP 00E,
Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between defogger relay connector

C-201 (terminal 3) and A/C-ECU connector C-15
(terminal 8) in good condition?
YES : Go to Step 12.
NO :  Repair or replace the wiring harness. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the defogger system works

normally.

25DB120A

CONNECTOR: C-15

C-105 (B)

HARNESS SIDE

25DB129A

CONNECTORS: C-201, C-211

JUNCTION BLOCK

(FRONT VIEW)

HARNESS SIDE

C-201

JUNCTION BLOCK SIDE

C-201

C-211

C-211

AUTO A/C DIAGNOSIS

HEATER, AIR CONDITIONING AND VENTILATION

55-119

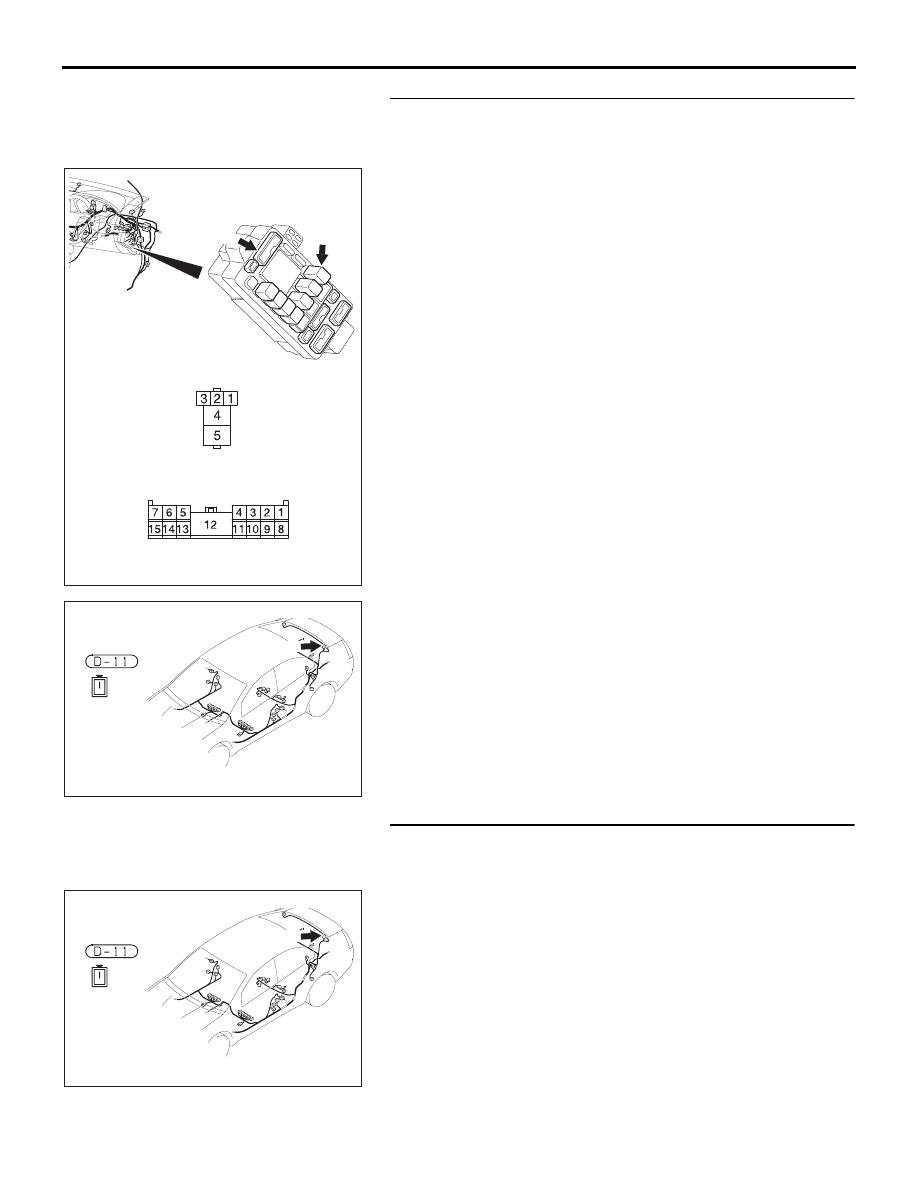

STEP 12. Check the wiring harness between defogger
relay connector C-201 (terminal 4) and choke coil
connector D-11 (terminal 1).

NOTE: Also check junction block connector C-204 for loose,
corroded, or damaged terminals, or terminals pushed back in
the connector. If junction block connector C-204 is damaged,
repair or replace the connector as described in GROUP 00E,
Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between defogger relay connector

C-201 (terminal 4) and choke coil connector D-11
(terminal 1) in good condition?
YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Repair or replace the wiring harness. Refer to

GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the defogger system works

normally.

STEP 13. Check choke coil connector D-11 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is choke coil connector D-11 in good condition?

YES : Go to Step 14.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Check

that the defogger system works normally.

25DB130A

CONNECTORS: C-201, C-204

JUNCTION BLOCK

(FRONT VIEW)

HARNESS SIDE

C-201

JUNCTION BLOCK SIDE

C-201

C-204

C-204

25DB152A

CONNECTORS: D-11

D-11

25DB152A

CONNECTORS: D-11

D-11
