POWER DISTRIBUTION SYSTEM

CIRCUIT DIAGRAMS

90-20

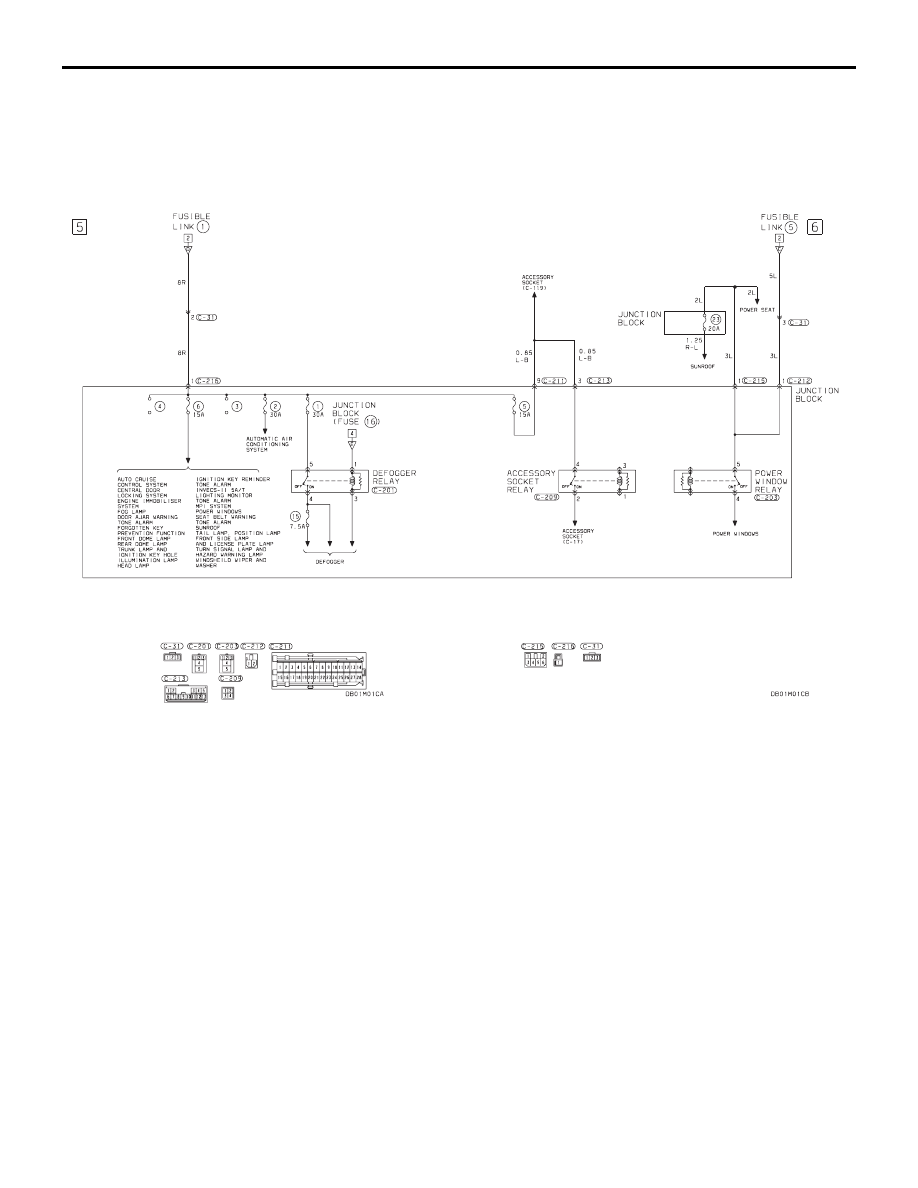

POWER DISTRIBUTION SYSTEM (CONTINUED)

STARTING SYSTEM

CIRCUIT DIAGRAMS

90-21

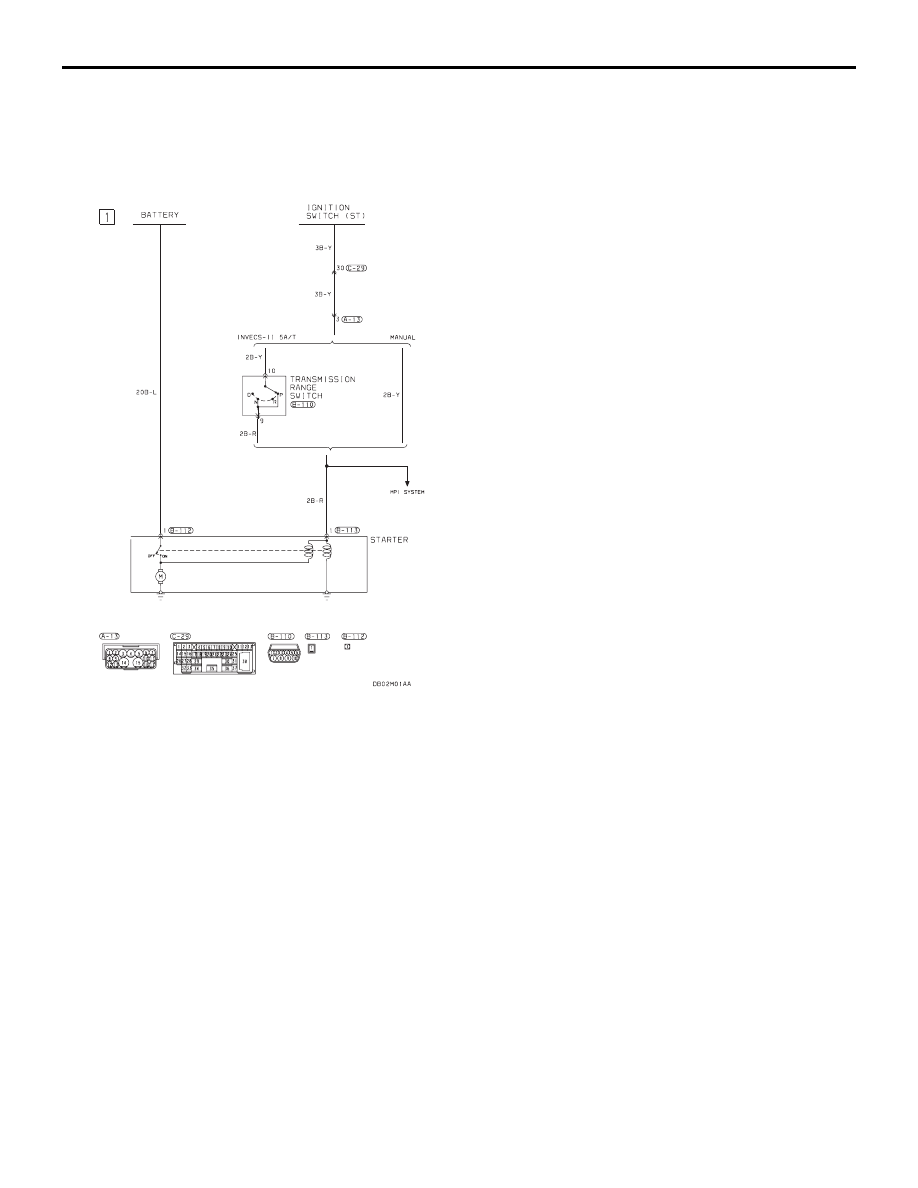

STARTING SYSTEM

M1901000501352

IGNITION SYSTEM

CIRCUIT DIAGRAMS

90-22

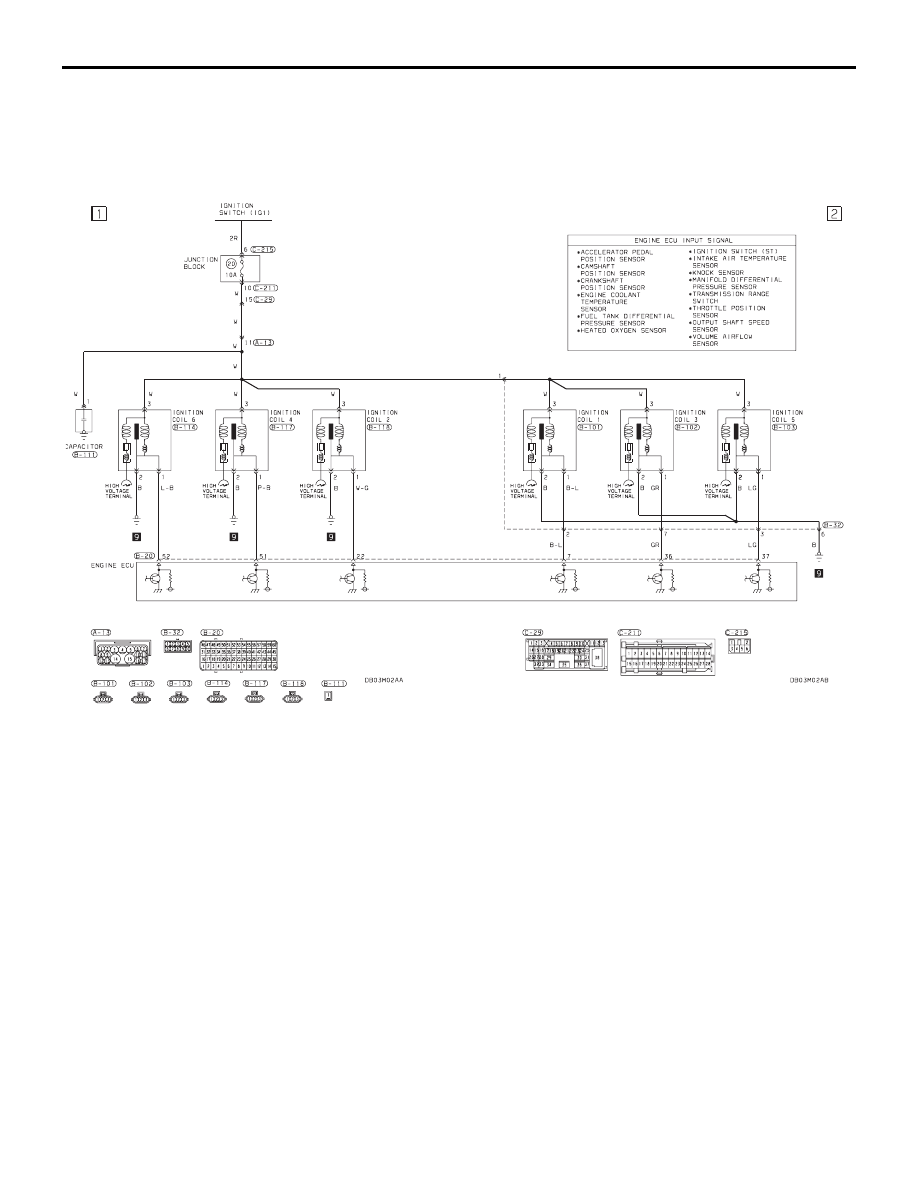

IGNITION SYSTEM

M1901000601928

CHARGING SYSTEM

CIRCUIT DIAGRAMS

90-23

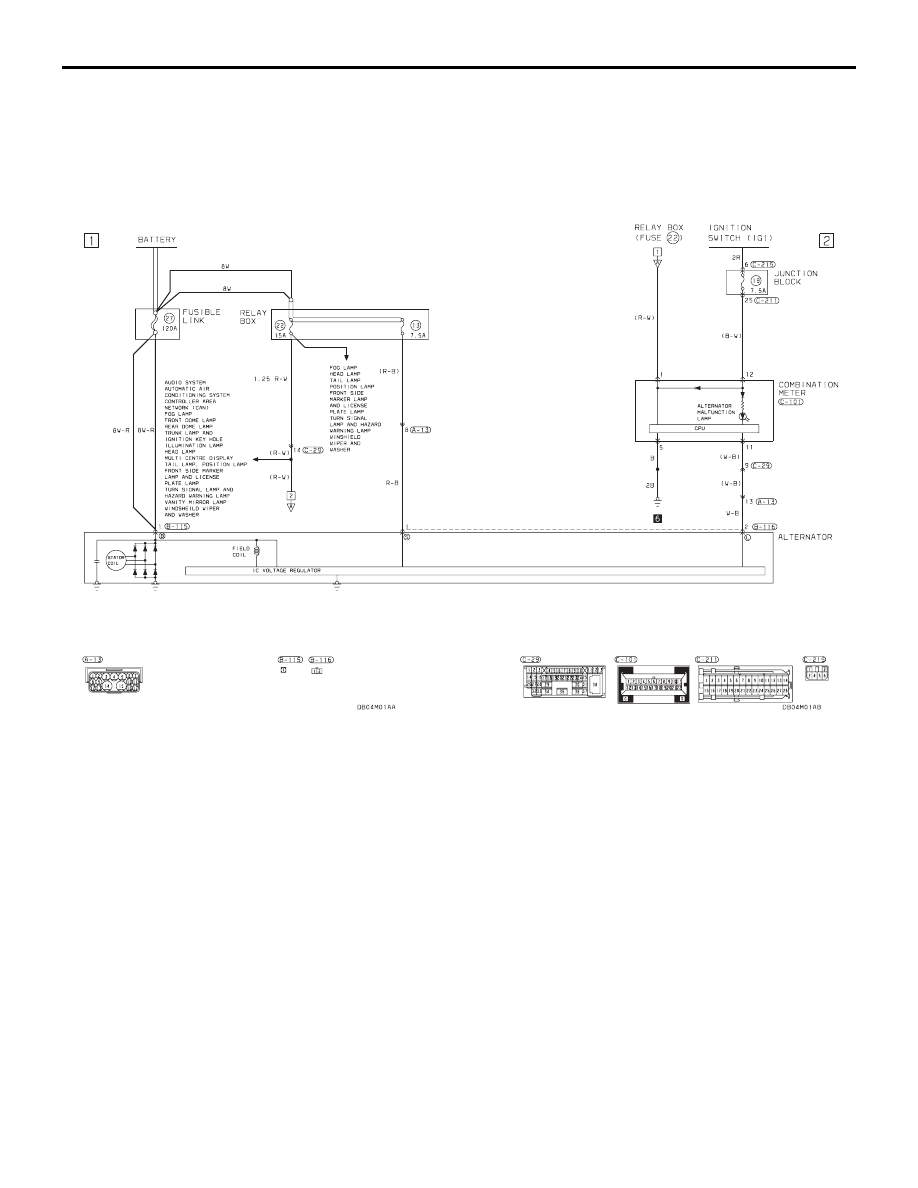

CHARGING SYSTEM

M1901000701226
