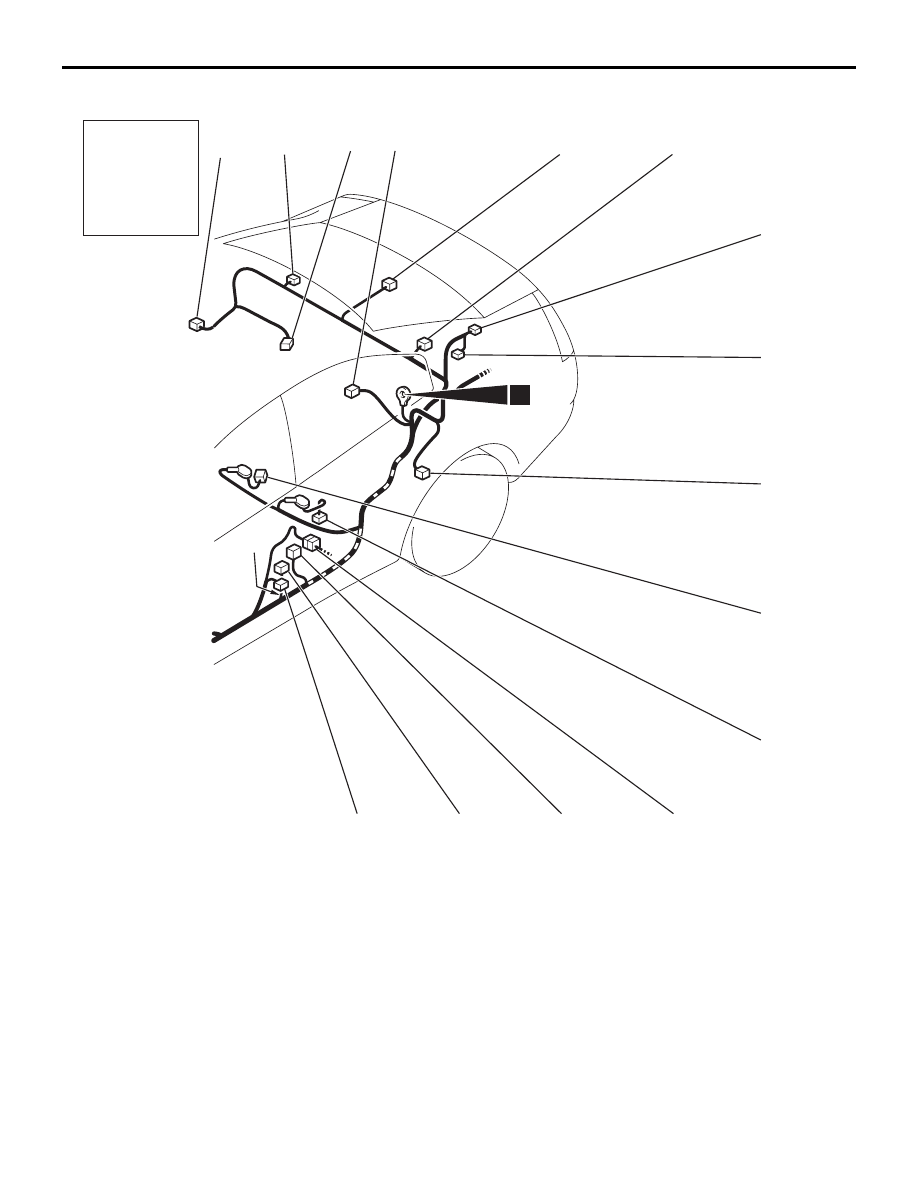

FLOOR, SEAT AND ROOF

CONFIGURATION DIAGRAMS

80-20

D-25-16 (8)

D-25-2

D-25-3

D-25

D-25-1

Connector
symbol

D

37DB243A

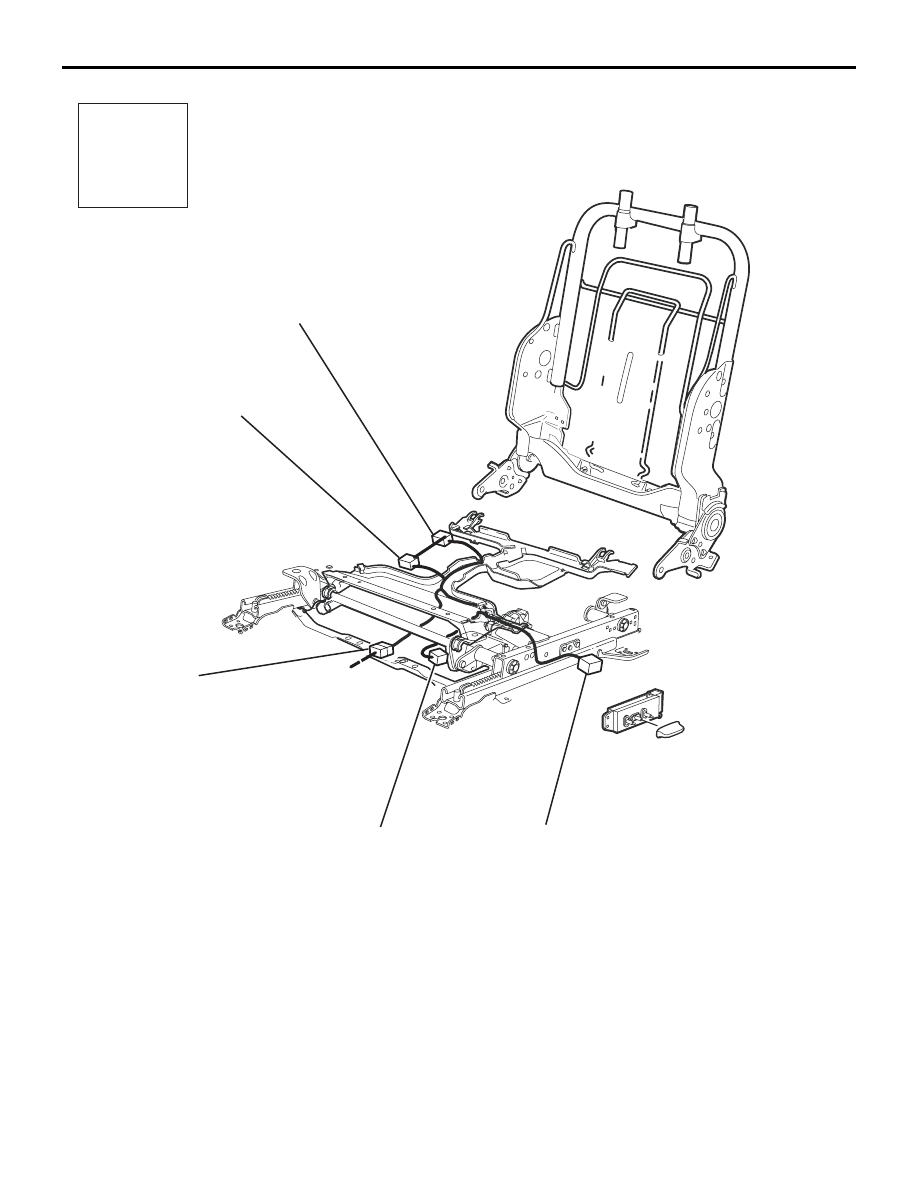

RHS. DRIVER SEAT
          (6-WAY)

FLOOR, SEAT AND ROOF

CONFIGURATION DIAGRAMS

80-21

Connector
symbol

D

37DB241A

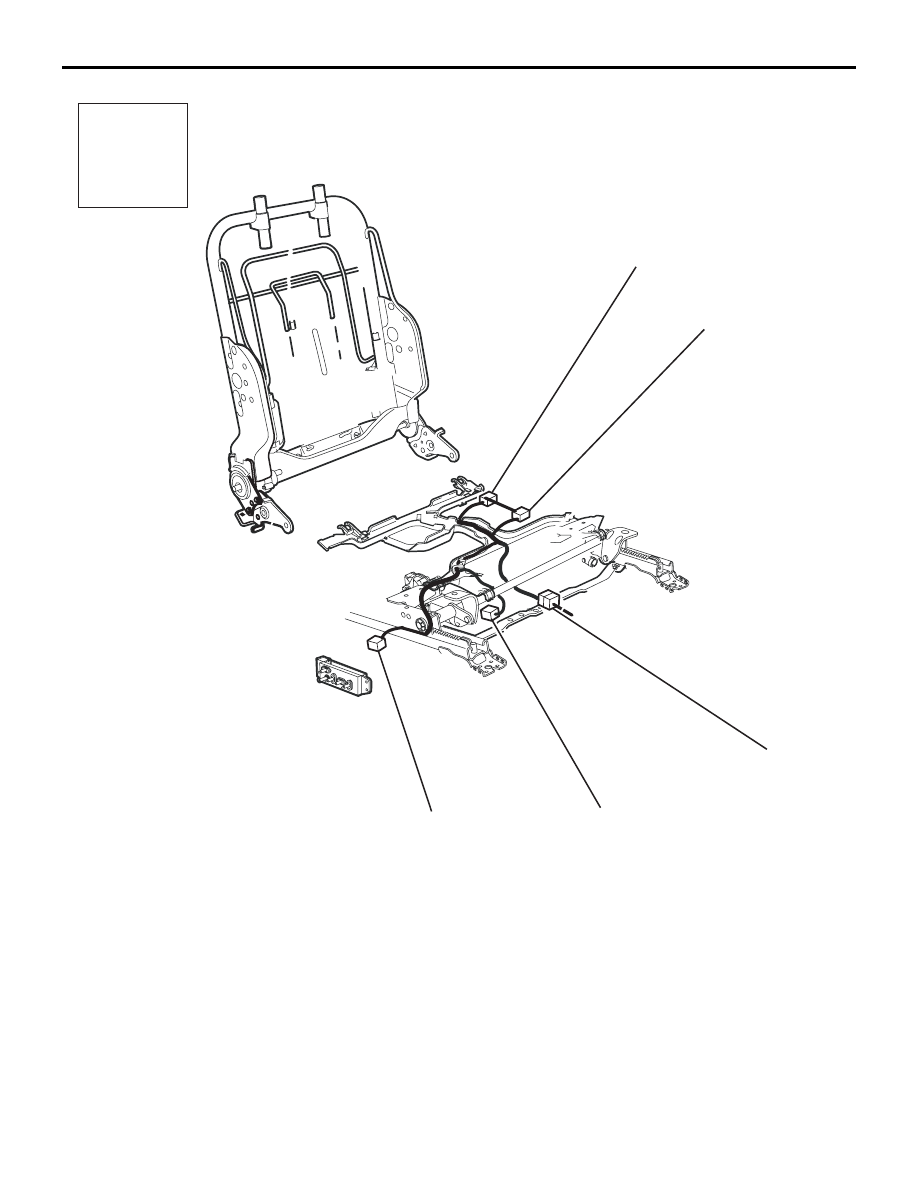

LHS. PASSENGER SEAT

D-39-3

D-39-1

D-39

D-39-2

D-39-4

FLOOR, SEAT AND ROOF

CONFIGURATION DIAGRAMS

80-22

37DB238A

7

D-09

D-10

D-12

D-40

D-11

D-16

D-17

D-18

D-19

D-20

D-21

D-22

Y

D-06

D-30

D-31

Connector

symbol

D

<-  D-40

D-26

(20-Y)

SRS-ECU (FLOOR HARNESS)

D-27

(20-Y)

SRS-ECU (FLOOR HARNESS)

D-28

(5-B)

SEAT BELT BUCKLE SWITCH
(DRIVER’S SIDE)

D-30

(2)

WHEEL SPEED SENSOR (REAR:
RH)

D-31

(2)

WHEEL SPEED SENSOR (REAR:
LH)

D-32

(2-R)

SIDE AIR BAG MODULE (SQUIB)
(RH)

D-33

(2-B)

SEAT BELT PRETENSIONER (RH)

D-34

(3)

FRONT DOOR SWITCH (RH)

D-35

(2)

SIDE IMPACT SENSOR (RH)

D-36

(10)

FLOOR WIRING HARNESS AND
REAR DOOR WIRING HARNESS
(RH) COMBINATION

D-38

(8)

POWER SEAT  (MEMORY) (RH)

D-39

(2)

POWER SEAT ASSEMBLY (LH)

D-39-1 (5-W)

FRONT HEIGHT MOTOR

D-39-2 (5-B)

REAR HEIGHT MOTOR

D-39-3 (4)

SEAT SLIDE MOTOR

D-39-4 (8)

SEAT ADJUST SWITCH (LH)

D-40

(1-B)

CAPACITOR

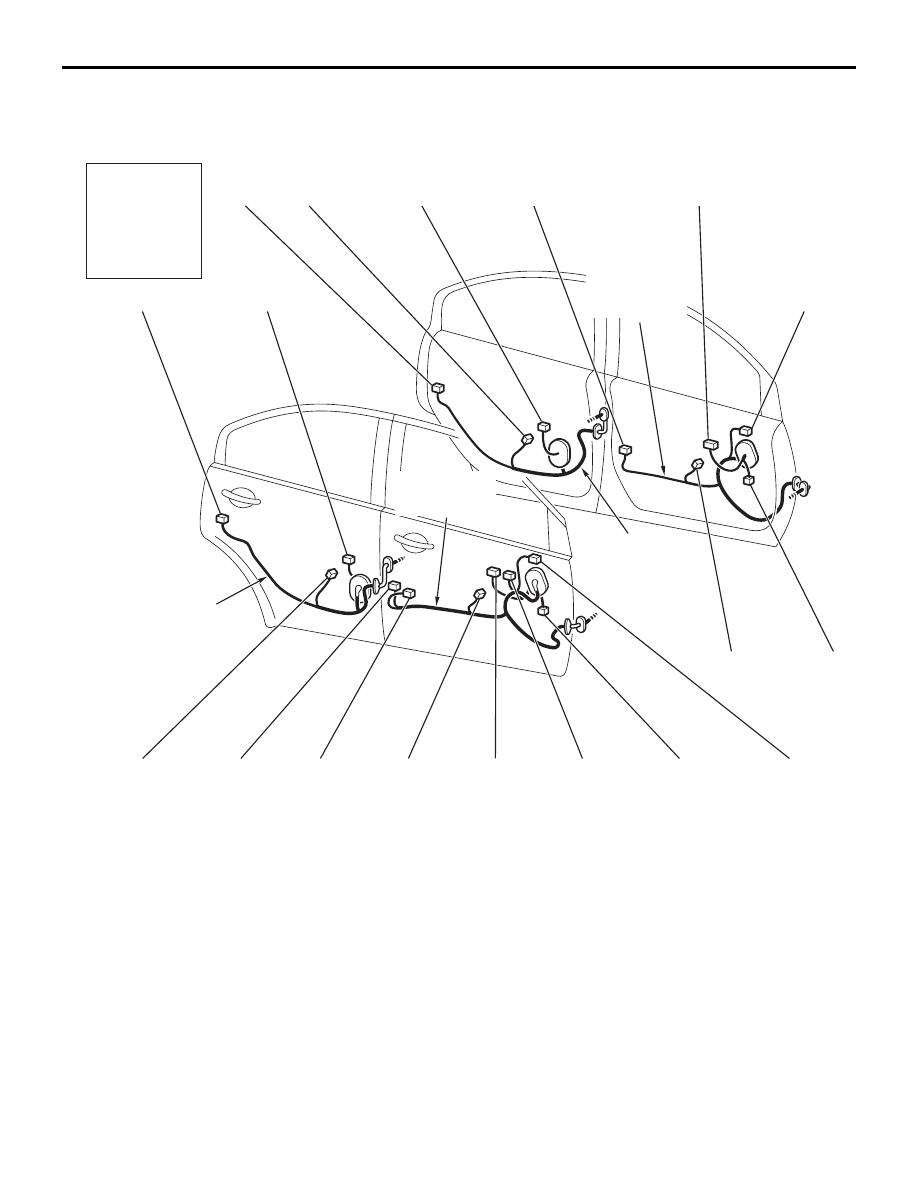

DOOR

CONFIGURATION DIAGRAMS

80-23

DOOR

M1801001400541

37DB233A

Connector

symbol

E

FRONT DOOR

WIRING

HARNESS (RH)

FRONT DOOR

WIRING

HARNESS (LH)

REAR DOOR

WIRING

HARNESS (RH)

REAR DOOR

WIRING

HARNESS (LH)

E-01

E-04

E-05

E-06

E-07

E-08

E-02

E-03

E-17

E-18

E-09

E-10

E-11

E-12

E-13

E-14

E-15

E-16

E-01

(3)

REMOTE CONTROLLED MIRROR
(RH)

E-02

(2)

FRONT DOOR SPEAKER (RH)

E-03

(2-GR)

FRONT POWER WINDOW
REGULATOR MOTOR (RH)

E-04

(14)

POWER WINDOW MAIN SWITCH

E-05

(6-B)

FRONT DOOR LOCK ACTUATOR
(RH)

E-06

(8)

REAR POWER WINDOW SUB
SWITCH (RH)

E-07

(2-GR)

REAR POWER WINDOW
REGULATOR MOTOR (RH)

E-08

(6-B)

REAR DOOR LOCK ACTUATOR
(RH)

E-09

(3)

REMOTE CONTROLLED MIRROR
(LH)

E-10

(2)

FRONT DOOR SPEAKER (LH)

E-11

(11)

REMOTE CONTROLLED MIRROR
SWITCH

E-12

(8)

FRONT POWER WINDOW SUB
SWITCH

E-13

(2-GR)

FRONT POWER WINDOW
REGULATOR MOTOR (LH)

E-14

(3-B)

DOOR LOCK KEY CYLINDER
SWITCH

E-15

(6-B)

FRONT DOOR LOCK ACTUATOR
(LH)

E-16

(2-GR)

REAR POWER WINDOW
REGULATOR MOTOR (LH)

E-17

(8)

REAR POWER WINDOW SUB
SWITCH (LH)

E-18

(6-B)

REAR DOOR LOCK ACTUATOR (LH)
