INPUT SIGNAL PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-453

STEP 3. Check the front door lock actuator (RH).
Disconnect front door lock actuator (RH) connector E-05. Then
check continuity between the terminals.

Q: Is the front door lock actuator (RH) in good condition?

YES : Go to Step 4.
NO :  Replace the front door lock actuator (RH). If the

functions described in "CIRCUIT OPERATION" work
normally, the input signal from the front door lock
actuator (RH) should be normal.

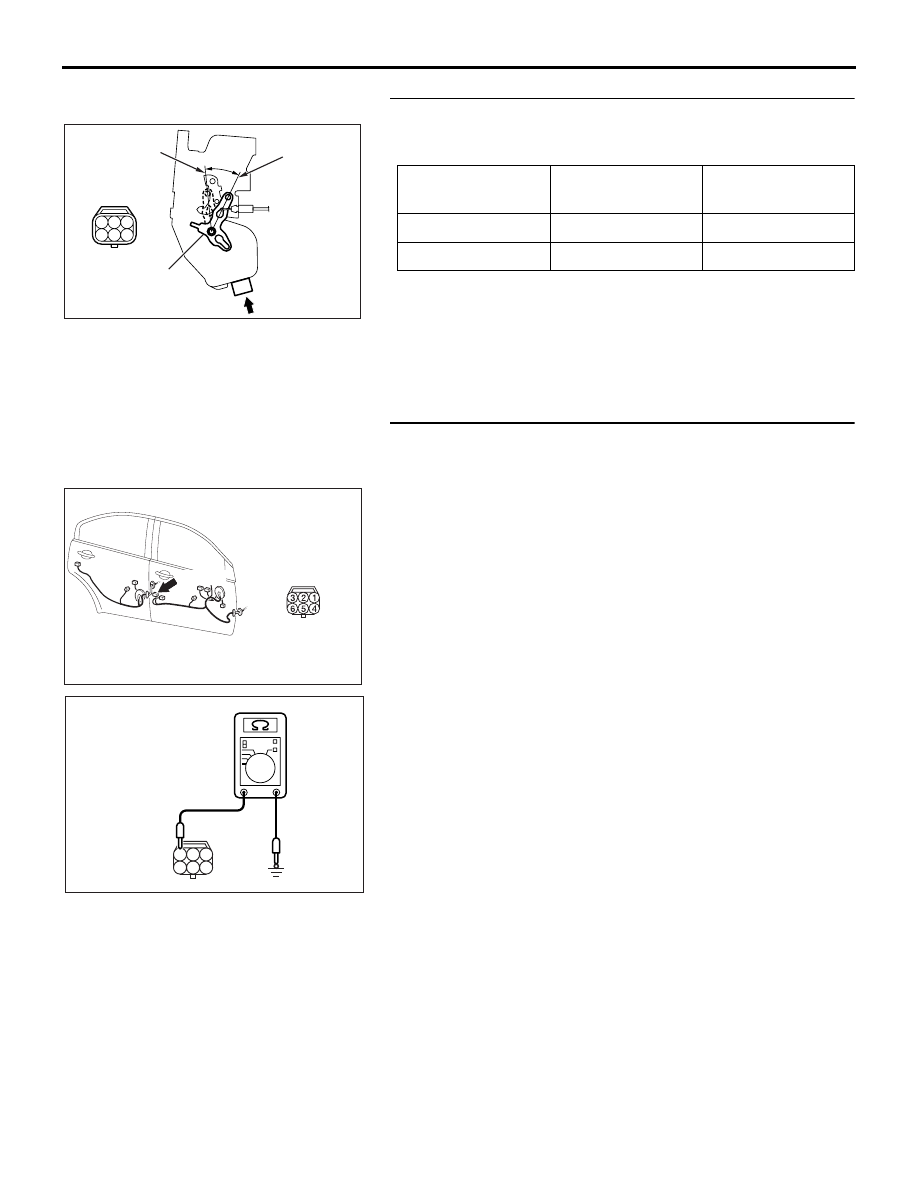

STEP 4. Check the ground circuit to the front door lock
actuator (RH). Measure the resistance at front door lock
actuator (RH) connector E-05.
(1) Disconnect front door lock actuator (RH) connector E-05

and measure the resistance available at the wiring harness
side of the connector.

(2) Measure the resistance value between terminal 3 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 6.
NO :  Go to Step 5.

LEVER POSITION TESTER

CONNECTION

SPECIFIED
CONDITION

UNLOCK

1

− 3

Less than 2 ohms

LOCK

1

− 3

Open circuit

1 2 3

4 5 6

AC210903 AB

VIEW A

A

LOCK

UNLOCK

LEVER

16DB308A

E-05 (B)

HARNESS SIDE

CONNECTOR: E-05

5

6

4

2

3

1

AC209830AD

CONNECTOR E-05
(HARNESS SIDE)

INPUT SIGNAL PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-454

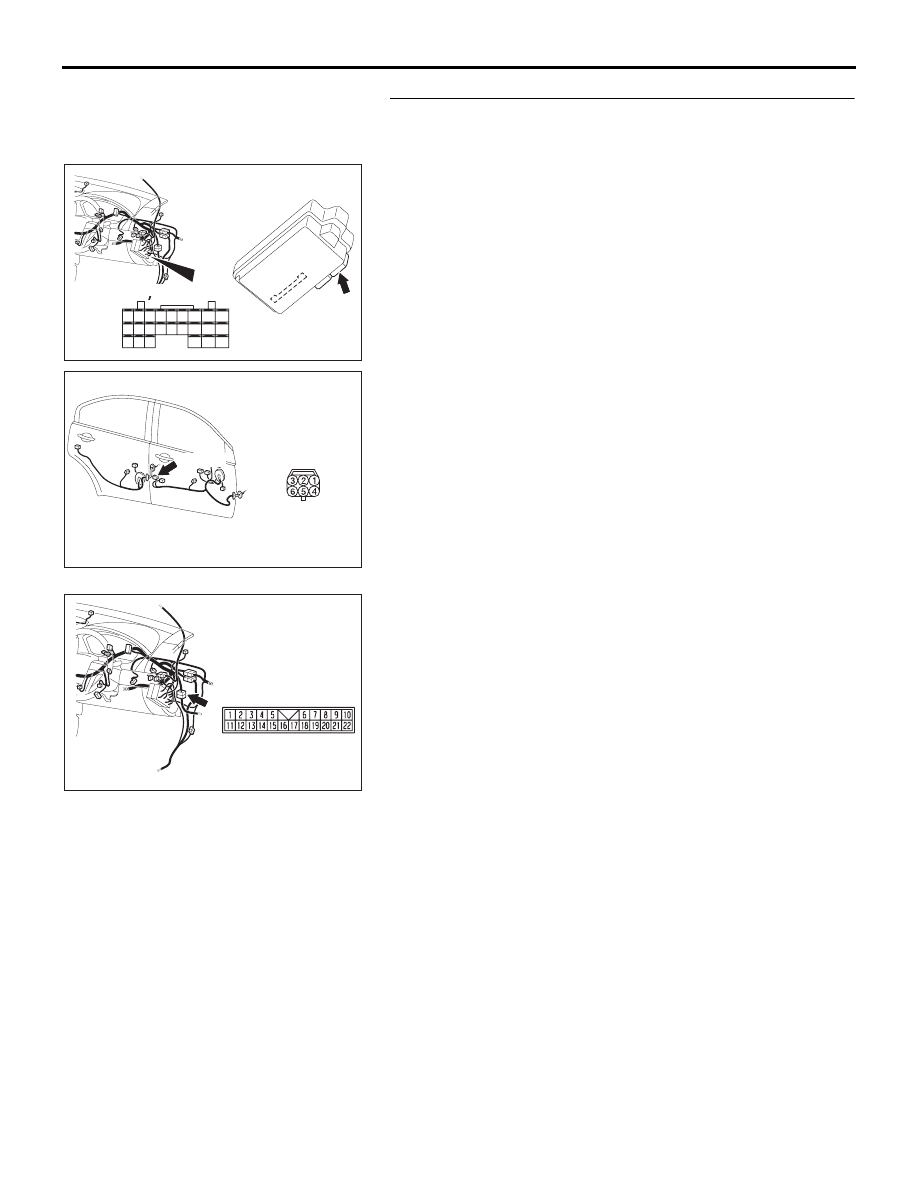

STEP 5. Check the wiring harness between front door lock
actuator (RH) connector E-05 (terminal 3) and ground.

NOTE: Also check intermediate connector C-12 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-12 is damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between front door lock actuator

(RH) connector E-05 (terminal 3) and ground in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the
functions described in "CIRCUIT OPERATION" work
normally, the input signal from the front door lock
actuator (RH) should be normal.

STEP 6. Check ETACS-ECU connector C-217 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-217 in good condition?

YES : Go to Step 7.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the functions described in "CIRCUIT

OPERATION" work normally, the input signal from the
front door lock actuator (RH) should be normal.

16DB308A

E-05 (B)

HARNESS SIDE

CONNECTOR: E-05

16DB310A

CONNECTOR: C-12

16DB307A

CONNECTOR: C-217

HARNESS SIDE

25

26

27

28

29

21

22

23

24

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

JUNCTION BLOCK

(REAR VIEW)

INPUT SIGNAL PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-455

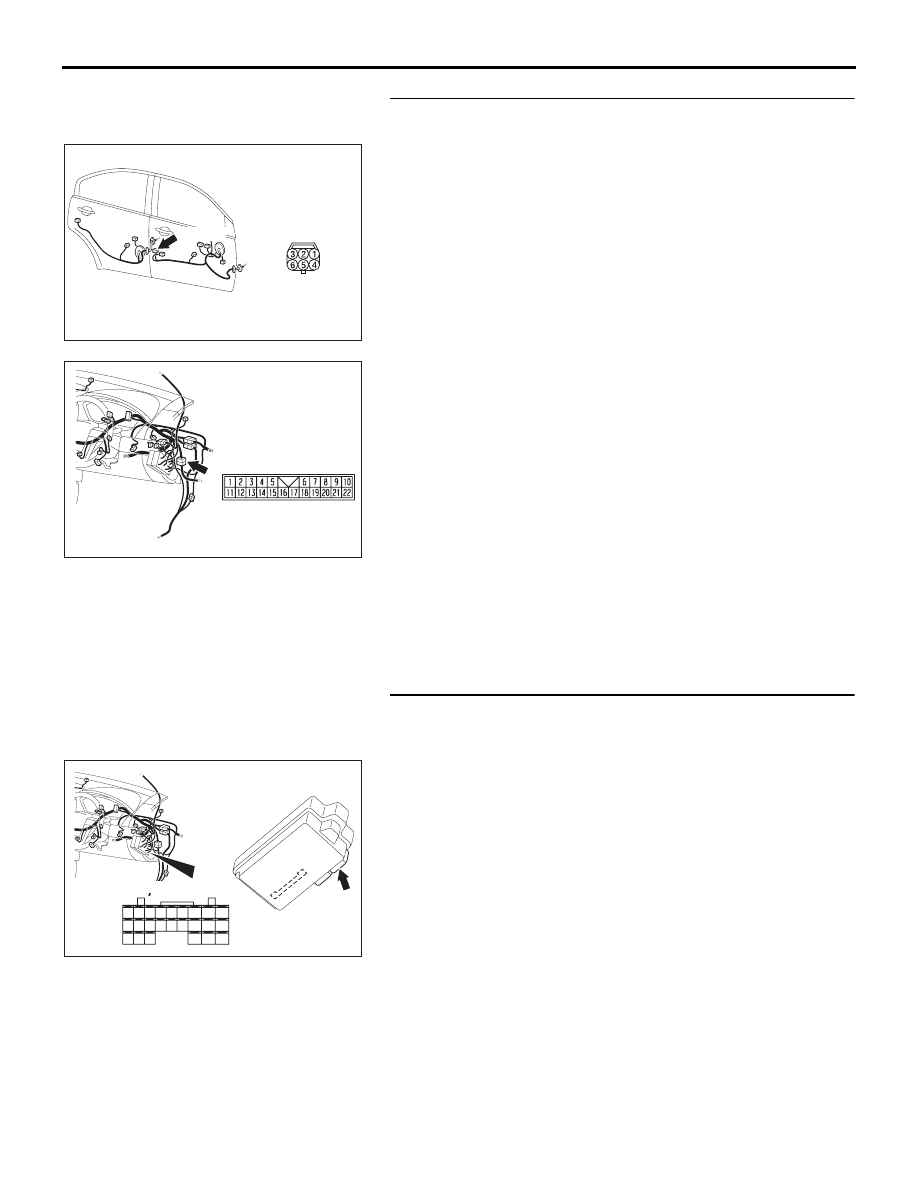

STEP 7. Check the wiring harness between front door lock
actuator (RH) connector E-05 (terminal 1) and ETACS-ECU
connector C-217 (terminal 36).

NOTE: Also check intermediate connector C-12 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-12 is damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection

P.00E-2

.

Q: Is the wiring harness between front door lock actuator

(RH) connector E-05 (terminal 1) and ETACS-ECU
connector C-217 (terminal 36) in good condition?
YES : Replace the ETACS-ECU. If the functions described

in "CIRCUIT OPERATION" work normally, the input
signal from the front door lock actuator (RH) should
be normal.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. If the
functions described in "CIRCUIT OPERATION" work
normally, the input signal from the front door lock
actuator (RH) should be normal.

16DB307A

CONNECTOR: C-217

HARNESS SIDE

25

26

27

28

29

21

22

23

24

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

JUNCTION BLOCK

(REAR VIEW)

16DB308A

E-05 (B)

HARNESS SIDE

CONNECTOR: E-05

16DB310A

CONNECTOR: C-12

INPUT SIGNAL PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-456

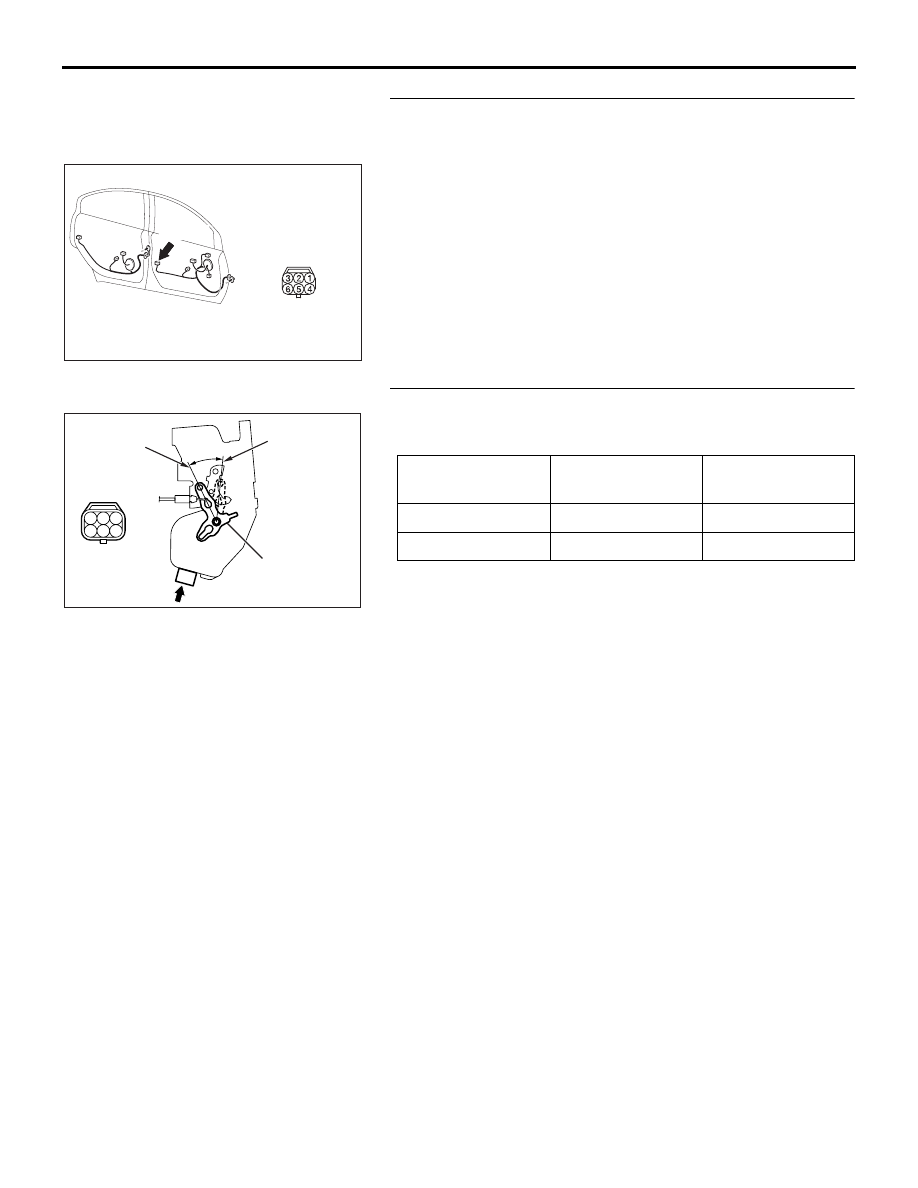

STEP 8. Check front door lock actuator (LH) connector
E-15 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is front door lock actuator (LH) connector E-15 in good

condition?
YES : Go to Step 9.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. If the functions described in "CIRCUIT

OPERATION" work normally, the input signal from the
front door lock actuator (LH) should be normal.

STEP 9. Check the front door lock actuator (LH).
Disconnect front door lock actuator (LH) connector E-15. Then
check continuity between the terminals.

Q: Is the front door lock actuator (LH) in good condition?

YES : Go to Step 10.
NO :  Replace the front door lock actuator (LH). If the

functions described in "CIRCUIT OPERATION" work
normally, the input signal from the front door lock
actuator (LH) should be normal.

16DB320A

CONNECTOR: E-15

E-15 (B)

HARNESS SIDE

LEVER POSITION TESTER

CONNECTION

SPECIFIED
CONDITION

UNLOCK

3

− 1

Less than 2 ohms

LOCK

3

− 1

Open circuit

AC210905

1 2 3

4 5 6

VIEW A

B

LOCK

LEVER

UNLOCK

AB
