Mitsubishi 380. Manual - part 101

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-401

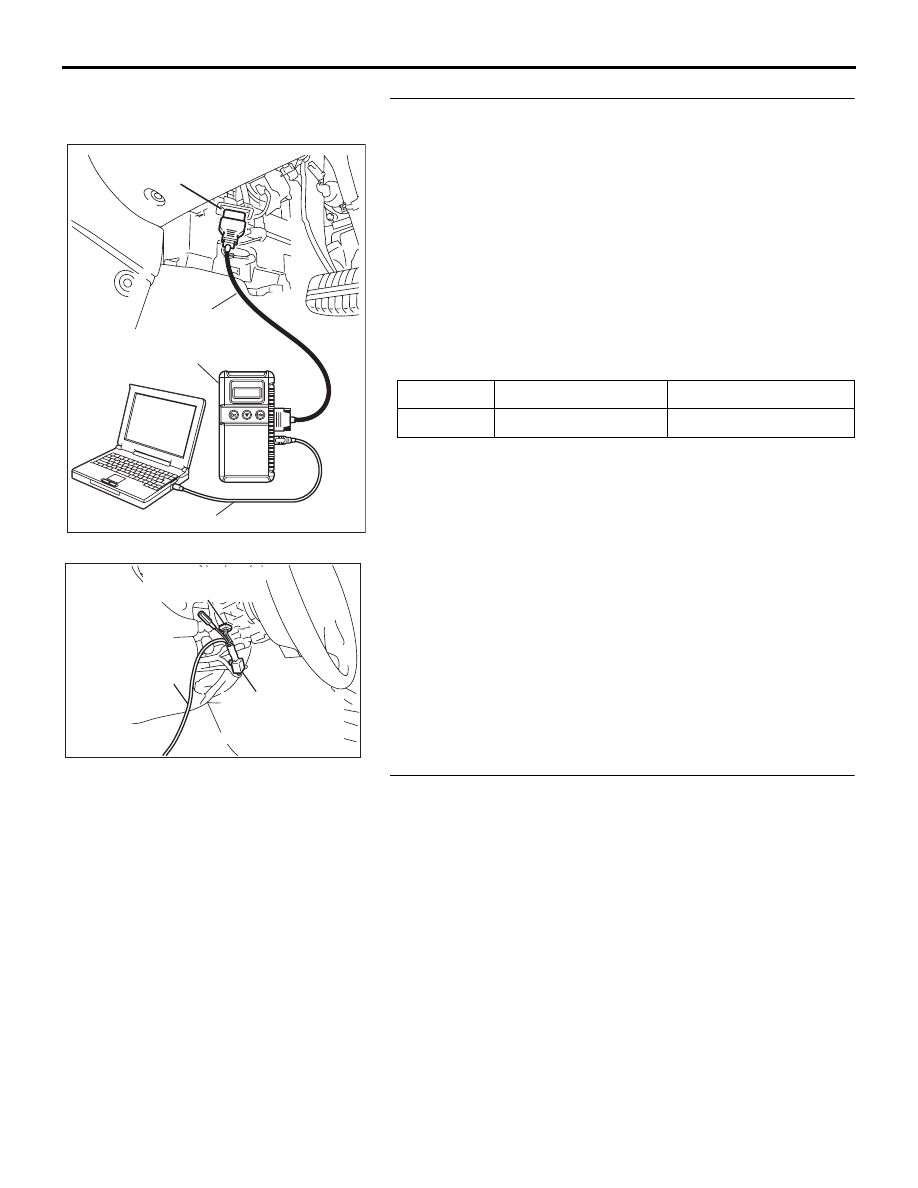

STEP 4. Check the input signal by using "DATA LIST"
menu of the SWS monitor.
Check the input signals from the following switches:

• Ignition switch: ON

(1) Operate diagnostic tool MB991958 according to the

procedure below to display "ETACS ECU."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "Data List."
f.

Select "ETACS ECU."

(2) Check that normal conditions are displayed for the items

described in the table below.

Q: Is the diagnostic tool MB991958 display the items "IG

SW (IG1)" normal condition?
YES : Go to Step 5.
NO :  Refer to Inspection Procedure M-2 "ETACS-ECU

does not receive any signal from the ignition switch
(IG1)

P.54B-408

."

STEP 5. Replace the combination meter.
(1) Replace the combination meter.
(2) Check that the seat belt warning lamp illuminates normally.

Q: Is the seat belt warning lamp in good condition?

YES : No action is necessary and testing is complete.
NO :  Replace the ETACS-ECU. Verify that the seat belt

warning lamp illuminates normally.

ITEM NO.

ITEM NAME

NORMAL CONDITION

ITEM 30

IG SW (IG1)

ON

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

AB

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-402

INSPECTION PROCEDURE L-1: Can not customise the functions by operating the multi center
display .

NOTE: This troubleshooting procedure requires the
use of diagnostic tool MB991958 and SWS monitor
kit MB991813. For details on how to use the SWS
monitor, refer to "How to connect SWS monitor

P.54B-13

."

.

CIRCUIT OPERATION

The ETACS-ECU enables/disables the functions and
changes their operation time, based on the informa-
tion sent from the multi center display

.

TECHNICAL DESCRIPTION (COMMENT)

If it is impossible to customise the functions by oper-
ating the multi center display , connector(s) or wiring
harness in the CAN bus lines, the ETACS-ECU or
the multi center display unit  may be defective.

.

TROUBLESHOOTING HINTS

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

• Trouble in input signal system

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• Malfunction of the multi center display

• The ETACS-ECU may be defective

.

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Diagnostic Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Test Probe Harness

ETACS-

ECU

MULTI CENTER

DISPLAY

(MIDDLE-GRADE TYPE)

CAN COMMUNICATION LINE

(CAN_L LINE)

CAN COMMUNICATION LINE

(CAN_H LINE)

Configuration Function

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-403

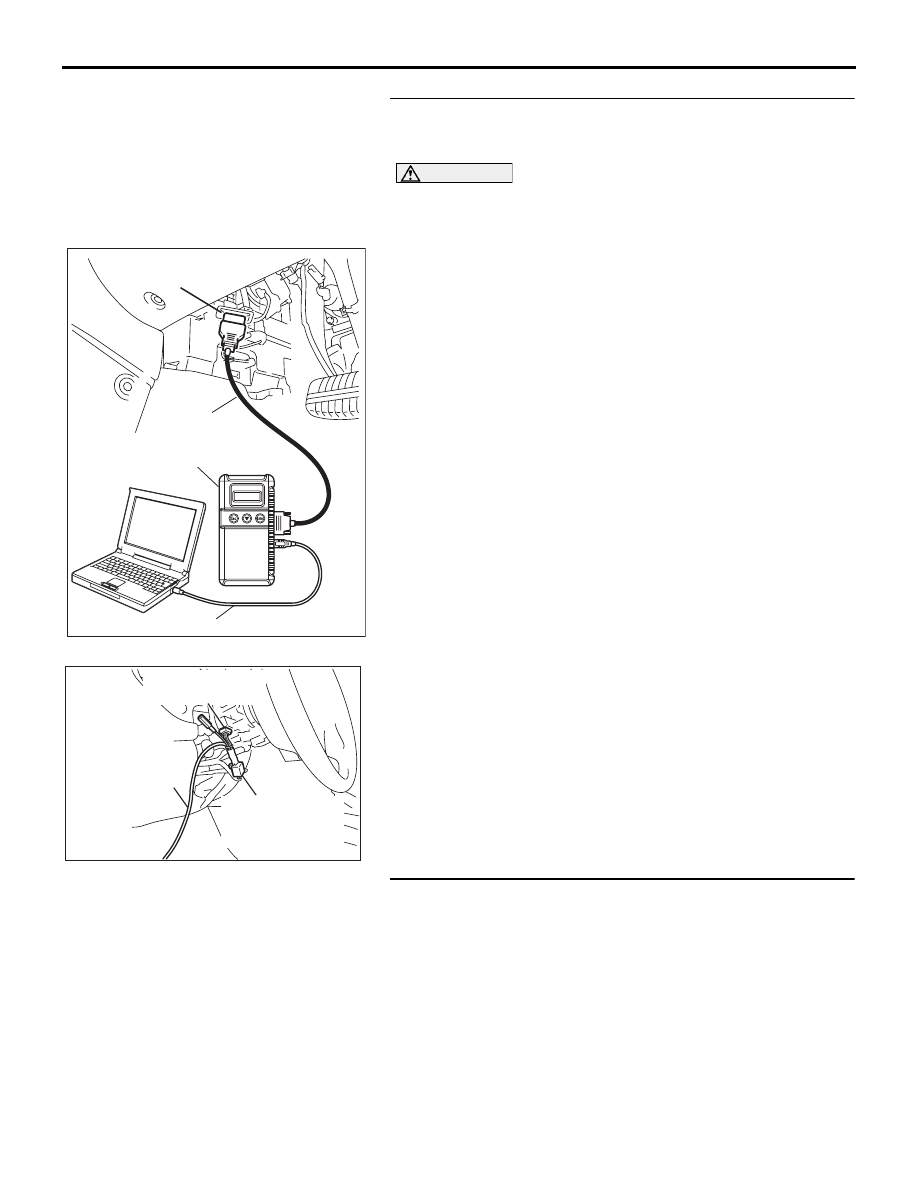

STEP 1. Using diagnostic tool MB991958, diagnose the
CAN bus line.

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958.
(1) Connect diagnostic tool MB991958.Refer to "How to

connect SWS monitor

P.54B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-15

).

STEP 2. Using diagnostic tool MB991958, read the multi
center display  diagnostic trouble code.
(1) Turn the ignition switch to the "ON" position.
(2) Check if the multi center display  sets a DTC.
(3) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Diagnose the multi center display  unit. Refer to

P.54A-254

.

NO :  Go to Step 3.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-404

STEP 3. Use diagnostic tool MB991958 to select "ECU
COMM Check" on the SWS monitor display.
Check the ETACS-ECU.

CAUTION

Connect special tool MB991910 before connecting special
tool MB991812. Be sure to connect special tool MB991806
after turning on special tool MB991824.
(1) Connect the SWS monitor. Refer to "How to connect SWS

monitor

P.54B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Operate diagnostic tool MB991958 according to the

procedure below to display "ECU COMM Check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "ECU COMM Check."

(4) Diagnostic tool MB991958 should show "OK" on the "ECU

COMM Check" menu for the "ETACS ECU" menu.

Q: Is "OK" displayed for the "ETACS ECU" menu?

YES : Go to Step 4.
NO :  Refer to Inspection Procedure A-3 "Communication

with the ETACS-ECU is not possible

P.54B-74

."

STEP 4. Replace the multi center display .
(1) Replace the multi center display .
(2) Check if it is possible to customise the functions by

operating the new multi center display .

Q: Is it possible to customise the functions by operating

the multi center display ?
YES : No action is necessary and testing is complete.
NO :  Replace the ETACS-ECU. Verify that it is possible to

customise the functions by operating the multi center
display .

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

AB
