SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-393

STEP 5. Check the input signal (by using the pulse check
mode of the monitor).
Check the following switches and input signals:

• Door switches

• Interior lamp loaded signal

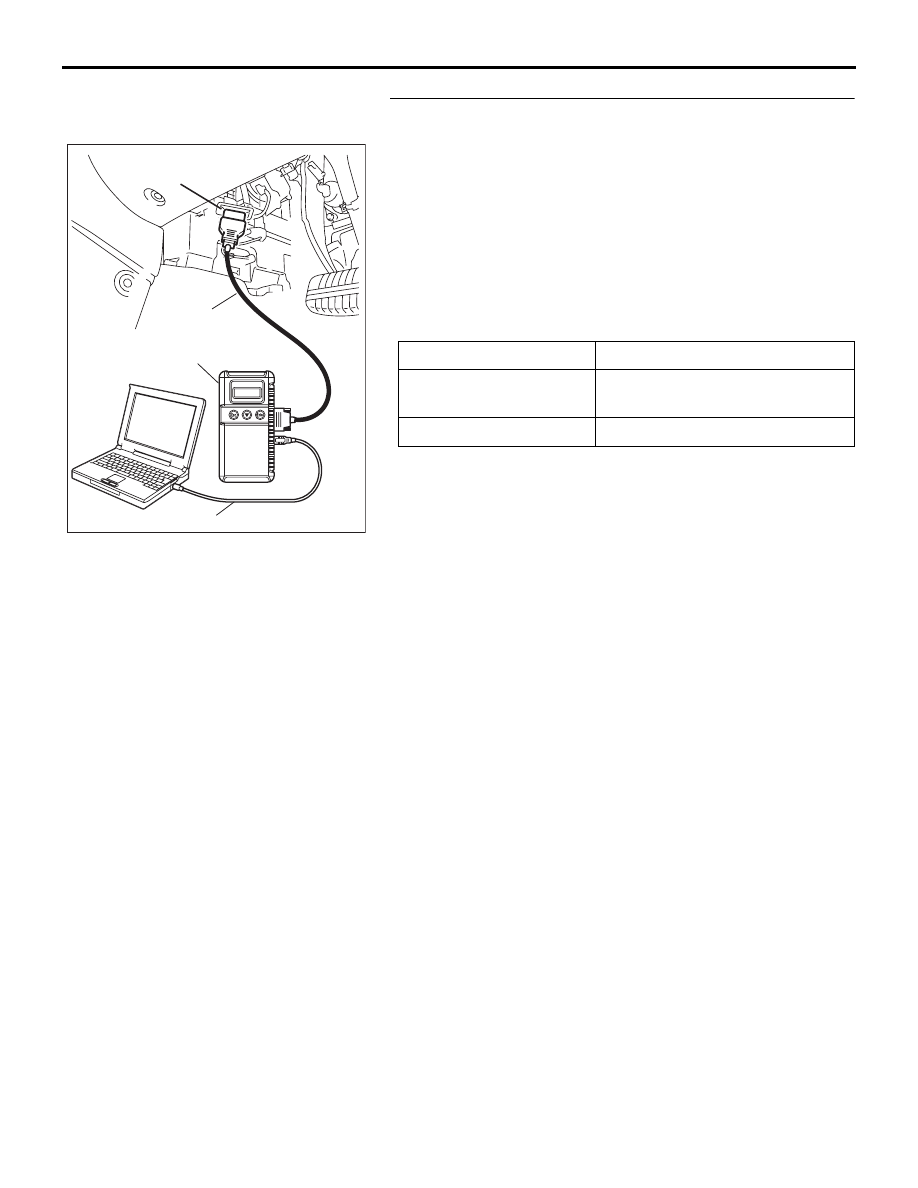

(1) Operate diagnostic tool MB991958 according to the

procedure below to display "Pulse check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "Pulse Checking."

(2) Check if diagnostic tool MB991958 sounds or not.

Q: When any door switch, interior lamp or the trunk lid

latch is operated, does diagnostic tool MB991958
sound?
Buzzer of diagnostic tool MB991958 sounds normally. :

Replace the ETACS-ECU. Verify that the dome lamp
illuminates normally.

When one of the doors is opened and closed,
diagnostic tool MB991958 does not sound :
Refer to

Inspection Procedure N-3 "ETACS-ECU does not
receive any signal from any of the door switches

P.54B-440

."

When one of the interior lamps is illuminated,
diagnostic tool MB991958 does not sound :
Refer to

Inspection Procedure N-9 "ETACS-ECU does not
receive any interior lamp loaded signal

P.54B-474

."

ITEM NAME

CONDITION

interior lamp loaded
signal

Turn on one of the interior lamps

door switch

Open or close one of the doors

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-394

INSPECTION PROCEDURE K-6: Interior Light: The door ajar indicator lamps do not illuminate or go
out normally

NOTE: This troubleshooting procedure requires the
use of diagnostic tool MB991958 and SWS monitor
kit MB991813. For details on how to use the SWS
monitor, refer to "How to connect SWS monitor

P.54B-13

."

.

CIRCUIT OPERATION

The combination meter receives the door switches
signals from the ETACS-ECU, and then controls the
door ajar indicator, based on these signals.

.

TECHNICAL DESCRIPTION (COMMENT)

If the door ajar indicator does not illuminate, connec-
tor(s), wiring harness in the CAN bus lines, the door
switches, the ETACS-ECU, or the combination meter
may be defective.

.

TROUBLESHOOTING HINTS

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

• Trouble in input signal system

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The combination meter may be defective

• The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Diagnostic Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Test Probe Harness

ALL DOOR

SWITCHES

INPUT SIGNAL

ETACS-

ECU

COMBINATION

METER

CAN COMMUNICATION LINE

(CAN_L LINE)

CAN COMMUNICATION LINE

(CAN_H LINE)

Door Ajar Indicator Light Circuit

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-395

STEP 1. Using diagnostic tool MB991958, diagnose the
CAN bus line.

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958.
(1) Connect diagnostic tool MB991958.Refer to "How to

connect SWS monitor

P.54B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-15

).

STEP 2. Using diagnostic tool MB991958, read the
combination meter diagnostic trouble code.
(1) Check whether the combination meter-related DTC is set.
(2) Turn the ignition switch to the "ON" position.
(3) Check whether the combination meter-related DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Diagnose the combination meter. Refer to

P.54A-48

.

NO :  Go to Step 3.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-396

STEP 3. Use diagnostic tool MB991958 to select "ECU
COMM Check" on the SWS monitor display.
Check the ETACS-ECU.

CAUTION

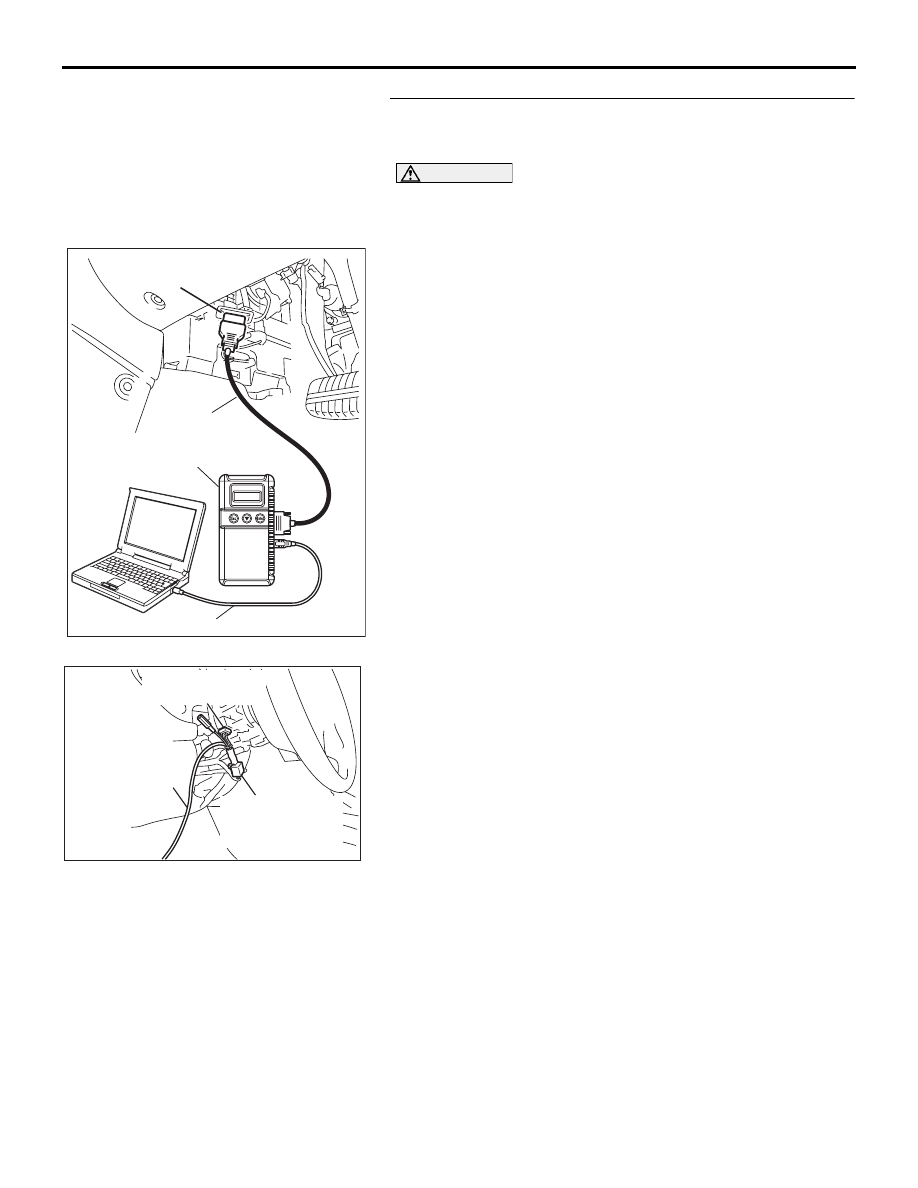

Connect special tool MB991910 before connecting special
tool MB991812. Be sure to connect special tool MB991806
after turning on special tool MB991824.
(1) Connect the SWS monitor. Refer to "How to connect SWS

monitor

P.54B-13

."

(2) Turn the ignition switch to the "LOCK" (OFF) position.
(3) Operate diagnostic tool MB991958 according to the

procedure below to display "ECU COMM Check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "ECU COMM Check."

(4) Diagnostic tool MB991958 should show "OK" on the "ECU

COMM Check" menu for the "ETACS ECU" menu.

Q: Is "OK" displayed for the "ETACS ECU" menu?

YES : Go to Step 4.
NO :  Refer to Inspection Procedure A-3 "Communication

with the ETACS-ECU is not possible

P.54B-74

."

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

AB
