SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-329

NOTE: Also check junction block connector C-214 for loose,
corroded, or damaged terminals, or terminals pushed back in
the connector. If junction block connector C-214 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between side turn-signal lamp

(RH) connector A-35 (terminal 1) and ETACS-ECU
connector C-219 (terminal 9) in good condition?
YES :
Replace the side turn-signal lamp socket (RH). Verify

that the turn-signal lamps illuminate normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the turn-signal lamps illuminate normally.

STEP 26. Check rear combination lamp (LH) connector
F-09 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is rear combination lamp (LH) connector F-09 in good

condition?
YES :
Go to Step 27.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the turn-signal lamps illuminate

normally.

STEP 27. Check the rear turn-signal lamp bulb (LH).
(1) Remove the rear turn-signal (LH) lamp bulb.
(2) Verify that the rear turn-signal lamp bulb (LH) is not

damaged or burned out.

Q: Is the rear turn-signal (LH) lamp bulb in good condition?

YES : Go to Step 28.
NO :  Replace the rear turn-signal (LH) lamp bulb. Verify

that the turn-signal lamps illuminate normally.

54DB057A

CONNECTOR: C-214

HARNESS SIDE

10

1

6

14

5

12

13

4

11

7

2

3

8

9

AC305260

HARNESS SIDE

CONNECTOR: F-09

AK

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-330

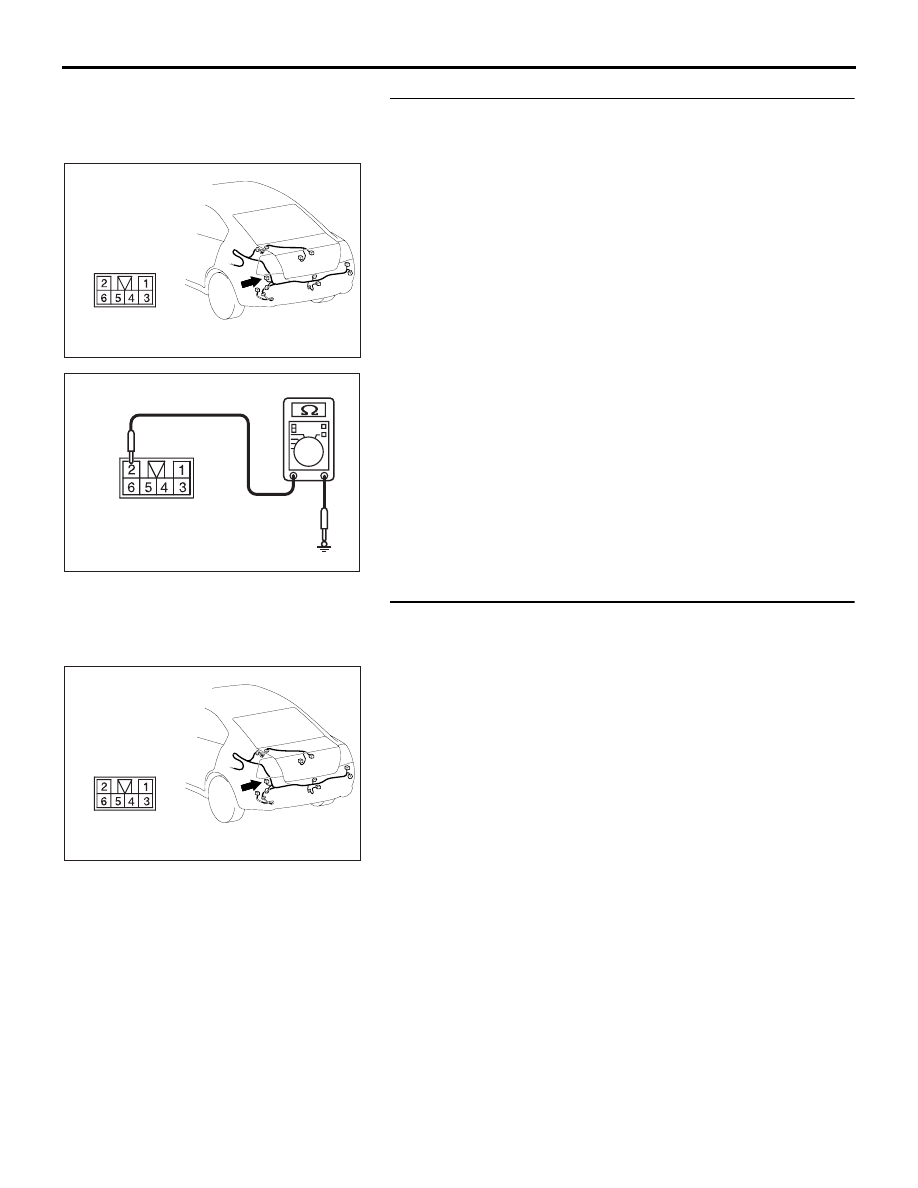

STEP 28. Check the ground circuit to the rear combination
lamp (LH). Measure the resistance at rear combination
lamp (LH) connector F-09.
(1) Disconnect rear combination lamp (LH) connector F-09 and

measure the resistance available at the wiring harness side
of the connector.

(2) Measure the resistance value between terminal 2 and

ground.

• The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 30.
NO :  Go to Step 29.

STEP 29. Check the wiring harness between rear
combination lamp (LH) connector F-09 (terminal 2) and
ground.
Q: Is the wiring harness between rear combination lamp

(LH) connector F-09 (terminal 2) and ground in good
condition?
YES :
Replace the rear combination lamp socket assembly

(LH). Verify that the turn-signal lamps illuminate
normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the turn-signal lamps illuminate normally.

AC305260

HARNESS SIDE

CONNECTOR: F-09

AK

AC209364HF

CONNECTOR F-09
(HARNESS SIDE)

AC305260

HARNESS SIDE

CONNECTOR: F-09

AK

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-331

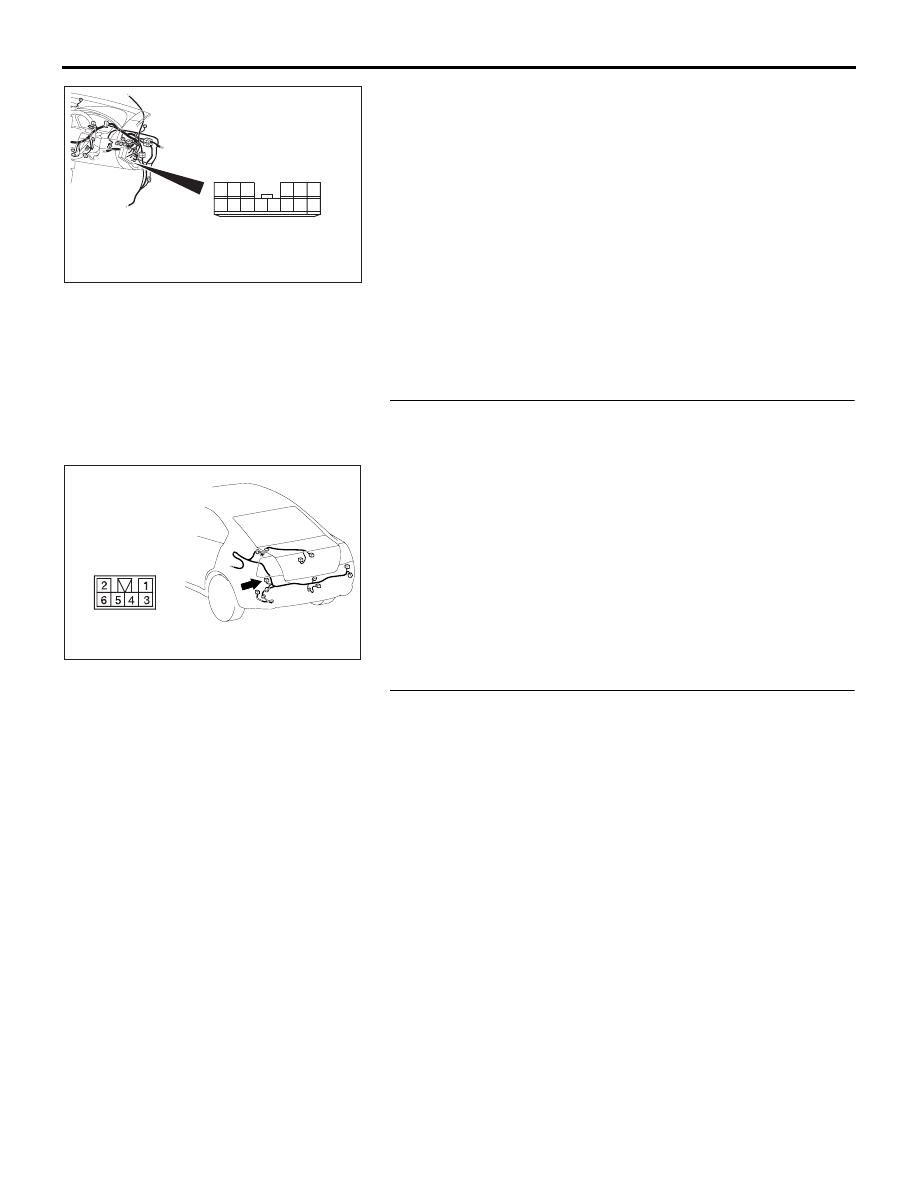

STEP 30. Check ETACS-ECU connector C-219 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is ETACS-ECU connector C-219 in good condition?

YES : Go to Step 31.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the turn-signal lamps illuminate

normally.

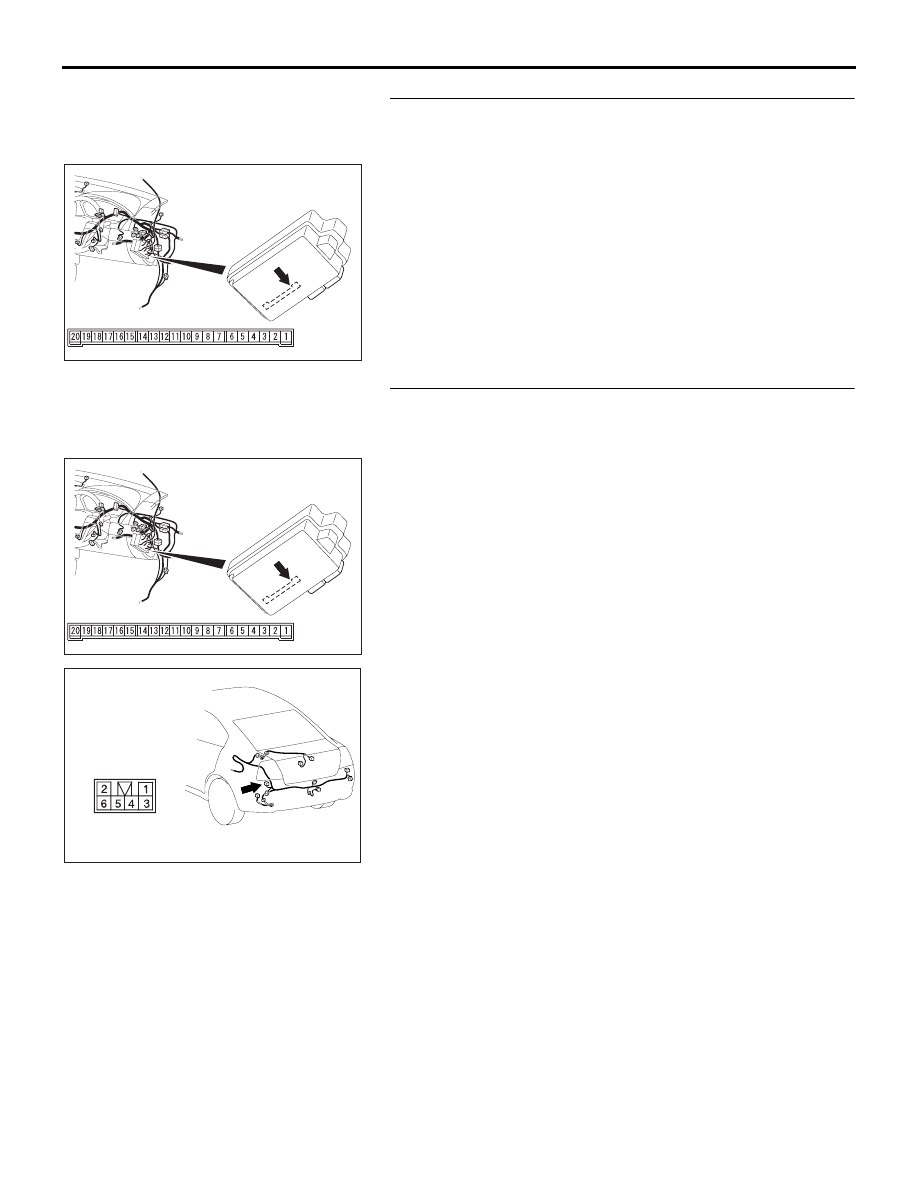

STEP 31. Check the wiring harness between rear
combination lamp (LH) connector F-09 (terminal 5) and
ETACS-ECU connector C-219 (terminal 14).

54DB014A

CONNECTOR: C-219

JUNCTION BLOCK SIDE

JUNCTION BLOCK

(REAR VIEW)

54DB014A

CONNECTOR: C-219

JUNCTION BLOCK SIDE

JUNCTION BLOCK

(REAR VIEW)

AC305260

HARNESS SIDE

CONNECTOR: F-09

AK

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-332

NOTE: Also check junction block connector C-204 for loose,
corroded, or damaged terminals, or terminals pushed back in
the connector. If junction block connector C-204 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between rear combination lamp

(LH) connector F-09 (terminal 5) and ETACS-ECU
connector C-219 (terminal 14) in good condition?
YES :
Replace the rear combination lamp socket assembly

(LH). Verify that the turn-signal lamps illuminate
normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the turn-signal lamps illuminate normally.

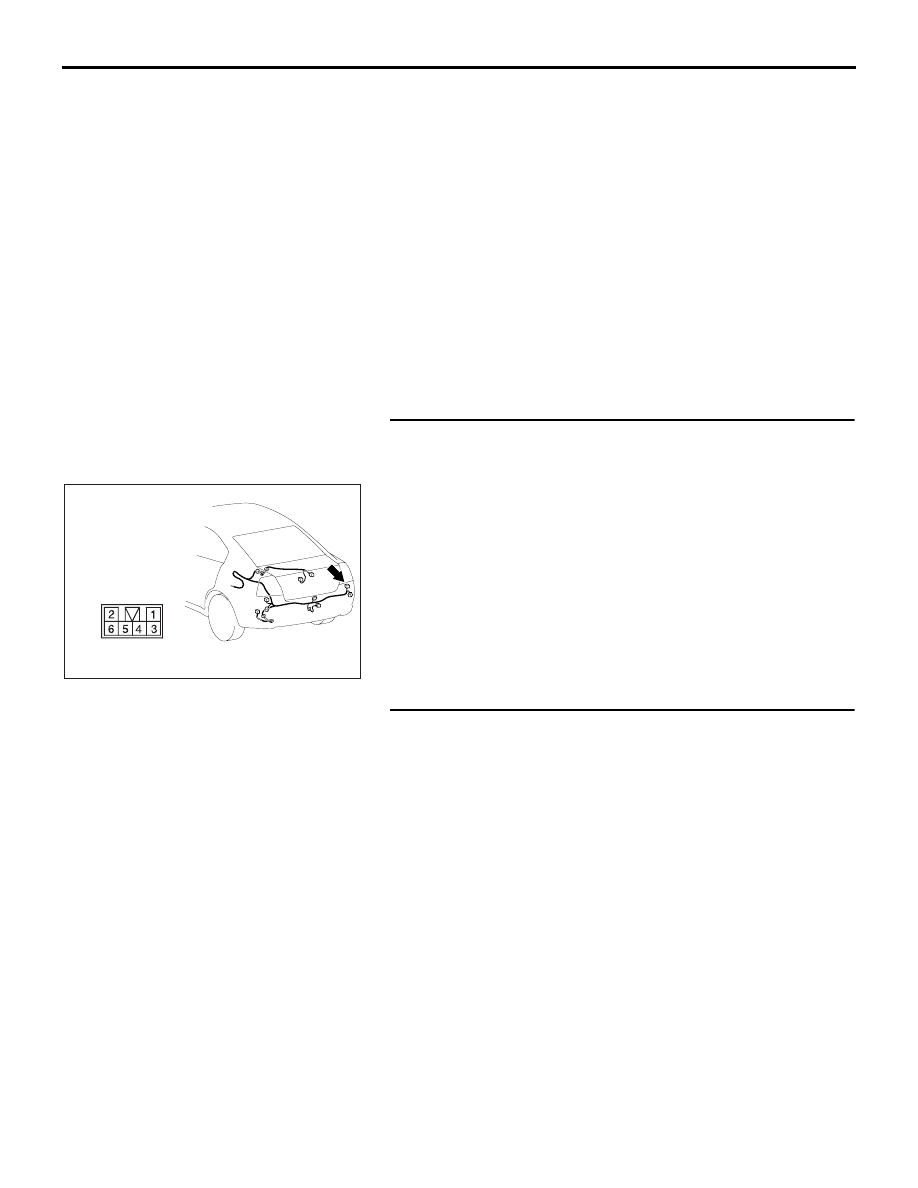

STEP 32. Check rear combination lamp (RH) connector
F-03 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is rear combination lamp (RH) connector F-03 in good

condition?
YES :
Go to Step 33.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the turn-signal lamps illuminate

normally.

STEP 33. Check the rear turn-signal lamp bulb (RH).
(1) Remove the rear turn-signal (RH) lamp bulb.
(2) Verify that the rear turn-signal lamp bulb (RH) is not

damaged or burned out.

Q: Is the rear turn-signal (RH) lamp bulb in good

condition?
YES :
Go to Step 34.
NO :  Replace the rear turn-signal (RH) lamp bulb. Verify

that the turn-signal lamps illuminate normally.

AC305260

AH

CONNECTOR: F-03

HARNESS SIDE
