SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-237

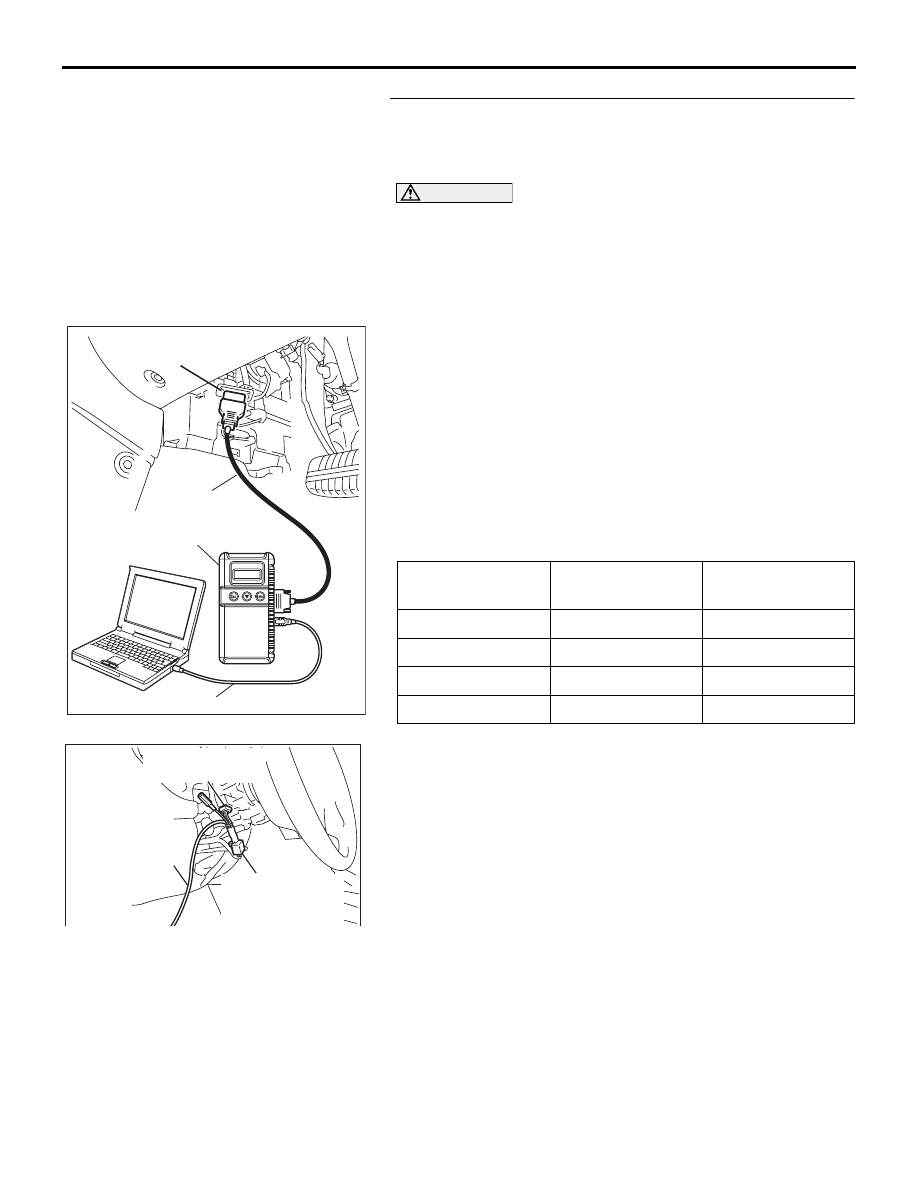

STEP 1. Check the input signal by using "DATA LIST"
menu of the SWS monitor.
Turn the ignition switch to the ACC position before checking
input signals from the windshield wiper switch.

CAUTION

To prevent damage to Diagnostic Tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting Diagnostic Tool
MB991958. Connect special tool MB991910 before con-
necting special tool MB991812. Be sure to connect special
tool MB991806 after turning on special tool MB991824.
(1) Connect the special tool. Refer to "How to connect SWS

monitor

P.54B-13

."

(2) Operate Diagnostic Tool MB991958 according to the

procedure below to display "COLUMN ECU."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "Data List."
f.

Select "COLUMN ECU."

(3) Check that normal conditions are displayed for the items

described in the table below.

Q: Are normal conditions displayed for "INT WIPER SW",

"LO WIPER SW", "HI WIPER SW" and "MIST WIPER
SW"?
YES : Go to Step 2.
NO :  Refer to Inspection Procedure M-6 "ETACS-ECU

does not receive any signal from the windshield mist
wiper switch

P.54B-423

."

ITEM NO.

ITEM NAME

NORMAL
CONDITION

ITEM 05

INT WIPER SW

ON

ITEM 06

LO WIPER SW

ON

ITEM 07

HI WIPER SW

ON

ITEM 08

MIST WIPER SW

ON

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-238

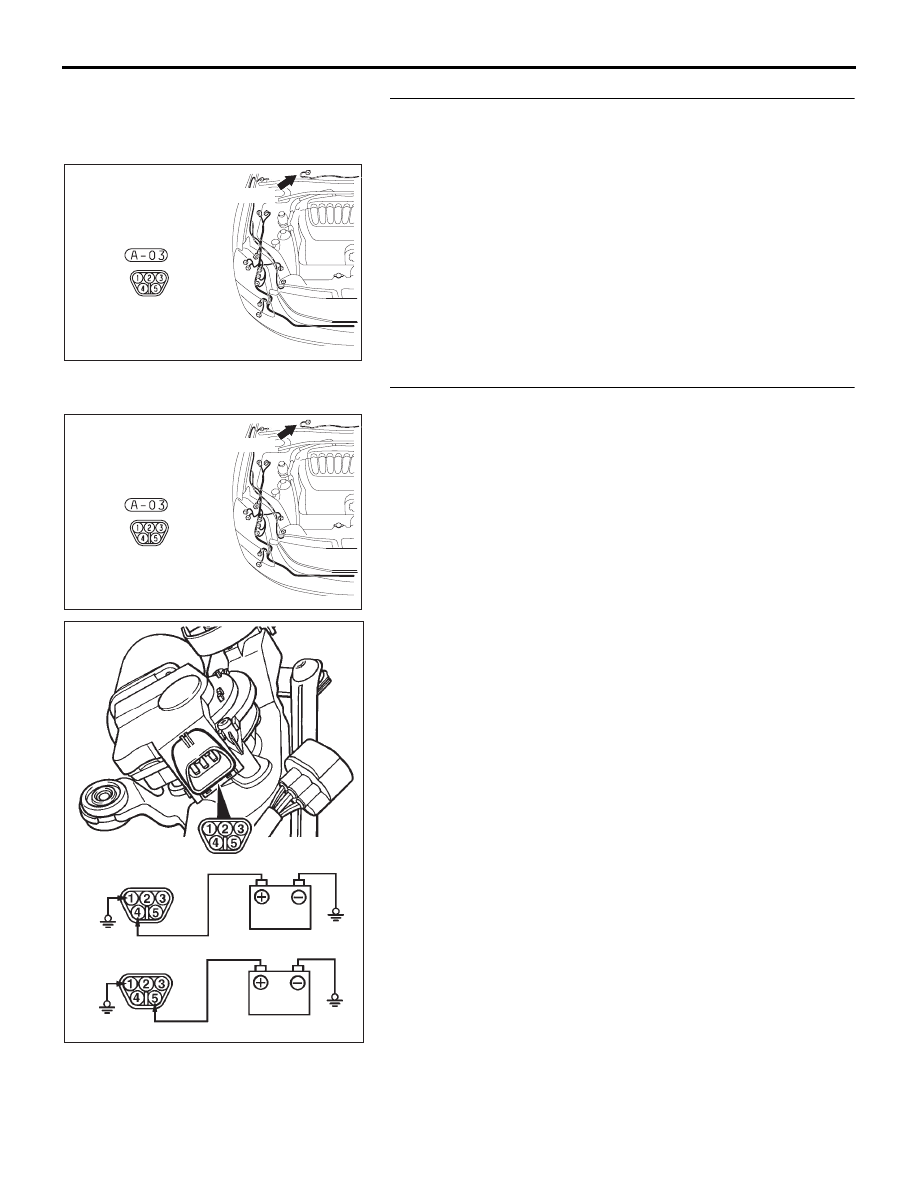

STEP 2. Check windshield wiper motor connector A-03 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is windshield wiper motor connector A-03 in good

condition?
YES : Go to Step 3.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the windshield wiper operates

normally when the windshield wiper switch is moved
to each position.

STEP 3. Check the windshield wiper motor.
(1) Disconnect windshield wiper motor connector A-03.

(2) Connect a battery to the windshield wiper motor as shown.

Then check the windshield wiper motor operates normally
at high and low speeds.

Q: Does the windshield wiper motor operate normally?

YES : Go to Step 4.
NO :  Replace the windshield wiper motor. Verify that the

windshield wiper operates normally when the
windshield wiper switch is moved to each position.

16DB425A

A-03 (B)

CONNECTOR: A-03

16DB425A

A-03 (B)

CONNECTOR: A-03

16DB426A

HIGH SPEED

LOW SPEED

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-239

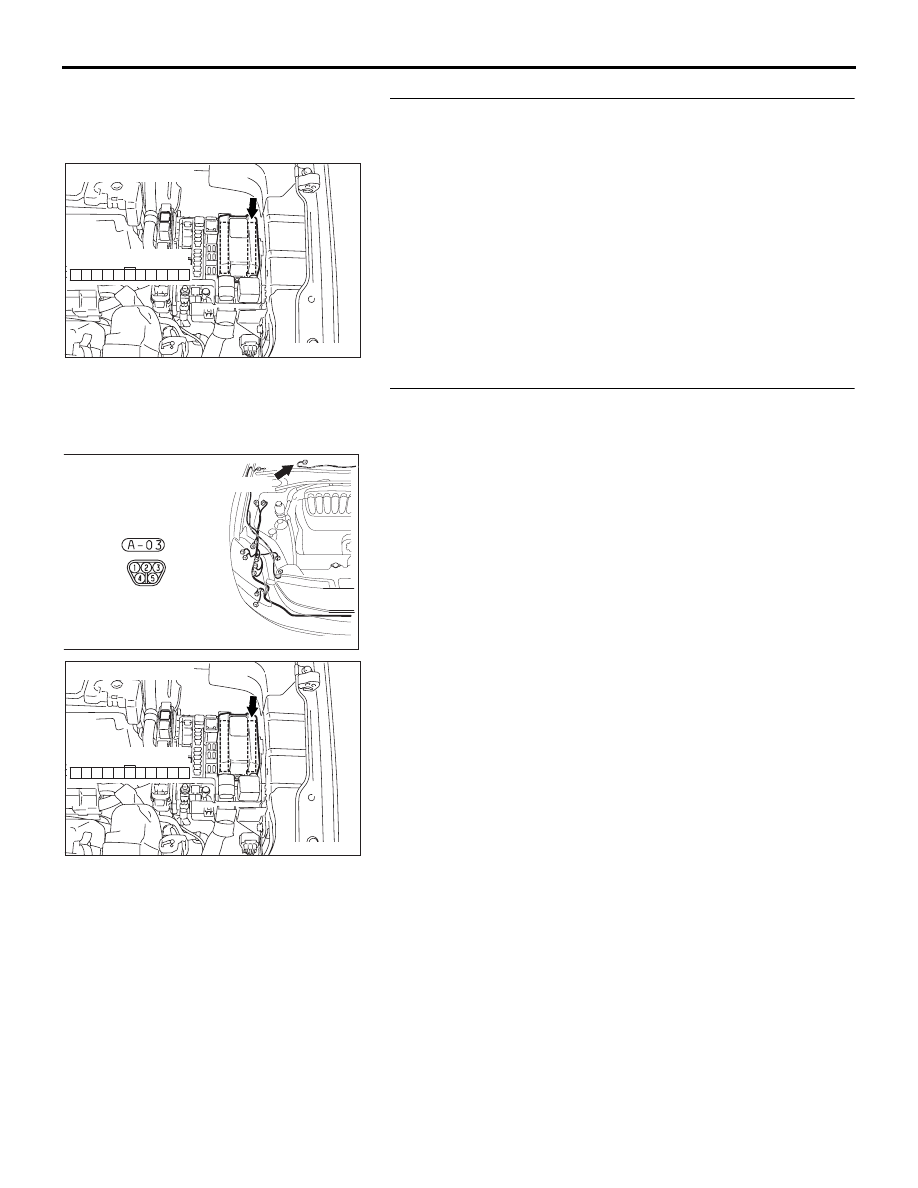

STEP 4. Check front-ECU connector A-12X for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Is front-ECU connector A-12X in good condition?

YES : Go to Step 5.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Verify that the windshield wiper operates

normally when the windshield wiper switch is moved
to each position.

STEP 5. Check the wiring harness between windshield
wiper motor connector A-03 (terminals 5 and 4) and
front-ECU connector A-12X (terminals 25 and 24).
Q: Is the wiring harness between windshield wiper motor

connector A-03 (terminals 5 and 4) and front-ECU
connector A-12X (terminals 25 and 24) in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Verify that
the windshield wiper operates normally when the
windshield wiper switch is moved to each position.

AC305977

CONNCTOR: A-12X

AI

21

22

23

24

25

26

27

28

29

30

31

RELAY BOX SIDE

16DB425A

A-03 (B)

CONNECTOR: A-03

AC305977

CONNCTOR: A-12X

AI

21

22

23

24

25

26

27

28

29

30

31

RELAY BOX SIDE

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-240

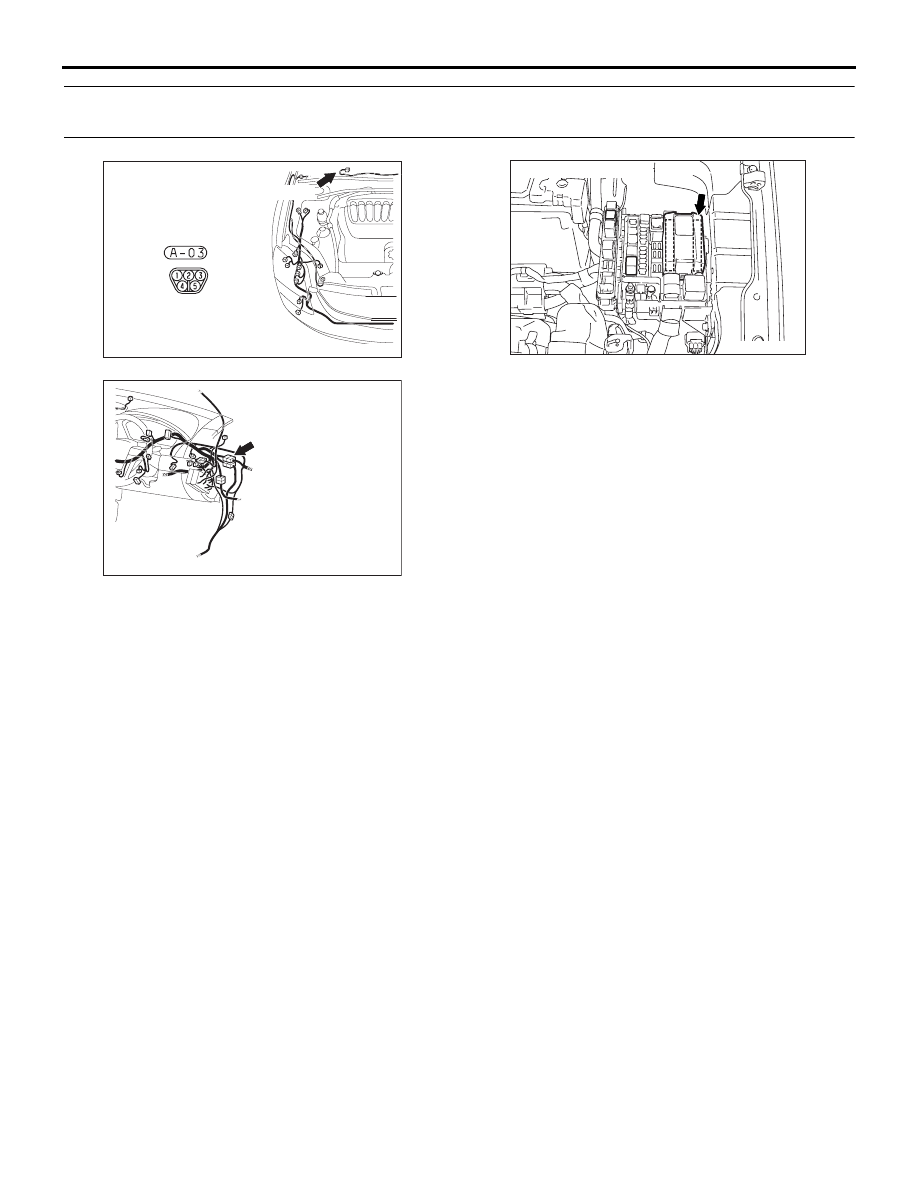

INSPECTION PROCEDURE G-4: Windshield Wiper and Washer: Windshield wipers does not stop at
the predetermined park position.

.

16DB425A

A-03 (B)

CONNECTOR: A-03

AC305977

CONNECTOR: A-12X

AF

16DB353A

CONNECTOR: C-29
