SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-225

Washer control

When the ignition switch is in the ACC or ON posi-
tion, and the windshield washer switch is turned ON,
the front-ECU turns ON the windshield washer relay.
The windshield wiper drive signal is turned ON after
0.15 seconds until 2 seconds after the windshield

washer switch goes OFF to operate the windshield
wiper continuously. When the windshield washer
switch is turned ON, if the windshield wiper is operat-
ing intermittently, intermittent operations will be con-
tinued after continuous operations.

NOTE: The wiper drive signal output time varies
according to the conditions. Refer to the following
table for details.

AC306460AB

ON

OFF

ON

OFF

ON

OFF

ON

WINDSHIELD WASHER
SWITCH

WINDSHIELD WASHER
RELAY

WINDSHIELD WIPER
AUTO-STOP SIGNAL

WINDSHIELD WIPER
DRIVE SIGNAL

OFF

WHEN WINDSHIELD WIPER
SWITCH IS OFF

WHEN WINDSHIELD INTERMITTENT
WIPER IS OPERATING

T: WIPER OPERATING TIME AFTER WINDSHIELD WASHER SWITCH IS OFF

TI

TI

TI

T

T

t1

t1

t2

t2

t2: WINDSHIELD WASHER OPERATING TIME

t1: 0.15 SECONDS

TI: INTERMITTENT TIME

WHEN WIPER SWITCH IS OFF WHEN WIPER SWITCH IS SET

TO INT

WHEN WIPER SWITCH IS SET
TO LO OR HI

t2

0.15
second or
less

0.15 - 0.8
second

0.8
second or
more

0.15
second or
less

0.15 - 0.8
second

0.8
second or
more

0.15
second or
less

0.15 - 0.8
second

0.8
second or
more

T

0 second

1.2
seconds

2 seconds 0 second

1.2
seconds

2 seconds 0 second

1.2
seconds

2 seconds

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-226

INSPECTION PROCEDURE G-1: Windshield Wiper and Washer: The windshield wiper do not work at
all.

NOTE: This troubleshooting procedure requires use
of Diagnostic Tool MB991958 and SWS monitor kit
MB991813. For details on how to use the SWS mon-
itor, refer to "How to connect SWS monitor

P.54B-13

."

.

CIRCUIT OPERATION

• The windshield wiper and washer switch sends a

signal through the column-ECU (incorporated in
the column switch) to the front-ECU. If the col-
umn-ECU sends a windshield wiper and washer
switch "ON" signal to the front-ECU, the
front-ECU turns on the relay (incorporated in the
front-ECU), thus causing the windshield wiper
and washer motor to be turned on.

• If the SWS communication line is defective, the

front-ECU operates windshield wiper motor by
using the other communication lines (wiper
backup circuit) instead of that line. In this case,
the windshield wiper works at low speed regard-
less of the windshield wiper and washer switch
positions ("LO" or "HIGH").

.

TECHNICAL DESCRIPTION (COMMENT)

If the windshield wiper does not work at all, the wind-
shield wiper motor, column switch (windshield wiper
and washer switch) or the front-ECU may be defec-
tive.

.

TROUBLESHOOTING HINTS

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

• Trouble in input signal system

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• The wiper motor may be defective

• The column switch may be defective

• The front-ECU may be defective

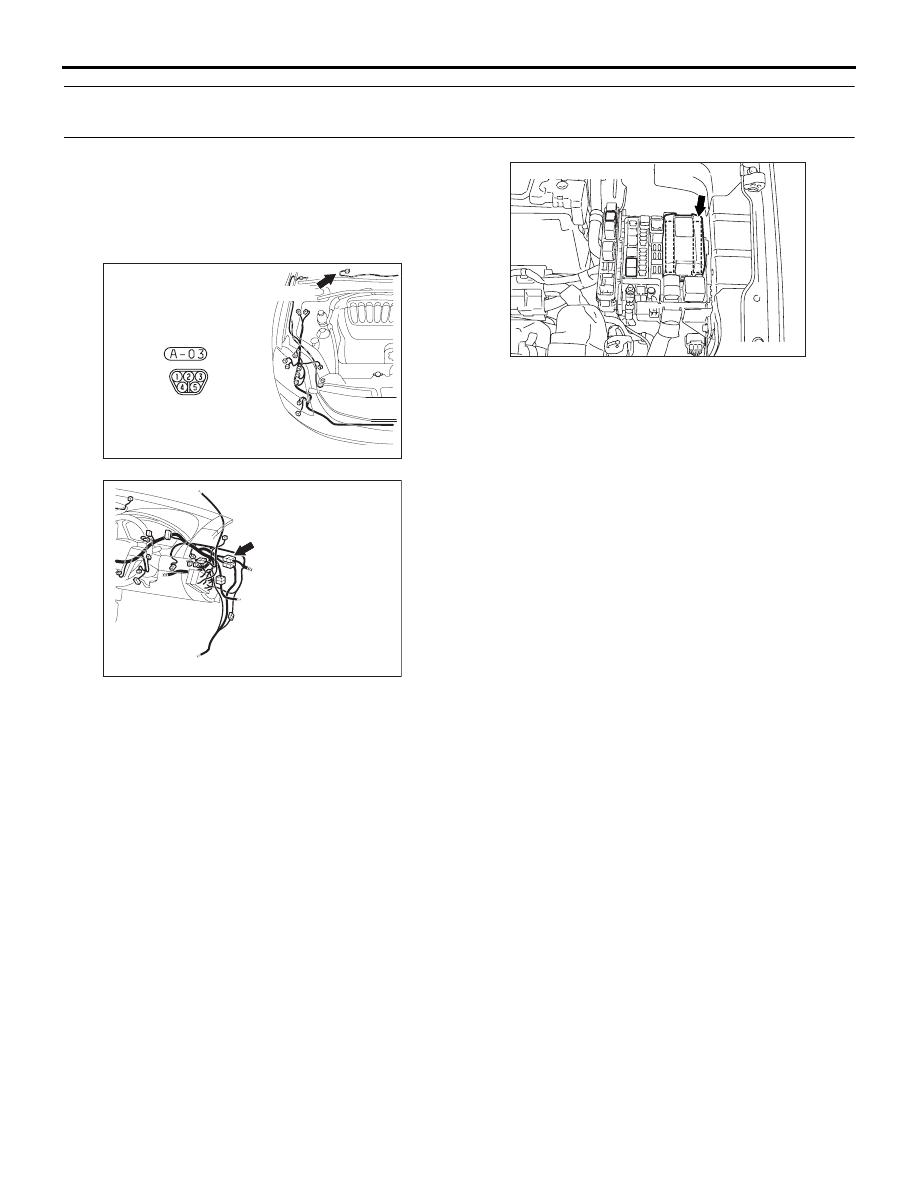

16DB425A

A-03 (B)

CONNECTOR: A-03

AC305977

CONNECTOR: A-12X

AF

16DB353A

CONNECTOR: C-29

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-227

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: Diagnostic Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991813: SWS Monitor Kit

• MB991806: SWS Monitor Cartridge

• MB991812: SWS Monitor Harness (For Column-ECU)

• MB991822: Test Probe Harness

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-228

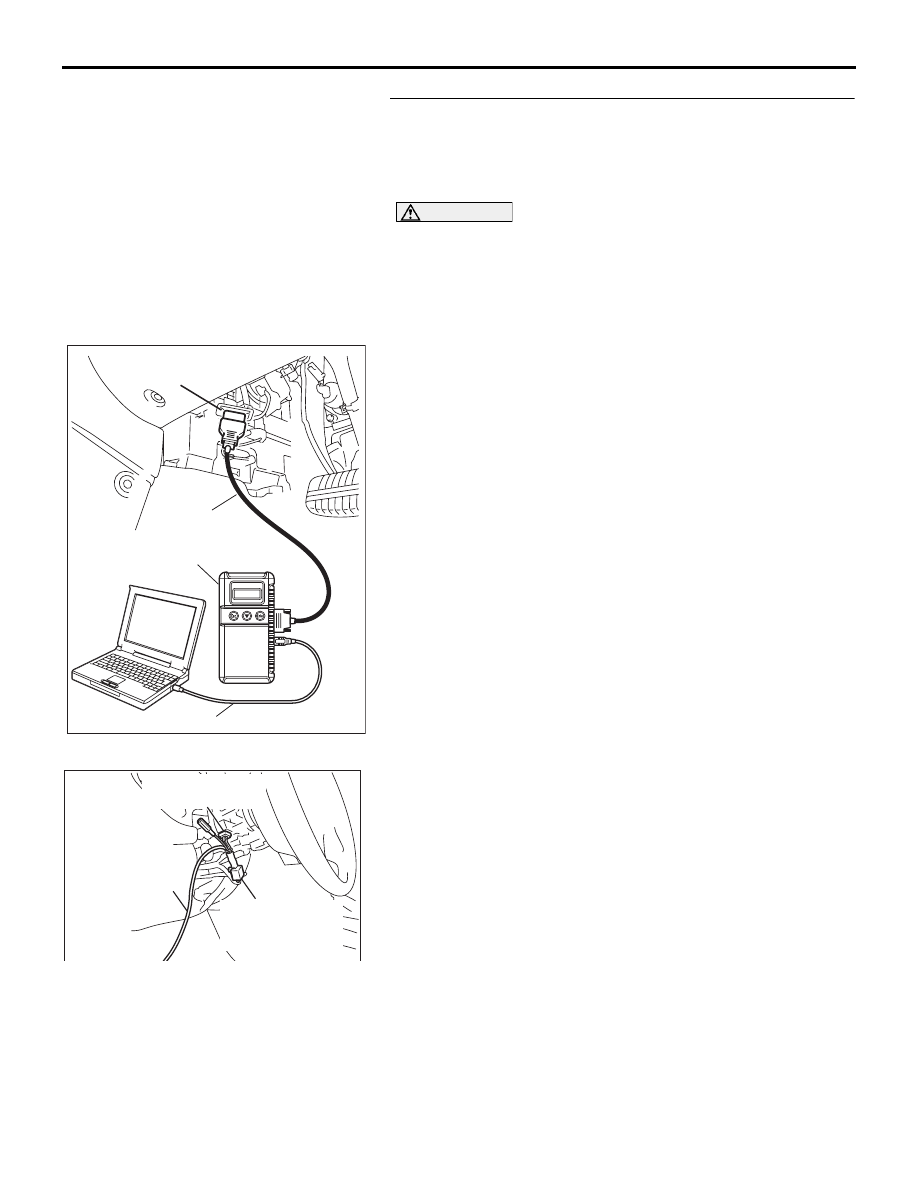

STEP 1. Use Diagnostic Tool MB991958 to select "ECU
COMM Check" on the SWS monitor display.
Check the following ECUs:

• Column-ECU

• Front-ECU

CAUTION

To prevent damage to Diagnostic Tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting Diagnostic Tool
MB991958. Connect special tool MB991910 before con-
necting special tool MB991812. Be sure to connect special
tool MB991806 after turning on special tool MB991824.
(1) Connect the special tool. Refer to "How to connect SWS

monitor

P.54B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Operate Diagnostic Tool MB991958 according to the

procedure below to display "ECU COMM Check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "SWS MONITOR."
e. Select "ECU COMM Check."

(4) Diagnostic Tool MB991958 should show "OK" on the "ECU

COMM Check" menus for both the "COLUMN ECU" and
the "FRONT ECU" menus.

Q: Is "OK" displayed for the "COLUMN ECU" and "FRONT

ECU" menu?
"OK" is displayed for all the items :
Go to Step 2.
"NG" is displayed for the "COLUMN ECU" menu : Refer

to Inspection Procedure A-2 "Communication with the
column switch (column-ECU) is not possible

P.54B-68

."

"NG" is displayed for the "FRONT ECU" menu : Refer to

Inspection procedure A-4 "Communication with the
front-ECU is not possible

P.54B-80

."

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC302210

COLUMN SWITCH
CONNECTOR

COLUMN SWITCH
CONNECTOR AT
HARNESS SIDE

MB991812

AB
