SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-209

SUNROOF

GENERAL DESCRIPTION CONCERNING THE SUNROOF

M1549021200223

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

The following ECU affects the functions and control
of the sunroof.

Sunroof timer function

The ETACS-ECU enables opening and closing of the sunroof
for 30 seconds after the ignition is switched off.
During this timed operation, if the driver's door or passenger’s
door is opened, the sunroof timer function is deactivated from
that moment.

FUNCTION

CONTROL ECU

Sunroof timer function

ETACS-ECU, sunroof motor assembly

AC106227

ON

OFF

Possible

Impossible

ON

(Open)
OFF

(Closed)

Ignition

switch

Sunroof

operation

Door

Switch

AC

30 s

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-210

INSPECTION PROCEDURE F-1: Sunroof: Sunroof does not operate.

.

CIRCUIT OPERATION

• The sunroof motor assembly is energized

through fusible link (5) by the battery.

• When the ignition switch (IG2) signal is on, the

sunroof motor assembly is ready to operate.

.

TROUBLESHOOTING HINTS

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

• The sunroof switch may be defective

• The sunroof motor assembly may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

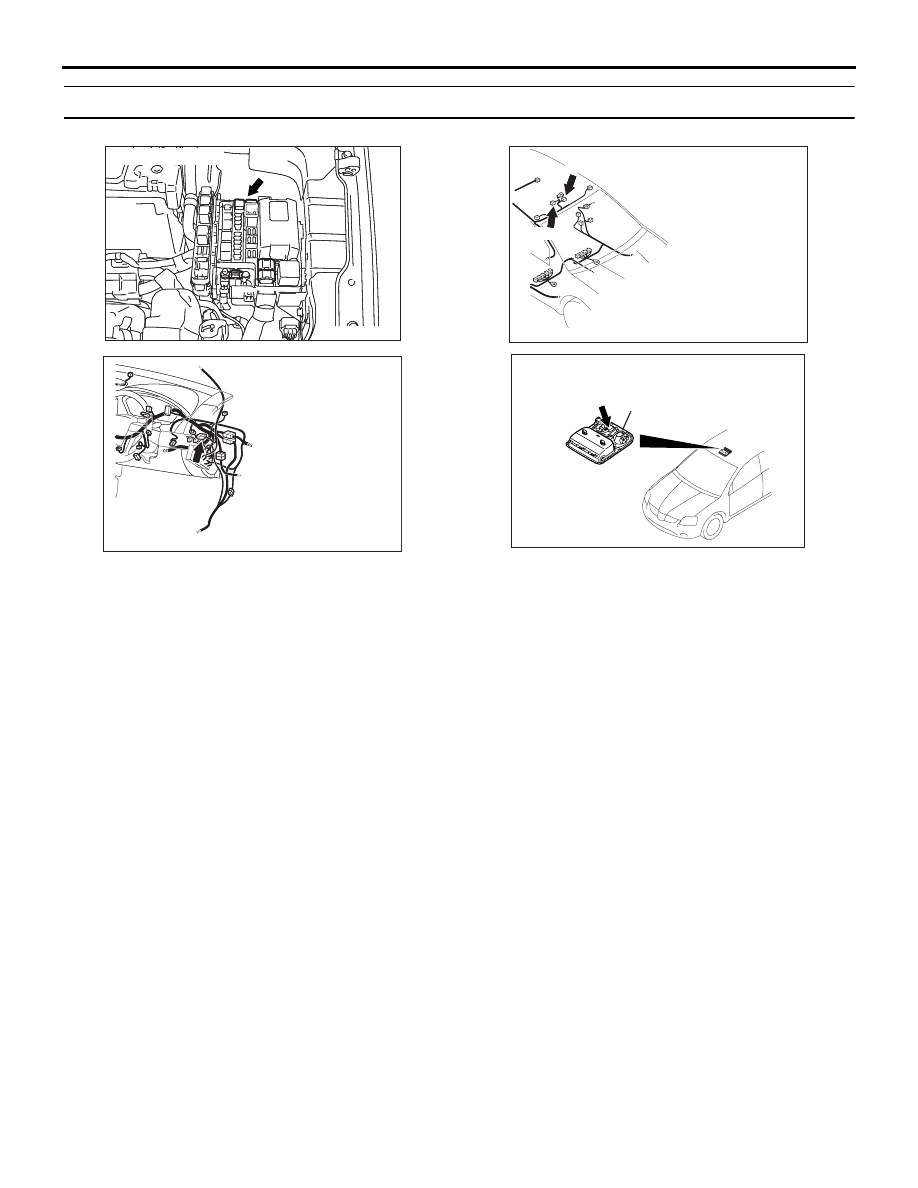

AC305015

AC305015AF

FUSIBLE LINK (5)

16DB357A

CONNECTORS: C-27

16DB358A

CONNECTORS: D-03, D-04

D-04

D-03

AC307976

OVERHEAD CONSOLE
ASSEMBLY

CONNECTOR: D-03-1

AC

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-211

DIAGNOSIS

Required Special Tool:

• MB991223: Test Harness Set

STEP 1. Check sunroof motor assembly connector D-04
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Is sunroof motor assembly connector D-04 in good

condition?
YES : Go to Step 2.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the sunroof works normally.

STEP 2. Check the fusible link (5) line of power supply
circuit to the sunroof motor assembly. Measure the voltage
at sunroof motor assembly connector D-04.
(1) Disconnect sunroof motor assembly connector D-04 and

measure the voltage available at the wiring harness side of
the connector.

(2) Measure the voltage between terminal 1 and ground.

• The voltage should measure approximately 12 volts

(battery positive voltage).

Q: Is the measured voltage approximately 12 volts (battery

positive voltage)?
YES : Go to Step 4.
NO :  Go to Step 3.

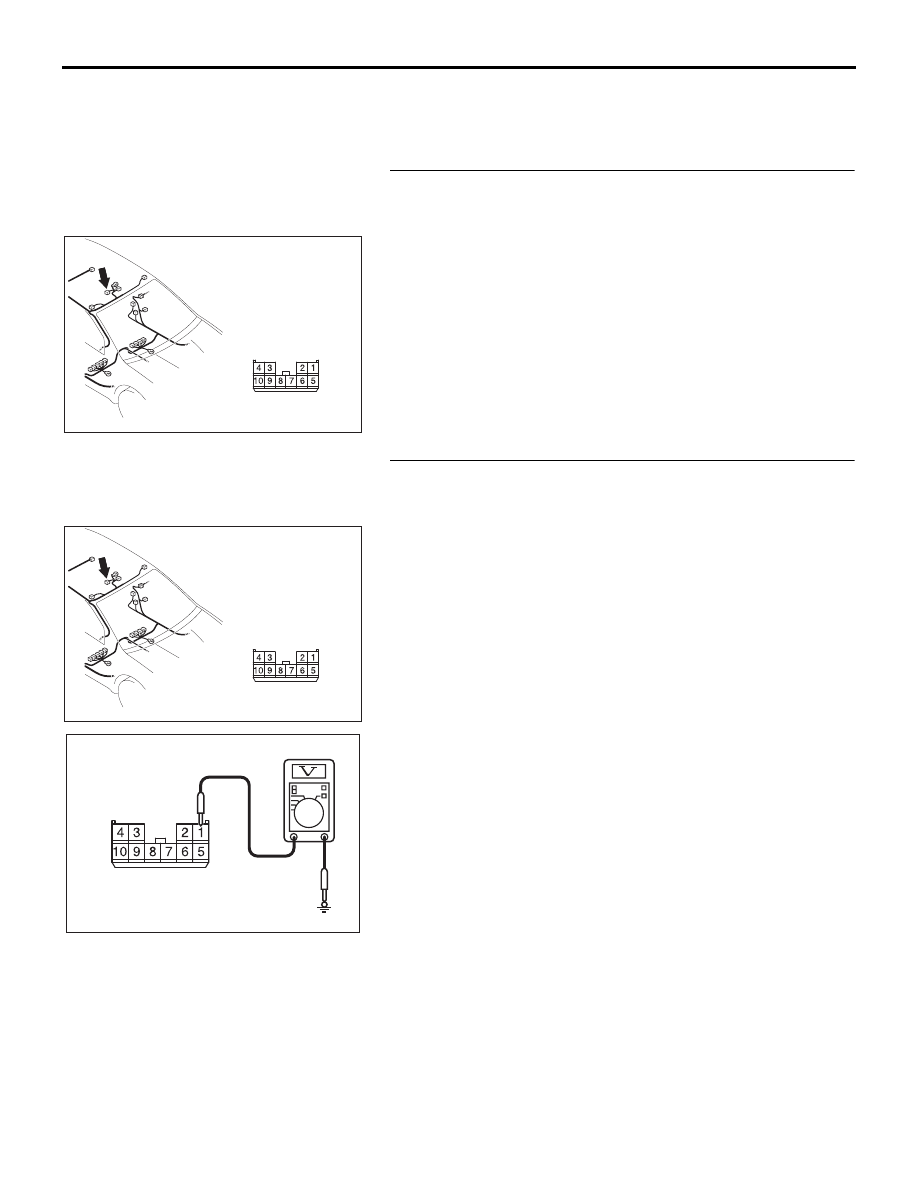

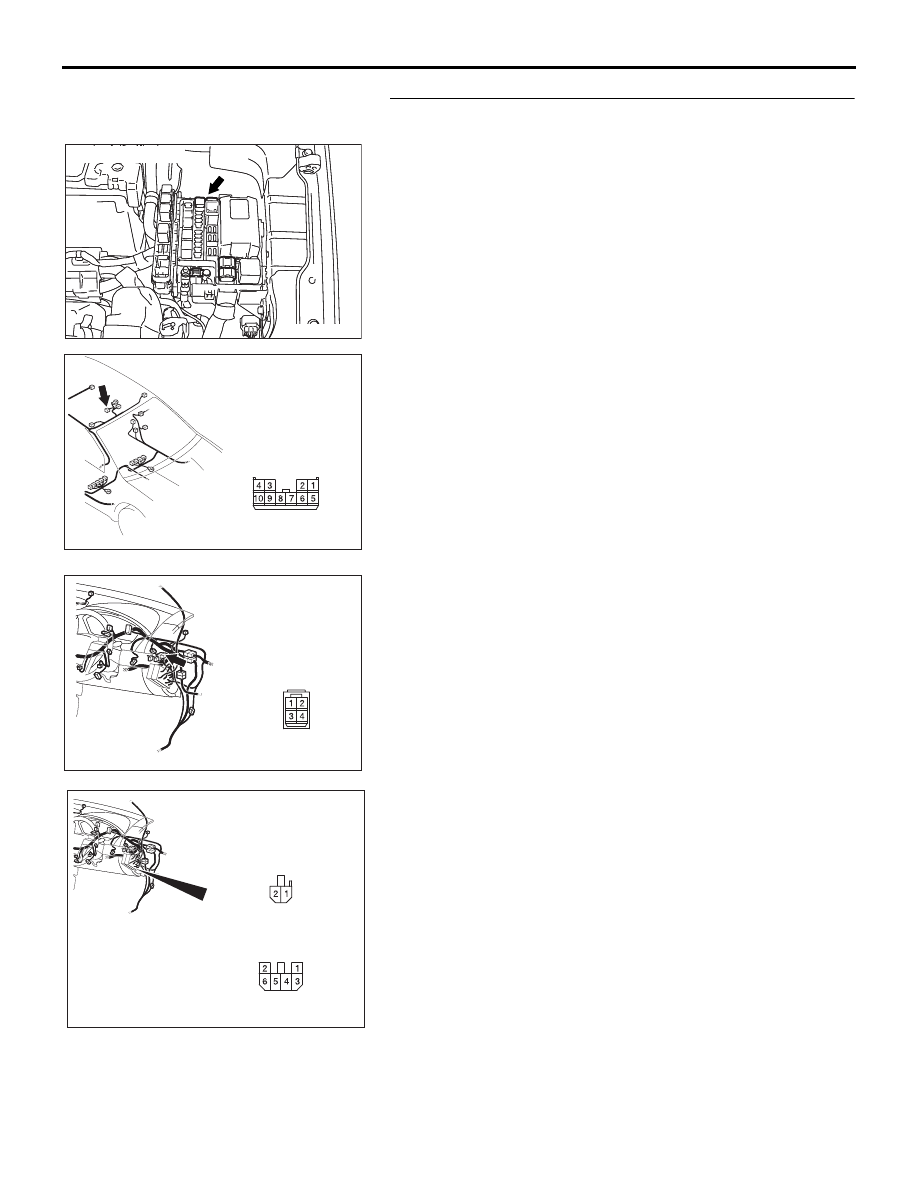

16DB359A

CONNECTOR: D-04

HARNESS SIDE

16DB359A

CONNECTOR: D-04

HARNESS SIDE

AC209365FG

CONNECTOR D-04
(HARNESS SIDE)

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-212

STEP 3. Check the wiring harness between sunroof motor
assembly connector D-04 (terminal 1) and fusible link (5).

NOTE: Also check junction block connectors C-212, C-215 and
intermediate connector C-27 for loose, corroded, or damaged
terminals, or terminals pushed back in the connector. If junction
block connector C-212, C-215 or intermediate connector C-27
is damaged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between sunroof motor assembly

connector D-04 (terminal 1) and fusible link (5) in good
condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. Check that
the sunroof works normally.

AC305015

AC305015AF

FUSIBLE LINK (5)

16DB359A

CONNECTOR: D-04

HARNESS SIDE

54DB064A

CONNECTOR: C-27

54DB065A

C-212

HARNESS SIDE

HARNESS SIDE

C-215

CONNECTORS: C-212, C-215
