SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-205

INSPECTION PROCEDURE E-4: Keyless Entry System: The trunk is not opened when the keyless
entry transmitter "TRUNK" button is operated.

.

CIRCUIT OPERATION

A receiver is incorporated in the ETACS-ECU. This
receiver receives a lock or unlock signal from the
transmitter.

.

TROUBLESHOOTING HINTS

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

• The RKE transmitter may be defective

• The ETACS-ECU may be defective

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: diagnostic tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

STEP 1. Check that the doors can be locked and unlocked
by using the keyless entry transmitter.

Q: Can the doors be locked and unlocked normally when

the keyless entry transmitter is operated?
YES : Go to Step 2.
NO :  Refer to Inspection Procedure E-1 "Keyless entry

system does not operate

P.54B-191

."

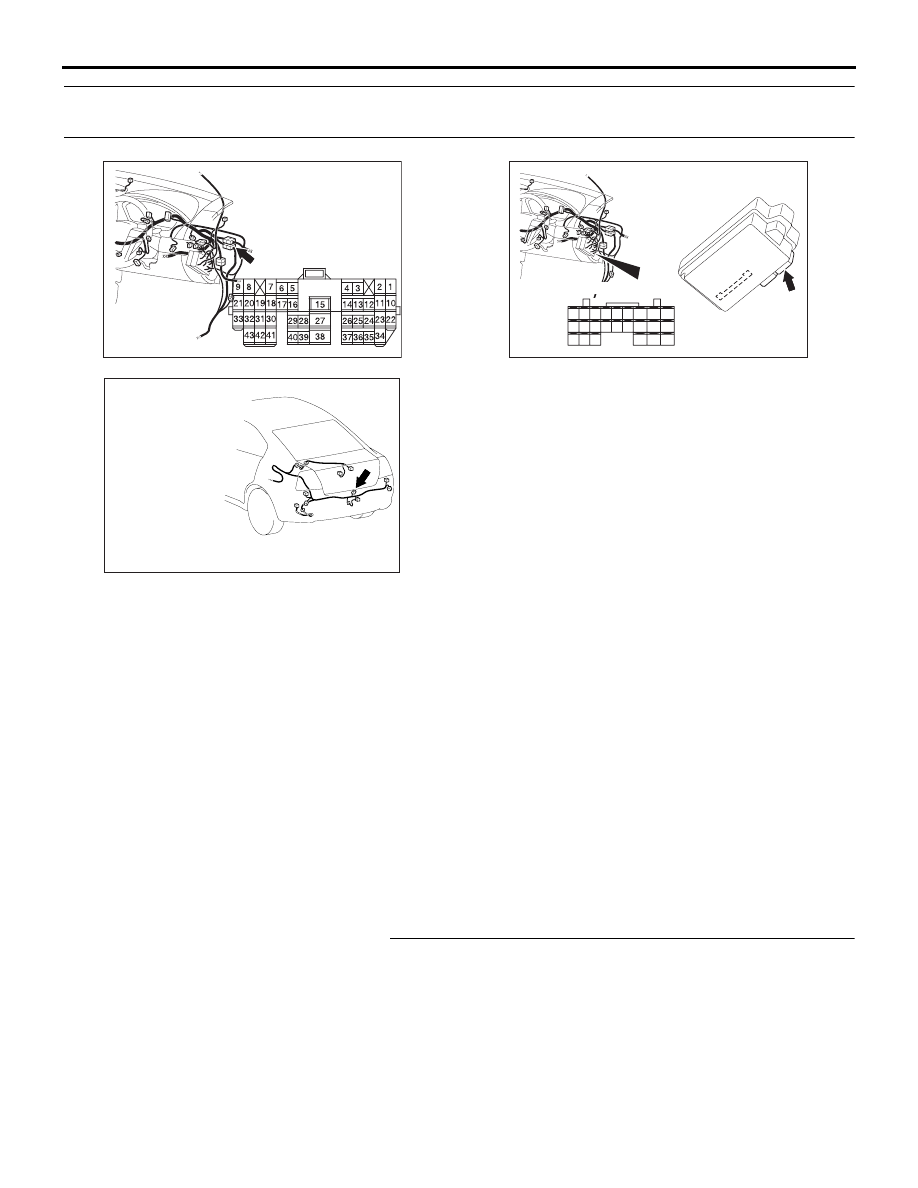

16DB350A

CONNECTOR:C-28

16DB307A

CONNECTOR: C-217

HARNESS SIDE

25

26

27

28

29

21

22

23

24

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

JUNCTION BLOCK

(REAR VIEW)

AC305260

AC

CONNECTOR: F-05

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-206

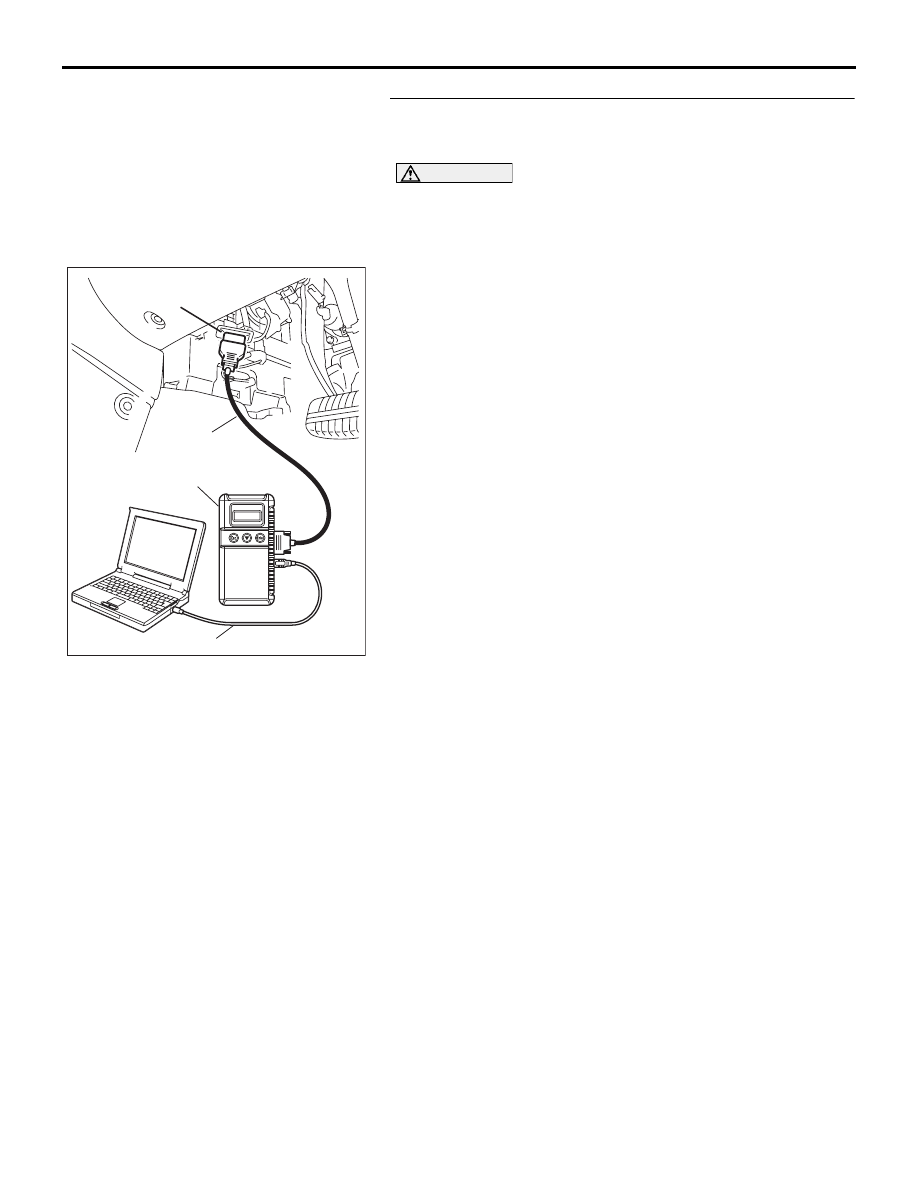

STEP 2. Check the input signal (by using the pulse check
mode of the monitor).
Check input signals from the transmitter.

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958.
(1) Connect diagnostic tool MB991958.Refer to "How to

connect SWS monitor

P.54B-13

."

(2) Operate diagnostic tool MB991958 according to the

procedure below to display "Pulse check."
a. Select "Interactive Diagnosis."
b. Select "System select."
c. Select "SWS."
d. Select "Pulse Checking."

(3) Push the transmitter "TRUNK" button.
(4) Check that diagnostic tool MB991958 sounds

Q: When the transmitter "TRUNK" button is turned ON,

does diagnostic tool MB991958 sound?
YES : Go to Step 3.
NO :  Refer to Inspection Procedure N-8 "ETACS-ECU

does not receive any signal from the lock, unlock,
trunk or panic switch

P.54B-472

."

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-207

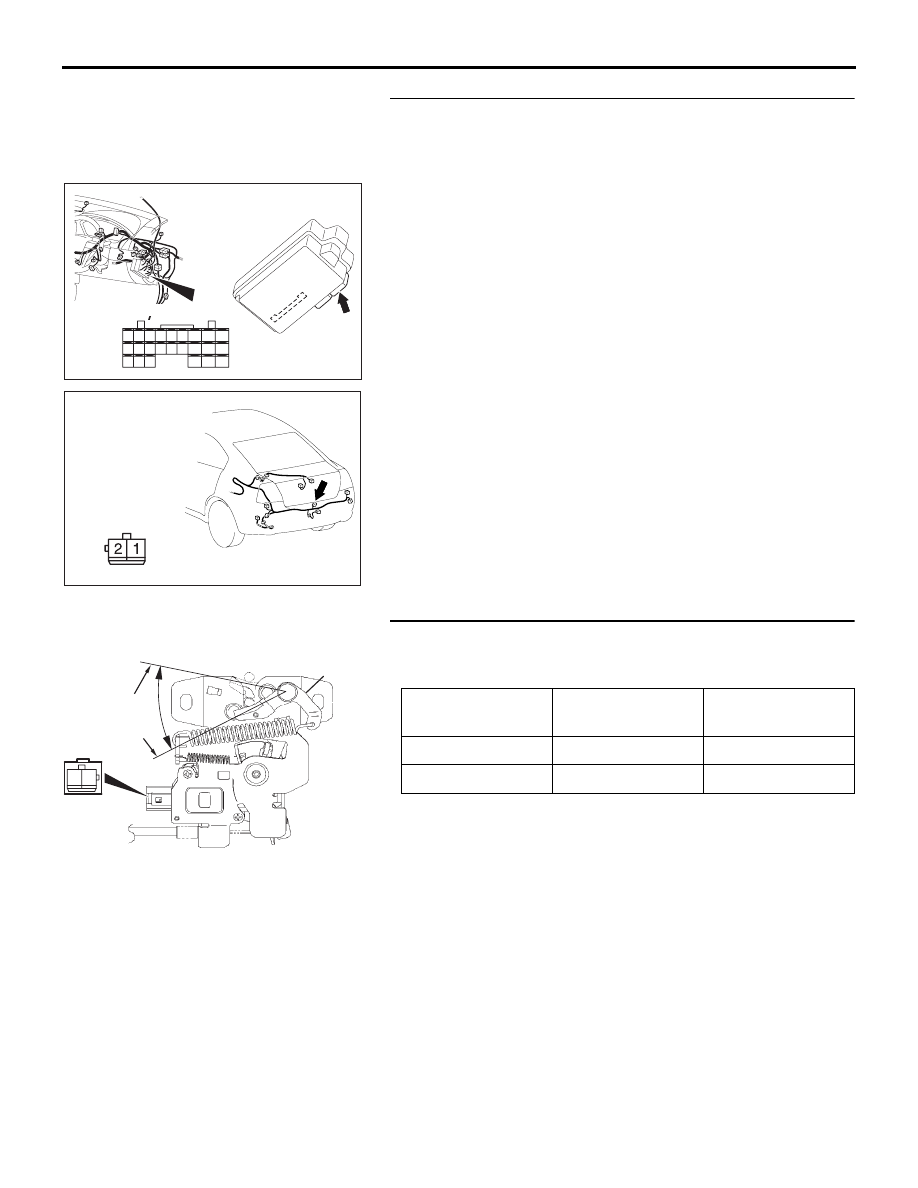

STEP 3. Check trunk lid latch assembly connector F-05
and ETACS-ECU connector C-217 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.
Q: Is trunk lid latch assembly connector F-05 and

ETACS-ECU connector C-217 in good condition?
YES : Go to Step 4.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. Check that the headlamps illuminate

normally.

STEP 4. Check the trunk lid latch assembly.
Remove the trunk lid latch assembly. Refer to GROUP 42,
Trunk lid, Trunk lid latch inspection

P.42-65

.

Q: Does the windshield washer motor operate normally?

YES : Go to Step 5.
NO :  Replace the trunk lid latch assembly. Verify that the

windshield washer works normally.

16DB307A

CONNECTOR: C-217

HARNESS SIDE

25

26

27

28

29

21

22

23

24

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

JUNCTION BLOCK

(REAR VIEW)

AC305260

CONNECTOR: F-05

AI

HARNESS SIDE

LEVER POSITION TESTER

CONNECTION

SPECIFIED
CONDITION

ON (Latch open)

2

− Ground

Less than 2 ohms

OFF (Latch shut)

2

− Ground

Open circuit

1 2

<FRONT
VIEW>

ON

OFF

LEVER

16DB424A

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-208

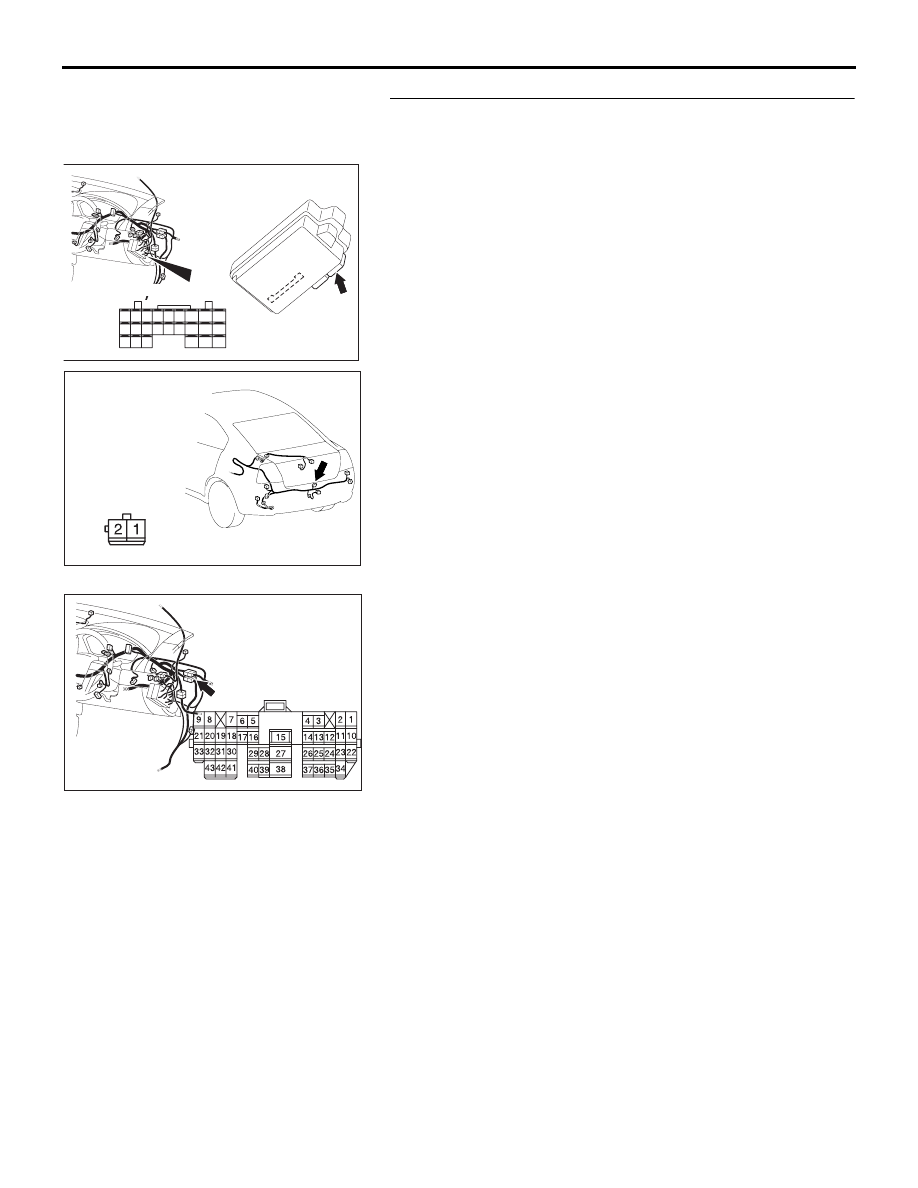

STEP 5. Check the wiring harness between trunk lid latch
assembly connector F-05 (terminal 1) and ETACS-ECU
connector C-217.

NOTE: Also check intermediate connector C-28 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-28 is damaged, repair or
replace the damaged component(s) as described in GROUP
00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between trunk lid latch assembly

connector F-05 (terminal 1) and ETACS-ECU connector
C-217 in good condition?
YES : Replace the ETACS-ECU. All the doors can be locked

or unlocked by means of the transmitter.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. The system
should communicate with the sunroof-ECU normally.

16DB307A

CONNECTOR: C-217

HARNESS SIDE

25

26

27

28

29

21

22

23

24

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

JUNCTION BLOCK

(REAR VIEW)

AC305260

CONNECTOR: F-05

AI

HARNESS SIDE

16DB350A

CONNECTOR:C-28
