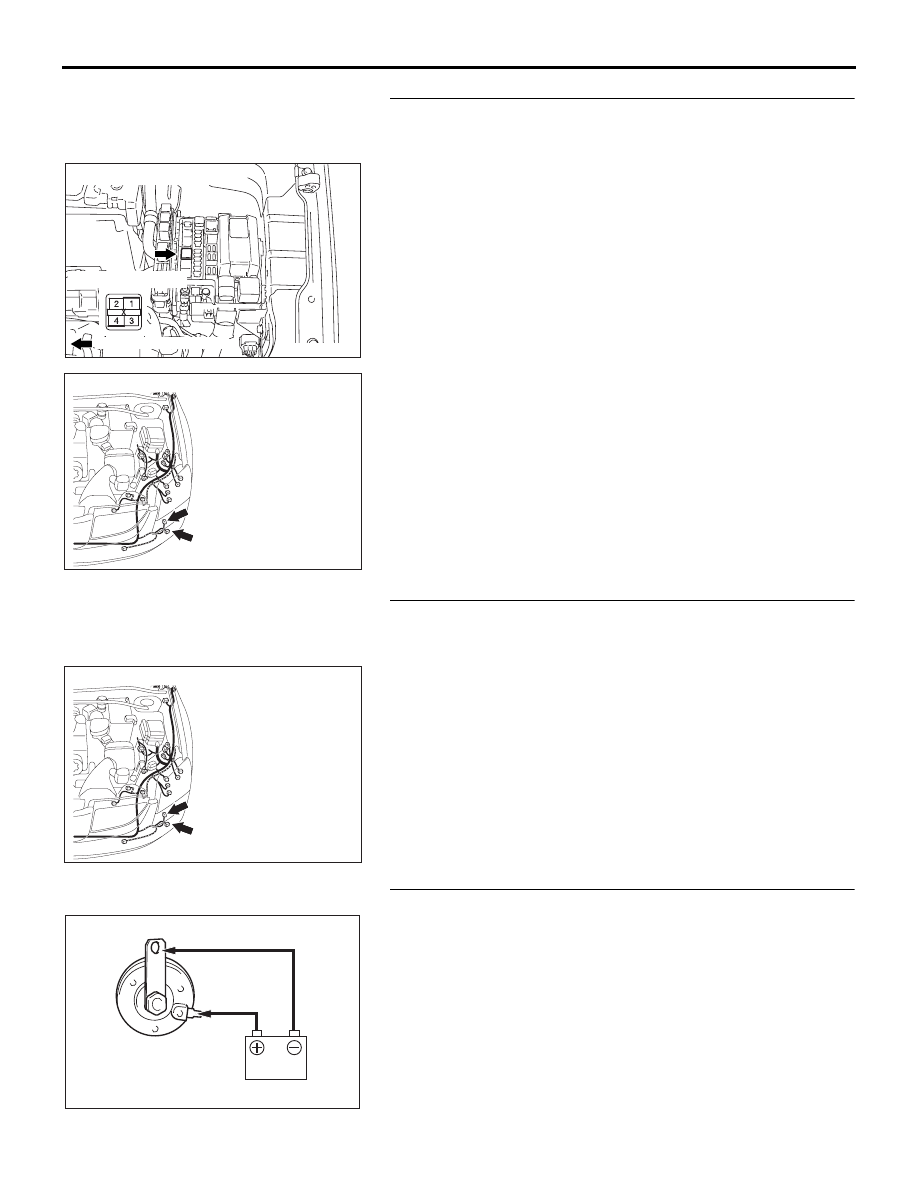

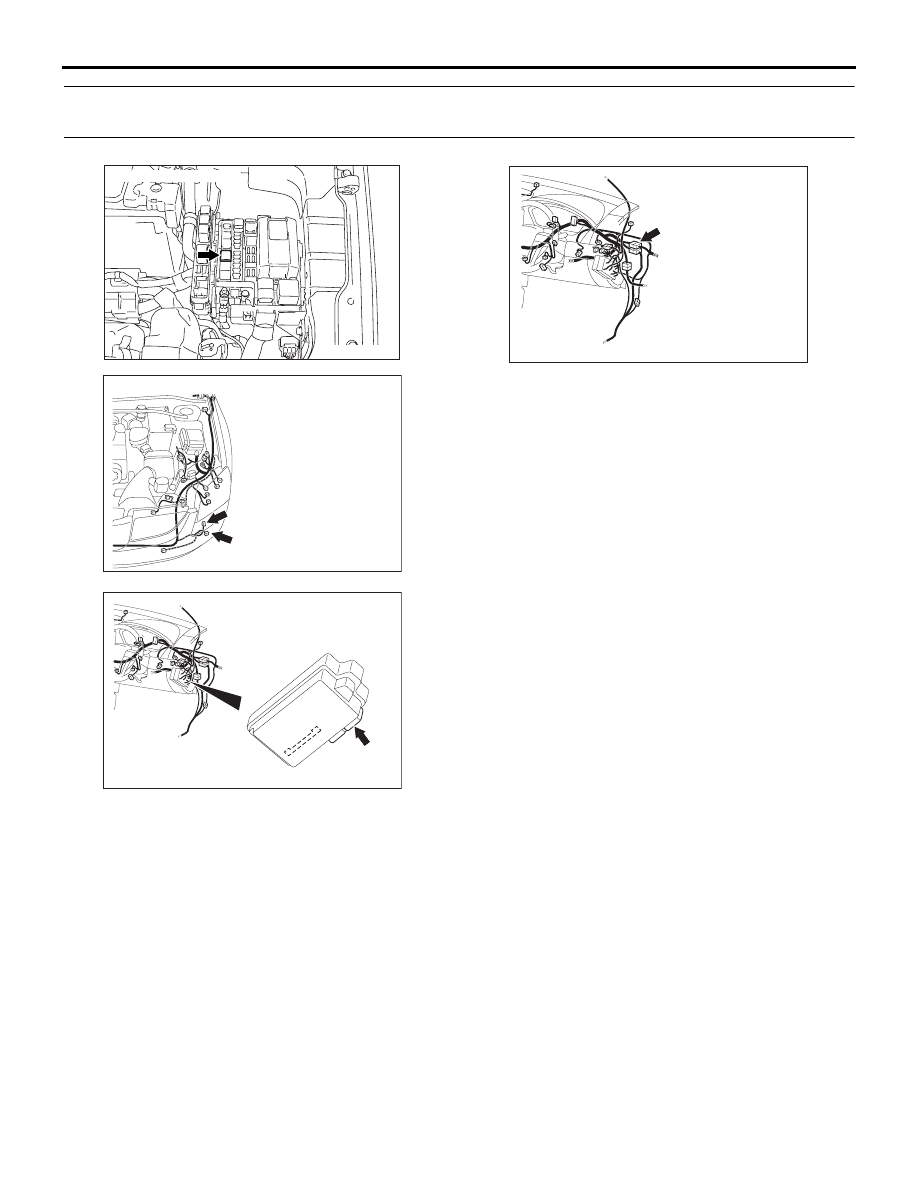

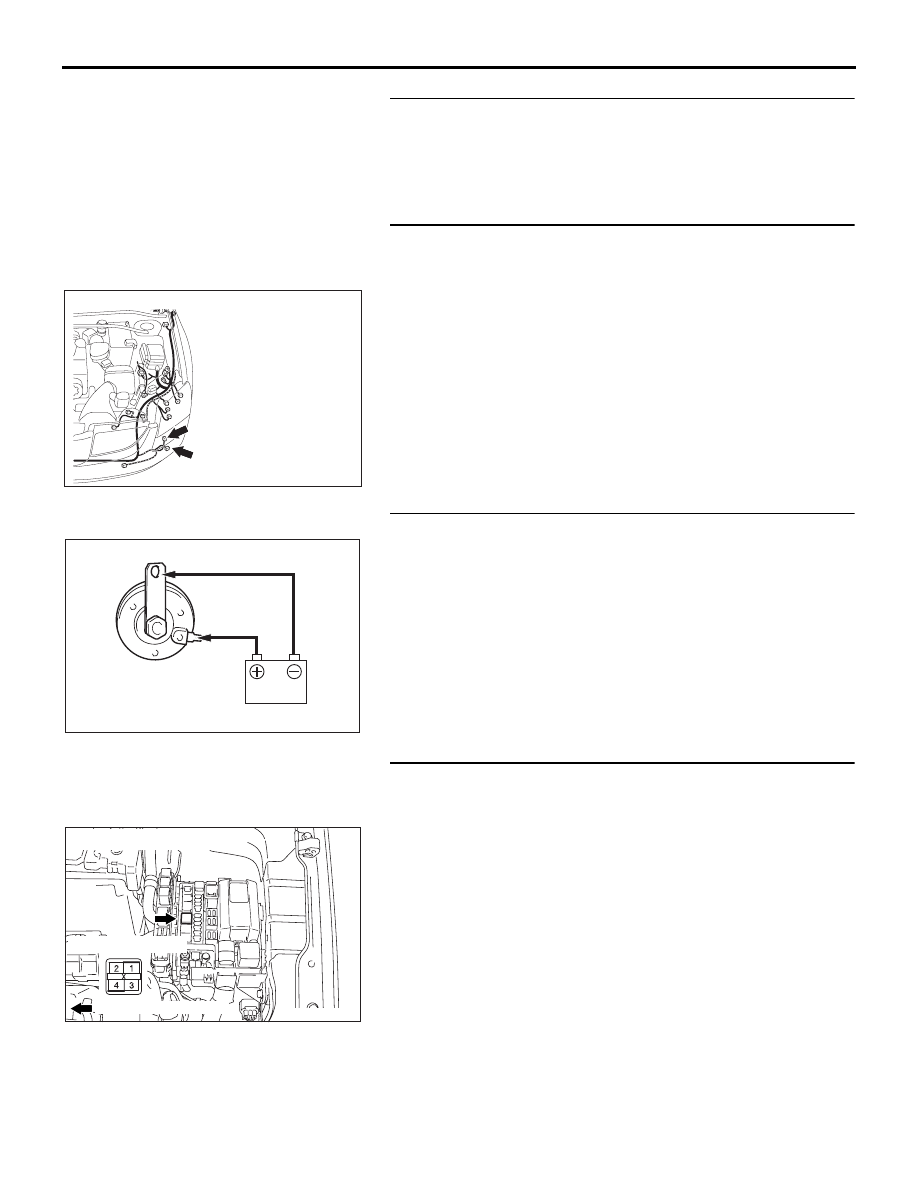

SYMPTOM PROCEDURES SIMPLIFIED WIRING SYSTEM (SWS) 54B-193 INSPECTION PROCEDURE E-2: Keyless Entry System: The dome lamp, the turn-signal lamps and the . CIRCUIT OPERATION The ETACS-ECU operates the following functions • Dome lamp answerback function • Turn-signal lamp answerback function • Horn answerback function . TECHNICAL DESCRIPTION (COMMENT) The turn-signal lamps and horn answerback func- . TROUBLESHOOTING HINTS • Refer to circuit diagrams GROUP- • Refer to configuration diagrams GROUP- • The turn-signal lamp may be defective • The dome lamp may be defective • The horn may be defective • The ETACS-ECU may be defective • The wiring harness or connectors may have loose, corroded, or damaged terminals, or termi- AC305992AB CONNECTOR: A-06X 16DB355A A-36 (B) CONNECTOR: A-36,A-37 A-37 16DB353A CONNECTOR: C-29 16DB354A CONNECTOR: C-217 JUNCTION BLOCK (REAR VIEW) |
