SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-185

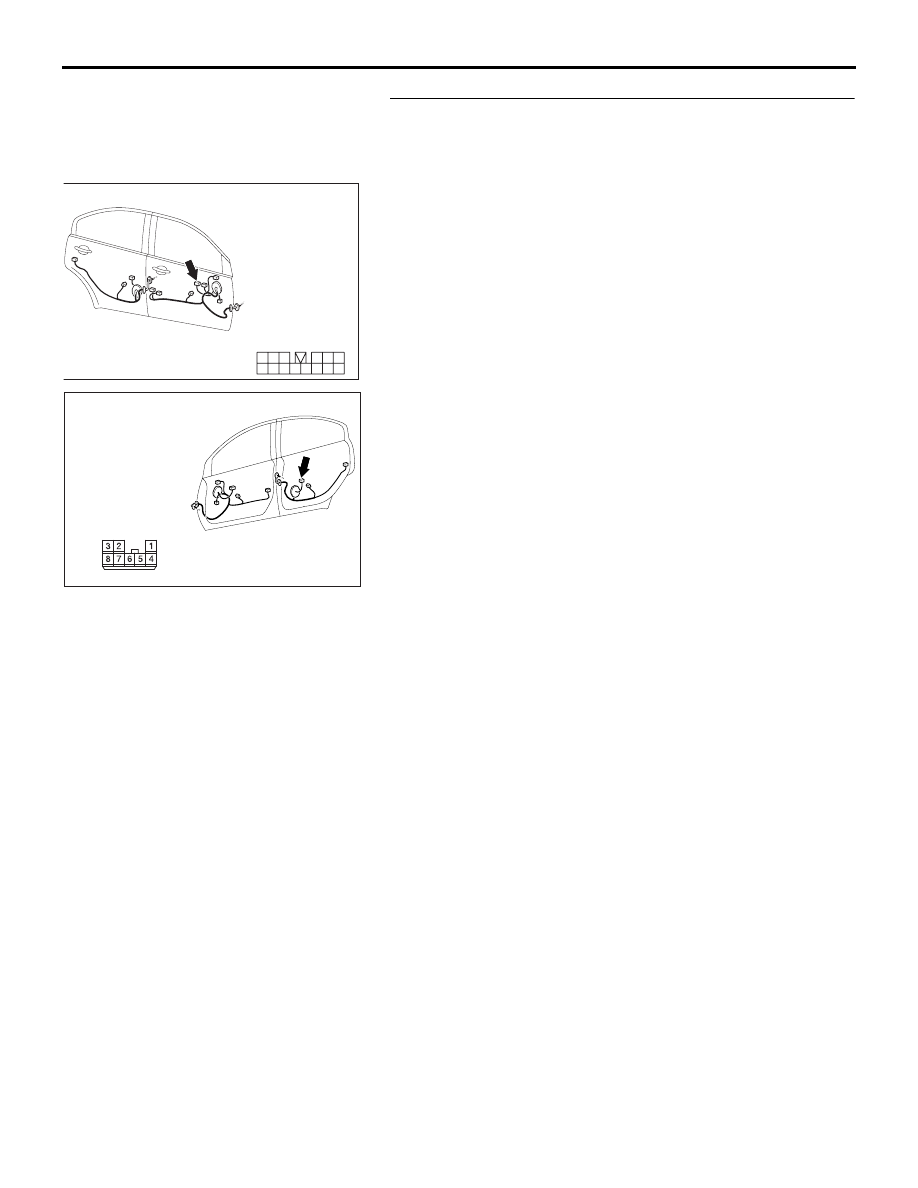

STEP 30. Check the wiring harness between power
window main switch connector E-04 (terminals 6 and 4)
and rear power window sub switch (RH) connector E-06
(terminals 5 and 8).

16DB332A

3

9

4

12

14

6

13

5

1110

8

2

7

1

HARNESS SIDE

CONNECTOR:E-04

AC305333

CONNECTOR:E-06

HARNESS SIDE

AE

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-186

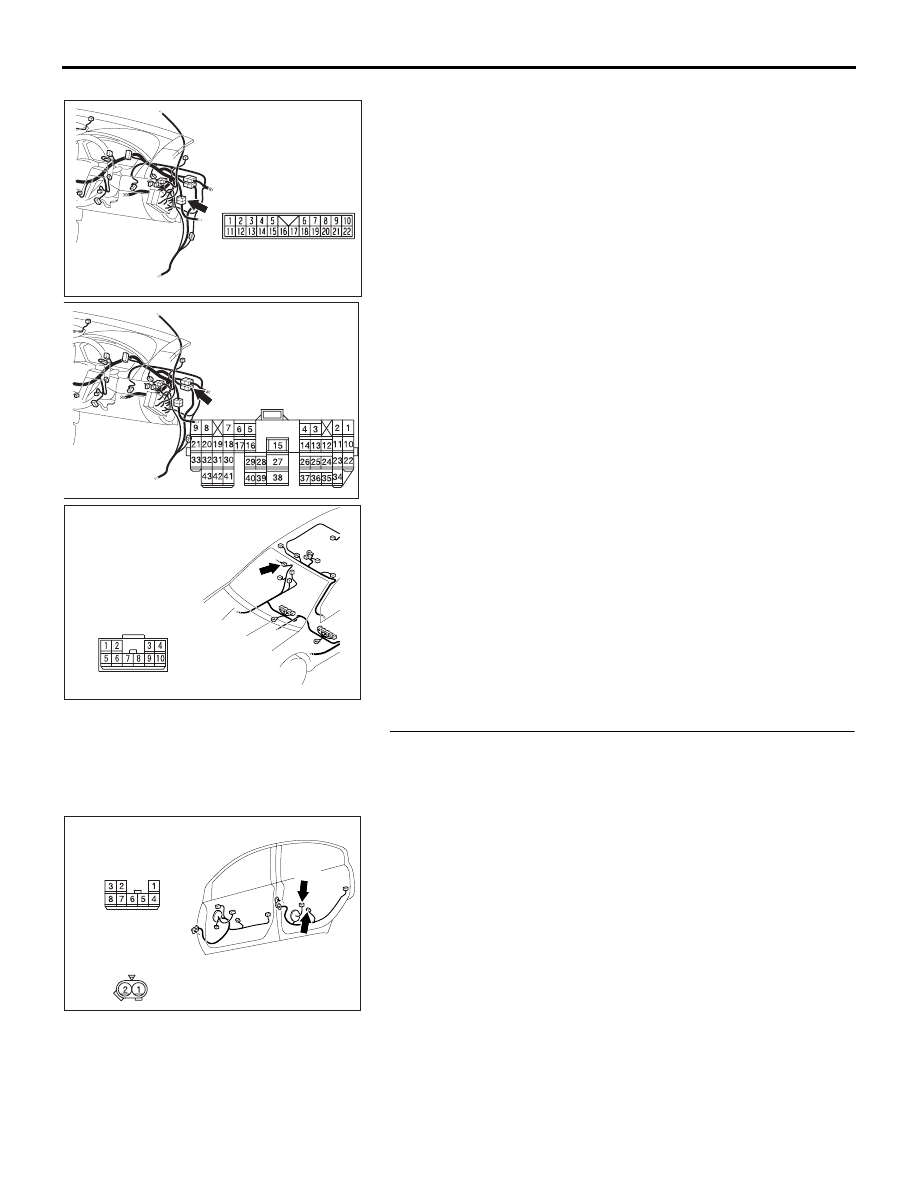

NOTE: Also check intermediate connectors C-12, C-28 and
D-36. If intermediate connector C-12, C-28 or D-36 is dam-
aged, repair or replace the damaged component(s) as
described in GROUP 00E, Harness Connector Inspection

P.00E-2

.

Q: Is the wiring harness between power window main

switch connector E-04 (terminals 6 and 4) and rear
power window sub switch (RH) connector E-06
(terminals 5 and 8) in good condition?
YES : Replace the power window main switch. When the

rear power window sub switch (RH) is operated, the
rear power window (RH) should raise and lower
normally.

NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. When the
rear power window sub switch (RH) is operated, the
rear power window (RH) should raise and lower
normally.

STEP 31. Check the wiring harness between rear power
window sub switch (RH) connector E-06 (terminals 4 and
7) and rear power window regulator motor (RH) connector
E-07 (terminals 1 and 2).
Q: Is the wiring harness between rear power window sub

switch (RH) connector E-06 (terminals 4 and 7) and rear
power window regulator motor (RH) connector E-07
(terminals 1 and 2) in good condition?
YES : No action is necessary and testing is complete.
NO :  The wiring harness may be damaged or the

connector(s) may have loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Repair the wiring harness as necessary. When the
rear power window sub switch (RH) is operated, the
rear power window (RH) should raise and lower
normally.

16DB310A

CONNECTOR: C-12

16DB350A

CONNECTOR:C-28

AC400530

AB

CONNECTOR: D-36

AC305333

AD

HARNESS SIDE

CONNECTOR:E-06,E-07

E-06

E-07

E-06

E-07(GR)

HARNESS SIDE

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-187

INSPECTION PROCEDURE D-5: Power Window: Front or rear passenger's power windows do not
work at all by operating the power window main switch.

.

CIRCUIT OPERATION

When you operate each power window switch for
front or rear passengers (incorporated in the power
window main switch), the corresponding power win-
dow motor operates, opening or closing each power
window.

.

TECHNICAL DESCRIPTION (COMMENT)

If the corresponding power window opens and closes
normally when each power window sub-switch is
operated, the power window main switch may be
defective.

.

TROUBLESHOOTING HINT

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

The power window main switch may be defective

DIAGNOSIS

Check that power window sub switches operate normally.

Q: A power window cannot work by using the power

window main switch. Can you operate the power
window by using the corresponding power window sub
switch?
YES : Replace the power window main switch. Check that

the front or rear passenger's power window can work
normally by means of power window main switch.

NO :  Refer to Symptom Chart

P.54B-57

 before resolving

this trouble.

KEYLESS ENTRY SYSTEM

GENERAL DESCRIPTION CONCERNING THE KEYLESS ENTRY SYSTEM

M1549022000255

The following ECUs affect the functions and control
of the keyless entry system.

FUNCTION

CONTROL
ECU

All door lock function

Pressing the transmitter lock button

ETACS-ECU

Driver’s door unlock function

Pressing the transmitter unlock button once

ETACS-ECU

All door unlock function

Pressing the transmitter unlock button twice

ETACS-ECU

Trunk unlock function

Pressing the transmitter trunk button twice

ETACS-ECU

Keyless entry hazard answerback and horn answerback function

ETACS-ECU

Timed locking mechanism

ETACS-ECU

SYMPTOM PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-188

ALL DOOR LOCK FUNCTION

.

PRESSING THE TRANSMITTER LOCK BUTTON

When the transmitter lock button is pressed, the ETACS-ECU
energizes its door lock relay to operate all the door lock actua-
tors for 0.25 second, locking all doors.

AC202609 AE

ON

(LOCK)

OFF

Transmitter

lock button

t: 0.25 seconds

OFF

ON

Door lock relay

output

All door and

liftgate

lock actuator  UNLOCK

LOCK

t
