DIAGNOSTIC TROUBLE CODE PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-49

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Turn the ignition switch to the "ON" position.
(2) Check if the DTC is set.
(3) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Replace the combination meter. On completion, verify

that the DTC is not reset.

NO :  A poor connection, open circuit or other intermittent

malfunction is present in the CAN bus lines between
the combination meter and the ETACS-ECU (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-14

).

STEP 5. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Turn the ignition switch to the "ON" position.
(2) Check if the DTC is set.
(3) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Replace the ETACS-ECU. On completion, verify that

the DTC is not reset.

NO :  A poor connection, open circuit or other intermittent

malfunction is present in the CAN bus lines between
the combination meter and the ETACS-ECU (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-14

).

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

DIAGNOSTIC TROUBLE CODE PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-50

 DTC 015  (U1111): Multi center Display Unit Time-out.

CAUTION

If  DTC 015  (U1111) is set in the ETACS-ECU,
always diagnose the CAN main bus line.

CAUTION

Whenever the ECU is replaced, ensure that the
communication circuit is normal.

.

TROUBLE JUDGMENT

The ETACS-ECU receives multi center dis-
play-related signal from the multi center display . If
the ECU cannot receive the signal,  DTC 015
(U1111) will be set.

.

TECHNICAL DESCRIPTION (COMMENT)

Current trouble

• Connector(s) or wiring harness in the CAN bus

lines between the multi center display unit  and
the ETACS-ECU, the power supply system to the
multi center display unit , the multi center display
unit  itself, or the ETACS-ECU may be defective.

• Refer to circuit diagrams GROUP-

90

• Refer to configuration diagrams GROUP-

80

Past trouble

• If  DTC 015  (U1111) is stored as a past trouble,

carry out diagnosis with particular emphasis on
wiring and connector(s) in the CAN bus line
between the multi center display unit  and the
ETACS-ECU, and the power supply system to the
multi center display unit . For diagnosis proce-
dures, refer to "How to cope with past trouble"
(Refer to GROUP 00, How to treat past trouble

P.00-16

).

NOTE: You cannot find a past trouble, by the
MUT-III CAN bus diagnostics even if there is a
failure in CAN bus lines. In this case, refer to
GROUP 00, How to Cope with Intermittent Mal-
function

P.00-14

 and check the CAN bus lines.

You can narrow down the possible cause of the
trouble by referring to the DTC, which is set
regarding the CAN communication-linked ECUs
(Refer to GROUP 54C, CAN Bus Line Diagnosis

P.54C-6

).

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector

• Malfunction of the multi center display

• The ETACS-ECU may be defective

DIAGNOSIS

Required Special Tools:

• MB991223: Harness Set

• MB991958: DIAGNOSTIC TOOL (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

DIAGNOSTIC TROUBLE CODE PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-51

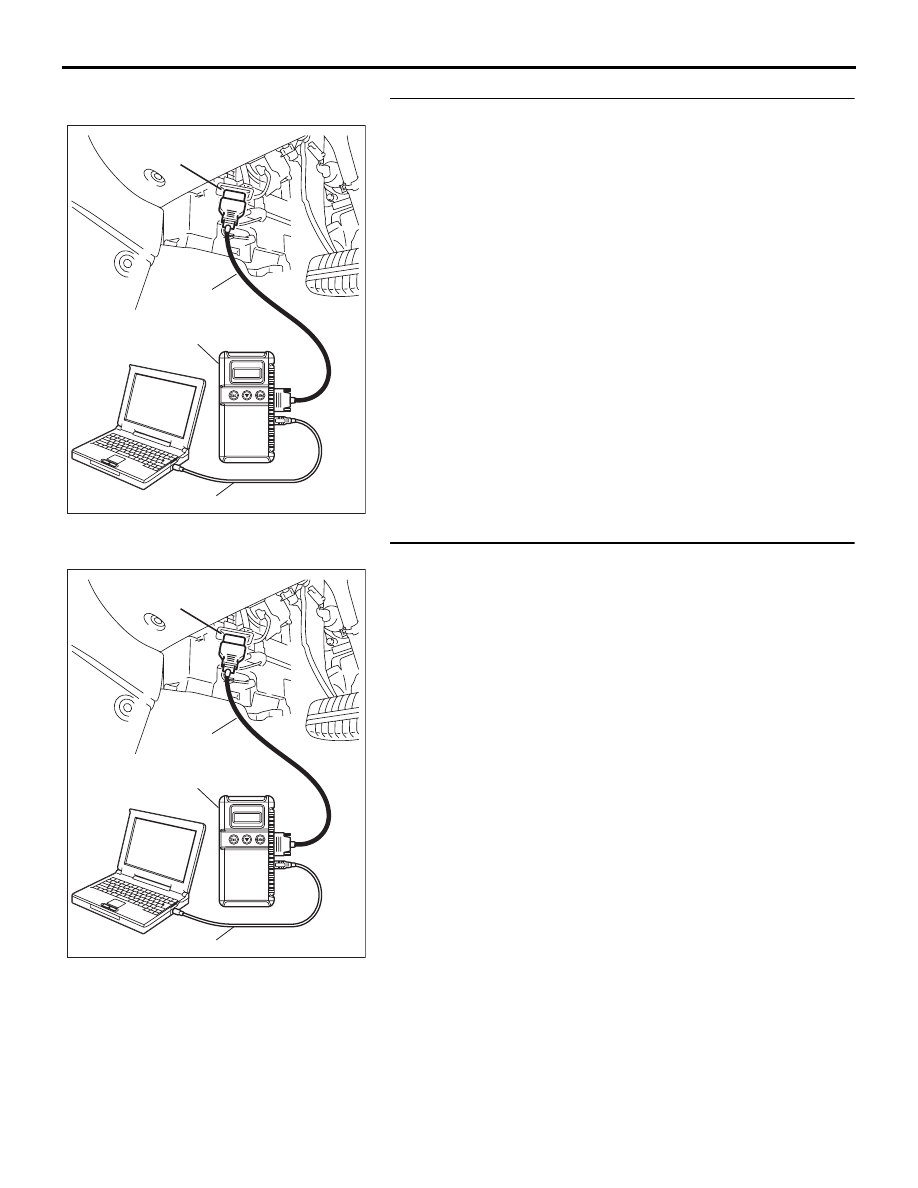

STEP 1. Using diagnostic tool MB991958, diagnose the
CAN bus line.

CAUTION

To prevent damage to diagnostic tool MB991958, always
turn the ignition switch to the "LOCK" (OFF) position
before connecting or disconnecting diagnostic tool
MB991958.
(1) Connect diagnostic tool MB991958. Refer to "How to

connect SWS monitor

P.54B-13

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-13

).

STEP 2. Using diagnostic tool MB991958, read the multi
center display diagnostic trouble code.
Check that the multi center display unit sets a DTC.
(1) Turn the ignition switch to the "ON" position.
(2) Check if the multi center display DTC is set.
(3) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Diagnose the multi center display unit  (Refer to

GROUP 54A, Diagnosis

P.54A-256

).

NO :  Go to Step 3.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

DIAGNOSTIC TROUBLE CODE PROCEDURES

SIMPLIFIED WIRING SYSTEM (SWS)

54B-52

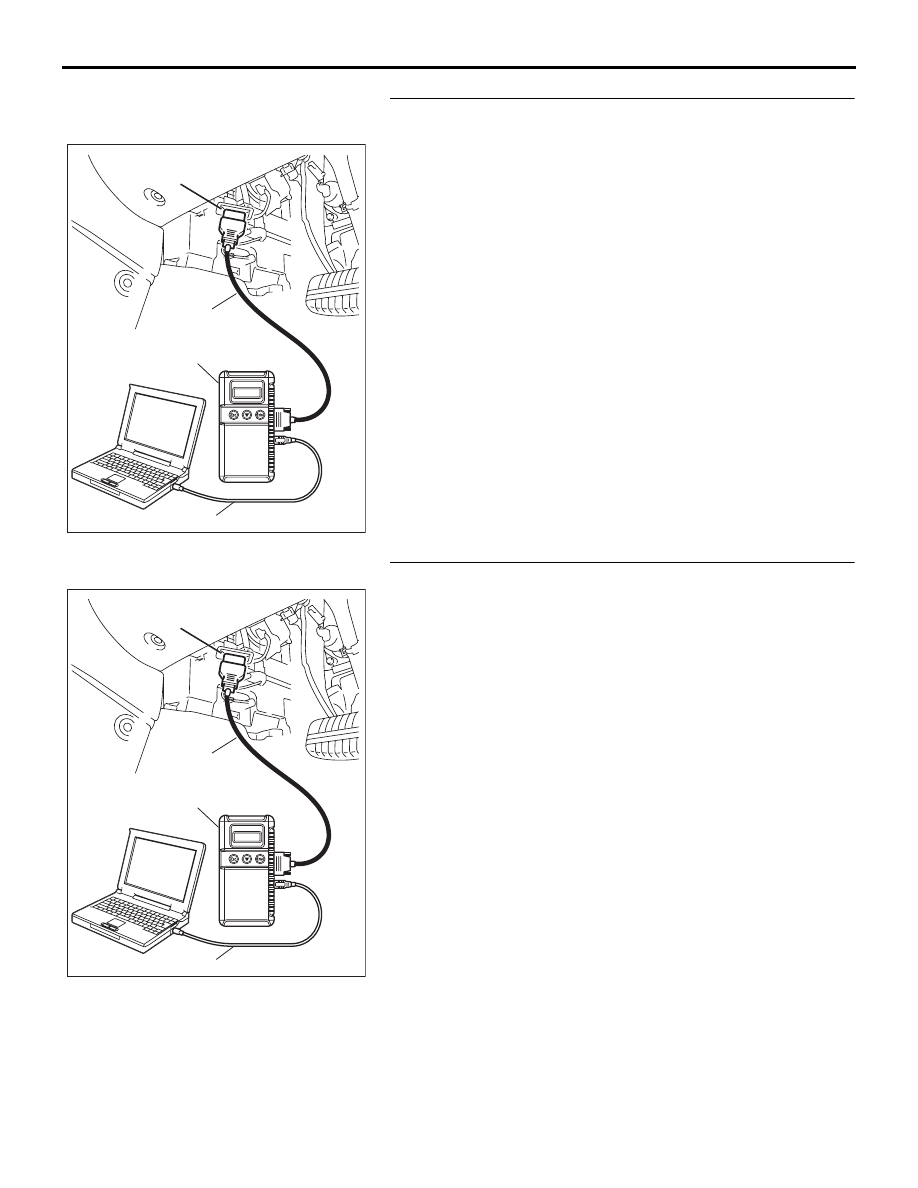

STEP 3. Using diagnostic tool MB991958, read the A/C
diagnostic trouble code.
Check if a multi center display-related DTC is set in the A/C
system.
(1) Turn the ignition switch to the "ON" position.
(2) Check whether A/C system-related DTC is set.
(3) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Go to Step 4.
NO :  Go to Step 5.

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set.
(1) Turn the ignition switch to the "ON" position.
(2) Check if the DTC is set.
(3) Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Replace the multi center display . On completion,

verify that the DTC is not reset.

NO :  A poor connection, open circuit or other intermittent

malfunction is present in the CAN bus lines between
the multi center display  and the ETACS-ECU (Refer
to GROUP 00, How to Cope with Intermittent
Malfunction

P.00-14

).

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
