TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-32

STEP 6. Check the harness for short circuit to
earth between SRS-ECU connector C-119
(terminal No.36 and 37 <1st squib> or terminal
No.33 and 34 <2nd squib>) and clock spring
connector C-309 (terminal No.3 and 4 <1st squib>
or terminal No.1 and 2 <2nd squib>).

Q: Are the harness wires between SRS-ECU

connector C-119 (terminal No.36 and 37 <1st

squib> or terminal No.33 and 34 <2nd squib>) and
clock spring connector C-309 (terminal No.3 and 4
<1st squib> or terminal No.1 and 2 <2nd squib>) in
good condition?

YES :

Go to Step 7.

NO :

Replace the harness wires between
SRS-ECU connector C-119 and clock spring
connector C-309. Then go to Step 7.

STEP 7. Check whether the diagnosis code is
reset.

Q: Is diagnosis code B1402 <1st squib> or B1482

<2nd squib> set?

YES :

Return to Step 1.

NO :

The procedure is complete.

AC311438 AD

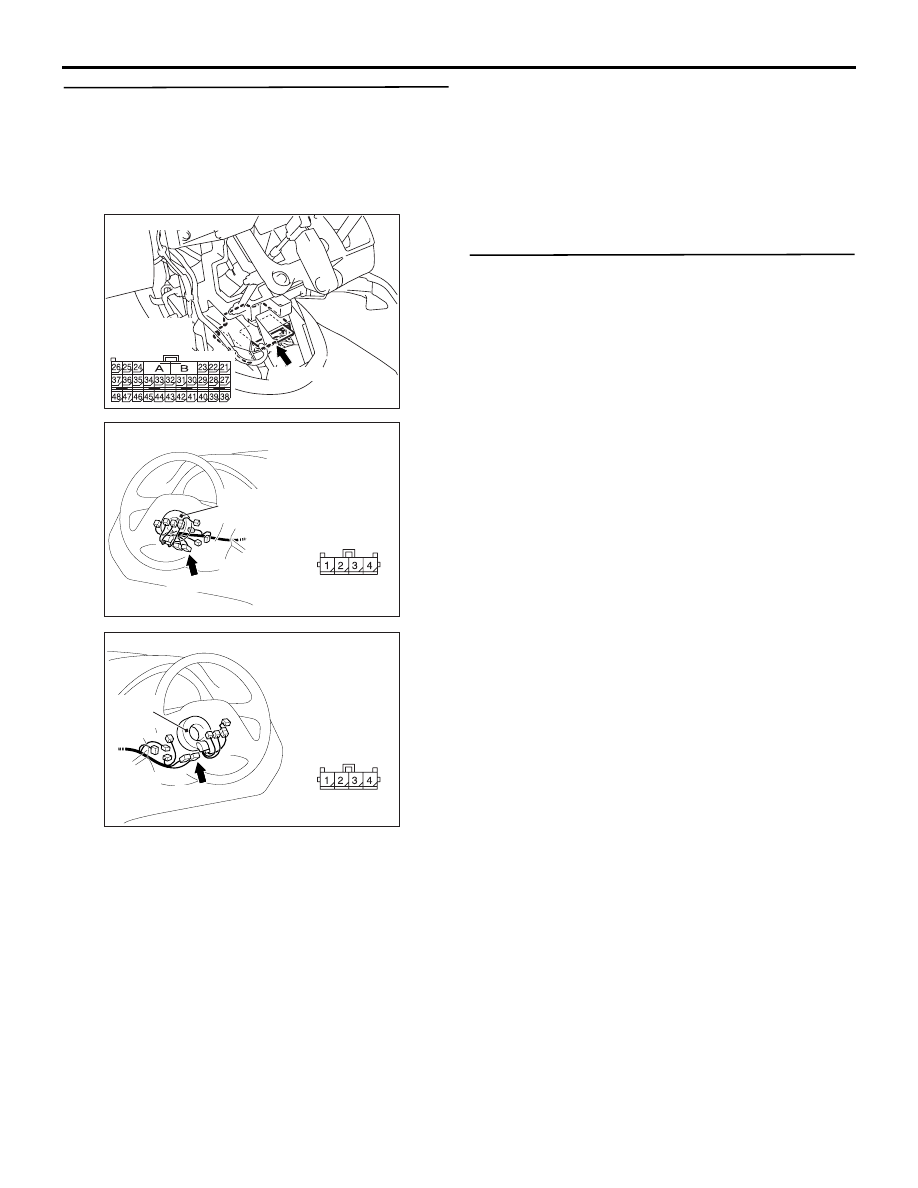

C-119 (Y)

Connector: C-119

Harness side
(front view)

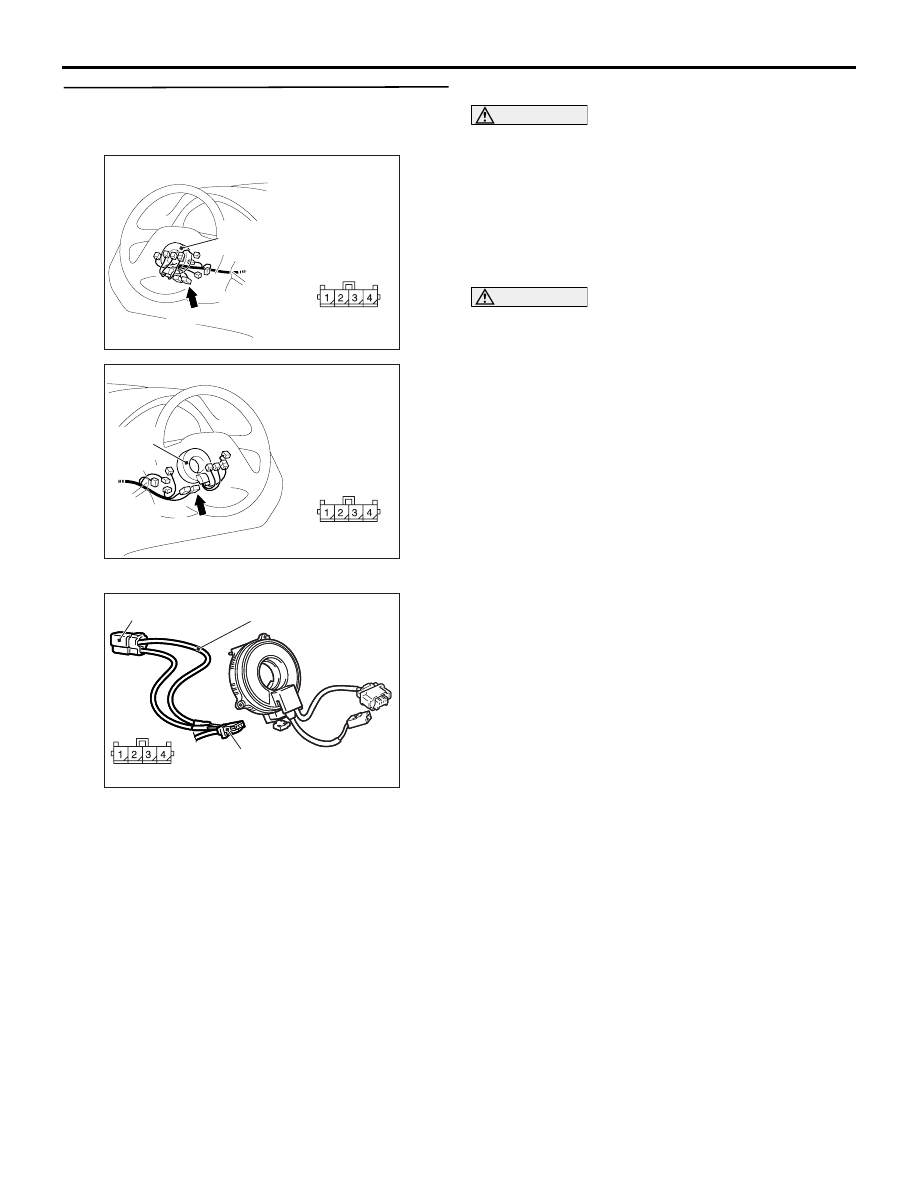

AC310153AH

Connectors: C-309 <LHD>

Clock
spring

C-309 (Y)

Harness side
(rear view)

AC310183

Connector: C-309 <RHD>

Clock
spring

C-309 (Y)

Harness side
(rear view)

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-33

Code No.B1403: Driver's Air Bag Module (1st Squib) System Fault for Power Supply Circuit
(Short-Circuited to Power Supply)
Code No.B1483: Driver's Air Bag Module (2nd Squib) System Fault for Power Supply Circuit
(Short-Circuited to Power Supply)

Wire colour code
B : Black LG : Light green G : Green L : Blue W : White Y : Yellow SB : Sky blue
BR : Brown O : Orange GR : Gray R : Red P : Pink V : Violet

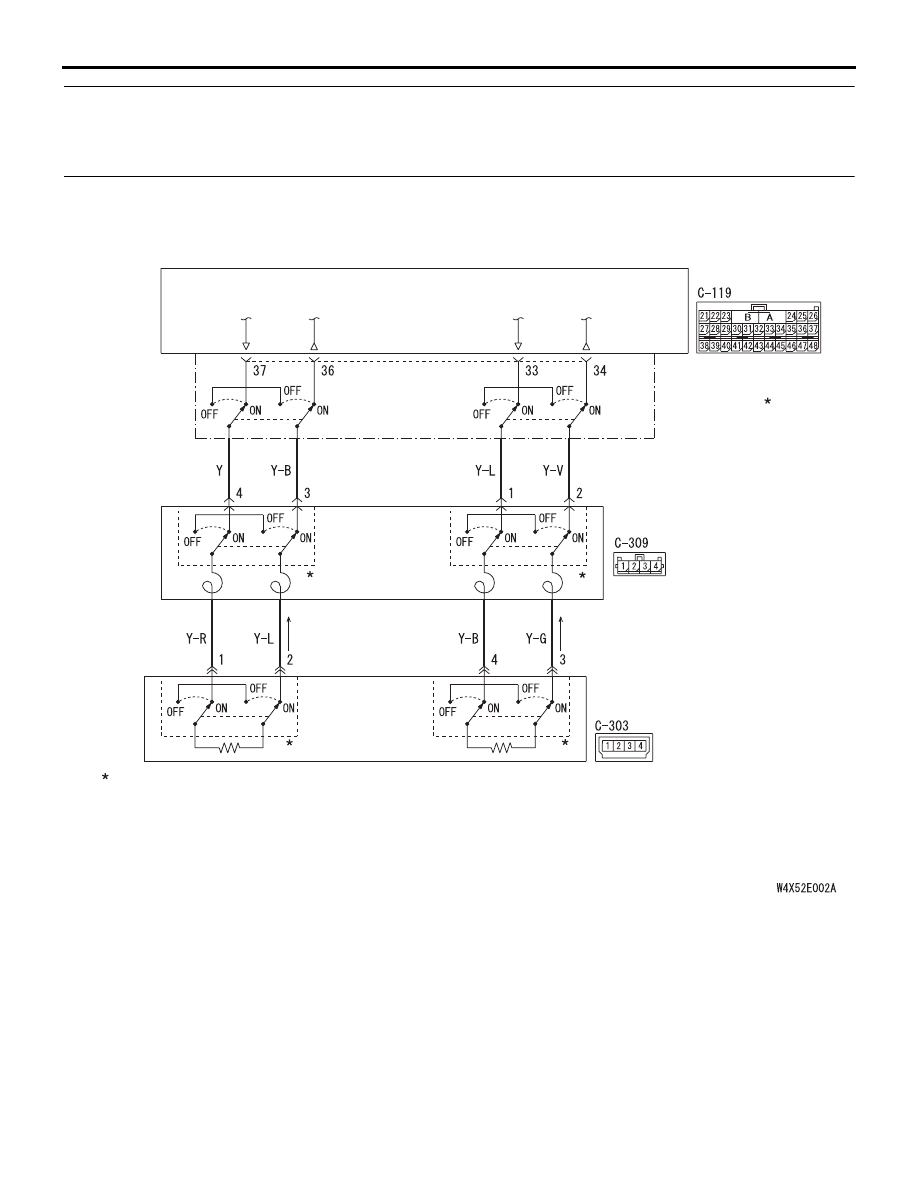

AIR BAG MODULE
(SQUIB)
(DRIVER'S SIDE)

CLOCK
SPRING

SRS-ECU

: CONNECTOR LOCK SWITCH
CONNECTOR CONNECTED: ON
CONNECTOR DISCONNECTED: OFF

NOTE

CONNECTOR
LOCK SWITCH

Driver's Air Bag Module (1st and 2nd Squib) Circuit

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-34

CAUTION

If diagnosis code B1403 <1st squib> or B1483
<2nd squib> is set in the SRS-ECU, always
diagnose the CAN main bus line.

OPERATION

• The SRS-ECU judges how severe a collision is

by detecting signals from the front impact sensors
and the front air bag analog G-sensor. If the
impact is over a predetermined level, the
SRS-ECU sends an ignition signal. At this time, if
the front air bag safing G-sensor is on, the SRS
air bag will inflate.

• The ignition signal is input to the air bag module

via the clock spring to inflate the air bag.

DIAGNOSIS CODE SET CONDITIONS

This diagnosis code is set if there is abnormal
resistance between the input terminals of the driver's
air bag module (squib). However, if no diagnosis
code resets, the SRS warning light will be switched
off (diagnosis code will be retained).

PROBABLE CAUSES

• Malfunction of the clock spring

• Damaged harness wires and connectors

• Short to the power supply in the driver's air bag

module (squib) harness

• Malfunction of the SRS-ECU

DIAGNOSIS PROCEDURE

STEP 1. MUT-III CAN bus diagnostics

Use the MUT-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the CAN bus line (Refer to GROUP
54D, Diagnosis

P.54D-16

STEP 2. MUT-III diagnosis code

Check again if the diagnosis code is set.
(1) Erase the diagnosis code.
(2) Ignition: LOCK (OFF) position to ON
(3) On completion, check that the diagnosis code is

not reset.

Q: Is the diagnosis code set?

YES :

Go to Step 3.

NO :

There is an intermittent malfunction such as
poor engaged connector(s) or open circuit
(Refer to GROUP 00, How to Cope with
Intermittent Malfunction

P.00-5

STEP 3. Check the driver's air bag module.
(MUT-III diagnosis code.)
(1) Disconnect the negative battery terminal.

(2) Slide the outer housing of the driver’ s air bag

module connector C-303 in the arrow direction
shown, and disconnect the connector.

(3) Connect special tool dummy resistor (MB991865)

to special tool resistor harness (MB991866).

CAUTION

Do not insert a test probe into the terminal from
its front side directly, as the connector contact
pressure may be weakened.
(4) Insert special tool MB991866 into clock spring

side air bag module connector C-303 (terminal
No.1 and 2 <1st squib> or terminal No.3 and 4
<2nd squib>) by backprobing.

(5) Connect the negative battery terminal.

CAUTION

Always diagnosis code B1481 is set when
checking diagnosis code B1403. This is because
the second side terminal is isolated when
checking it, diagnosis code B1481 is set but this
is not a fault. In addition, always diagnosis code
B1401 is set when checking diagnosis code
B1483 because the first side terminal is isolated.
(6) Erase the diagnosis code memory, and check the

diagnosis code.

Q: Is the checked diagnosis code set?

YES :

Go to Step 4.

NO :

Replace the driver’s air bag module. (Refer
to

P.52B-225

). Then go to Step 7.

AC306561AH

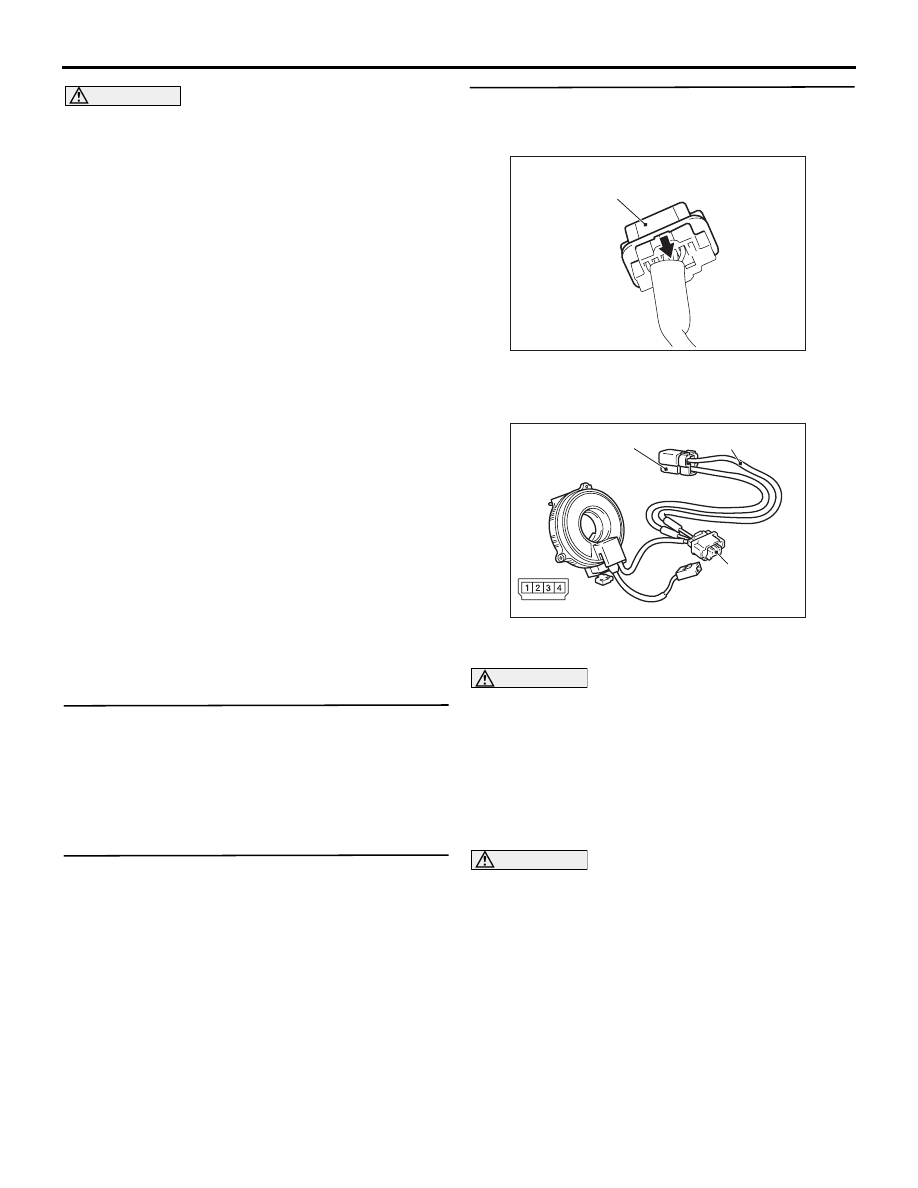

Outer housing of the
driver's air bag module connector C-303

AC306758AD

C-303 Air bag
module
connector

MB991865
(Dummy resistor : 3

ΩΩ

MB991866
(Resistor harness)

(rear view

Ω

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-35

STEP 4. Check the clock spring. (MUT-III
diagnosis code.)
(1) Disconnect the negative battery terminal.

(2) Disconnect the clock spring connector C-309.

(3) Connect special tool dummy resistor (MB991865)

to special tool resistor harness (MB991866).

CAUTION

Do not insert a test probe into the terminal from
its front side directly, as the connector contact
pressure may be weakened.
(4) Insert special tool MB991866 into clock spring

harness side connector C-309 (terminal No.3 and
4 <1st squib> or terminal No.1 and 2 <2nd
squib>) by backprobing.

(5) Connect the negative battery terminal.

CAUTION

diagnosis code.

Q: Is the checked diagnosis code set?

YES :

Go to Step 5.

NO :

Replace the clock spring (Refer to

P.52B-225

). Then go to Step 7.

AC310153AH

Connectors: C-309 <LHD>

Clock
spring

C-309 (Y)

Harness side
(rear view)

AC310183

Connector: C-309 <RHD>

Clock
spring

C-309 (Y)

Harness side
(rear view)

AC306767

C-309 Clock spring
connector

(rear view)

MB991865
(Dummy resistor : 3

ΩΩ

MB991866
(Resistor harness)
