TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-28

STEP 6. Check whether the diagnosis code is
reset.

Q: Is diagnosis code B1401 <1st squib> or B1481

<2nd squib> set?

YES :

Return to Step 1.

NO :

The procedure is complete.

Code No.1402: Driver’s Air Bag Module (1st Squib) System Fault for Earth Circuit (Short-Circuited to
Earth)
Code No.1482: Driver’s Air Bag Module (2nd Squib) System Fault for Earth Circuit (Short-Circuited to
Earth)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

AIR BAG MODULE
(SQUIB)
(DRIVER'S SIDE)

CLOCK
SPRING

SRS-ECU

: CONNECTOR LOCK SWITCH
  CONNECTOR CONNECTED: ON
  CONNECTOR DISCONNECTED: OFF

NOTE

CONNECTOR
LOCK SWITCH

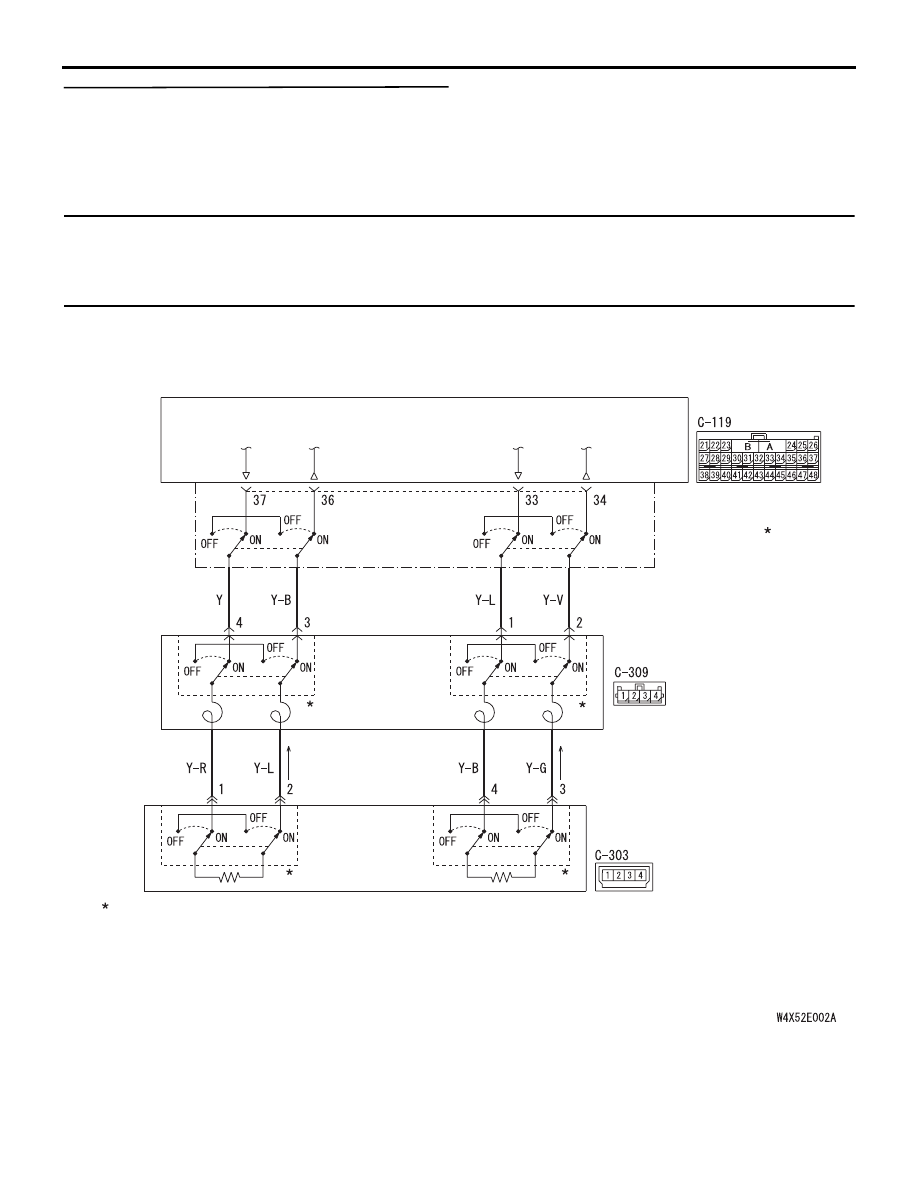

Driver's Air Bag Module (1st and 2nd Squib) Circuit

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-29

CAUTION

If diagnosis code B1402 <1st squib> or B1482
<2nd squib> is set in the SRS-ECU, always
diagnose the CAN main bus line.

OPERATION

• The SRS-ECU judges how severe a collision is

by detecting signals from the front impact sensors
and the front air bag analog G-sensor. If the
impact is over a predetermined level, the
SRS-ECU sends an ignition signal. At this time, if
the front air bag safing G-sensor is on, the SRS
air bag will inflate.

• The ignition signal is sent to the air bag module

via the clock spring to inflate the air bag.

DIAGNOSIS CODE SET CONDITIONS

This diagnosis code is set if there is abnormal
resistance between the input terminals of the driver's
air bag module (squib). However, if no diagnosis
code resets, the SRS warning lamp will be switched
off (diagnosis code will be retained).

PROBABLE CAUSES

• Malfunction of the clock spring

• Damaged harness wires and connectors

• Short to the earth in the driver's air bag module

(squib) harness

• Malfunction of the SRS-ECU

DIAGNOSIS PROCEDURE

STEP 1. MUT-III CAN bus diagnostics

Use the MUT-III to diagnose the CAN bus lines.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the CAN bus line (Refer to GROUP
54D, Diagnosis

P.54D-16

).

STEP 2. Check whether the diagnosis code is
reset.

Check again if the diagnosis code is set.
(1) Erase the diagnosis code.
(2) Ignition: LOCK (OFF) position to ON
(3) On completion, check that the diagnosis code is

not reset.

Q: Is the diagnosis code set?

YES :

Go to Step 3.

NO :

There is an intermittent malfunction such as
poor engaged connector(s) or open circuit
(Refer to GROUP 00, How to Cope with
Intermittent Malfunction

P.00-5

).

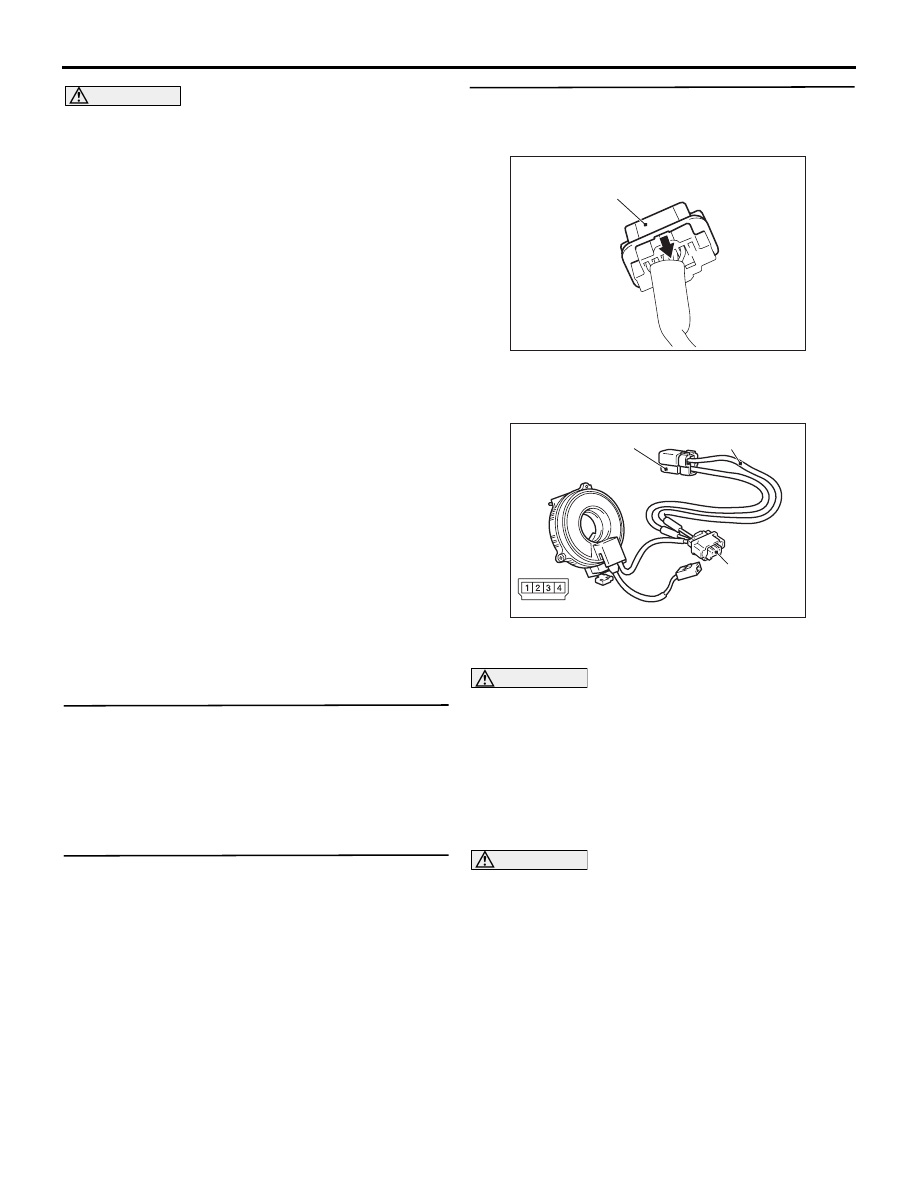

STEP 3. Check the driver's air bag module.
(MUT-III diagnosis code.)
(1) Disconnect the negative battery terminal.

(2) Slide the outer housing of the driver’ s air bag

module connector C-303 in the arrow direction
shown, and disconnect the connector.

(3) Connect special tool dummy resistor (MB991865)

to special tool resistor harness (MB991866).

CAUTION

Do not insert a test probe into the terminal from
its front side directly, as the connector contact
pressure may be weakened.
(4) Insert special tool MB991866 into clock spring

side air bag module connector C-303 (terminal
No.1 and 2 <1st squib> or terminal No.3 and 4
<2nd squib>) by backprobing.

(5) Connect the negative battery terminal.

CAUTION

Always diagnosis code B1481 is set when
checking diagnosis code B1402. This is because
the second side terminal is isolated when
checking it, diagnosis code B1481 is set but this
is not a fault. In addition, always diagnosis code
B1401 is set when checking diagnosis code
B1483 because the first side terminal is isolated.
(6) Erase the diagnosis code memory, and check the

diagnosis code.

Q: Is the checked diagnosis code set?

YES :

Go to Step 4.

NO :

Replace the driver's air bag module (Refer
to

P.52B-225

). Then go to Step 7.

AC306561AH

Outer housing of the
driver's air bag module connector C-303

AC306758AD

C-303 Air bag
module
connector

MB991865
(Dummy resistor : 3

ΩΩ

MB991866
(Resistor harness)

(rear view

Ω

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-30

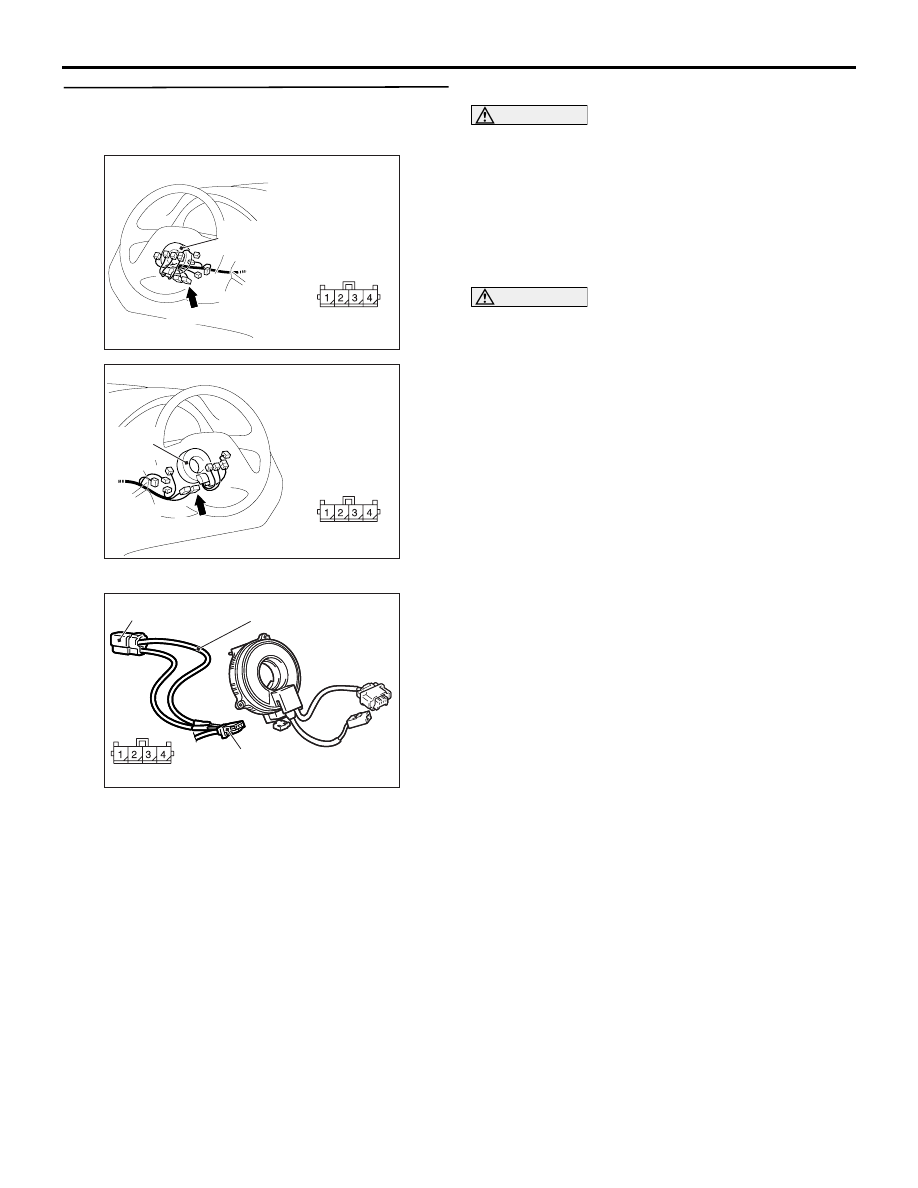

STEP 4. Check the clock spring. (MUT-III
diagnosis code.)
(1) Disconnect the negative battery terminal.

(2) Disconnect the clock spring connector C-309.

(3) Connect special tool dummy resistor (MB991865)

to special tool resistor harness (MB991866).

CAUTION

Do not insert a test probe into the terminal from
its front side directly, as the connector contact
pressure may be weakened.
(4) Insert special tool MB991866 into clock spring

harness side connector C-309 (terminal No.3 and
4 <1st squib> or terminal No.1 and 2 <2nd
squib>) by backprobing.

(5) Connect the negative battery terminal.

CAUTION

Always diagnosis code B1481 is set when
checking diagnosis code B1402. This is because
the second side terminal is isolated when
checking it, diagnosis code B1481 is set but this
is not a fault. In addition, always diagnosis code
B1401 is set when checking diagnosis code
B1482 because the first side terminal is isolated.
(6) Erase the diagnosis code memory, and check the

diagnosis code.

Q: Is the checked diagnosis code set?

YES :

Go to Step 5.

NO :

Replace the clock spring. (Refer to

P.52B-225

). Then go to Step 7.

AC310153AH

Connectors: C-309 <LHD>

Clock
spring

C-309 (Y)

Harness side
(rear view)

AC310183

AH

Connector: C-309 <RHD>

Clock
spring

C-309 (Y)

Harness side
(rear view)

AC306767

AC306767

C-309 Clock spring
connector

AC

(rear view)

MB991865
(Dummy resistor : 3

ΩΩ

MB991866
(Resistor harness)

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-31

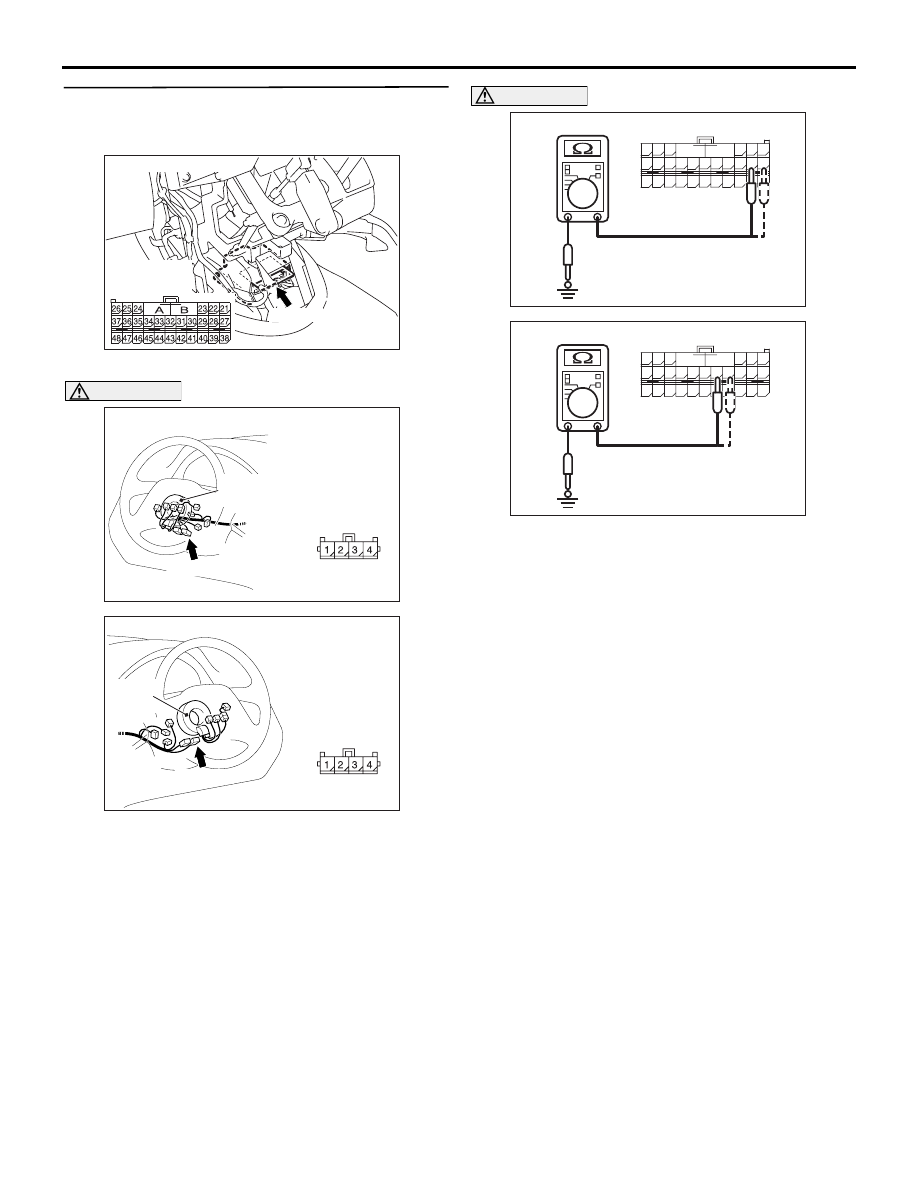

STEP 5. Check the driver’s air bag module
circuit. Resistance measurement at the SRS-ECU
connector C-119.

(1) Disconnect SRS-ECU connector C-119.

DANGER

To prevent the air bag from deploying
unintentionally, disconnect the clock spring
connector C-309 to short the squib circuit.

(2) Disconnect the clock spring connector C-309.

CAUTION

Do not insert a test probe into the terminal from
its front side directly, as the connector contact
pressure may be weakened.
(3) Check for continuity between C-119 harness side

connector terminals 36 and 37 <1st squib> or 33
and 34 <2nd squib> and body earth.

OK: Open circuit

Q: Is the check result normal?

YES :

Erase the diagnosis code memory, and

check the diagnosis code. If diagnosis code
B1402 <1st squib> or B1482 <2nd squib>
sets, replace the SRS-ECU. (Refer to

P.52B-223

). Then go to Step 6.

NO :

Go to Step 7.

AC311438 AD

C-119 (Y)

Connector: C-119

Harness side
(front view)

AC310153AH

Connectors: C-309 <LHD>

Clock
spring

C-309 (Y)

Harness side
(rear view)

AC310183

AH

Connector: C-309 <RHD>

Clock
spring

C-309 (Y)

Harness side
(rear view)

AC301591

42

31

38

27

21

41

28

39

22

30

25

47

36

33

44

34

45

37

48

26

29

23

40

32

43

35

46

24

B

A

C-119 Harness side
connector (rear view)

<1st squib>

AE

AC308149

42

31

38

27

21

41

28

39

22

30

25

47

36

33

44

34

45

37

48

26

29

23

40

32

43

35

46

24

B

A

C-119 Harness side
connector (rear view)

<2nd squib>

AD
