TEST EQUIPMENTS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-12

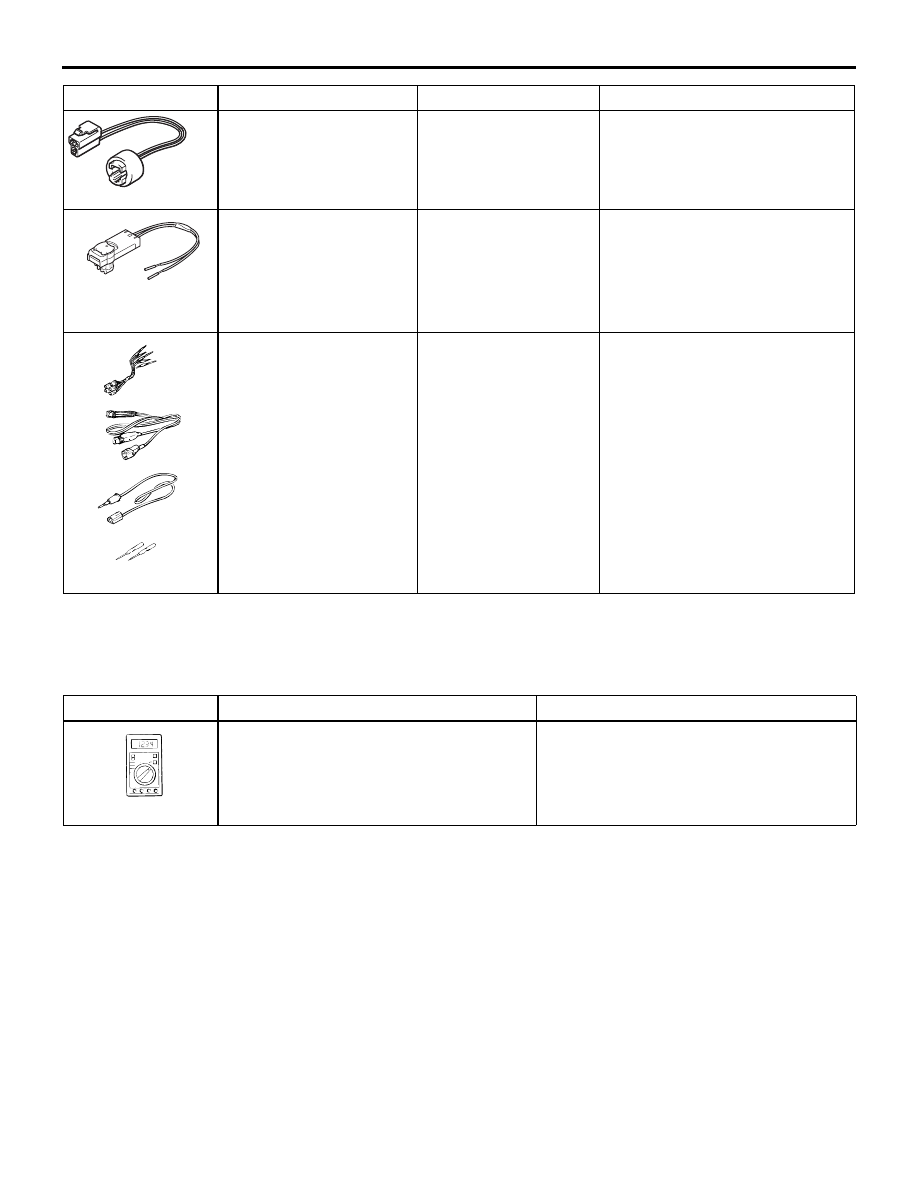

TEST EQUIPMENTS

M1524000800353

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1524003100502

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-5

.

DIAGNOSIS FUNCTION

M1524003200424

HOW TO READ DIAGNOSIS CODE

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-5

.

HOW TO ERASE DIAGNOSIS CODE

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-5

.

MB991884

Resistor harness (For
Pre-tensioner)

Seat belt with pre-tensioner and
curtain air bag circuit check

MB991885

Pre-tensioner adapter
harness

• Deployment of seat belt with

pre-tensioner and curtain air
bag inside the vehicle

• Deployment of seat belt with

pre-tensioner and curtain air
bag outside the vehicle

MB991223
A: MB991219
B: MB991220
C: MB991221
D: MB991222

Harness set
A: Test harness
B: LED harness
C: LED harness
adapter
D: Probe

Checking the continuity and
measuring the voltage at the
SRS-ECU harness connector

Tool

No.

Name

Application

MB991884

MB991885

MB991223AW

A

B

C

D

Tool

Name

Application

Digital multi-meter

Checking SRS electrical circuitry (Use
multi-meter for which the maximum test
current is 2 mA or less at minimum range
of resistance measurement

AC300683

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-13

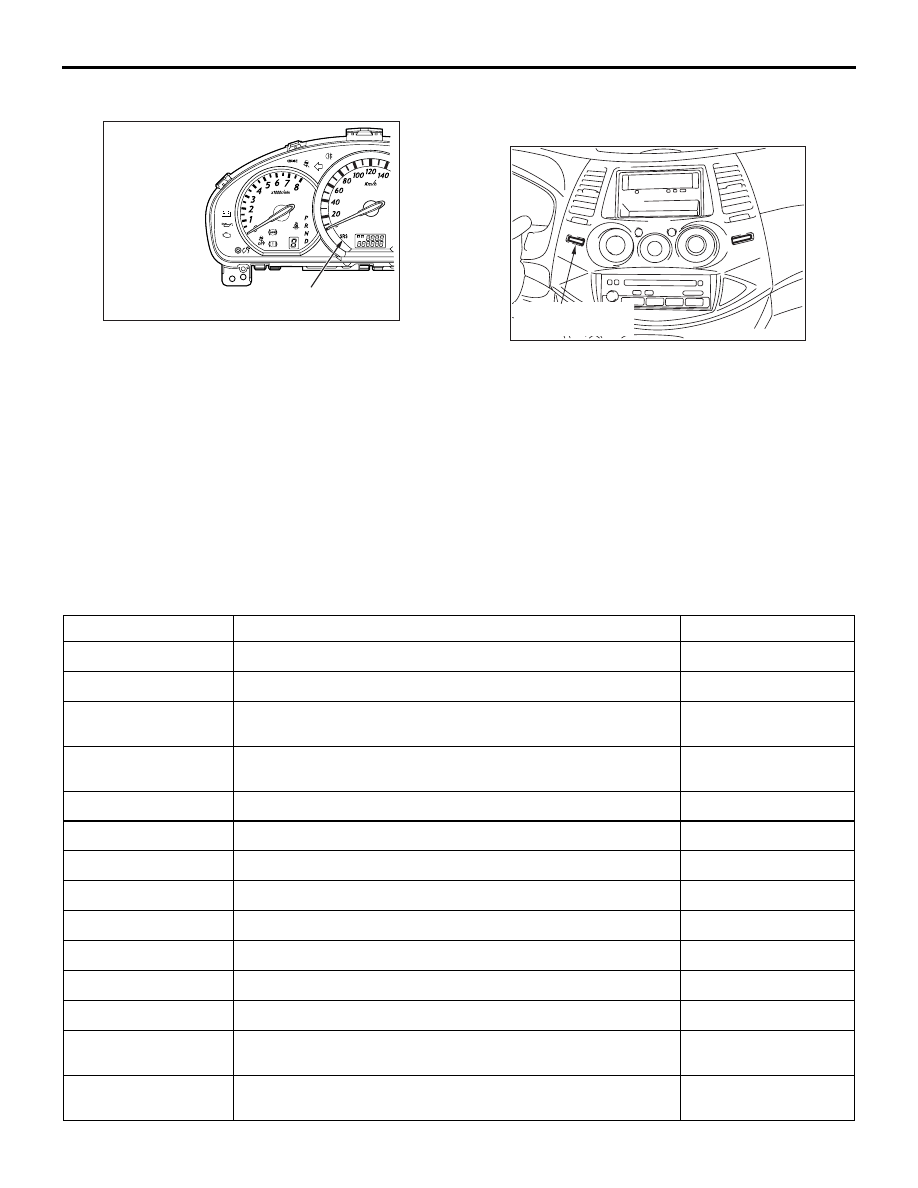

SRS WARNING LAMP CHECK

M1524004300457

1. Check that the SRS warning lamp comes on

when the ignition switch is turned ON.

2. Check that the SRS warning lamp illuminates for

about 7 seconds and then goes out.

3. If this is not the cause, check the diagnosis codes.

PASSENGER'S AIR BAG OFF INDICATOR
LAMP CHECK

M1524026300035

1. Check that the passenger’s air bag OFF indicator

lamp illuminates when the ignition switch is in the
"ON" position.

2. Check that the passenger’s air bag off indicator

lamp illuminates for 7 seconds and extinguishes.
(The lamp does not extinguish when the
passenger's air bag cut off switch is air bag OFF
position.)

3. If not, check for diagnosis code.

CHECK CHART FOR DIAGNOSIS CODES

M1524003300647

Inspect according to the inspection chart that is appropriate for the diagnosis code.

AC312486

SRS warning lamp

AB

AC311370AB

Passenger's air bag
off indicator lamp

Code No.

Diagnosis item

Reference Page

B1400

*3

Driver's air bag (1st squib) short-circuited

P.52B-18

B1401

*3

Driver's air bag (1st squib) open-circuited

P.52B-24

B1402

*3

Driver's air bag (1st squib) drive circuit (earth side)
short-circuited

P.52B-28

B1403

*3

Driver's air bag (1st squib) drive circuit (power supply side)
short-circuited

P.52B-33

B1404

*5

Driver's air bag (1st squib) activating circuit short-circuited

P.52B-142

B1405

*5

Driver's air bag (1st squib) activating circuit open-circuited

P.52B-142

B1406

*5

G-sensor of front impact sensor (RH) failure

P.52B-37

B1407

*3

Front impact sensor (RH) voltage error

P.52B-38

B1408

*3

Front impact sensor (RH) communication error

P.52B-41

B1409

*3

Front impact sensor (RH) communication impossible

P.52B-41

B1410

*3

Passenger's (front) air bag (1st squib) short-circuited

P.52B-43

B1411

*3

Passenger's (front) air bag (1st squib) open-circuited

P.52B-49

B1412

*3

Passenger's (front) air bag (1st squib) drive circuit (earth
side) short-circuited

P.52B-52

B1413

*3

Passenger's (front) air bag (1st squib) drive circuit (power
supply side) short-circuited

P.52B-56

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-14

B1414

*5

Passenger's (front) air bag (1st squib) activating circuit
short-circuited

P.52B-142

B1415

*5

Passenger's (front) air bag (1st squib) activating circuit
open-circuited

P.52B-142

B1416

*5

G-sensor of front impact sensor (LH) failure

P.52B-37

B1417

*3

Front impact sensor (LH) voltage error

P.52B-59

B1418

*3

Front impact sensor (LH) communication error

P.52B-62

B1419

*3

Front impact sensor (LH) communication impossible

P.52B-62

B1420

*3

Side-airbag squib (RH) short-circuited

P.52B-64

B1421

*3

Side-airbag squib (RH) open-circuited

P.52B-67

B1422

*3

Side-airbag squib (RH) drive circuit (earth side) shorted

P.52B-70

B1423

*3

Side-airbag squib (RH) drive circuit (power supply side)
shorted

P.52B-72

B1424

*5

Side-airbag squib (RH) drive circuit shorted

P.52B-142

B1425

*5

Side-airbag squib (RH) drive circuit open

P.52B-142

B1426

*5

G-sensor of side impact sensor (RH) failure

P.52B-74



B1427

*3

Side impact sensor (RH) voltage error

P.52B-75

B1428

*3

Side impact sensor (RH) communication error

P.52B-77

B1429

*3

Side impact sensor (RH) communication impossible

P.52B-77

B1430

*3

Side-airbag squib (LH) short-circuited

P.52B-79

B1431

*3

Side-airbag squib (LH) open-circuited

P.52B-82

B1432

*3

Side-airbag squib (LH) drive circuit (earth side) shorted

P.52B-85

B1433

*3

Side-airbag squib (LH) drive circuit (power supply side)
shorted

P.52B-87

B1434

*5

Side-airbag squib (LH) drive circuit shorted

P.52B-142

B1435

*5

Side-airbag squib (LH) drive circuit open

P.52B-142



B1436

*5

G-sensor of side impact sensor (LH) failure

P.52B-74



B1437

*3

Side impact sensor (LH) voltage error

P.52B-89

B1438

*3

Side impact sensor (LH) communication error

P.52B-92

B1439

*3

Side impact sensor (LH) communication impossible

P.52B-92



B1440

*3

Curtain air bag squib (RH) short-circuited

P.52B-94

B1441

*3

Curtain air bag squib (RH) open-circuited

P.52B-98

B1442

*3

Curtain air bag squib (RH) drive circuit (earth side) shorted

P.52B-101

B1443

*3

Curtain air bag squib (RH) drive circuit (power supply side)
shorted

P.52B-103

B1444

*5

Curtain air bag squib (RH) drive circuit shorted

P.52B-142

B1445

*5

Curtain air bag squib (RH) drive circuit open

P.52B-142

Code No.

Diagnosis item

Reference Page

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-15

B1446

*5

G-sensor of side impact sensor (Rear) (RH) failure

P.52B-105

B1447

*3

Side impact sensor (Rear) (RH) voltage error

P.52B-106

B1448

*3

Side impact sensor (Rear) (RH) communication error

P.52B-109

B1449

*3

Side impact sensor (Rear) (RH) communication impossible

P.52B-109

B1450

*3

Curtain air bag squib (LH) short-circuited

P.52B-111

B1451

*3

Curtain air bag squib (LH) open-circuited

P.52B-116

B1452

*3

Curtain air bag squib (LH) drive circuit (earth side) shorted

P.52B-120

B1453

*3

Curtain air bag squib (LH) drive circuit (power supply side)
shorted

P.52B-123

B1454

*5

Curtain air bag squib (LH) drive circuit shorted

P.52B-142

B1455

*5

Curtain air bag squib (LH) drive circuit open

P.52B-142

B1456

*5

G-sensor of side impact sensor (Rear) (LH) failure

P.52B-105

B1457

*3

Side impact sensor (Rear) (LH) voltage error

P.52B-126

B1458

*3

Side impact sensor (Rear) (LH) communication error

P.52B-128

B1459

*3

Side impact sensor (Rear) (LH) communication impossible

P.52B-128

B1460

*3

Seat belt pre-tensioner
(RH) squib short-circuited

P.52B-130

B1461

*3

Seat belt pre-tensioner
(RH) squib open-circuited

P.52B-134

B1462

*3

Seat belt pre-tensioner
(RH) squib drive circuit (earth side) short-circuited

P.52B-136

B1463

*3

Seat belt pre-tensioner
(RH) squib drive circuit (power supply side) short-circuited

P.52B-139

B1464

*5

Seat belt pre-tensioner
(RH) squib drive circuit shorted

P.52B-142

B1465

*5

Seat belt pre-tensioner
(RH) squib drive circuit open

P.52B-142

B1466

*5

Analog G-sensor malfunction

P.52B-142

B1467

*5

Safing G-sensor open-circuited (for frontal collision)

P.52B-142

B1468

*5

Safing G-sensor short-circuited (for frontal collision)

P.52B-142

B1469

*5

Safing G-sensor malfunction (for side collision)

P.52B-142

B1470

*3

Seat belt pre-tensioner
(LH) squib short-circuited

P.52B-145



B1471

*3

Seat belt pre-tensioner
(LH) squib open-circuited

P.52B-149



B1472

*3

Seat belt pre-tensioner
(LH) squib (earth side) short-circuited

P.52B-152



B1473

*3

Seat belt pre-tensioner
(LH) squib (power supply side) short-circuited

P.52B-154

Code No.

Diagnosis item

Reference Page
