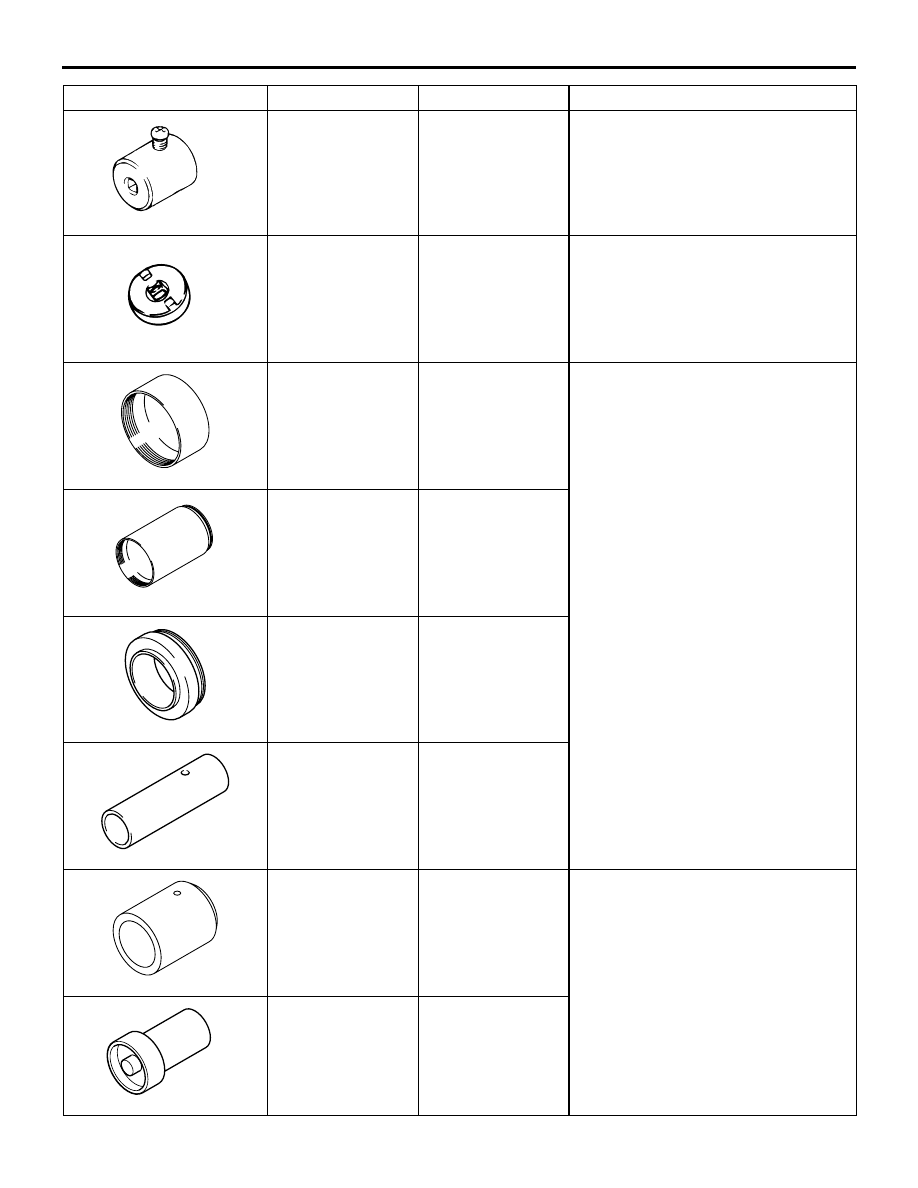

SPECIAL TOOLS

POWER STEERING

37-6

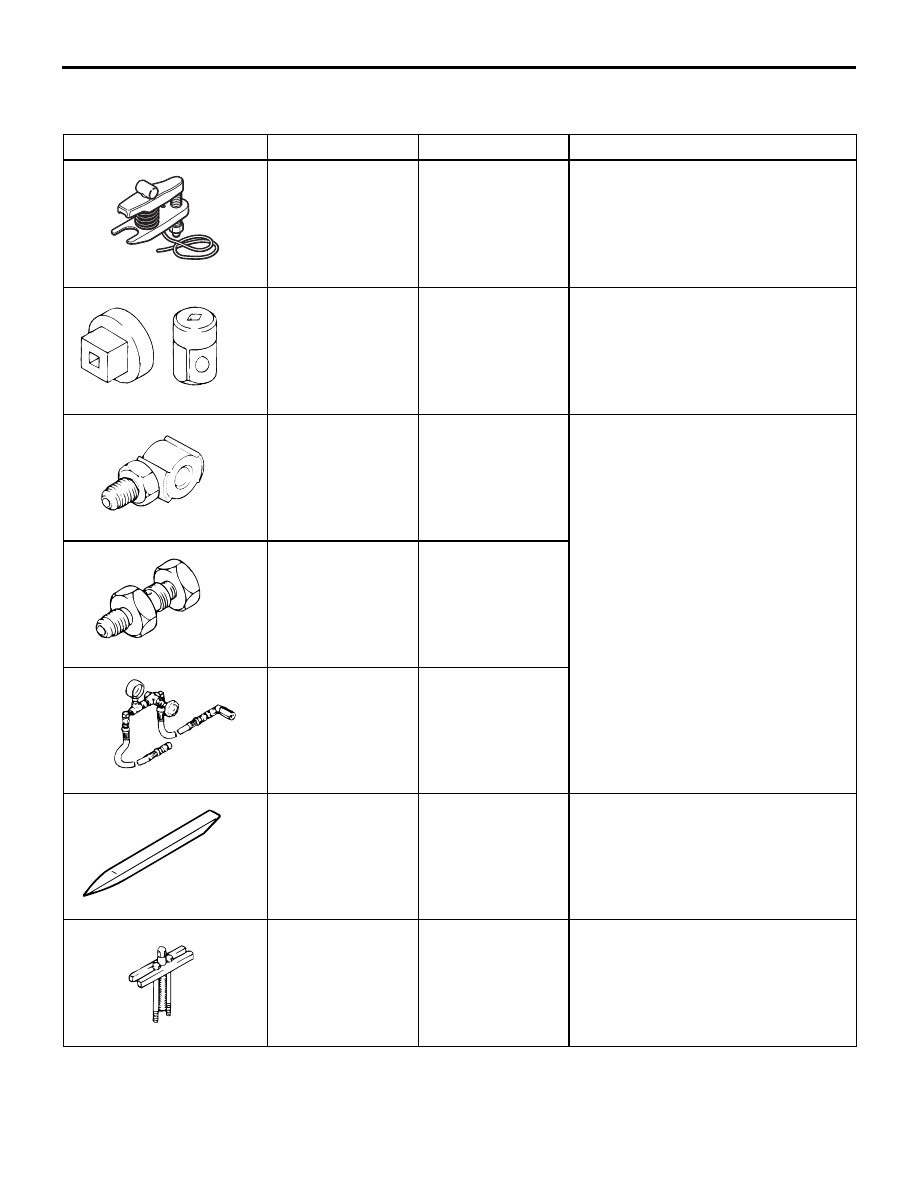

SPECIAL TOOLS

M1372000600484

Tool

Number

Name

Use

MB991897

Ball joint remover

Knuckle and tie rod end ball joint
disconnection
NOTE: Steering linkage puller
(MB990635 or MB991113) is also
available to disconnect knuckle and
tie rod end ball joint.

MB990326

Preload socket

Tie rod end ball joint turning torque
check

MB991548

Power steering oil
pressure gauge
adapter (Pump
side)

Oil pump pressure test

MB991549

Power steering oil
pressure gauge
adapter (Hose
side)

MB990662

Power steering oil
pressure gauge

MB990784

Ornament remover Cover removal

MB990803

Steering wheel
puller

Steering wheel removal

AC106827

MB990326

MB991548

MB991549

MB990662

MB990784

MB990803

SPECIAL TOOLS

POWER STEERING

37-7

MB991006

Preload socket

Steering gear total pinion torque
check and adjustment

MB991621

Piston driver

• Rack support cover removal

• Rack support adjustment

MD998812

Installer cap

Gear housing mount bushing removal

MD998813

Installer 100

MD998822

Installer adopter

MD998368

Bearing installer

MD999569

Camshaft oil seal
installer

Gear housing mount bushing
press-fitting

MB990996

Lower arm bushing
arbor

Tool

Number

Name

Use

MB991006

MB991621

B990996

ON-VEHICLE SERVICE

POWER STEERING

37-8

ON-VEHICLE SERVICE

STEERING WHEEL FREE PLAY CHECK

M1372001000418

1. With the engine running (hydraulic operation), set

the front wheels straight ahead.

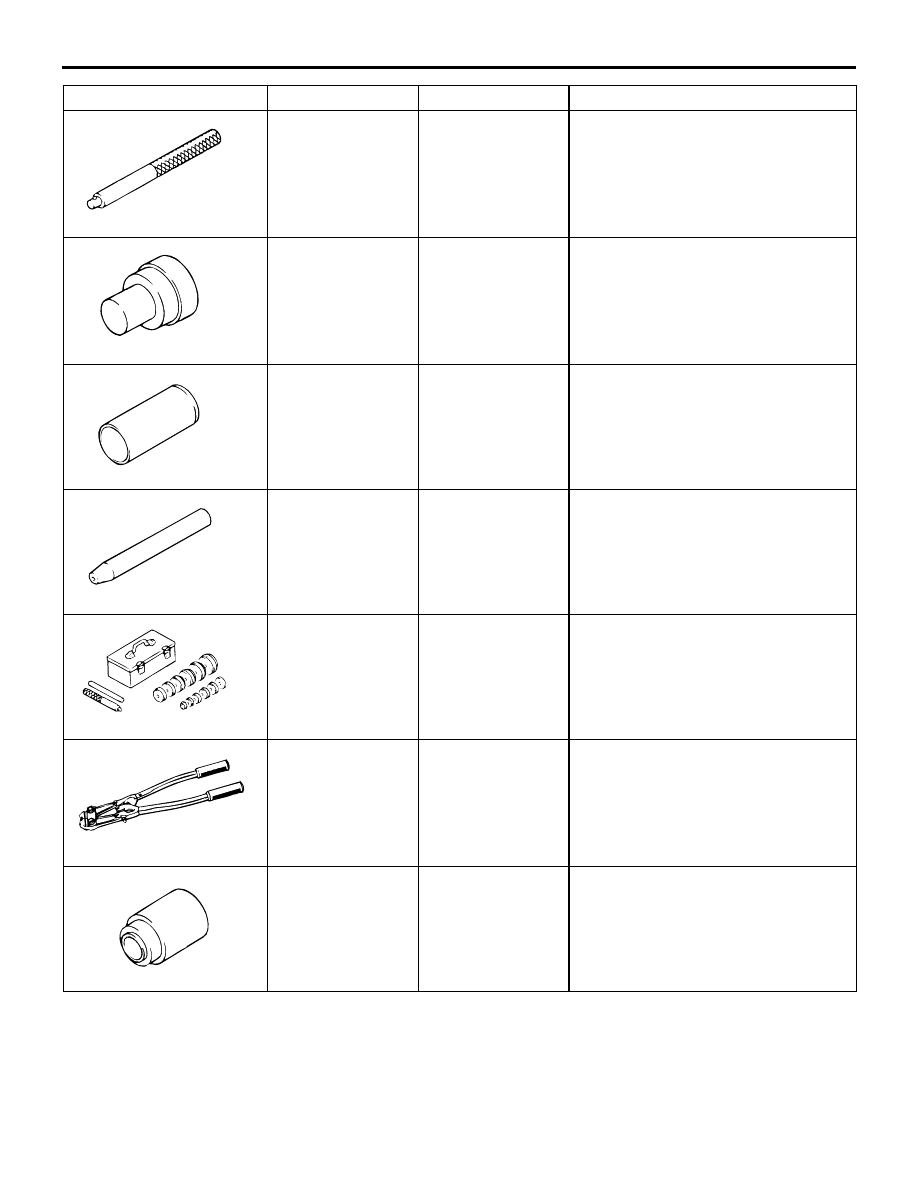

MB991197

Bar (long type)

Oil seal installation

MB991199

Oil seal and
bearing installer

Oil seal installation

MB991317

Seal ring installer

Seal rings installation

MB991213

Oil seal protector

Rack installation

MB990925

Bearing and oil
seal installer set

• Oil seal and bearing installation

• MB990927, MB990938, MB990939

(For details, refer to GROUP 26,
Special Tools

P.26-4

).

MB991561

Boot band crimping
tool

Bellows band installation

MB990776

Front axle base

Tie rod end ball joint dust cover
installation

Tool

Number

Name

Use

MB991197

MB991199

AB

MB991317

MB991212

MB990925

MB991561

MB990776

ON-VEHICLE SERVICE

POWER STEERING

37-9

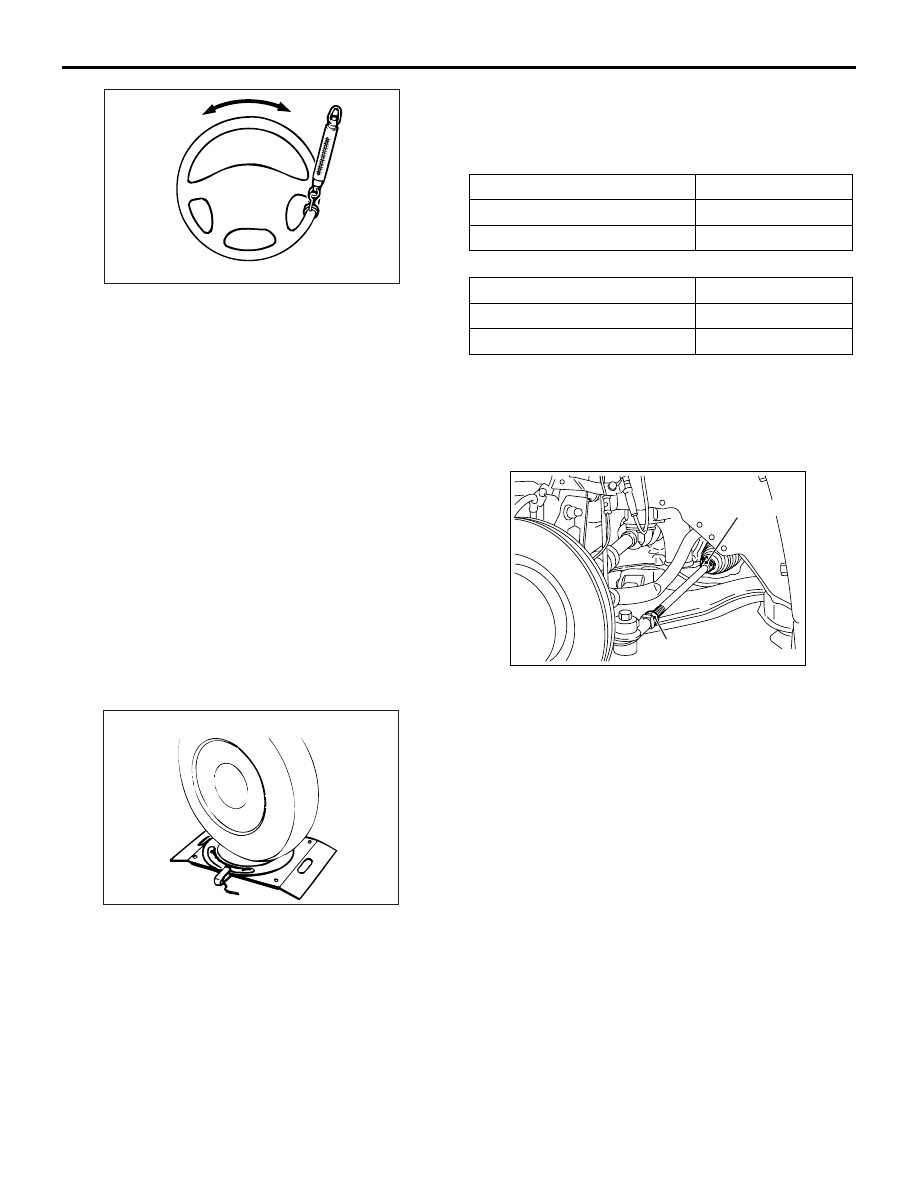

2. Measure the play on the steering wheel

circumference before the wheels start to move
when slightly moving the steering wheel in both
directions.

Limit: 30 mm

3. When the play exceeds the limit, check for the

play on the steering shaft and steering linkage
connection. Correct or replace.

4. If the free play still exceeds the limit value, set the

steering wheel straight ahead with the engine
stopped. Load 5 N towards the steering wheel
circumference and check the play.

Standard value (steering wheel play with the
engine stopped): 10 mm or less

5. If the play exceeds the standard value, remove

the steering gear (Refer to

P.37-19

) and check

the total pinion torque (Refer to

P.37-24

).

STEERING ANGLE CHECK

M1372001100471

1. Place the front wheel on a turning radius gauge

and measure the steering angle.

Standard value:
<Vehicles with 16 inch wheel>

<Vehicles with 17 inch wheel>

2. If the steering angle is not within the standard

value, adjust the toe-in as follows.

Standard value:

at the centre of tyre tread: 0

± 3 mm

Toe angle (per wheel): 0

°00' ± 08'

3. Loosen the lock nut, and unclip the bellows.
4. Adjust the toe-in by turning the left and right tie

rod turnbuckles by the same amount (in opposite
directions).
NOTE: The toe will move out as the left
turnbuckle is turned toward the front of the vehicle
and the right turnbuckle is turned toward the rear
of the vehicle.

5. Tighten the lock nut to the specified torque, and

tighten the bellows by the clip.

Tightening torque: 52

± 2 N⋅m

6. Recheck the steering angle.

ACX01122 AB

AC000756AB

Item

Specification

Inner wheels

39

°30' ± 2°

Outer wheels (reference)

32

°30'

Item

Specification

Inner wheels

36

°30' ± 2°

Outer wheels (reference)

30

°50'

AC301979

AC

Lock nut

Bellows clip
