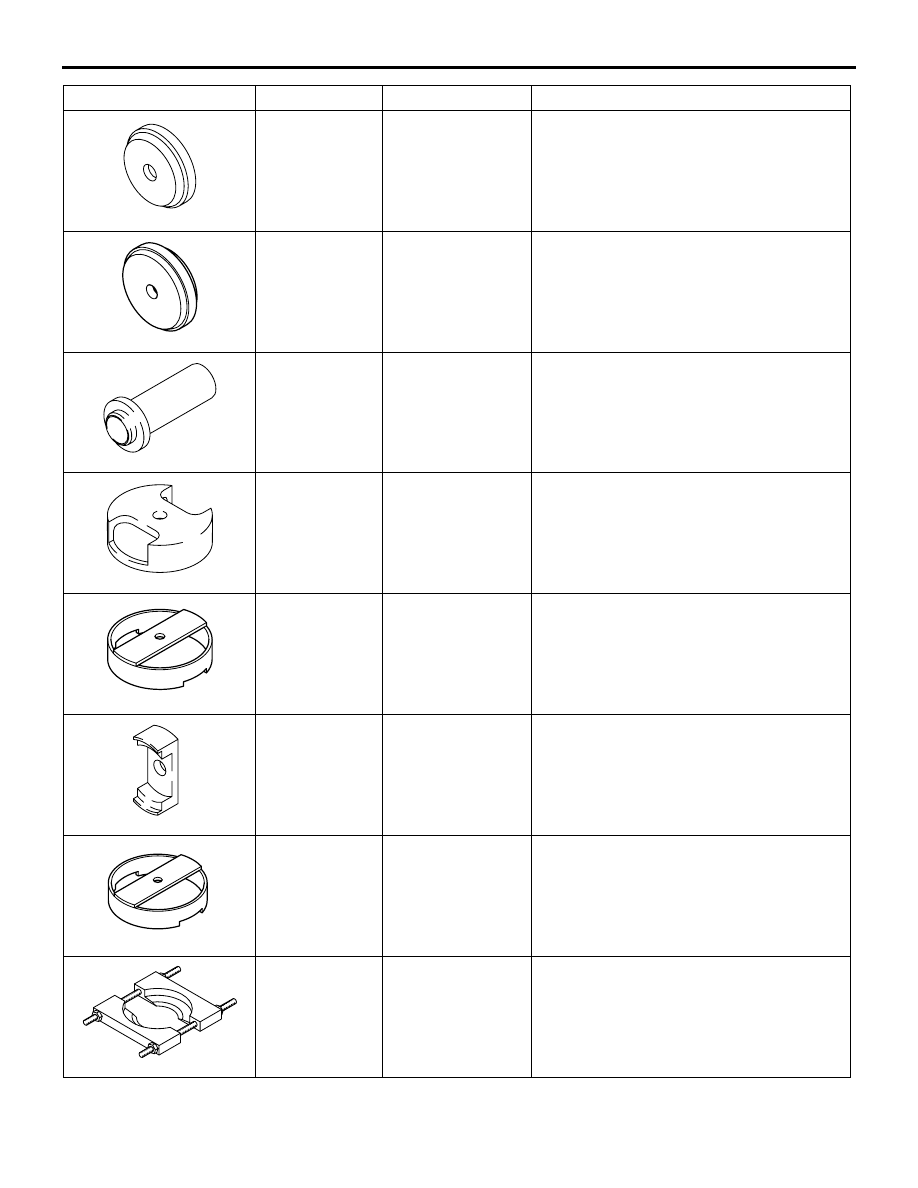

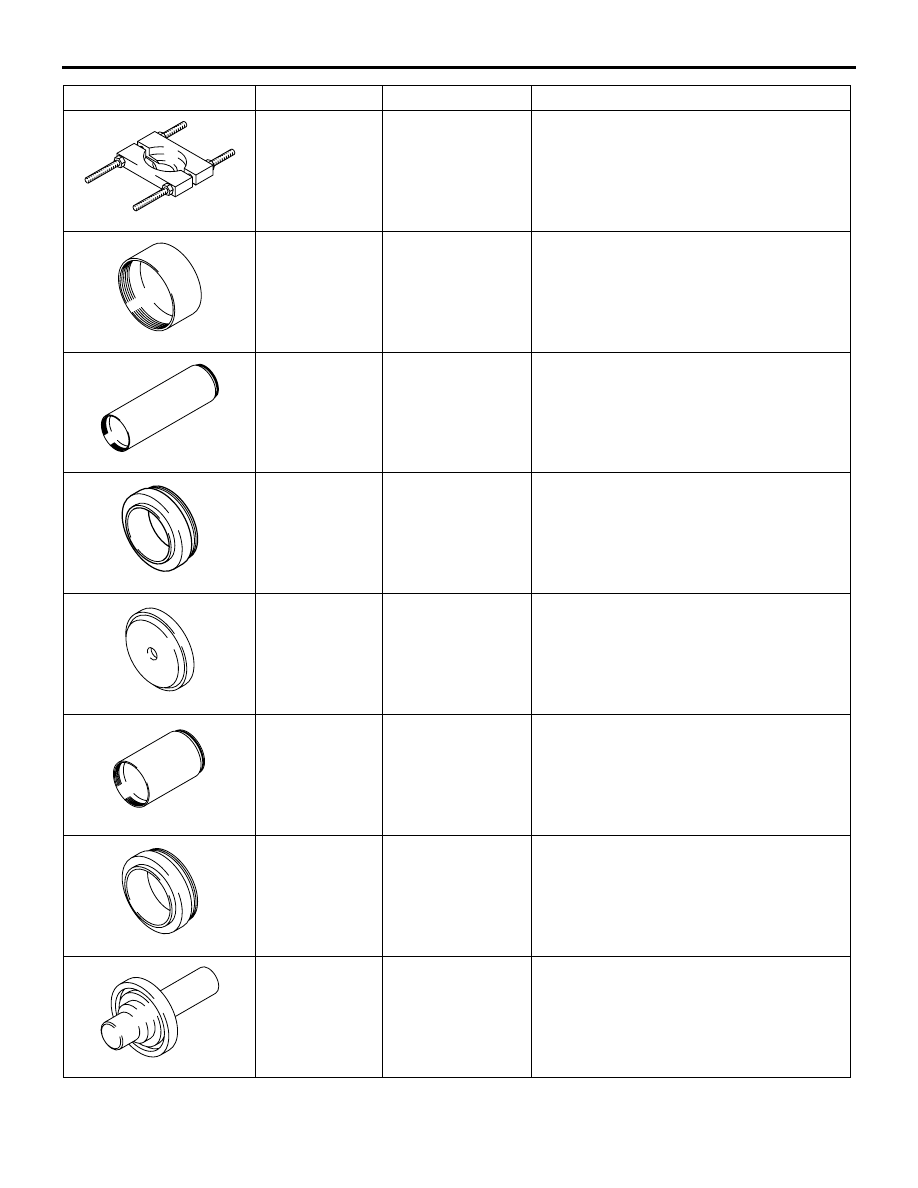

SPECIAL TOOLS

AUTOMATIC TRANSMISSION OVERHAUL

23B-12

MB990931

Installer adapter

Installation of cap

MB990935

Installer adapter

Installation of differential taper roller
bearing outer race

MD998334

Oil seal installer

Installation of oil pump oil seal

MD998907

Spring compressor Removal and installation of underdrive

clutch snap ring

MB991628

Spring compressor

• Measurement of underdrive clutch end

play

• Measurement of overdrive clutch end

play

MD999590

Spring compressor Removal and installation of reverse and

overdrive clutch snap ring

MB991790

Spring compressor Measurement of reverse clutch end play

MD998917

Bearing remover

• Removal of output shaft transfer driven

gear

• Removal of differential taper roller

bearing

Tool

Number

Name

Application

SPECIAL TOOLS

AUTOMATIC TRANSMISSION OVERHAUL

23B-13

MD998801

Bearing remover

Removal of output shaft taper roller
bearing

MD998812

Installer cap

Use with installer and installer adapter

MD998814

Installer 200

Use with installer cap and installer adapter

MD998823

Installer adapter
(48)

• Installation of output shaft taper roller

bearing

• Installation of transfer driven gear

MB990936

Installer adapter

• Installation of output shaft taper roller

bearing outer race

• Installation of transfer extension

housing oil seal

MD998813

Installer 100

Use with installer cap and installer adapter

MD998824

Installer adapter
(50)

Installation of differential taper roller
bearing

MD998800

Oil seal installer

Installation of drive shaft oil seal

Tool

Number

Name

Application

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL

23B-14

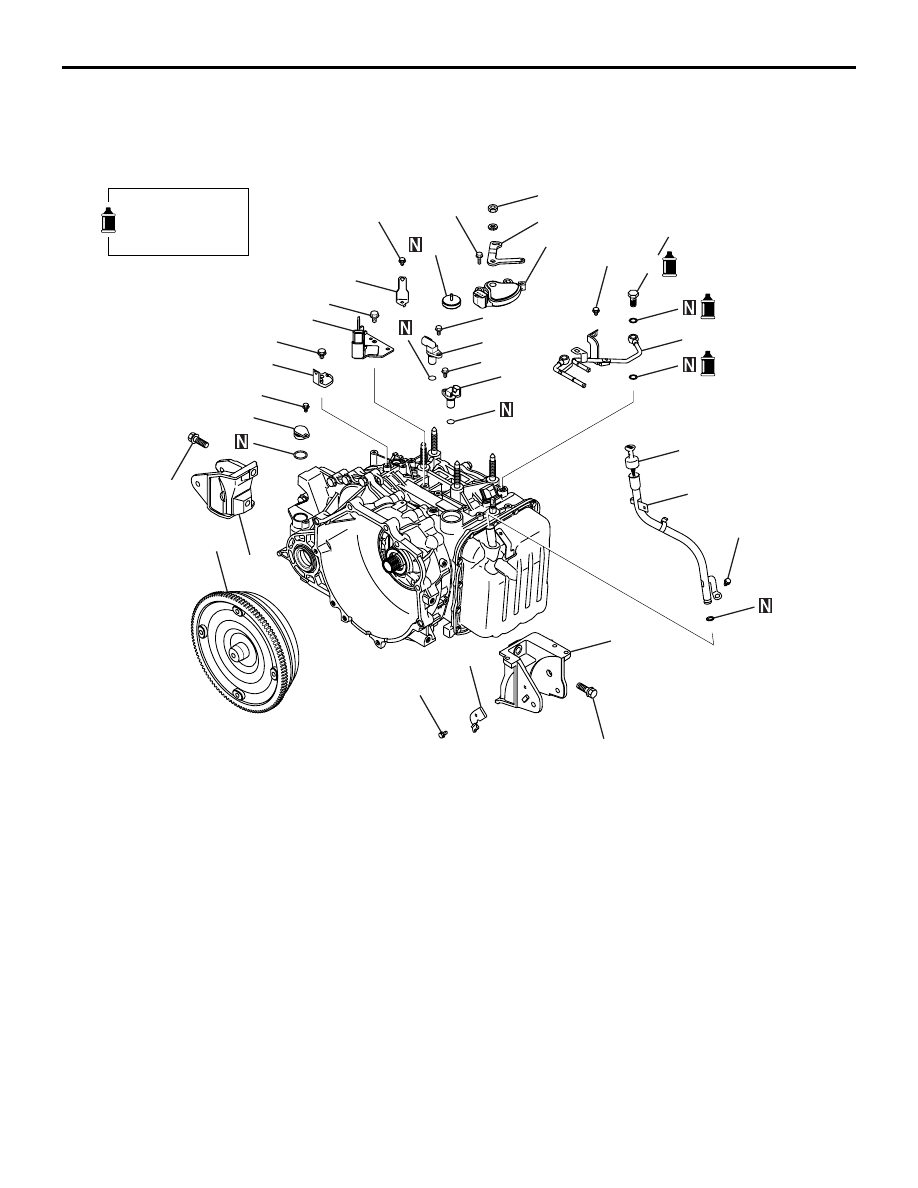

TRANSMISSION

DISASSEMBLY AND REASSEMBLY

M1233001000498

AK301299AC

22 ± 3 N·m

11 ± 1 N·m

11 ± 1 N·m

11 ± 1 N·m

11 ± 1 N·m

11 ± 1 N·m

11 ± 1 N·m

11 ± 1 N·m

23 ± 3 N·m

23 ± 3 N·m

90 ± 10 N·m

90 ± 10 N·m

4.9 ± 1.0 N·m

1

2

4

3

5

5

6

7

8

9

10

12

11

13

14

15

16

24 ± 3 N·m

Apply automatic
transmission fluid
to all moving parts
before installation.

1.

Torque converter

2.

Front roll stopper bracket

3.

Harness bracket

4.

Rear roll stopper bracket

5.

Corrugate clamp bracket

6.

Control cable bracket

7.

Oil level gauge

8.

Oil filler tube

9.

Eye bolt

10. Oil cooler feed tube
11. Air breather
12. Input shaft speed sensor
13. Output shaft speed sensor
14. Manual control lever
15. Inhibitor switch
16. Sealing cap

TRANSMISSION

AUTOMATIC TRANSMISSION OVERHAUL

23B-15

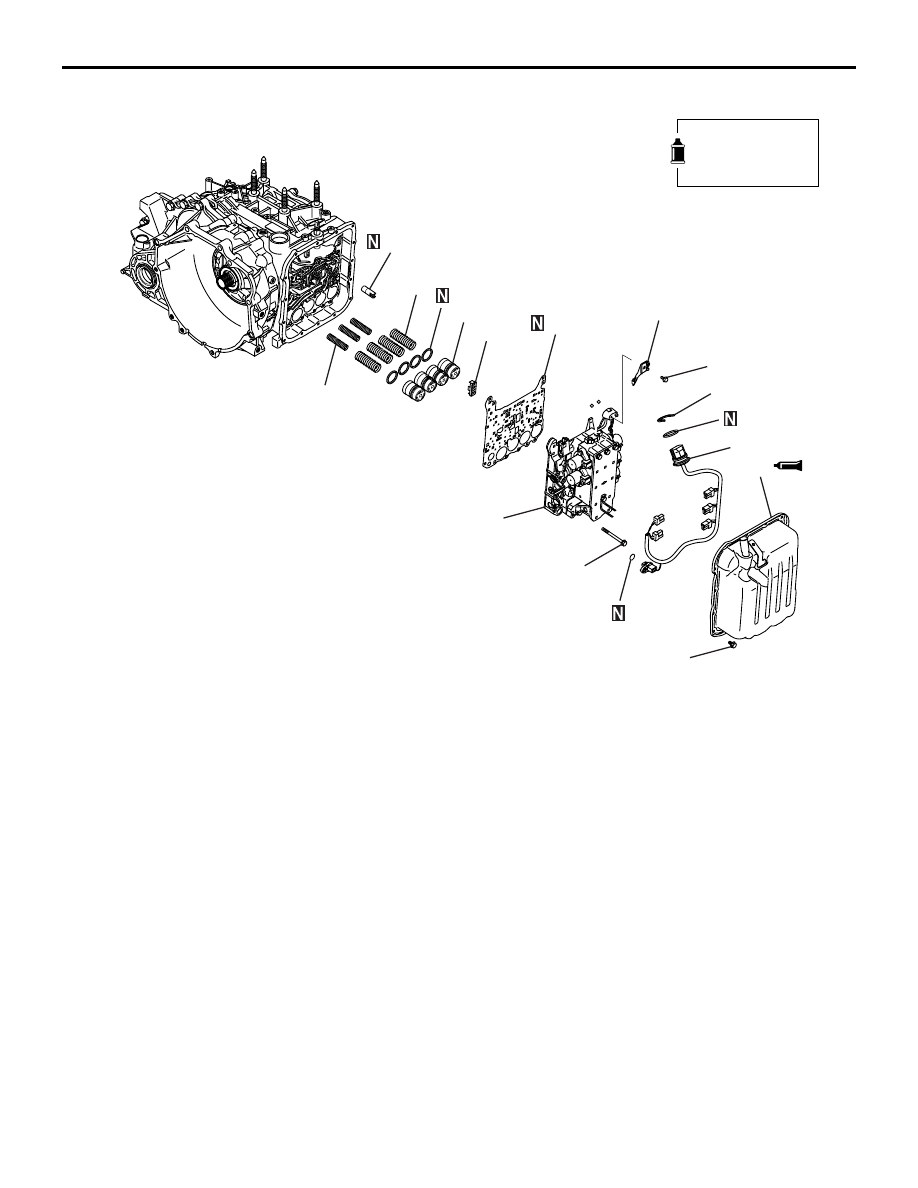

AK301300AC

11 ± 1 N·m

11 ± 1 N·m

17

18

19

20

21

22

23

24

25

26

27

6.0 ± 1.0 N·m

Apply automatic
transmission fluid
to all moving parts
before installation.

17. Valve body cover
18. Manual control shaft detent
19. Valve body
20. Gasket
21. Snap ring
22. Solenoid valve harness

23. Strainer
24. Second brake retainer oil seal
25. Accumulator piston
26. Accumulator spring
27. Accumulator spring
