STEERING WHEEL SENSOR
TRACTION CONTROL/ACTIVE STABILITY CONTROL SYSTEM
35C-169
INSTALLATION SERVICE POINT
>>A<< STEERING WHEEL SENSOR
NEUTRAL POINT ALIGNMENT
WARNING
Ensure that the clock spring’s mating marks
are properly aligned. If not, the steering
wheel may not rotate completely during a
turn, or the flat cable in the clock spring
could be damaged, This would prevent
normal SRS operation and possibly cause
serious injury to the driver.

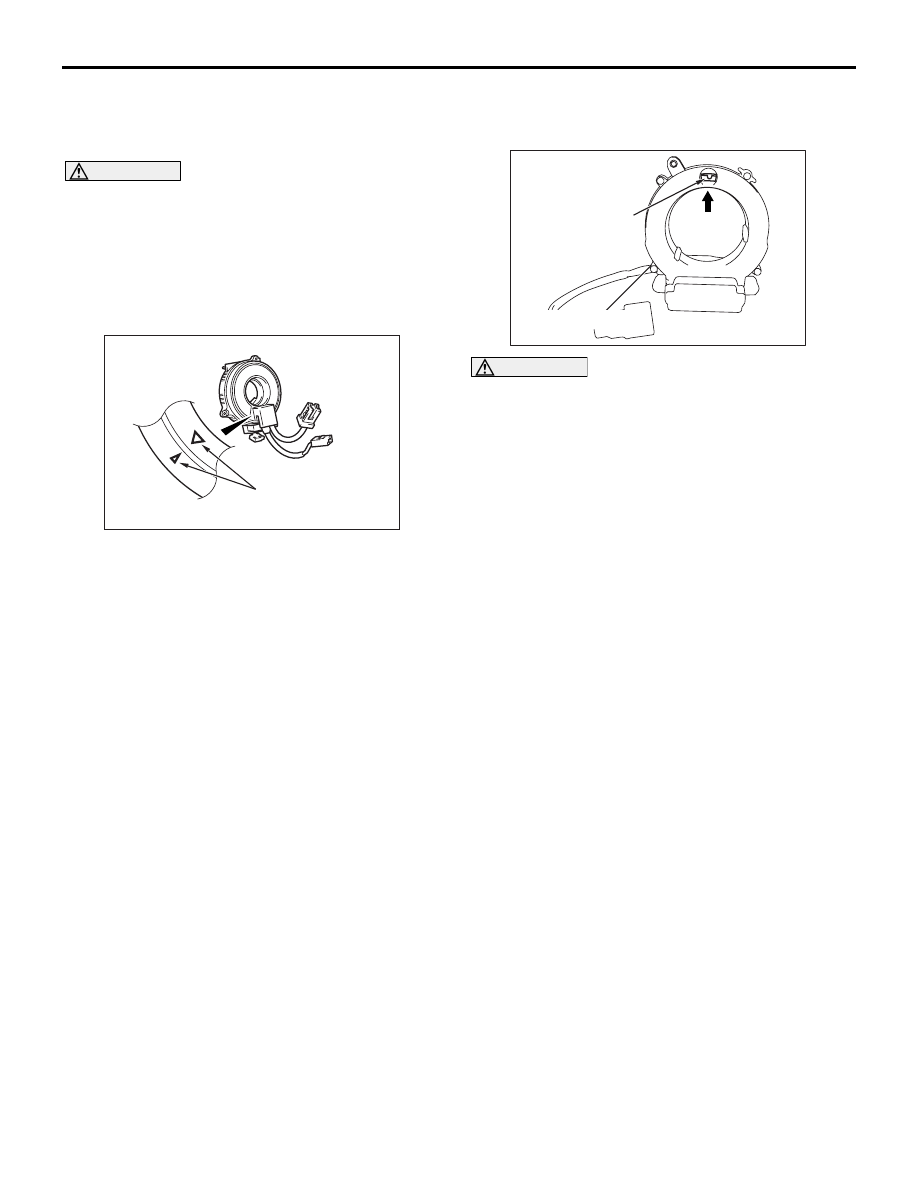

1. Align the mating marks of the clock spring.
<Mating Mark Alignment>
(1) Turn the clock spring clockwise fully. Then turn
it back approximately 3-3/4 turns
counterclockwise to align the mating marks.
(2) Turn the front wheels to the straight-ahead
position. Then install the clock spring to the
column switch.
CAUTION
Ensure that the steering wheel sensor’s mating
marks are properly aligned. If not, the steering
wheel sensor could be damaged.
2. Align the mating marks of the steering wheel
sensor as follows.
<Mating Mark Alignment>
(1) Turn the steering wheel sensor to the arrow
direction shown to align the mating marks.
(2) Align the mating marks on the clock spring and
the steering wheel sensor, and install the
steering wheel sensor to the column switch
assembly.
(3) Connect the steering wheel sensor connector.
AC303009
Mating marks
AE
AC308437AD
Steering wheel sensor
Mating mark
