TROUBLESHOOTING

TRACTION CONTROL/ACTIVE STABILITY CONTROL SYSTEM

35C-97

DIAGNOSIS

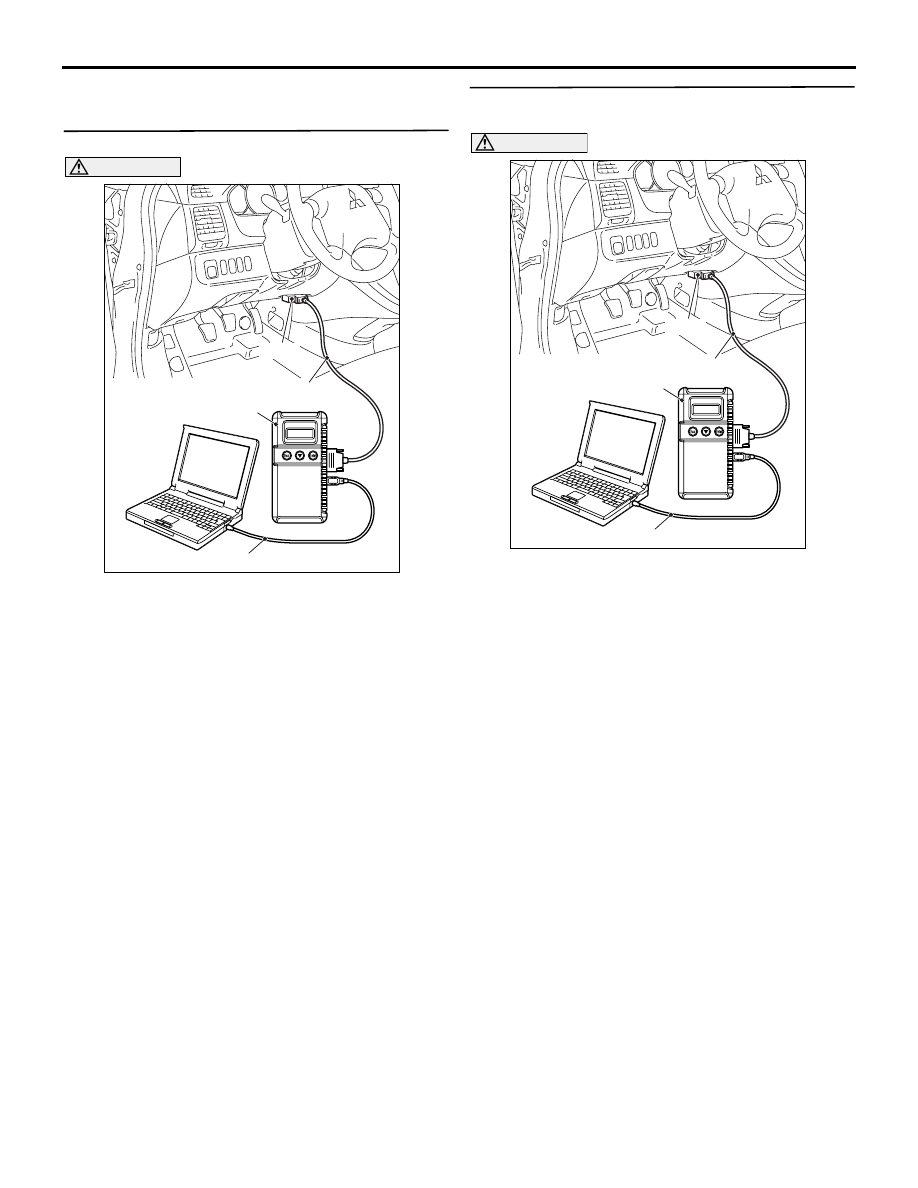

STEP 1. MUT-III CAN bus diagnostics

CAUTION

Before connecting or disconnecting the MUT-III,
turn the ignition switch to the "LOCK" (OFF)
position.
(1) Connect MUT-III to the 16-pin diagnosis

connector.

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF)

position.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the CAN bus line (Refer to GROUP
54D, CAN bus line Diagnostic flow

P.54D-9

). Then go to Step 2.

STEP 2. Check whether the diagnosis code is
reset.

CAUTION

Before connecting or disconnecting the MUT-III,
turn the ignition switch to the "LOCK" (OFF)
position.
(1) Turn the ignition switch to the "ON" position.
(2) Erase the diagnosis code.
(3) Turn the ignition switch to the "LOCK" (OFF)

position.

(4) Turn the ignition switch to the "ON" position.
(5) Check if the diagnosis code is set.
(6) Turn the ignition switch to the "LOCK" (OFF)

position.

Q: Is code No.C1864 set?

YES :

Go to Step 3.

NO :

The procedure is complete.

AC302297

AC310120

AB

MB991827

16-pin

MB991910

MB991824

AC302297

AC310120

AB

MB991827

16-pin

MB991910

MB991824

TROUBLESHOOTING

TRACTION CONTROL/ACTIVE STABILITY CONTROL SYSTEM

35C-98

STEP 3. MUT-III data list

CAUTION

Before connecting or disconnecting the MUT-III,
turn the ignition switch to the "LOCK" (OFF)
position.
(1) Connect the MUT-III to the 16-pin diagnosis

connector.

(2) Turn the ignition switch to the "ON" position.
(3) Use MUT-III to read the following data list.

Item 30: Straight G sensor/Item 31: Lateral G

sensor

• Acceleration should measure -1.7 − 1.7 G

when the vehicle is stopped at a level surface.

• Acceleration should change within the range

of -1.7

− 1.7 G during running.

Item 33: Yaw late sensor

• Angular velocity should measure -75 − 75

deg/s when the vehicle is stopped at a level
surface.

• Angular velocity should change within the

range of -75

−75 deg/s during running.

Q: Is the check result normal?

YES :

Then go to step 8.

NO :

Go to Step 4.

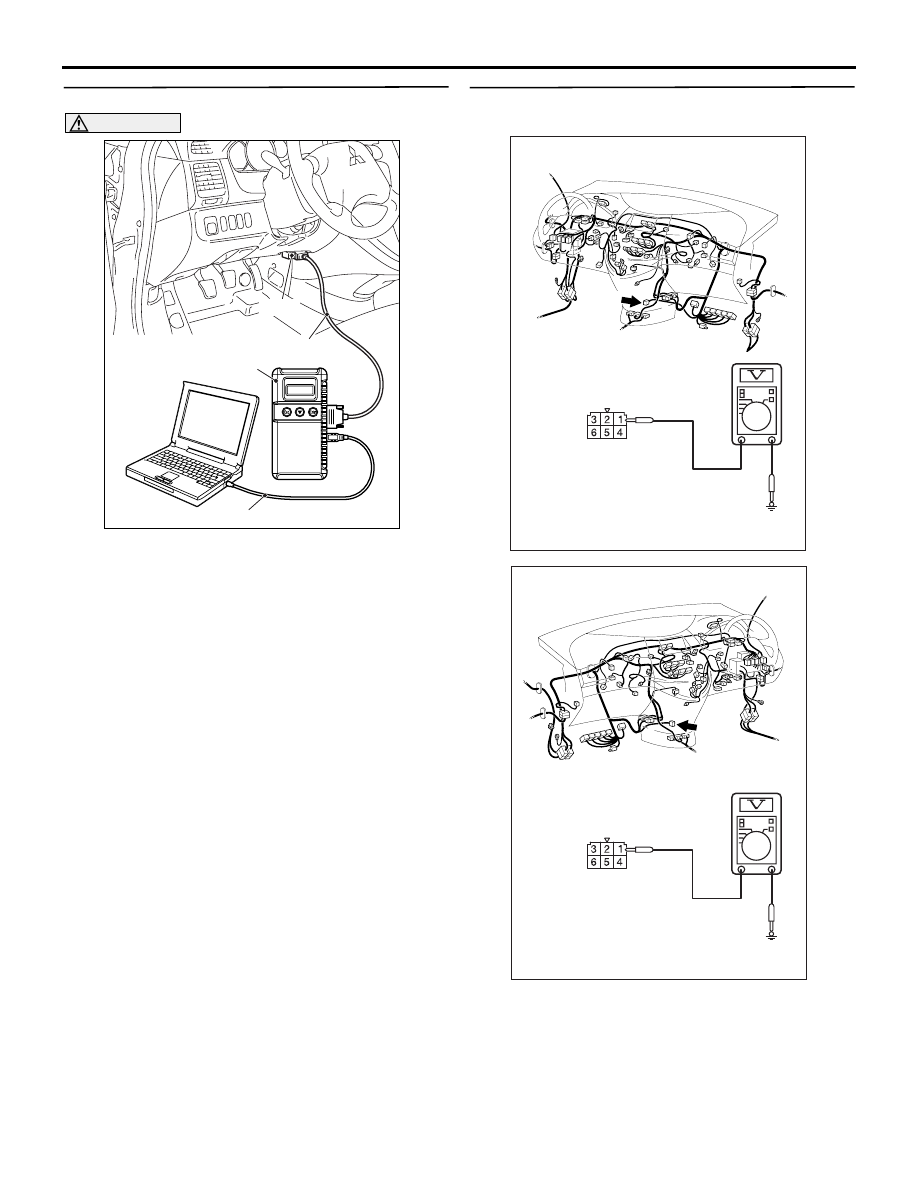

STEP 4. Voltage measurement at G and yaw late
sensor connector C-117.

(1) Disconnect the G and yaw late sensor connector

C-117, and measure at the harness side
connector.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 1 and

body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

AC302297

AC310120

AB

MB991827

16-pin

MB991910

MB991824

AC313186

AB

Connector: C-117
<L.H.drive vehicles>

C-117

C-117 Harness connector
(harness side)

AC313188AB

Connector: C-117
<R.H.drive vehicles>

C-117

C-117 Harness connector
(harness side)

TROUBLESHOOTING

TRACTION CONTROL/ACTIVE STABILITY CONTROL SYSTEM

35C-99

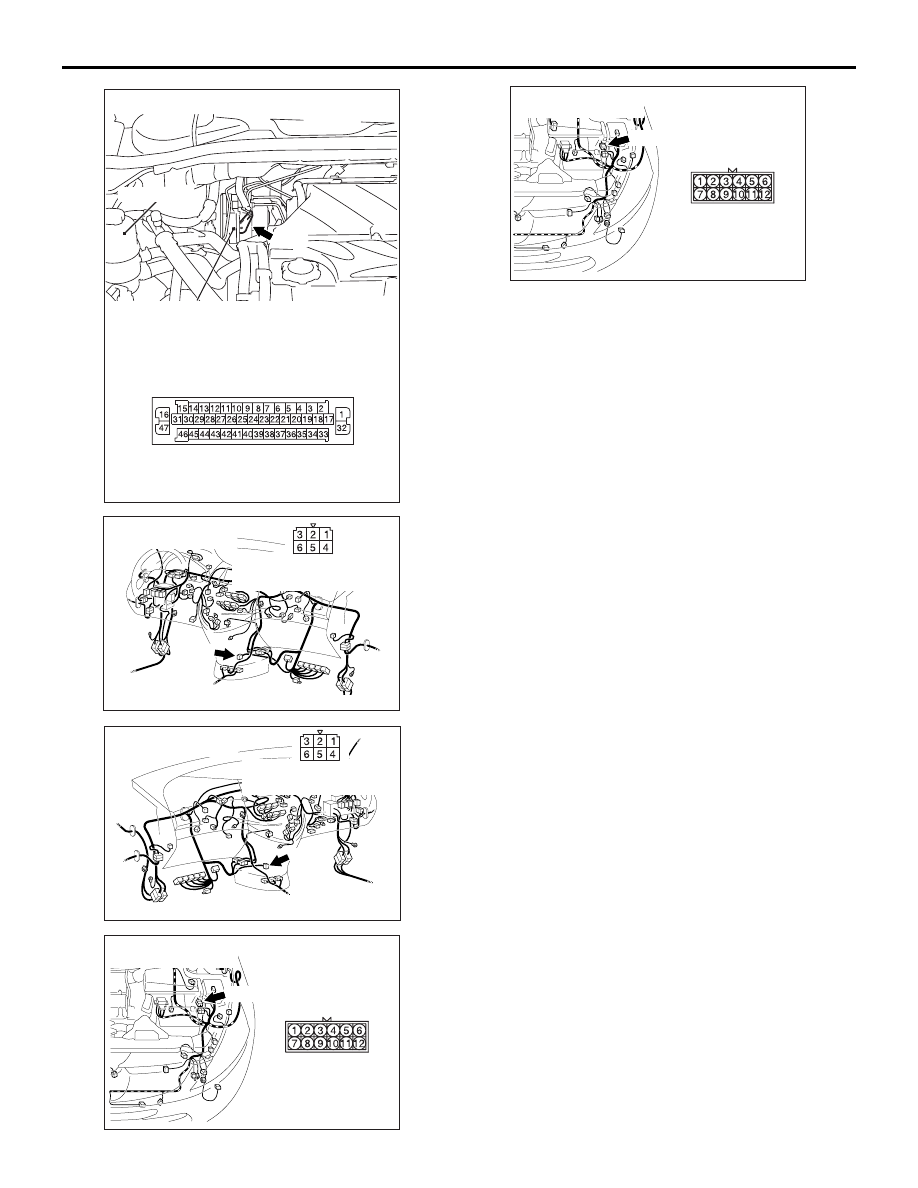

STEP 5. Check the harness wire between
TCL/ASC-ECU connector A-04 terminal 6 and G
and yaw late sensor connector C-117 terminal 1.

TROUBLESHOOTING

TRACTION CONTROL/ACTIVE STABILITY CONTROL SYSTEM

35C-100

NOTE: After inspecting the TCL/ASC-ECU
connector A-04, intermediate connector A-16 and G
and yaw late sensor connector C-117, inspect the
wire. If any of these connector is damaged, repair or
replace it. Then go to Step 8.

Q: Is the check result normal?

YES :

This malfunctions is intermittent. Refer to

GROUP 00, How to Use
Troubleshooting/Inspection Service Points

−

How to Cope with Intermittent Malfunction

P.00-5

.

NO :

Repair it and go to Step 8.

AC312621

Oil reservoir

Connector: A-04

AB

A-04

Hydraulic unit
(with built-in TCL/ASC-ECU)

A-04 Harness connector
(harness side)

AC312624AF

Connector: C-117
<L.H.drive vehicles>

C-117

C-117 Harness connector
(harness side)

AC312625AF

Connector: C-117
<R.H.drive vehicles>

C-117

C-117 Harness connector
(harness side)

AC312617AC

Connector: A-16
<L.H.drive vehicles>

A-16(B)

AC312619AC

Connector: A-16
<R.H.drive vehicles>

A-16(B)
