Mitsubishi Grandis. Manual - part 937





TROUBLESHOOTING

TRACTION CONTROL/ACTIVE STABILITY CONTROL SYSTEM

35C-73

DIAGNOSIS

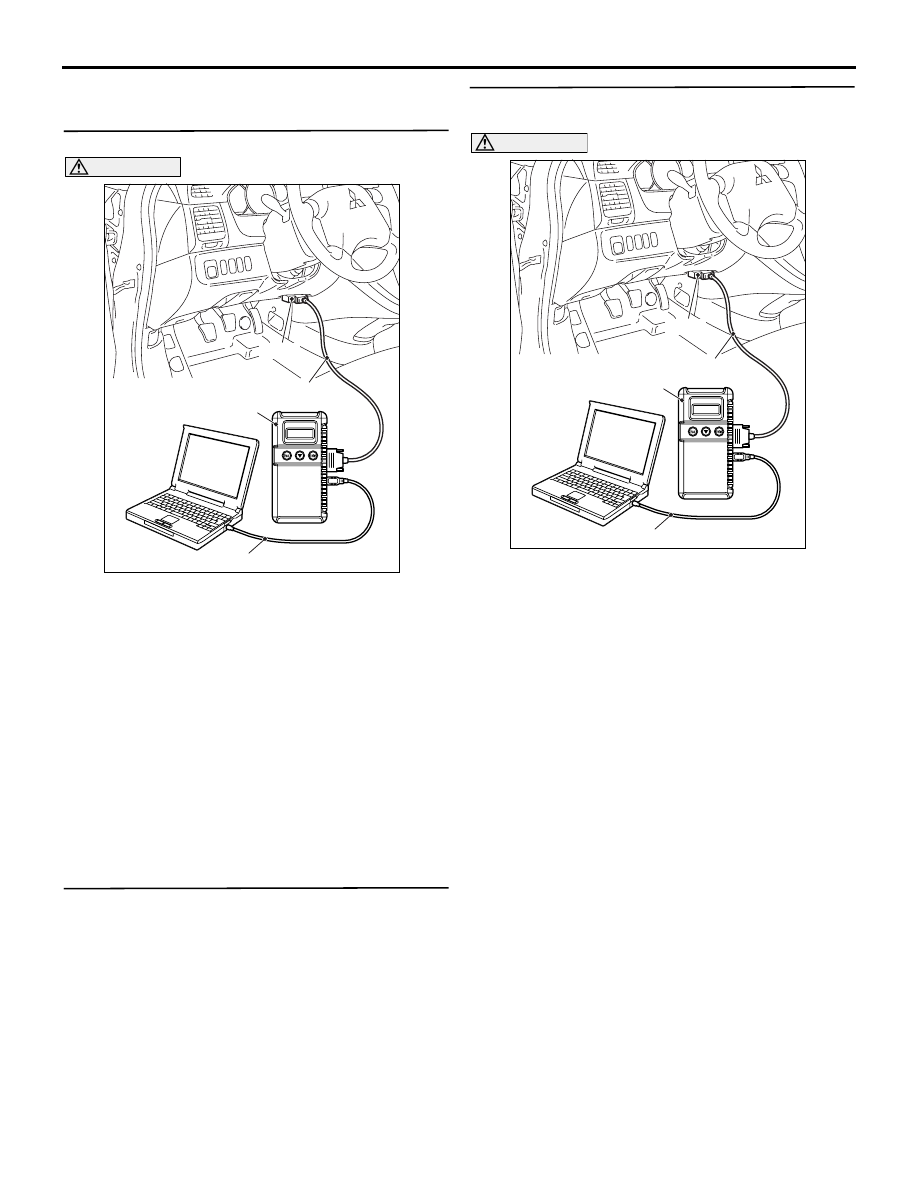

STEP 1. MUT-III CAN bus diagnostics

CAUTION

Before connecting or disconnecting the MUT-III,
turn the ignition switch to the "LOCK" (OFF)
position.
(1) Connect MUT-III to the 16-pin diagnosis

connector.

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF)

position.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the CAN bus line (Refer to GROUP
54D, CAN bus line Diagnostic flow

P.54D-9

). Then go to Step 2.

STEP 2. Check whether the diagnosis code is
reset.

CAUTION

Before connecting or disconnecting the MUT-III,
turn the ignition switch to the "LOCK" (OFF)
position.
(1) Turn the ignition switch to the "ON" position.
(2) Erase the diagnosis code.
(3) Turn the ignition switch to the "LOCK" (OFF)

position.

(4) Turn the ignition switch to the "ON" position.
(5) Check if the diagnosis code is set.
(6) Turn the ignition switch to the "LOCK" (OFF)

position.

Q: Is code No.C1377 set?

YES :

Go to Step 3.

NO :

The procedure is complete.

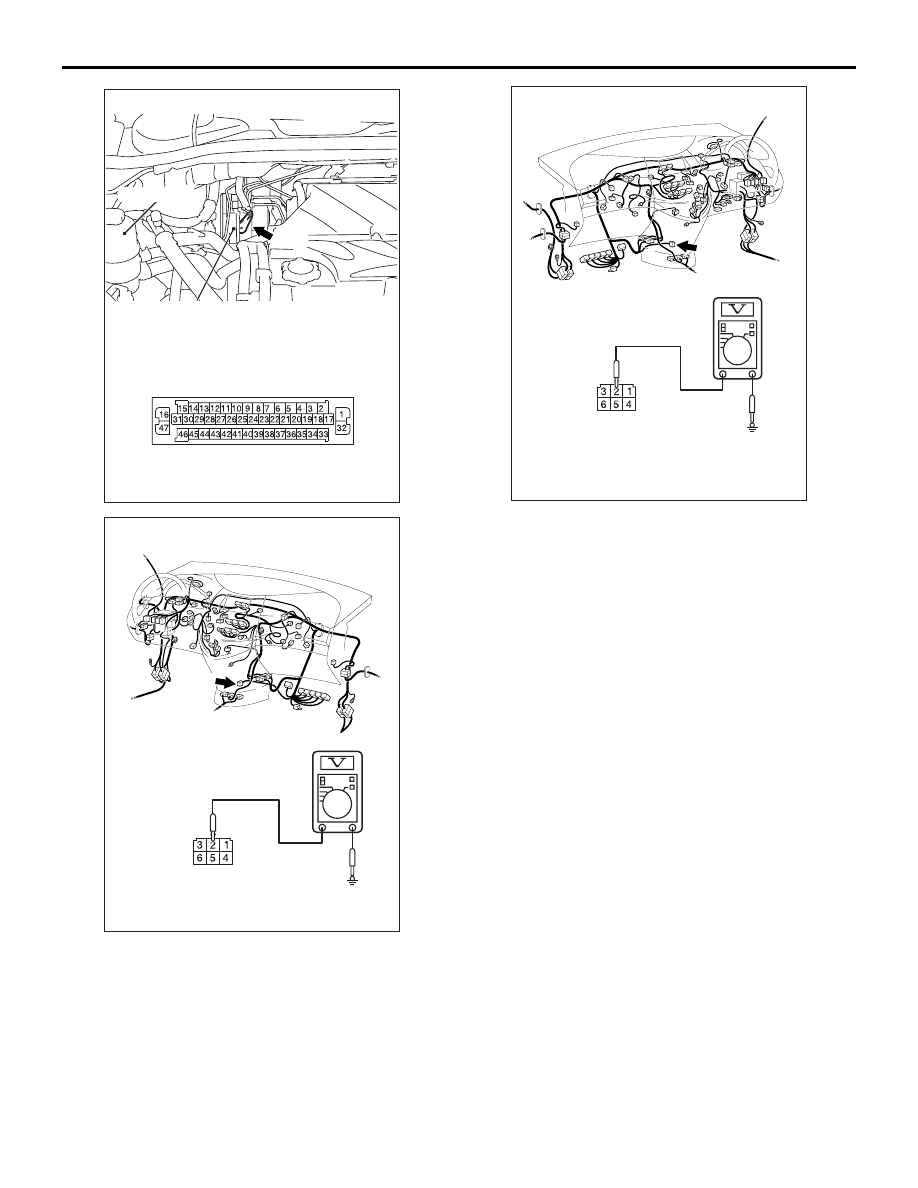

STEP 3. Voltage measurement at G and yaw rate
sensor connector C-117.

AC302297

AC310120

AB

MB991827

16-pin

MB991910

MB991824

AC302297

AC310120

AB

MB991827

16-pin

MB991910

MB991824

TROUBLESHOOTING

TRACTION CONTROL/ACTIVE STABILITY CONTROL SYSTEM

35C-74

(1) Disconnect TCL/ASC-ECU connector A-04 and

G and yaw rate sensor connector C-117

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between the relevant signal

terminals 2, 3 and earth.

OK: Less than 1V

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Check the harness wire between
TCL/ASC-ECU and the G and yaw rate
sensor for short to power supply. Repair if
necessary, and then go to Step 8.

AC312621

Oil reservoir

Connector: A-04

AB

A-04

Hydraulic unit
(with built-in TCL/ASC-ECU)

A-04 Harness connector
(harness side)

AC313186

AD

Connector: C-117
<L.H.drive vehicles>

C-117

C-117 Harness connector
(harness side)

AC313188

C-117 Harness connector
(harness side)

AD

Connector: C-117
<R.H.drive vehicles>

C-117

TROUBLESHOOTING

TRACTION CONTROL/ACTIVE STABILITY CONTROL SYSTEM

35C-75

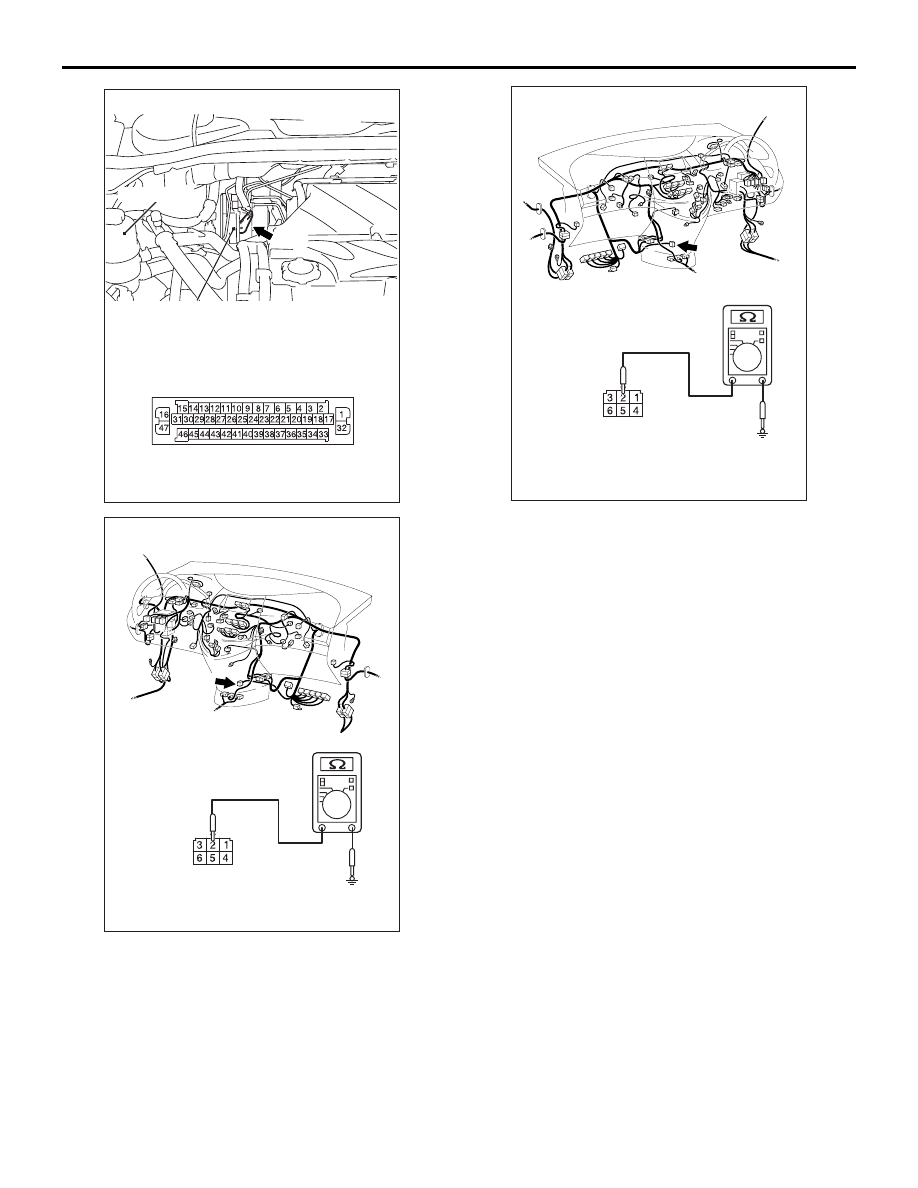

STEP 4. Resistance measurement at G and yaw
rate sensor connector C-117.

TROUBLESHOOTING

TRACTION CONTROL/ACTIVE STABILITY CONTROL SYSTEM

35C-76

(1) Disconnect TCL/ASC-ECU connector A-04 and

G and yaw rate sensor connector C-117

(2) Turn the ignition switch to the "ON" position.
(3) Measure the resistance between the relevant

signal terminals 2, 3 and earth.

OK: No continuity

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Check the harness wire between
TCL/ASC-ECU and the G and yaw rate
sensor for short to earth. Repair if
necessary, and then go to Step 8.

AC312621

Oil reservoir

Connector: A-04

AB

A-04

Hydraulic unit
(with built-in TCL/ASC-ECU)

A-04 Harness connector
(harness side)

AC313186

AE

Connector: C-117
<L.H.drive vehicles>

C-117

C-117 Harness connector
(harness side)

AC313188

C-117 Harness connector
(harness side)

AE

Connector: C-117
<R.H.drive vehicles>

C-117
