PARKING BRAKE CABLE

PARKING BRAKES

36-5

PARKING BRAKE CABLE

REMOVAL AND INSTALLATION

M1361001900666

Pre-removal Operation
• Front seat assembly removal (Refer to GROUP 52A,

Front seat assembly

P.52A-21

.)

• Front scuff plate and rear scuff plate removal (Refer to

GROUP 52A, Interior trim

P.52A-10

.)

• Seatbelt lower anchor bolt removal (Refer to GROUP

52A, Front seatbelt

P.52A-35

.)

• Front door opening trim, rear door opening trim and

centre pillar trim removal (Refer to GROUP 52A, Interior

trim

P.52A-10

.)

• Second seat assembly removal (Refer to GROUP 52A,

Second seat assembly

P.52A-26

.)

• Cowl side trim removal (Refer to GROUP 52A, Interior

trim

P.52A-12

.)

• Accelerator pedal arm stopper removal (Refer to GROUP

17, Accelerator pedal

P.17-3

.)

• Footrest removal

Post-installation Operation
• Footrest installation
• Accelerator pedal arm stopper installation (Refer to

GROUP 17, Accelerator pedal

P.17-3

.)

• Cowl side trim installation (Refer to GROUP 52A, Interior

trim

P.52A-12

.)

• Second seat assembly installation (Refer to GROUP 52A,

Second seat assembly

P.52A-26

.)

• Front door opening trim, rear door opening trim and

centre pillar trim installation (Refer to GROUP 52A,

Interior trim

P.52A-10

.)

• Seatbelt lower anchor bolt installation (Refer to GROUP

52A, Front seatbelt

P.52A-35

.)

• Front scuff plate and rear scuff plate installation (Refer to

GROUP 52A, Interior trim

P.52A-10

.)

• Front seat assembly installation (Refer to GROUP 52A,

Front seat assembly

P.52A-21

.)

• Parking brake lever stroke check and adjustment (Refer

to

P.36-2

.)

AC312924

AB

6

3

1

2

4

5

7

N

5

7

N

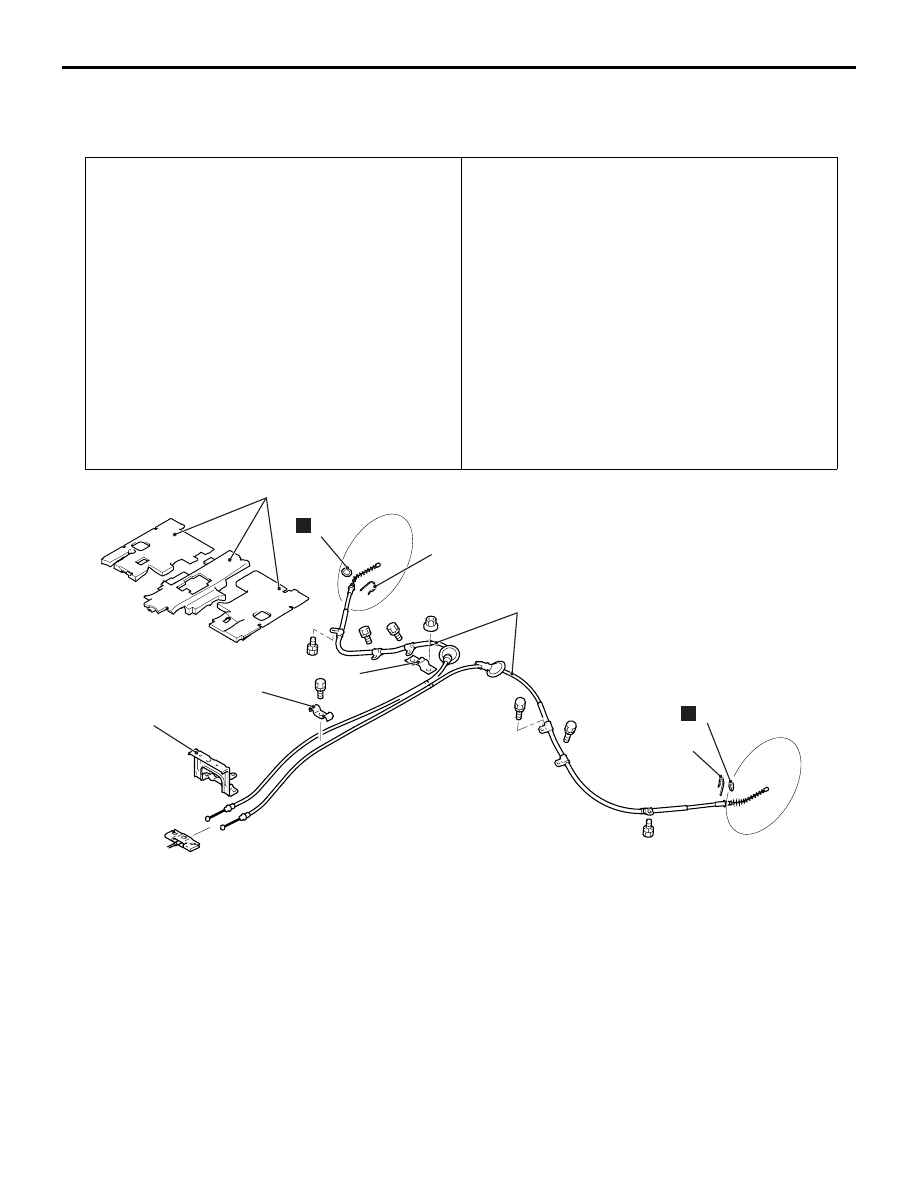

Removal steps

1.

Front floor backbone pad

•

Release the parking brake lever.

•

Parking brake front cable and
parking brake rear cable
connection

2.

Parking brake cable support

3.

Clamp

4.

Clip

•

Shoe and lining assembly (Refer to

P.36-6

).

5.

Clip

6.

Parking brake rear cable

7.

O-ring

Removal steps (Continued)

PARKING BRAKE LINING AND DRUM

PARKING BRAKES

36-6

PARKING BRAKE LINING AND DRUM

REMOVAL AND INSTALLATION

M1361002500434

CAUTION

• The vehicle speed detection encoder collects any metallic particle easily, because it is

magnetised. Make sure that the encoder should not collect any metallic particle. Check that there
is not any trouble prior to reassembling it.

• When the rear wheel speed sensor is removed and installed, make sure that its pole piece does

not contact with surrounding parts to avoid damage.

AC303152AB

1

2

14

15

16

17

18

3

4

5

11

10

8

6

9

7

10

11

13

22

23

20

19

12

21

60 ± 5 N·m

55 ± 5 N·m

N

13

14

23

7

vehicle
speed
detection
encoder

22

Brake grease: Multipurpose grease

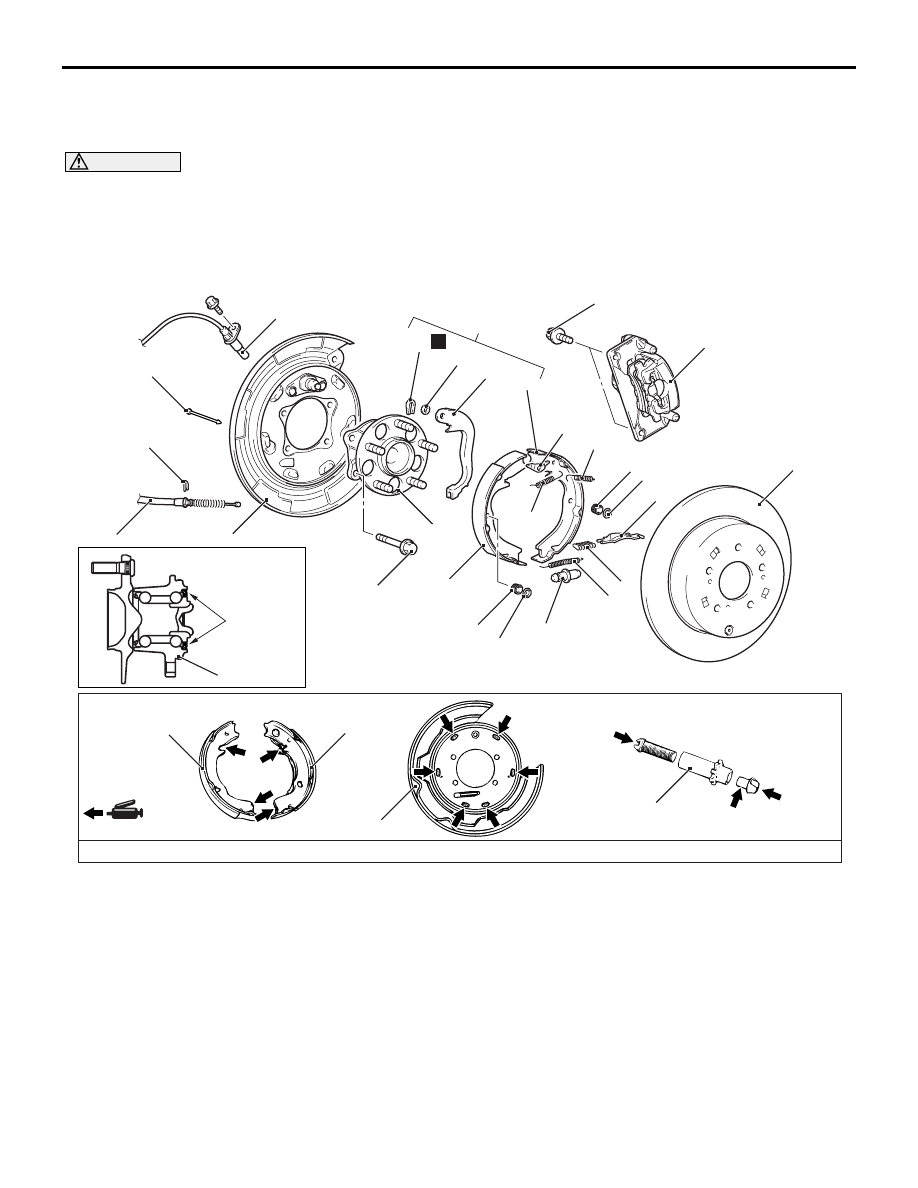

Removal steps

<<A>>

1.

Rear brake caliper assembly

<<B>>

2.

Rear brake disc

>>D<<

3.

Shoe to anchor spring

>>D<<

4.

Shoe to anchor spring

5.

Shoe guide plate

6.

Adjusting wheel spring

>>C<<

7.

Adjuster assembly

8.

Strut

9.

Strut shoe-to-spring

10. Shoe hold down cup
11. Shoe hold down spring
12. Shoe hold down pin

13. Shoe and lining assembly
14. Shoe and lever assembly

>>B<<

15. Retainer

>>A<<

16. Wave washer
17. Parking lever
18. Shoe and lining assembly
19. Pin
20. Parking brake rear cable
21. Rear wheel speed sensor
22. Rear hub assembly
23. Backing plate

Removal steps (Continued)

PARKING BRAKE LINING AND DRUM

PARKING BRAKES

36-7

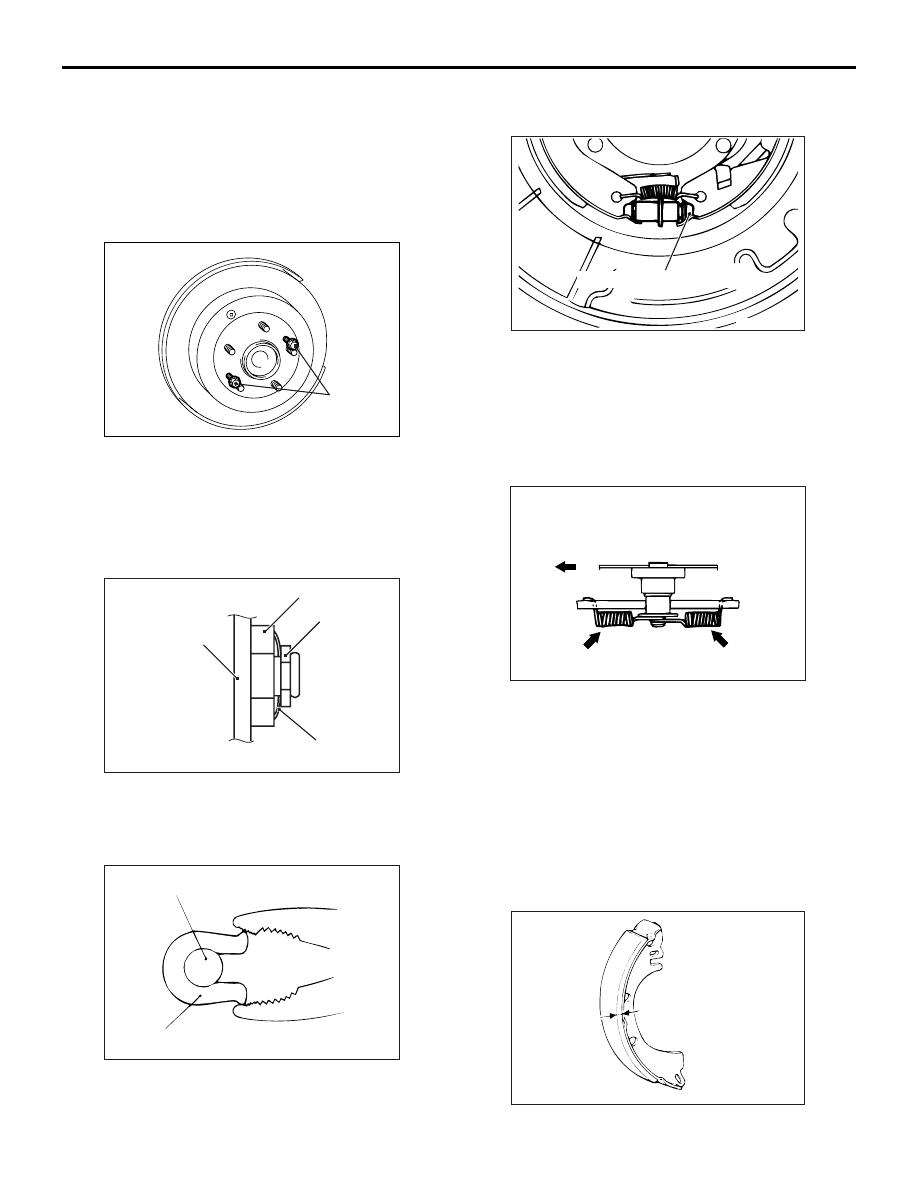

REMOVAL SERVICE POINTS
<<A>> REAR BRAKE CALIPER
ASSEMBLY REMOVAL

Remove the rear brake caliper assembly and hold it
with a wire .

<<B>> BRAKE DISC REMOVAL

If the brake disc is seized, install a M8x1.25 mm bolts
as shown, and remove the disc by tightening the
bolts evenly and gradually.

INSTALLATION SERVICE POINTS
>>A<< WAVE WASHER INSTALLATION

Install the wave washer in the direction shown in the
illustration.

>>B<< RETAINER INSTALLATION

Crimp the retainer firmly to the pin with pliers.

>>C<< ADJUSTER ASSEMBLY
INSTALLATION

Install the adjuster assemblies. For left wheel, the
shoe adjusting bolt should be located at the front of
the vehicle, and for right wheel, it should be located
at the rear of the vehicle.

>>D<< SHOE-TO-ANCHOR SPRING
INSTALLATION

The shoe-to-anchor springs are not interchangeable
as their constants are different.  The one with blue
paint mark should be install at the front of the vehicle,
and the other with yellow paint at the rear of the
vehicle, respectively.
NOTE: The illustration shows the left rear wheel. The
right rear wheel is symmetrical to that.

INSPECTION

M1361002600356

BRAKE LINING THICKNESS INSPECTION

AC302117AB

Bolt
(M8×1.25)

AC303535AB

Shoe and lining
assembly

Parking lever

Wave
washer

Retainer

AC000926 AE

Shoe and lining pin

Retainer

AC202301 AB

Shoe adjusting bolt

AC304117AB

Front of the vehicle

Blue paint

Yellow paint

ACX00708

PARKING BRAKE LINING AND DRUM

PARKING BRAKES

36-8

1. Measure the lining thickness at the most worn

area.

Standard value: 2.8 mm
Limit: 0.8 mm

2. If the thickness is less than limit value, replace the

right and left shoe and lining assemblies as a set.

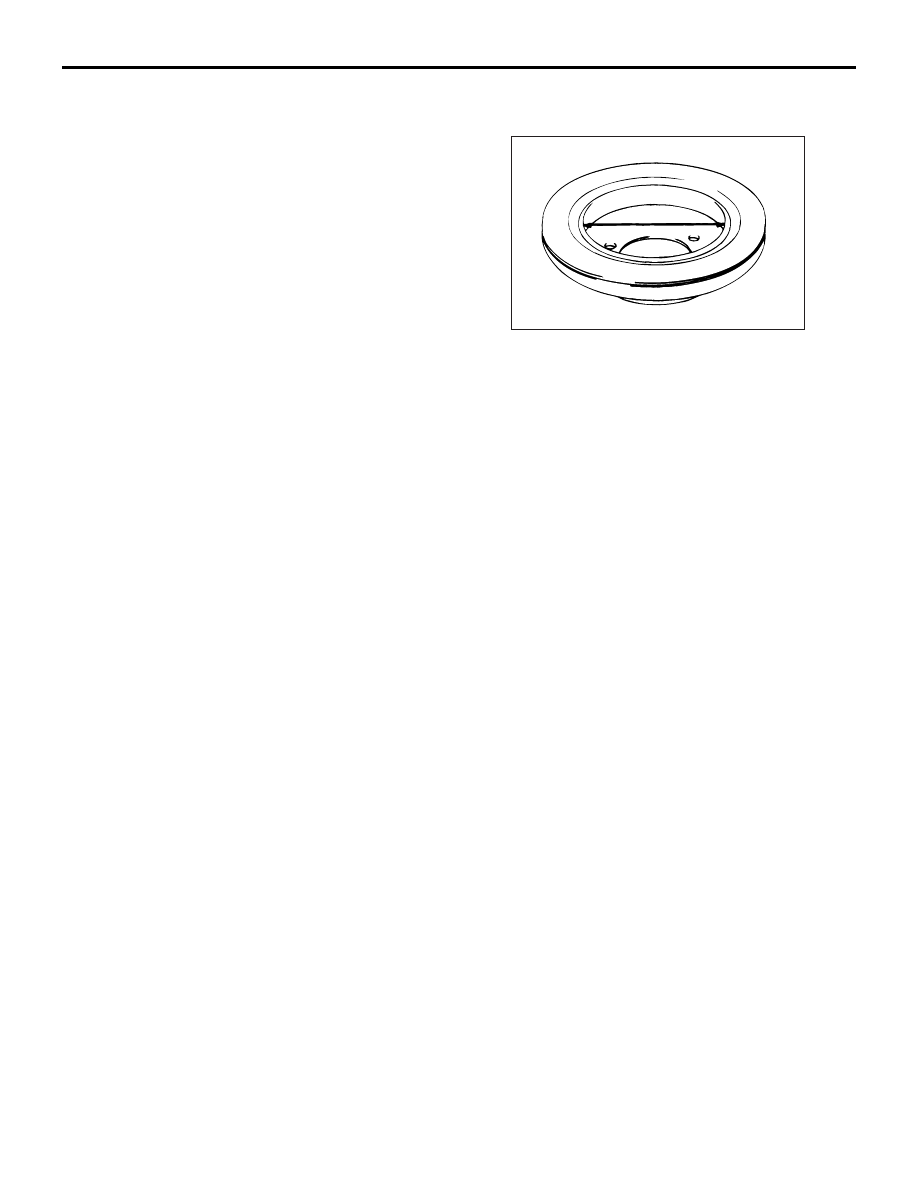

BRAKE DRUM INSIDE DIAMETER
INSPECTION

1. Measure the inside diameter of the brake drum at

two positions or more.

Standard value: 190.0 mm
Limit: 191.0 mm

2. If the inside diameter is more than limit value or if

there is excessive wear, replace the brake disc.
